NSP110L-AHFNKW (2009)

Toyota Urban Cruiser

Production Jan 2009 - Apr 2016
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0901- )LHD

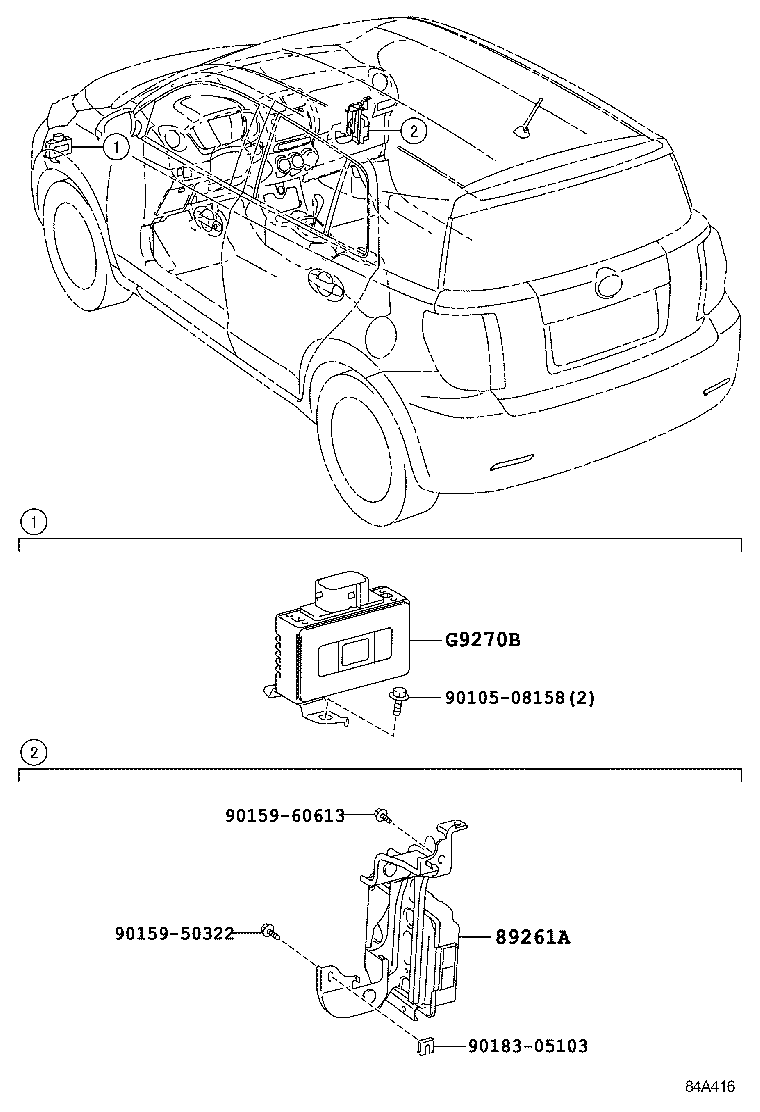

Click highlighted areas on diagram

diagram 89261A 9010508158 9015950322 9015960613 9018305103 G9270B
Part # Description Qty Price
89261A - COMPUTER, ENGINE STOP AND START
89260-52020

NSP110..LHD

WITH(STOP & START SYSTEM)

 1
89260-52021

NSP110..LHD

WITH(STOP & START SYSTEM)

 1
G9270B - CONVERTER ASSY, ECO RUN VEHICLE
G92C0-52011

NSP110..LHD

WITH(STOP & START SYSTEM)

 1
G92C0-52030

NSP110..LHD

WITH(STOP & START SYSTEM)

 1
G92C0-52031

NSP110..LHD

WITH(STOP & START SYSTEM)

 1
Common parts
90105-08158
90159-50322
90159-60613
90183-05103
