NSP110L-AHFNKW (2009)

Toyota Urban Cruiser

Production Jan 2009 - Apr 2016
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0901- )NSP110

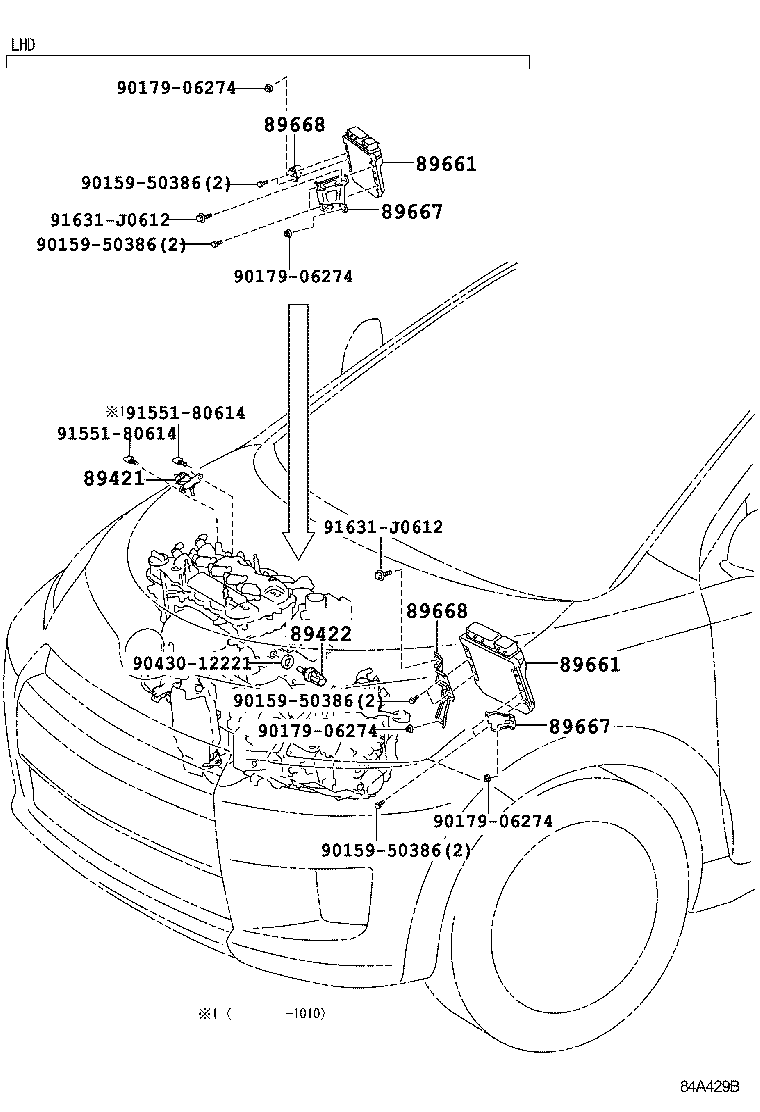

Click highlighted areas on diagram

diagram 89421 89422 89661 89661 89667 89667 89668 89668 9015950386 9015950386 9015950386 9015950386 9017906274 9017906274 9017906274 9017906274 9043012221 9155180614 9155180614 91631J0612 91631J0612
Part # Description Qty Price
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89421-26030

NSP110

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030

NSP110

 1
89661 - COMPUTER, ENGINE CONTROL
89661-52L00

NSP110..LHD

EXHAUST MISSION CONTROL-EUROPE STEP4 W/O(ON BOARD DIAGNOSIS)

 1
89661-52S60

NSP110..LHD

 1
89661-52K90

NSP110..LHD

 1
89661-52Z80

NSP110..LHD

 1
89661-52S61

NSP110..LHD

 1
89661-52K80

NSP110..LHD

WITH(STOP & START SYSTEM)

 1
89661-52S50

NSP110..LHD

WITH(STOP & START SYSTEM)

 1
89661-52L01

NSP110..LHD

EXHAUST MISSION CONTROL-EUROPE STEP4 W/O(ON BOARD DIAGNOSIS)

 1
89661-52Z70

NSP110..LHD

WITH(STOP & START SYSTEM)

 1
89661-52S51

NSP110..LHD

WITH(STOP & START SYSTEM)

 1
89661 - COMPUTER, ENGINE CONTROL
89661-52L00

NSP110..LHD

EXHAUST MISSION CONTROL-EUROPE STEP4 W/O(ON BOARD DIAGNOSIS)

 1
89661-52S60

NSP110..LHD

 1
89661-52K90

NSP110..LHD

 1
89661-52Z80

NSP110..LHD

 1
89661-52S61

NSP110..LHD

 1
89661-52K80

NSP110..LHD

WITH(STOP & START SYSTEM)

 1
89661-52S50

NSP110..LHD

WITH(STOP & START SYSTEM)

 1
89661-52L01

NSP110..LHD

EXHAUST MISSION CONTROL-EUROPE STEP4 W/O(ON BOARD DIAGNOSIS)

 1
89661-52Z70

NSP110..LHD

WITH(STOP & START SYSTEM)

 1
89661-52S51

NSP110..LHD

WITH(STOP & START SYSTEM)

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-52200

NSP110..LHD

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-52200

NSP110..LHD

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-52220

NSP110..LHD

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-52220

NSP110..LHD

 1
Common parts
90159-50386
90179-06274
90430-12221
91551-80614
91631-J0612
