NSP110L-AHFNKW (2009)
Toyota Urban Cruiser

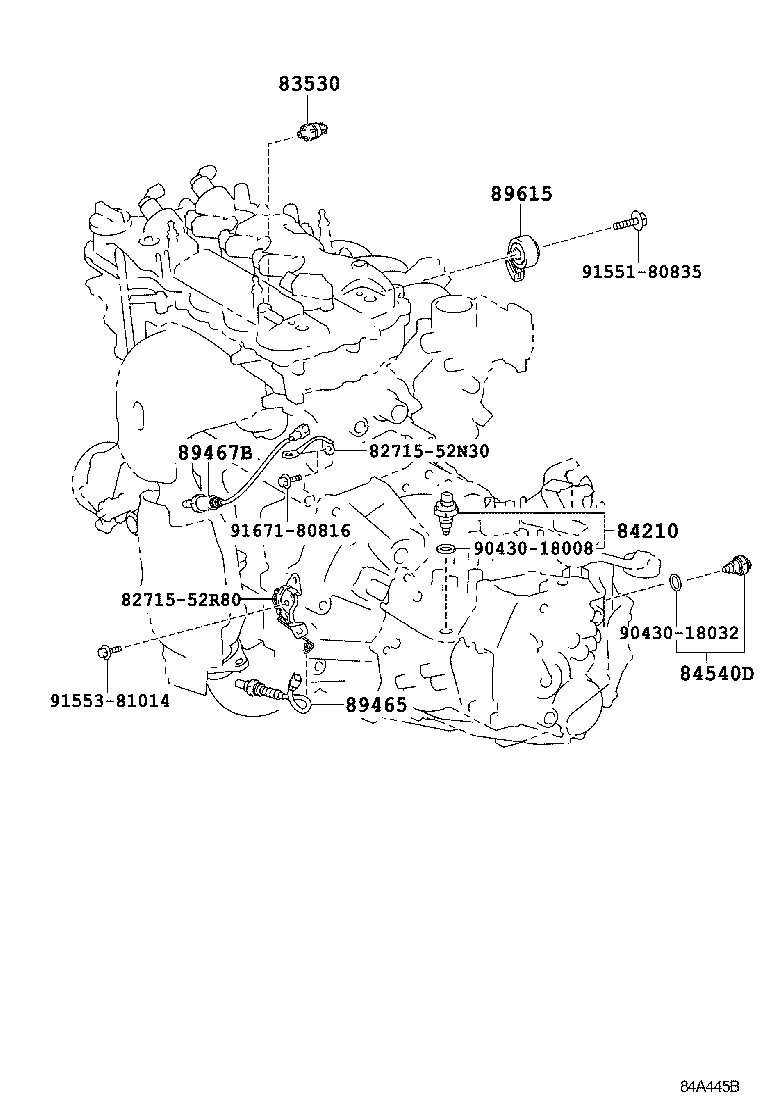

ILLUST NO. 1 OF 7(0901- )NSP110
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
NSP110 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-52050 |
NLP11#,NSP110 |
1 | ||
| 84210-12040 |
NLP11#,NSP110 |
1 | ||
| 84540D - SWITCH ASSY, NEUTRAL START | ||||
| 84545-20021 |
NSP110..LHD WITH(STOP & START SYSTEM) |
1 | ||
| 84545-20020 |
NSP110..LHD WITH(STOP & START SYSTEM) |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-52540 |
NSP110 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-52070 |
NSP110 |
1 | ||
| 89467-52090 |
NSP110 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
NSP110 |
1 | ||
| Common parts | ||||
| 82715-52N30 | ||||
| 82715-52R80 | ||||
| 90430-18008 | ||||
| 90430-18032 | ||||
| 91551-80835 | ||||
| 91553-81014 | ||||
| 91671-80816 | ||||

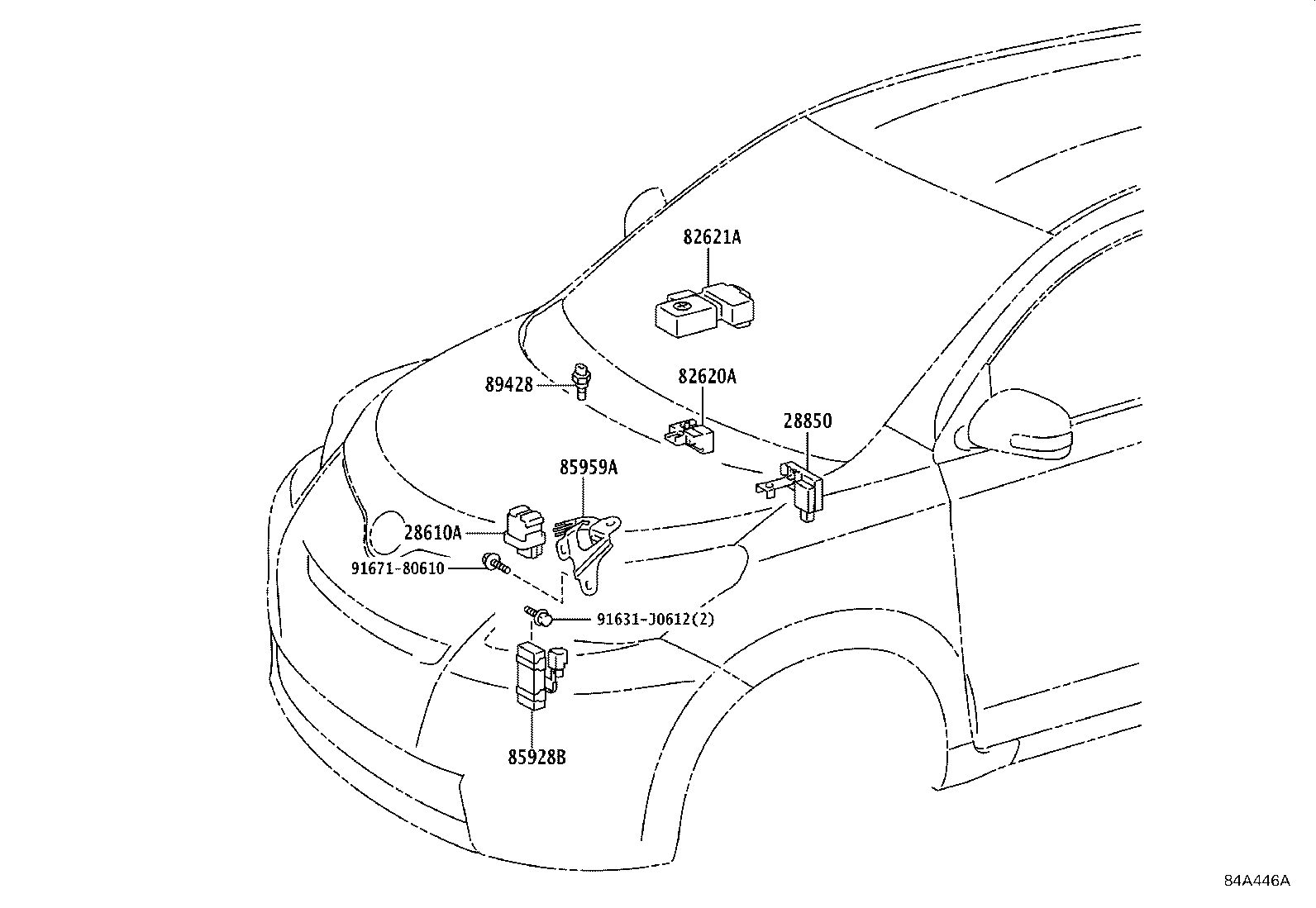

ILLUST NO. 2 OF 7(0901- )LHD
ENGINE ROOM 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28850 - SENSOR ASSY, BATTERY CURRENT | ||||
| 28850-40010 |
1NRFE..NSP110..LHD WITH(STOP & START SYSTEM) |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-52050 |
NSP110 |
1 | ||
| 82621A - COVER, FUSIBLE LINK | ||||
| 82621-52120 |
NSP110 |
1 | ||
| 85928B - RESISTOR, COOLING FAN | ||||
| 85928-52032 |
NSP110 |
1 | ||
| 85928-52030 |
NLP11#,NSP110 |
1 | ||
| 85928-52030 |
NLP11#..LHD..N;NLP11#,NSP110..R FRONT AIR CONDITIONER-WITHOUT(W/H ONLY) |
1 | ||
| 85928-52032 |
NSP110..R FRONT AIR CONDITIONER-WITHOUT(W/H ONLY) |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-12170 |
NSP110..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
1 | ||
| Common parts | ||||
| 91631-J0612 | ||||
| 91671-80610 | ||||

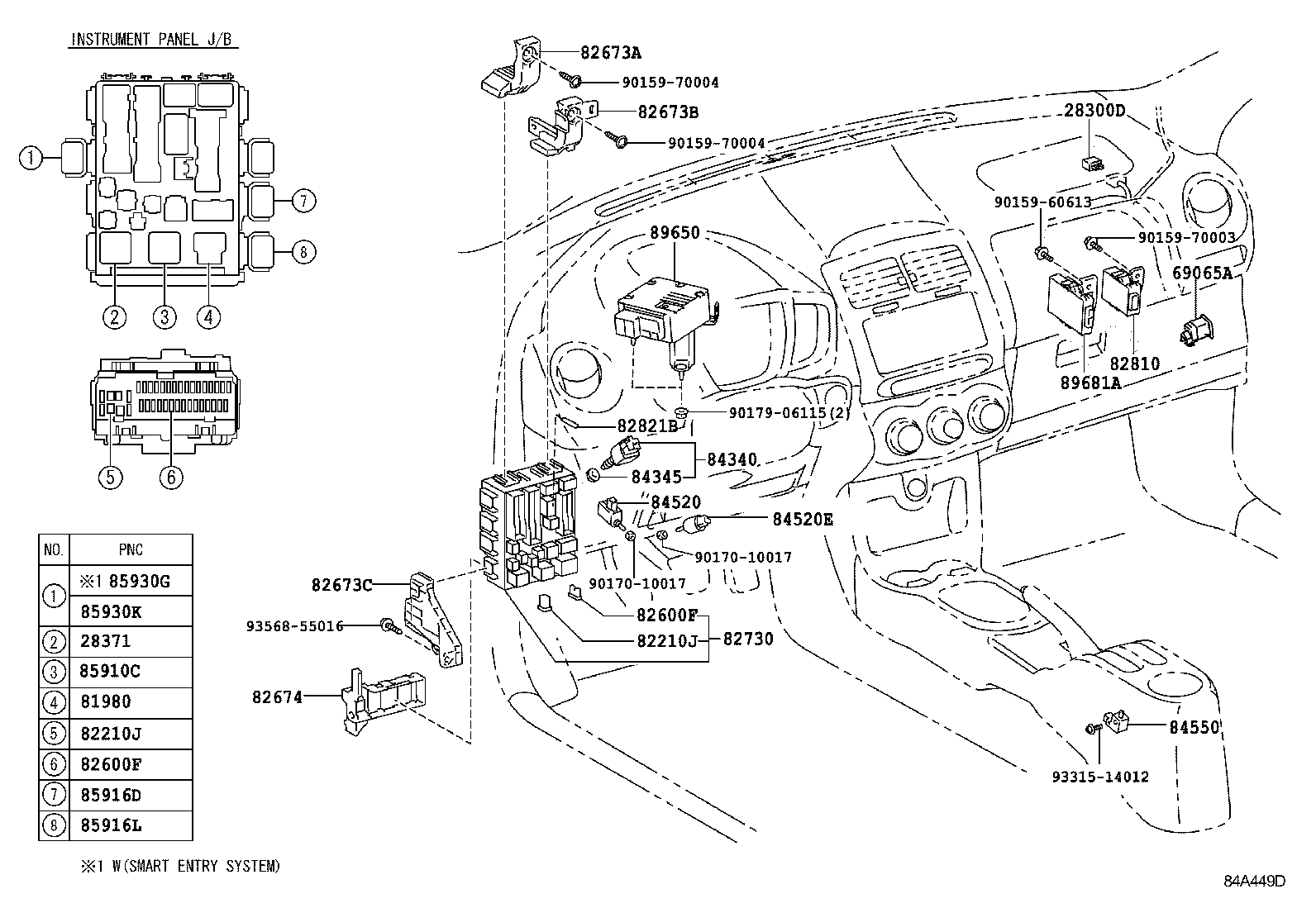

ILLUST NO. 4 OF 7(0901- )LHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300D - RELAY, STARTER CUT | ||||
| 90987-02027 |
1N#..NLP11#,NSP110..LHD..N WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START) |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02030 |
1N#..NLP11#,NSP110 |
1 | ||
| 69065A - CYLINDER SUB-ASSY, AIR BAG CUT OFF SWITCH | ||||
| 69065-52020 |
NLP11#,NSP110..LHD |
1 | ||
| 69065-74010 |
NLP11#,NSP110..LHD |
1 | ||
| 69065-52030 |
NLP11#,NSP110..LHD..N SOL PACKAGE |
1 | ||
| 69065-12460 |
NLP11#,NSP110 |
1 | ||
| 69065-47040 |
NLP11#,NSP110..LHD..N SOL PACKAGE |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-46010 |
NLP11#,NSP110 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08295 |
NLP11#,NSP110 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08296 |
NLP11#,NSP110 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08294 |
NLP11#,NSP110 40A,TERM.:FEMALE,GRN |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08295 |
NLP11#,NSP110 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08296 |
NLP11#,NSP110 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08294 |
NLP11#,NSP110 40A,TERM.:FEMALE,GRN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
NLP11#,NSP110 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
NLP11#,NSP110 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
NLP11#,NSP110 25A,MINI FUSE |
1 | ||
| 90982-09021 |
NLP11#,NSP110 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
NLP11#,NSP110 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
NLP11#,NSP110 20A,MINI FUSE,YELLOW |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
NLP11#,NSP110 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
NLP11#,NSP110 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
NLP11#,NSP110 25A,MINI FUSE |
1 | ||
| 90982-09021 |
NLP11#,NSP110 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
NLP11#,NSP110 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
NLP11#,NSP110 20A,MINI FUSE,YELLOW |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-52110 |
NLP11#,NSP110..LHD |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-52120 |
NLP11#,NSP110..LHD |
1 | ||
| 82673C - BRACKET, JUNCTION BLOCK | ||||
| 82673-52070 |
NLP11#,NSP110..LHD |
1 | ||
| 82674 - COVER, JUNCTION BLOCK LOWER | ||||
| 82674-46010 |
NLP11#,NSP110..LHD |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-52K90 |
NLP11#,NSP110..LHD..N SOL PACKAGE |
1 | ||
| 82730-52N30 |
NLP11#,NSP110..LHD..N SOL PACKAGE |
1 | ||
| 82730-52N40 |
NSP110..LHD..N SOL PACKAGE&COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM) |
1 | ||
| 82730-52L10 |
NSP110..LHD..N SOL PACKAGE&COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM) |
1 | ||
| 82730-52N41 |
NSP110..LHD..N SOL PACKAGE&COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM) |
1 | ||
| 82730-52N31 |
NLP11#,NSP110..LHD..N SOL PACKAGE |
1 | ||
| 82730-52K80 |
NLP11#,NSP110..LHD |
1 | ||
| 82730-52L00 |
NSP110..LHD COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM) |
1 | ||
| 82810 - RELAY ASSY, RUNNING LIGHT | ||||
| 82810-52060 |
NSP110..LHD COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM) |
1 | ||
| 82821B - COVER, CONNECTOR | ||||
| 82821-52020 |
NLP11#,NSP110 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-19025 |
NLP11#,NSP110 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
NLP11#,NSP110 |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-42010 |
NLP11#,NSP110 |
1 | ||
| 84520E - SWITCH ASSY, CLUTCH START, NO.2 | ||||
| 88280-42010 |
NLP11#,NSP110..LHD |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
NLP11#,NSP110 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04010 |
NSP110..LHD..N COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 90987-04010 |
NSP110..LHD..R COLD SPEC & WITH(REAR HEATER DUCT) |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02027 |
NLP11#,NSP110..N |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90987-02027 |
NLP11#,NSP110 |
1 | ||
| 90987-02027 |
NSP110..LHD REAR FOG LAMP-WITHOUT |
1 | ||
| 85930G - RELAY, ACC | ||||
| 90987-02027 |
NLP11#,NSP110..LHD..N SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START) |
1 | ||
| 85930K - RELAY, ACC, NO.2 | ||||
| 90987-04004 |
NLP11#,NSP110..LHD |
1 | ||
| 90987-04004 |
NLP11#,NSP110..LHD..N WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START) |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-52450 |
NLP110,NSP110..LHD |
1 | ||
| 89650-52451 |
NLP110,NSP110..LHD |
1 | ||
| Common parts | ||||
| 90159-60613 | ||||
| 90159-70003 | ||||
| 90159-70004 | ||||
| 90170-10017 | ||||
| 90179-06115 | ||||
| 93315-14012 | ||||
| 93568-55016 | ||||

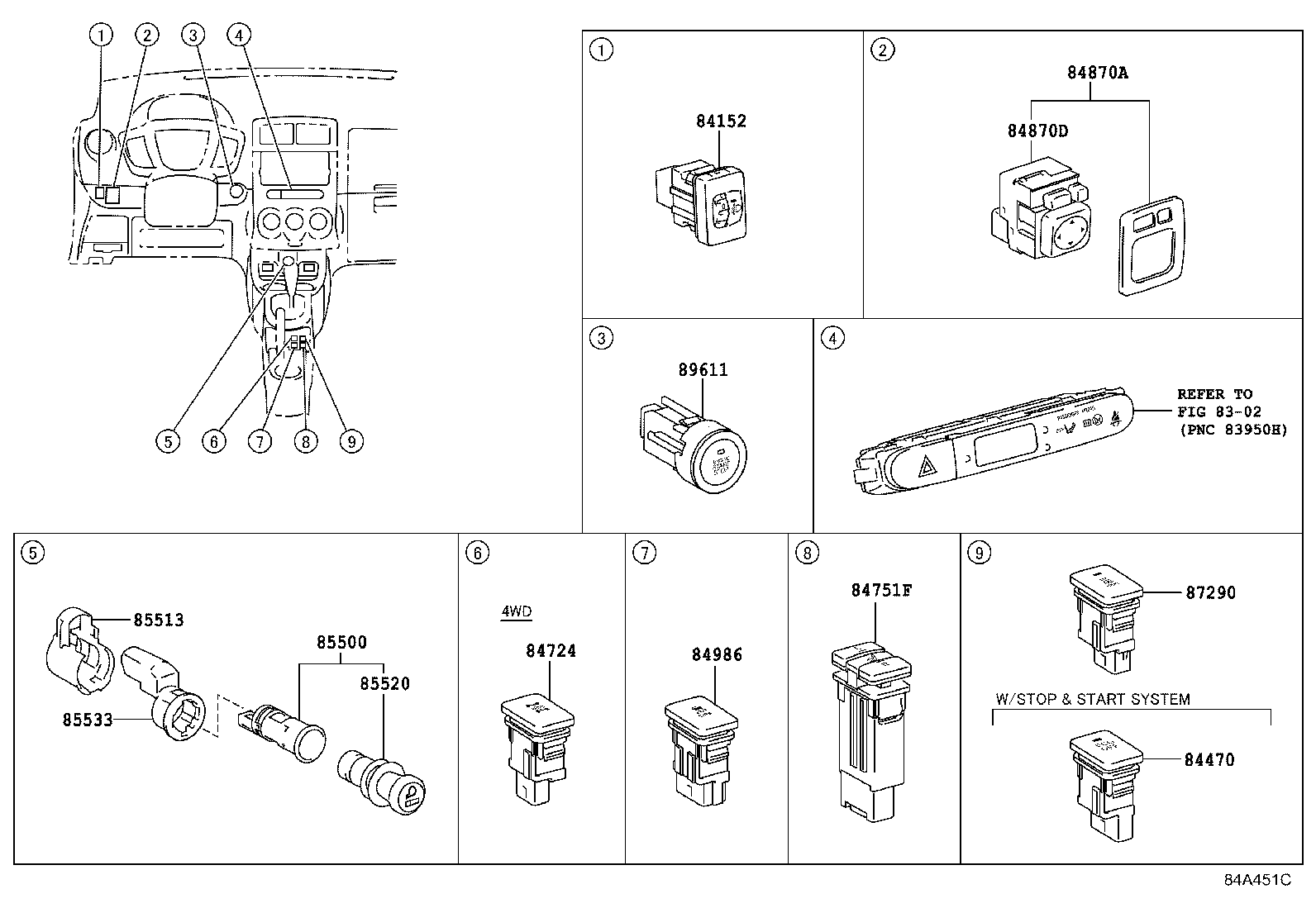

ILLUST NO. 5 OF 7(0901- )LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-52120 |
NLP11#,NSP110 |
1 | ||
| 84152-52121 |
NSP110 |
1 | ||
| 84470 - SWITCH ASSY, WARNING CANCELING | ||||
| 84470-12011 |
NSP110 WITH(STOP & START SYSTEM) |
1 | ||
| 84470-12010 |
NSP110..LHD WITH(STOP & START SYSTEM) |
1 | ||
| 84751F - SWITCH, SEAT HEATER | ||||
| 84751-42040 |
NLP11#,NSP110..LHD SEAT HEATER-WITH(DRIVER & PASSENGER SEAT) |
1 | ||
| 84751-42041 |
NSP110 SEAT HEATER-WITH(DRIVER & PASSENGER SEAT) |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-28020 |
NLP11#,NSP110..N SOL PACKAGE |
1 | ||
| 84870-34010 |
NLP11#,NSP110 |
1 | ||
| 84870D - SWITCH ASSY, OUTER MIRROR, NO.2 | ||||
| 84872-52040 |
NLP11#,NSP110..N SOL PACKAGE |
1 | ||
| 84872-52030 |
NLP11#,NSP110 |
1 | ||
| 84986 - SWITCH, VEHICLE STABILITY CONTROL | ||||
| 84986-12011 |
NSP110 VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 84986-12010 |
NLP110,NSP110..LHD VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28080 |
NLP11#,NSP110 |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-28010 |
NLP11#,NSP110 |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
NLP11#,NSP110 |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-26010 |
NLP11#,NSP110 |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-52023 |
NLP11#,NSP110..LHD..N SOL PACKAGE |
1 | ||
| 89611-52021 |
NLP11#,NSP110..LHD..N SOL PACKAGE |
1 | ||
| 89611-52022 |
NLP11#,NSP110..LHD..N SOL PACKAGE |
1 | ||
| Linked diagrams | ||||
| 8302 | ||||

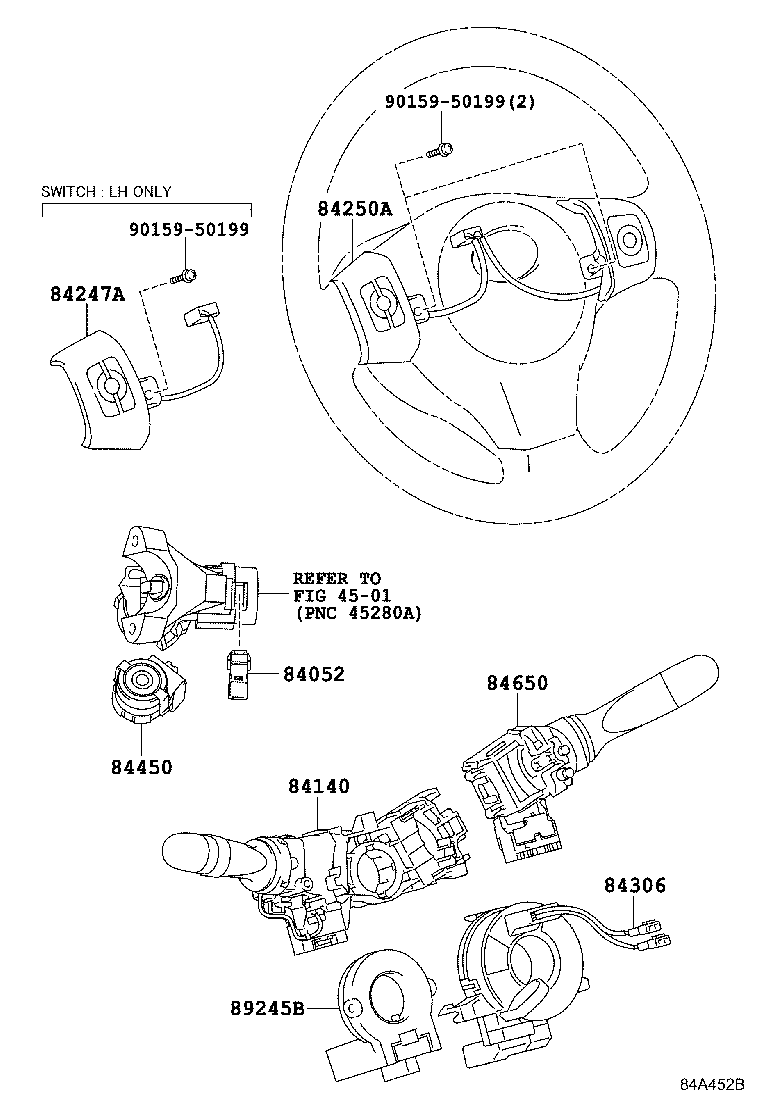

ILLUST NO. 6 OF 7(0901- )LHD
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-71010 |
NLP11#,NSP110..LHD..N SOL PACKAGE |
1 | ||
| 84052-71010 |
NLP11#,NSP110..LHD..N SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START) |
1 | ||
| 84052-71010 |
NLP11#,NSP110..LHD |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-52141 |
NSP110..LHD..R REAR FOG LAMP-WITHOUT |
1 | ||
| 84140-52161 |
NLP11#,NSP110..R |
1 | ||
| 84140-52171 |
NLP11#,NSP110..N |
1 | ||
| 84140-52141 |
NSP110..LHD..R LATIN AMERICA SPEC&REAR FOG LAMP-WITHOUT |
1 | ||
| 84140-52151 |
NSP110..LHD..N LATIN AMERICA SPEC&REAR FOG LAMP-WITHOUT |
1 | ||
| 84140-52151 |
NSP110..LHD..N REAR FOG LAMP-WITHOUT |
1 | ||
| 84247A - SWITCH, STEERING PAD, LH | ||||
| 84247-52090 |
NSP110..LHD..R STEERING WHEEL-3-SPOKE,URETHANE,WITH(STEERING SWITCH) |
1 | ||
| 84247-52070 |
NLP11#,NSP110..N BLACK & WHITE CONCEPT |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-52140 |
NLP11#,NSP110..N |
1 | ||
| 84250-52070 |
NLP11#,NSP110..N |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-12100 |
NLP11#,NSP110..R |
1 | ||
| 84306-52090 |
NSP110..LHD..R DECONTENT PACKAGE&STEERING WHEEL-3-SPOKE,URETHANE,WITH(STEERING SWITCH) |
1 | ||
| 84306-52090 |
NLP11#,NSP110..N |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-71010 |
NLP11#,NSP110..LHD..N SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START) |
1 | ||
| 84450-71010 |
NLP11#,NSP110..LHD |
1 | ||
| 84450-71010 |
NLP11#,NSP110..LHD..N SOL PACKAGE |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-52230 |
NLP11#,NSP110 |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 89245-12020 |
NLP110,NSP110..LHD VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| Linked diagrams | ||||
| 4501 | ||||

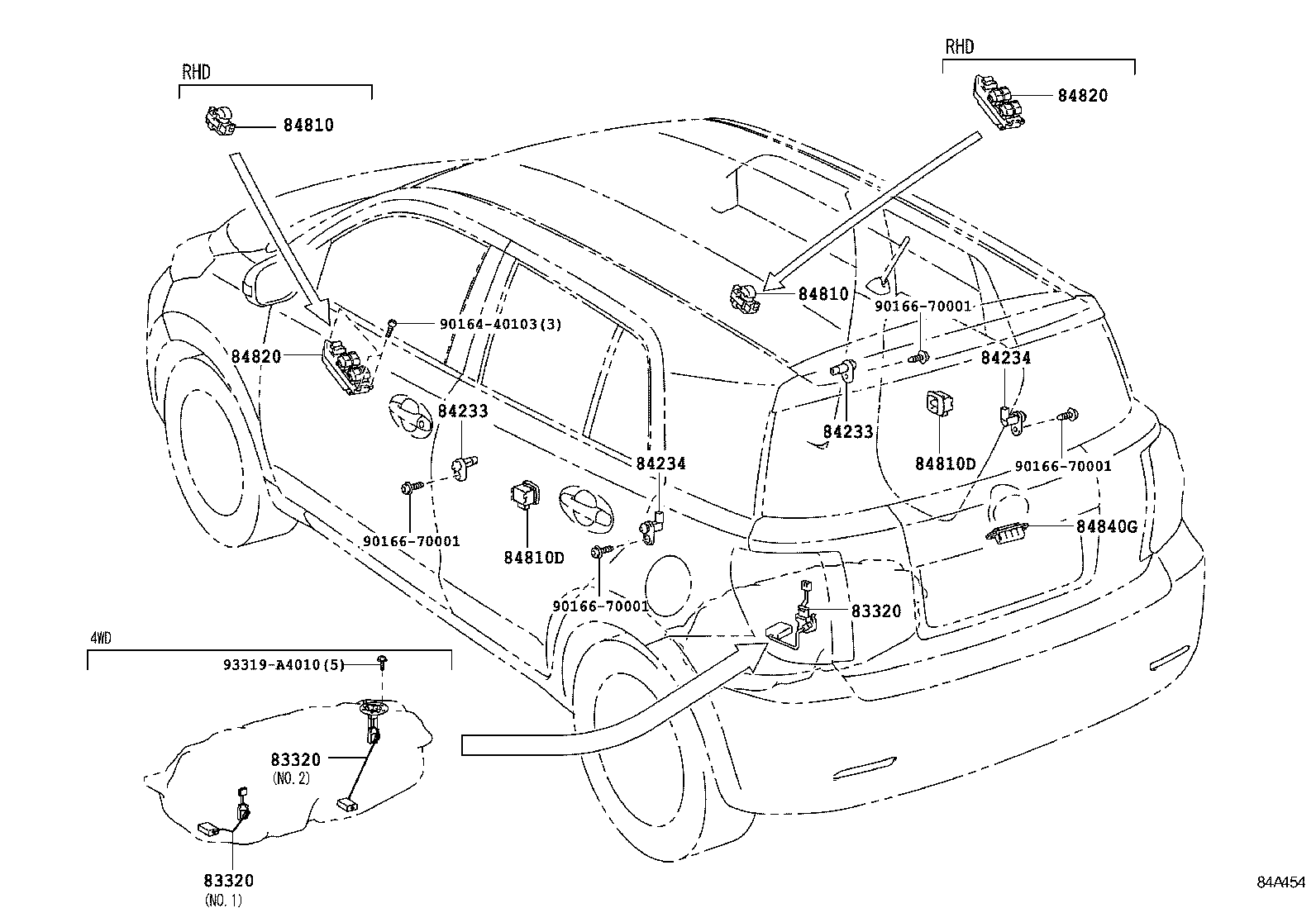

ILLUST NO. 7 OF 7(0901- )
DOOR,ROOF,FLOOR & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-52260 |
NSP110 |
1 | ||
| 83320-52261 |
NLP110,NSP110 |
1 | ||
| 83320-52181 |
NSP110 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-52260 |
NSP110 |
1 | ||
| 83320-52261 |
NLP110,NSP110 |
1 | ||
| 83320-52181 |
NSP110 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-52260 |
NSP110 |
1 | ||
| 83320-52261 |
NLP110,NSP110 |
1 | ||
| 83320-52181 |
NSP110 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-52010 |
NLP11#,NSP110 |
2 | ||
| 84231-52230 |
NSP110 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-52010 |
NLP11#,NSP110 |
2 | ||
| 84231-52230 |
NSP110 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-52020 |
NLP11#,NSP110 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-52020 |
NLP11#,NSP110 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-52030 |
NLP11#,NSP110 |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-52030 |
NLP11#,NSP110 |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-52030 |
NLP11#,NSP110..N |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-52030 |
NLP11#,NSP110..N |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-12510 |
NLP11#,NSP110..LHD..R |
1 | ||
| 84820-12520 |
NLP11#,NSP110..LHD..N |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-12510 |
NLP11#,NSP110..LHD..R |
1 | ||
| 84820-12520 |
NLP11#,NSP110..LHD..N |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-28030 |
NLP11#,NSP110..LHD |
1 | ||
| 84840-28040 |
NLP11#,NSP110..LHD..N SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START) |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90166-70001 | ||||
| 93319-A4010 | ||||

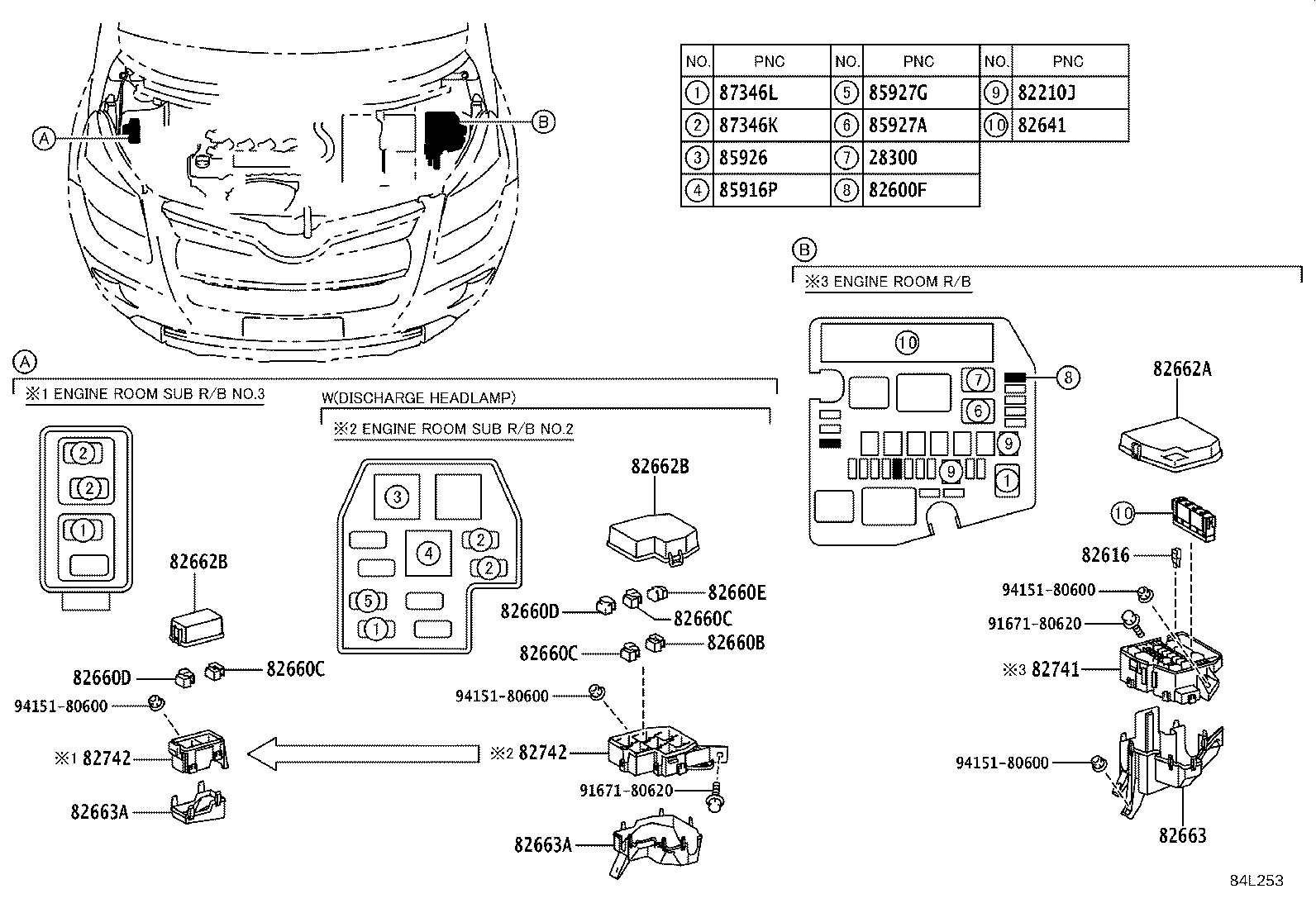

ILLUST NO. 3 OF 7(0901- )LHD
ENGINE ROOM 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
1NDTV..NLP11#;1NRFE..NSP110..LHD |
1 | ||
| 28300-47020 |
1NRFE..NSP110..LHD WITH(STOP & START SYSTEM) |
1 | ||
| 28300-21020 |
1NDTV..NLP11#;1NRFE..NSP110..LHD |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08295 |
NLP11#,NSP110 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08296 |
NLP11#,NSP110 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08294 |
NLP11#,NSP110 40A,TERM.:FEMALE,GRN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
NLP11#,NSP110 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
NLP11#,NSP110 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
NLP11#,NSP110 25A,MINI FUSE |
1 | ||
| 90982-09021 |
NLP11#,NSP110 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
NLP11#,NSP110 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
NLP11#,NSP110 20A,MINI FUSE,YELLOW |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
NLP11#,NSP110 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-47020 |
NLP11#,NSP110 |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
NSP110..LHD..N COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 82660-0H070 |
NSP110..LHD..R COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-52020 |
NSP110..LHD..R COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 82660-52020 |
NSP110..LHD..N COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-52020 |
NSP110..LHD..R COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 82660-52020 |
NSP110..LHD..N COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-52020 |
NSP110..LHD..R COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 82660-52020 |
NSP110..LHD..N COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-52010 |
NSP110..LHD..R COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 82660-52010 |
NSP110..LHD..R COLD SPEC & WITH(REAR HEATER DUCT)&VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 82660-52010 |
NSP110..LHD..N COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 82660-52010 |
NSP110..LHD..N COLD SPEC & WITH(REAR HEATER DUCT)&VEHICLE STABILITY CONT-WITH PUMP UP BA&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-52010 |
NSP110..LHD..R COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 82660-52010 |
NSP110..LHD..R COLD SPEC & WITH(REAR HEATER DUCT)&VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 82660-52010 |
NSP110..LHD..N COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 82660-52010 |
NSP110..LHD..N COLD SPEC & WITH(REAR HEATER DUCT)&VEHICLE STABILITY CONT-WITH PUMP UP BA&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-26270 |
NSP110..LHD..N COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 82660-26270 |
NSP110..LHD..R COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-52580 |
NSP110..LHD..R COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 82662-52301 |
NSP110..LHD |
1 | ||
| 82662-52580 |
NSP110..LHD..N COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-52620 |
NSP110..LHD..R COLD SPEC & WITH(REAR HEATER DUCT)&VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 82662-52610 |
NSP110..LHD..N COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 82662-52610 |
NSP110..LHD..R COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 82662-52620 |
NSP110..LHD..N COLD SPEC & WITH(REAR HEATER DUCT)&VEHICLE STABILITY CONT-WITH PUMP UP BA&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 82662-52580 |
NSP110..LHD WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-52620 |
NSP110..LHD..R COLD SPEC & WITH(REAR HEATER DUCT)&VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 82662-52610 |
NSP110..LHD..N COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 82662-52610 |
NSP110..LHD..R COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 82662-52620 |
NSP110..LHD..N COLD SPEC & WITH(REAR HEATER DUCT)&VEHICLE STABILITY CONT-WITH PUMP UP BA&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 82662-52580 |
NSP110..LHD WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-52031 |
NLP11#,NSP110 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-52060 |
NSP110..LHD..R COLD SPEC & WITH(REAR HEATER DUCT)&VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 82663-52060 |
NSP110..LHD..N COLD SPEC & WITH(REAR HEATER DUCT)&VEHICLE STABILITY CONT-WITH PUMP UP BA&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 82663-52070 |
NSP110..LHD..N COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 82663-52070 |
NSP110..LHD..R COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-52060 |
NSP110..LHD..N COLD SPEC & WITH(REAR HEATER DUCT)&VEHICLE STABILITY CONT-WITH PUMP UP BA&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 82663-52070 |
NSP110..LHD..N COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 82663-52070 |
NSP110..LHD..R COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 82663-52060 |
NSP110..LHD..R COLD SPEC & WITH(REAR HEATER DUCT)&VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-52031 |
NLP11#,NSP110 |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-52050 |
NSP110..LHD..N COLD SPEC & WITH(REAR HEATER DUCT)&VEHICLE STABILITY CONT-WITH PUMP UP BA&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 82741-52050 |
NSP110..LHD..R COLD SPEC & WITH(REAR HEATER DUCT)&VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 82741-52060 |
NSP110..LHD..R COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 82741-52060 |
NSP110..LHD..N COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-52050 |
NSP110..LHD..N COLD SPEC & WITH(REAR HEATER DUCT)&VEHICLE STABILITY CONT-WITH PUMP UP BA&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 82741-52050 |
NSP110..LHD..R COLD SPEC & WITH(REAR HEATER DUCT)&VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 82741-52060 |
NSP110..LHD..R COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 82741-52060 |
NSP110..LHD..N COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
NSP110..LHD COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM) |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-04010 |
NSP110..LHD COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM) |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04004 |
NLP11#,NSP110 |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90987-02027 |
NSP110..LHD..R COLD SPEC & WITH(REAR HEATER DUCT) |
3 | ||
| 90987-02027 |
NSP110..LHD..N COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
3 | ||
| Common parts | ||||
| 91671-80620 | ||||
| 94151-80600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
