NSP110L-AHFNKW (2009)

Toyota Urban Cruiser

Production Jan 2009 - Apr 2016
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0901- )

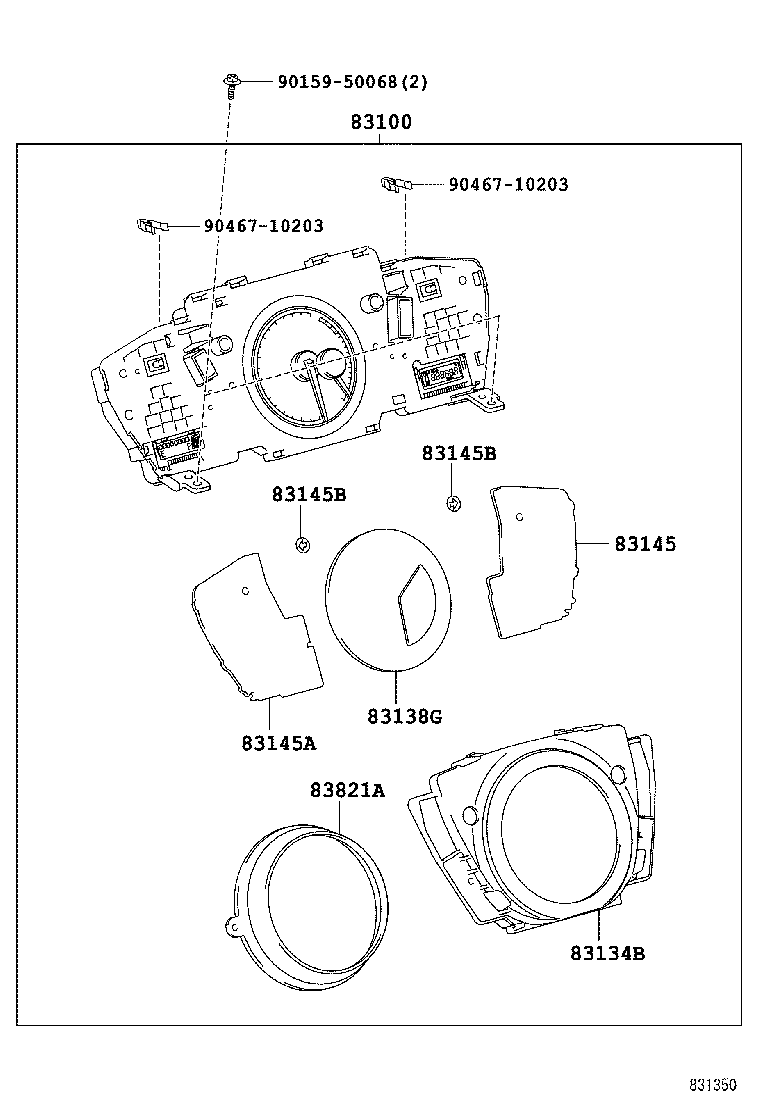

Click highlighted areas on diagram

diagram 83100 83134B 83138G 83145 83145A 83145B 83145B 83821A 9015950068 9046710203 9046710203
Part # Description Qty Price
83100 - METER ASSY, COMBINATION
83800-52K60

NSP110..LHD

 1
83800-52K71

NSP110..LHD

WITH(STOP & START SYSTEM)

 1
83800-52K70

NSP110..LHD

WITH(STOP & START SYSTEM)

 1
83800-52K61

NSP110..LHD

 1
83800-5CL60

NSP110..LHD

WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA

 1
83800-5CM00

NSP110..LHD

 1
83800-5CL50

NSP110..LHD

VEHICLE STABILITY CONT-WITH PUMP UP BA

 1
83134B - COVER, COMBINATION METER, NO.2
83821-52K71

NSP110..LHD

WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA

 1
83822-52M90

NLP11#,NSP110

 1
83821-52Z11

NSP110..LHD

 1
83821-52K71

NSP110..LHD

WITH(STOP & START SYSTEM)

 1
83138G - GLASS, COMBINATION METER
83852-52M91

NLP11#,NSP110

 1
83852-52M90

NLP11#,NSP110

 1
83145 - LENS, METER, NO.1
83831-52K60

NLP11#,NSP110

 1
83831-52K61

NLP11#,NSP110

 1
83145A - LENS, METER, NO.2
83832-52K60

NLP11#,NSP110

 1
83832-52K61

NLP11#,NSP110

 1
83831-5CL50

NLP11#,NSP110

 1
83145B - LENS, METER, NO.3
83833-52M90

NLP11#,NSP110

 2
83145B - LENS, METER, NO.3
83833-52M90

NLP11#,NSP110

 2
83821A - COVER, COMBINATION METER, NO.1
83821-52M90

NLP11#,NSP110

 1
Common parts
90159-50068
90467-10203
