NSP110L-AHFNKW (2009)
Toyota Urban Cruiser

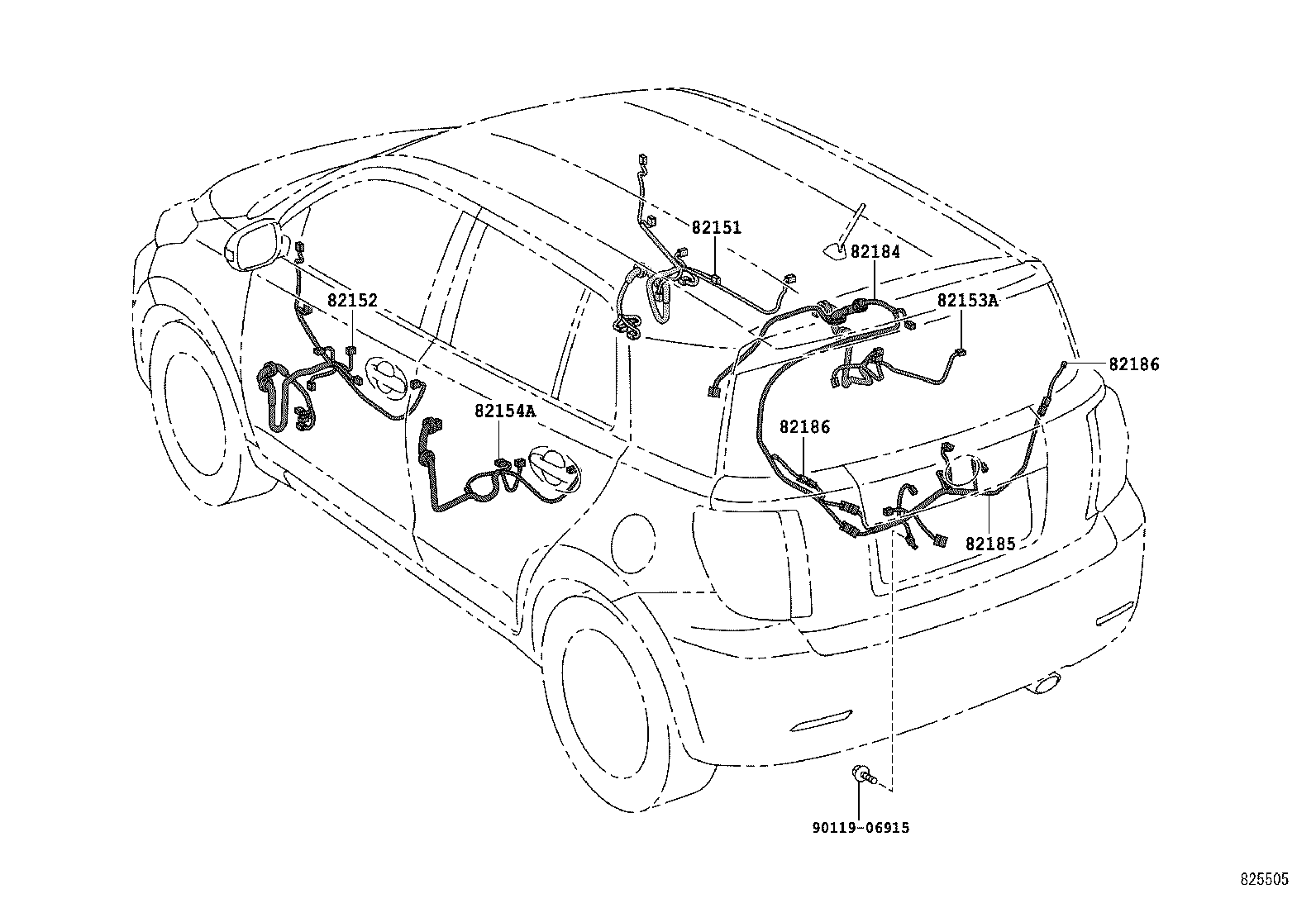

ILLUST NO. 4 OF 8(0901- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-52K90 |
NLP11#,NSP110..LHD |
1 | ||
| 82151-52L00 |
NLP11#,NSP110..LHD..N SOL PACKAGE |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-52F70 |
NLP11#,NSP110..LHD..R |
1 | ||
| 82152-52F80 |
NLP11#,NSP110..LHD..N SOL PACKAGE |
1 | ||
| 82152-52G20 |
NLP11#,NSP110..LHD..N |
1 | ||
| 82153A - WIRE, REAR DOOR, RH | ||||
| 82153-52400 |
NLP11#,NSP110..N |
1 | ||
| 82153-52540 |
NLP11#,NSP110..R |
1 | ||
| 82154A - WIRE, REAR DOOR, LH | ||||
| 82153-52540 |
NLP11#,NSP110..R |
1 | ||
| 82153-52400 |
NLP11#,NSP110..N |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-52470 |
NLP11#,NSP110..LHD..N SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START) |
1 | ||
| 82184-52440 |
NLP11#,NSP110..LHD |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-52450 |
NLP11#,NSP110..LHD |
1 | ||
| 82185-52460 |
NLP11#,NSP110..LHD..N SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START) |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-52130 |
NLP11#,NSP110 |
2 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-52130 |
NLP11#,NSP110 |
2 | ||
| Common parts | ||||
| 90119-06915 | ||||

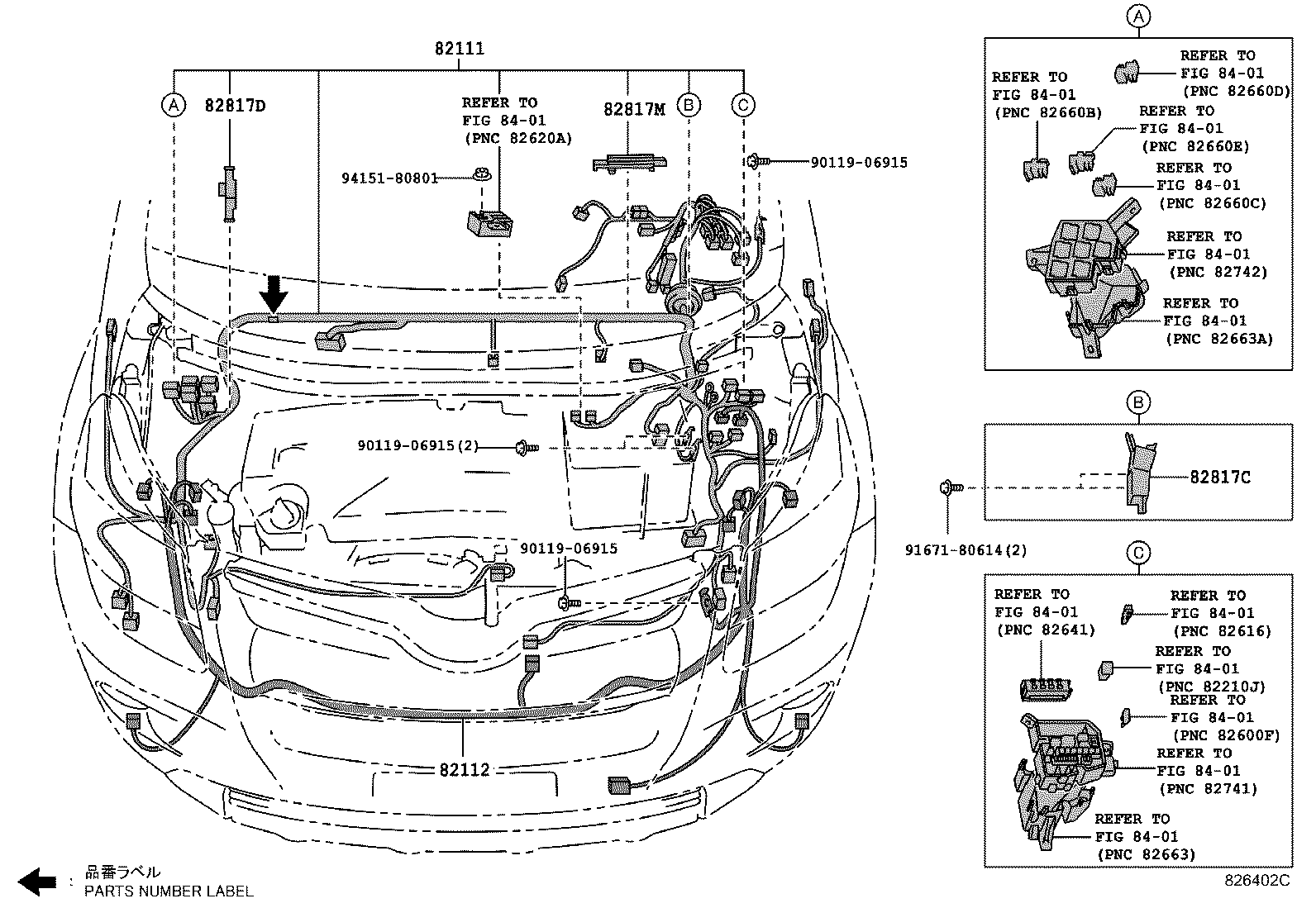

ILLUST NO. 1 OF 8(0901- )LHD
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-52U90 |
NSP110..LHD |
1 | ||
| 82111-52V00 |
NSP110..LHD..R COLD SPEC & WITH(REAR HEATER DUCT)&VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 82111-52V40 |
NSP110..LHD..N COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 82111-52V40 |
NSP110..LHD..R COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 82111-52V00 |
NSP110..LHD..N COLD SPEC & WITH(REAR HEATER DUCT)&VEHICLE STABILITY CONT-WITH PUMP UP BA&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 82111-52V20 |
NSP110..LHD WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 82111-52V21 |
NSP110..LHD WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 82111-52V41 |
NSP110..LHD..N COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 82111-52W60 |
NSP110..LHD VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 82111-52U91 |
NSP110..LHD |
1 | ||
| 82111-52V01 |
NSP110..LHD..N COLD SPEC & WITH(REAR HEATER DUCT)&VEHICLE STABILITY CONT-WITH PUMP UP BA&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 82111-52V41 |
NSP110..LHD..R COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 82111-52V01 |
NSP110..LHD..R COLD SPEC & WITH(REAR HEATER DUCT)&VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 82111-52W61 |
NSP110..LHD VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 82111-52V22 |
NSP110..LHD WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 82111-52V02 |
NSP110..LHD..R COLD SPEC & WITH(REAR HEATER DUCT)&VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 82111-52U92 |
NSP110..LHD |
1 | ||
| 82111-52V02 |
NSP110..LHD..N COLD SPEC & WITH(REAR HEATER DUCT)&VEHICLE STABILITY CONT-WITH PUMP UP BA&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 82111-52V42 |
NSP110..LHD..R COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 82111-52W62 |
NSP110..LHD VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 82111-52V42 |
NSP110..LHD..N COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 82111-52V43 |
NSP110..LHD..R COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 82111-52V23 |
NSP110..LHD WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 82111-52V03 |
NSP110..LHD..R COLD SPEC & WITH(REAR HEATER DUCT)&VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 82111-52V03 |
NSP110..LHD..N COLD SPEC & WITH(REAR HEATER DUCT)&VEHICLE STABILITY CONT-WITH PUMP UP BA&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 82111-52W63 |
NSP110..LHD VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 82111-52U93 |
NSP110..LHD |
1 | ||
| 82111-52V43 |
NSP110..LHD..N COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-52480 |
NSP110..LHD COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM) |
1 | ||
| 82112-52310 |
NSP110 |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-52580 |
NLP11#,NSP110..LHD |
1 | ||
| 82817-52830 |
NLP11#,NSP110..LHD |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-52750 |
NLP11#,NSP110..LHD |
1 | ||
| 82817M - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-52820 |
NLP11#,NSP110..LHD |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91671-80614 | ||||
| 94151-80801 | ||||
| Linked diagrams | ||||
| 8401 | ||||

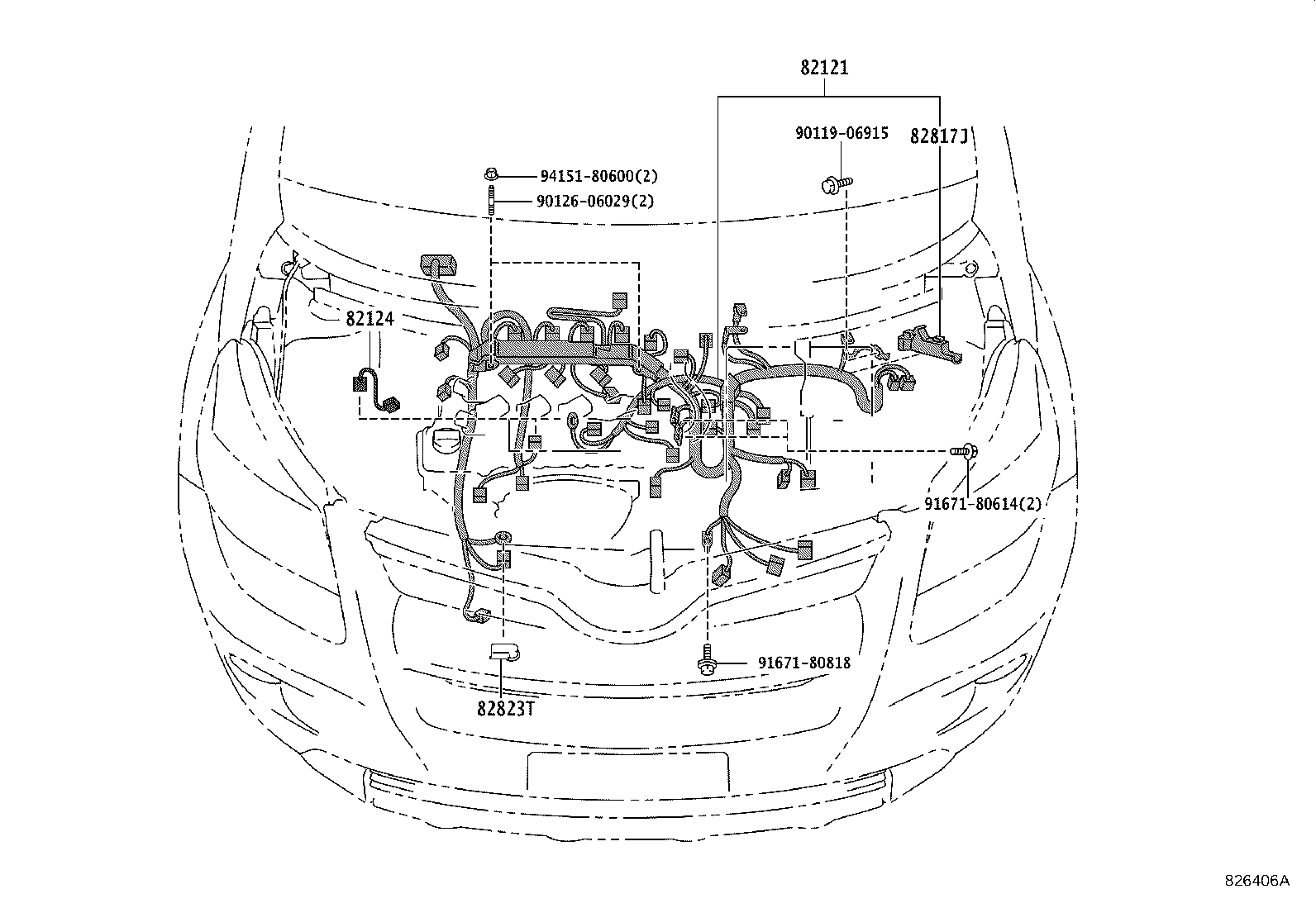

ILLUST NO. 2 OF 8(0901- )NSP110..LHD
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-52J70 |
NSP110..LHD WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 82121-52J60 |
NSP110..LHD |
1 | ||
| 82121-52Q50 |
NSP110..LHD |
1 | ||
| 82121-52Q70 |
NSP110..LHD WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 82121-52J61 |
NSP110..LHD EXHAUST MISSION CONTROL-EUROPE STEP4 W/O(ON BOARD DIAGNOSIS) |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-12150 |
NSP110 |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-52620 |
NSP110..LHD |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
NLP11#,NSP110 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90126-06029 | ||||
| 91671-80614 | ||||
| 91671-80818 | ||||
| 94151-80600 | ||||

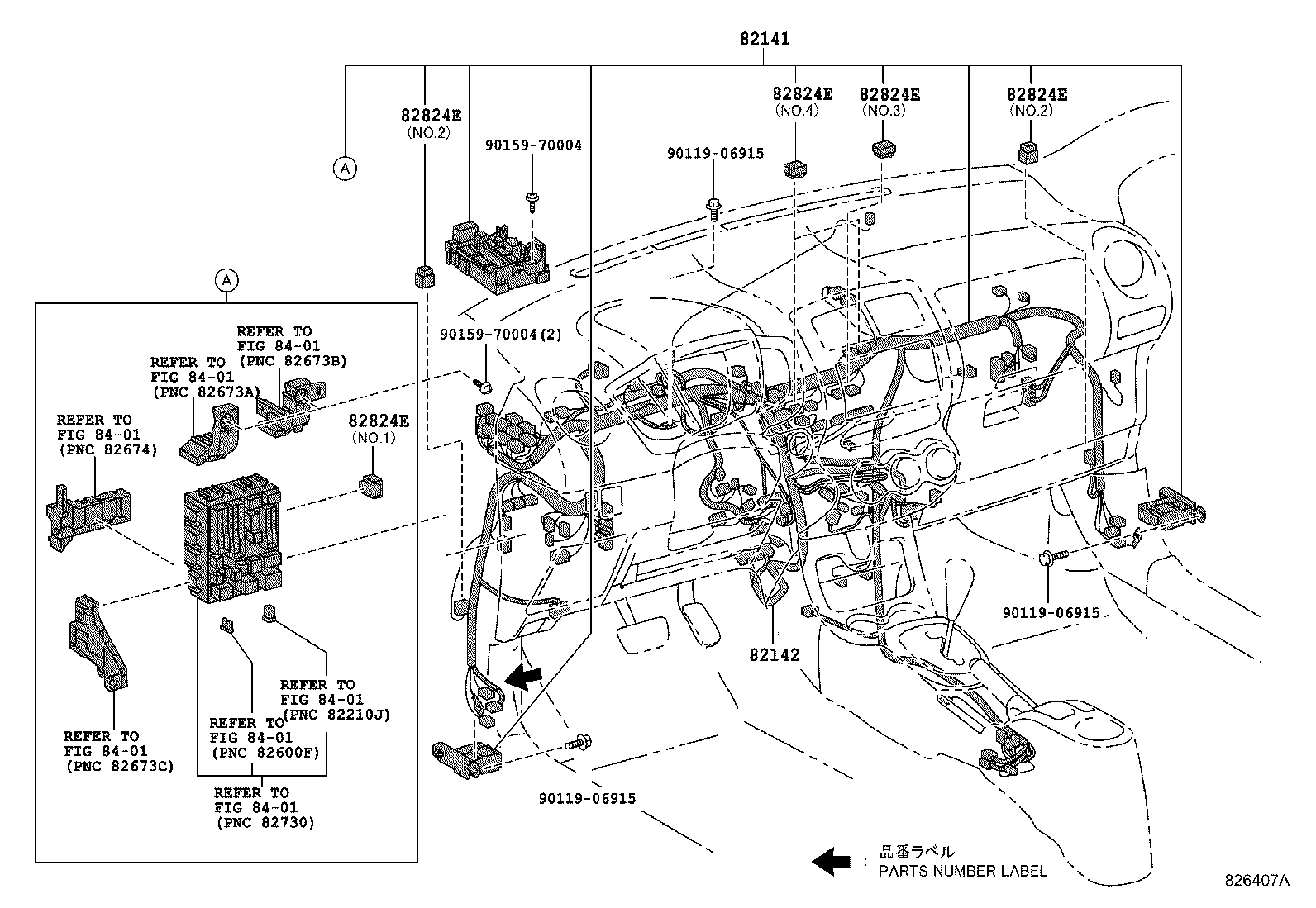

ILLUST NO. 3 OF 8(0901- )LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-52X20 |
NSP110..LHD WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 82141-52X40 |
NSP110..LHD..N COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 82141-52X40 |
NSP110..LHD..R COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 82141-52X30 |
NSP110..LHD..N SOL PACKAGE&WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 82141-5DB90 |
NLP11#,NSP110..LHD..N SOL PACKAGE&VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 82141-5DB80 |
NLP115..LHD..R;NLP110,NSP110..LHD VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 82141-5DB70 |
NLP11#,NSP110..LHD |
1 | ||
| 82141-52X41 |
NSP110..LHD..N COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 82141-5DB71 |
NLP110,NSP110..LHD |
1 | ||
| 82141-52X41 |
NSP110..LHD..R COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 82141-52X21 |
NSP110..LHD WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 82141-5DB81 |
NLP110,NSP110..LHD VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 82141-5DX30 |
NSP110..LHD..N SOL PACKAGE&WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 82141-5DX50 |
NLP110,NSP110..LHD..N SOL PACKAGE&VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 82141-5DX40 |
NSP110..LHD..N SOL PACKAGE&COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 82145-52E70 |
NSP110..LHD..R DECONTENT PACKAGE |
1 | ||
| 82141-52X42 |
NSP110..LHD..N COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 82141-5DB72 |
NLP110,NSP110..LHD |
1 | ||
| 82141-52X42 |
NSP110..LHD..R COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 82141-5DB82 |
NLP110,NSP110..LHD VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 82141-52X22 |
NSP110..LHD WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 82141-5DX41 |
NSP110..LHD..N SOL PACKAGE&COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 82145-52E71 |
NSP110..LHD..R DECONTENT PACKAGE |
1 | ||
| 82141-5DX31 |
NSP110..LHD..N SOL PACKAGE&WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 82141-5DX51 |
NLP110,NSP110..LHD..N SOL PACKAGE&VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-52420 |
NLP11#,NSP110..LHD..N FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 82142-52530 |
NSP110..LHD..N COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 82142-52460 |
NSP110..LHD..N WITH(STOP & START SYSTEM) |
1 | ||
| 82142-52420 |
NLP11#,NSP110..LHD..R |
1 | ||
| 82142-52530 |
NSP110..LHD..R COLD SPEC & WITH(REAR HEATER DUCT) |
1 | ||
| 82142-52420 |
NSP110..LHD..N WITH(STOP & START SYSTEM)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 82142-52530 |
NSP110..LHD..N COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 82142-52450 |
NLP11#,NSP110..LHD..N |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-47210 |
NLP11#,NSP110 NO.2 |
2 | ||
| 82824-52280 |
NLP11#,NSP110 NO.3 |
1 | ||
| 82824-52290 |
NLP11#,NSP110 NO.4 |
2 | ||
| 82824-22070 |
NLP11#,NSP110 NO.1 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-47210 |
NLP11#,NSP110 NO.2 |
2 | ||
| 82824-52280 |
NLP11#,NSP110 NO.3 |
1 | ||
| 82824-52290 |
NLP11#,NSP110 NO.4 |
2 | ||
| 82824-22070 |
NLP11#,NSP110 NO.1 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-47210 |
NLP11#,NSP110 NO.2 |
2 | ||
| 82824-52280 |
NLP11#,NSP110 NO.3 |
1 | ||
| 82824-52290 |
NLP11#,NSP110 NO.4 |
2 | ||
| 82824-22070 |
NLP11#,NSP110 NO.1 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-47210 |
NLP11#,NSP110 NO.2 |
2 | ||
| 82824-52280 |
NLP11#,NSP110 NO.3 |
1 | ||
| 82824-52290 |
NLP11#,NSP110 NO.4 |
2 | ||
| 82824-22070 |
NLP11#,NSP110 NO.1 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-47210 |
NLP11#,NSP110 NO.2 |
2 | ||
| 82824-52280 |
NLP11#,NSP110 NO.3 |
1 | ||
| 82824-52290 |
NLP11#,NSP110 NO.4 |
2 | ||
| 82824-22070 |
NLP11#,NSP110 NO.1 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90159-70004 | ||||
| Linked diagrams | ||||
| 8401 | ||||

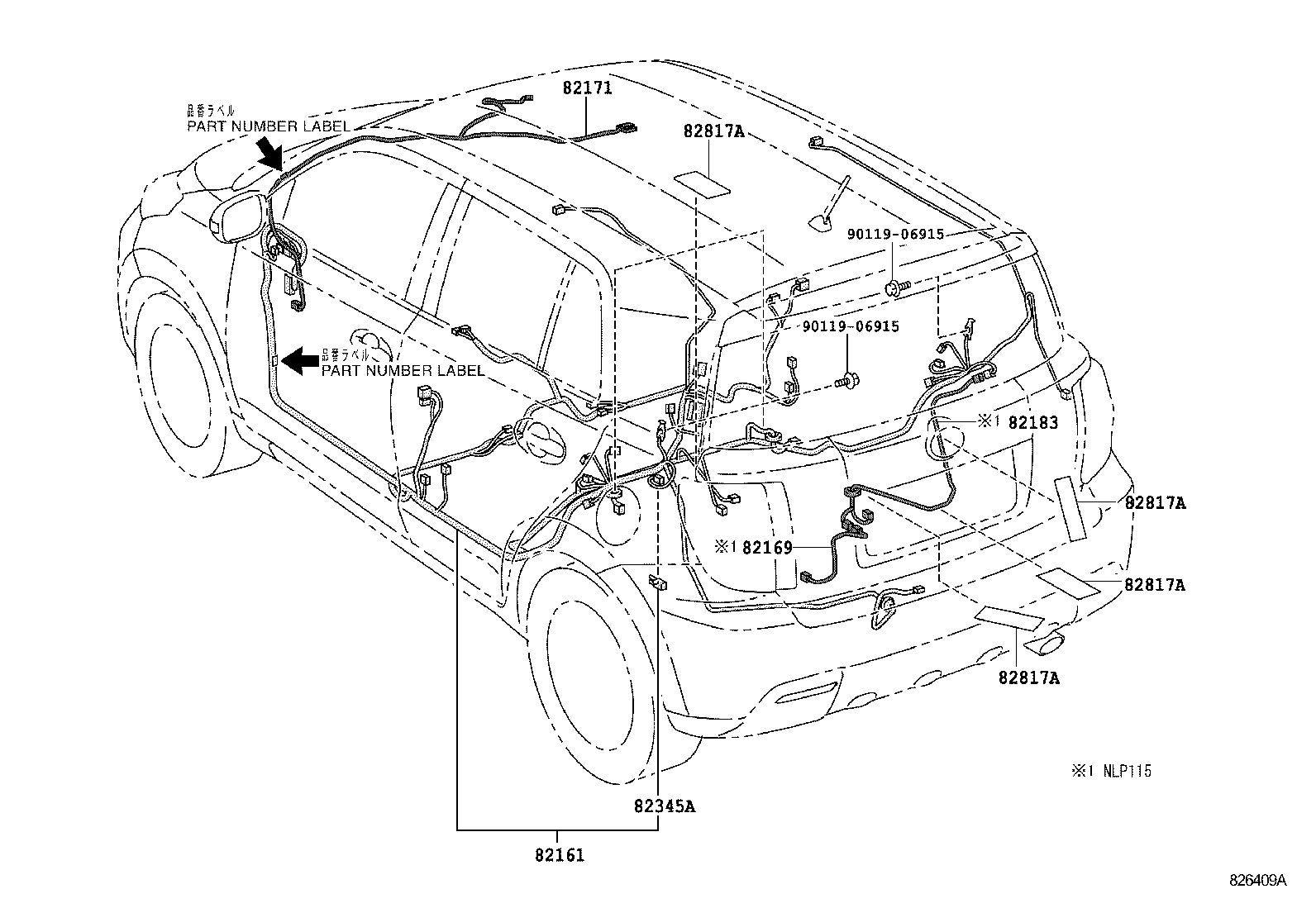

ILLUST NO. 5 OF 8(0901- )
FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-52X80 |
NLP110,NSP110..LHD |
1 | ||
| 82161-52X90 |
NLP110,NSP110..LHD..N SOL PACKAGE |
1 | ||
| 82161-5CG90 |
NLP110,NSP110..LHD..N SOL PACKAGE |
1 | ||
| 82161-5CG80 |
NLP110,NSP110..LHD |
1 | ||
| 82161-5CG91 |
NLP110,NSP110..LHD..N SOL PACKAGE |
1 | ||
| 82161-5CG81 |
NLP110,NSP110..LHD |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-52370 |
NLP11#,NSP110..R |
1 | ||
| 82171-52431 |
NLP11#,NSP110..N |
1 | ||
| 82171-52430 |
NLP11#,NSP110..N |
1 | ||
| 82171-52441 |
NLP11#,NSP110..N SOL PACKAGE |
1 | ||
| 82171-52440 |
NLP11#,NSP110..N SOL PACKAGE |
1 | ||
| 82345A - DIODE | ||||
| 82345-32010 |
NLP11#,NSP110 |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-52710 |
NLP11#,NSP110 |
3 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-52710 |
NLP11#,NSP110 |
3 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-52710 |
NLP11#,NSP110 |
3 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-52710 |
NLP11#,NSP110 |
3 | ||
| Common parts | ||||
| 90119-06915 | ||||

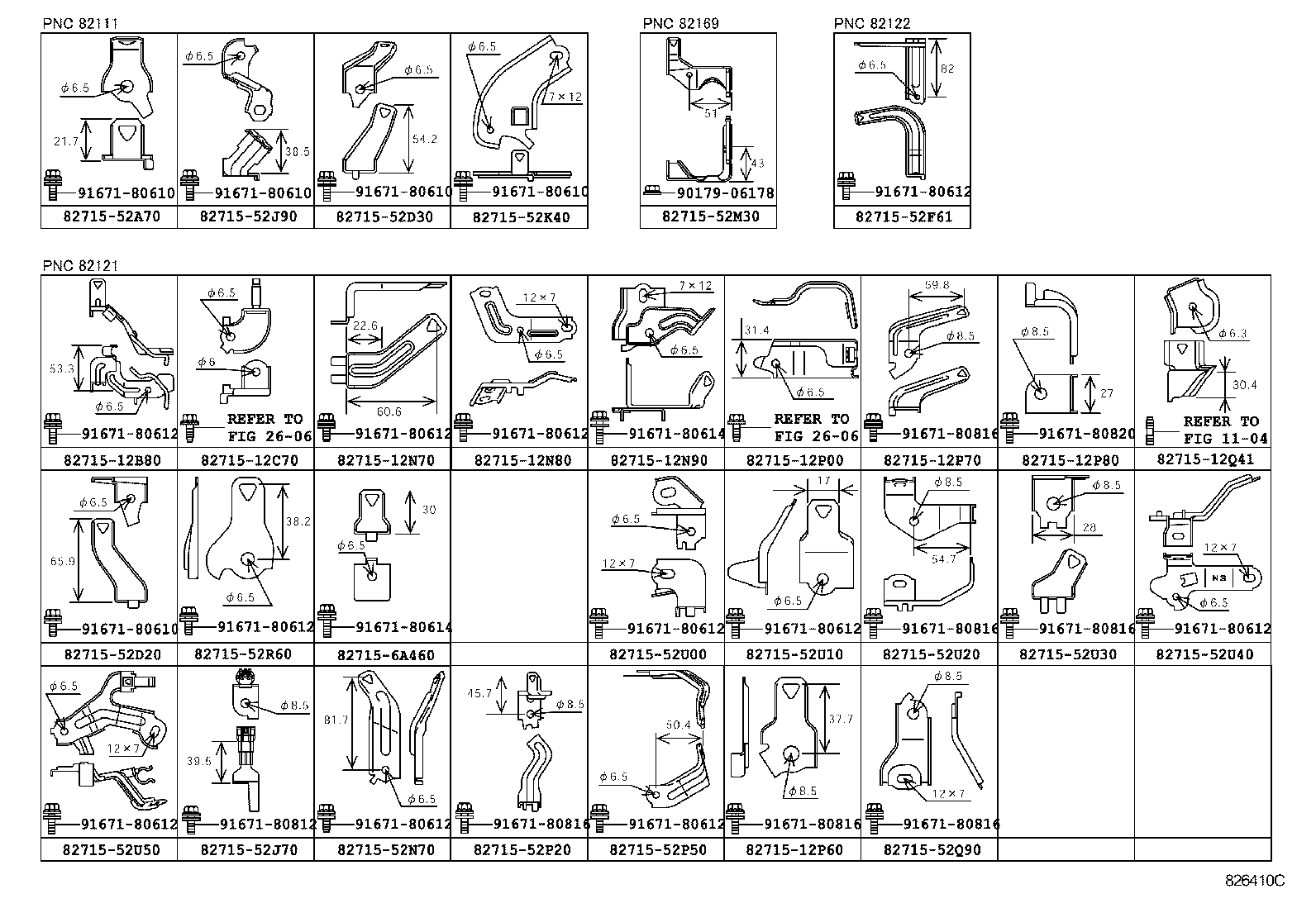

ILLUST NO. 6 OF 8(0901- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-12B80 | ||||
| 82715-12C70 | ||||
| 82715-12N70 | ||||
| 82715-12N80 | ||||
| 82715-12N90 | ||||
| 82715-12P00 | ||||
| 82715-12P60 | ||||
| 82715-12P70 | ||||
| 82715-12P80 | ||||
| 82715-12Q41 | ||||
| 82715-52A70 | ||||
| 82715-52D20 | ||||
| 82715-52D30 | ||||
| 82715-52F61 | ||||
| 82715-52J70 | ||||
| 82715-52J90 | ||||
| 82715-52K40 | ||||
| 82715-52M30 | ||||
| 82715-52N70 | ||||
| 82715-52P20 | ||||
| 82715-52P50 | ||||
| 82715-52Q90 | ||||
| 82715-52R60 | ||||
| 82715-52U00 | ||||
| 82715-52U10 | ||||
| 82715-52U20 | ||||
| 82715-52U30 | ||||
| 82715-52U40 | ||||
| 82715-52U50 | ||||
| 82715-6A460 | ||||
| 90179-06178 | ||||
| 91671-80610 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91671-80812 | ||||
| 91671-80816 | ||||
| 91671-80820 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 2606 | ||||

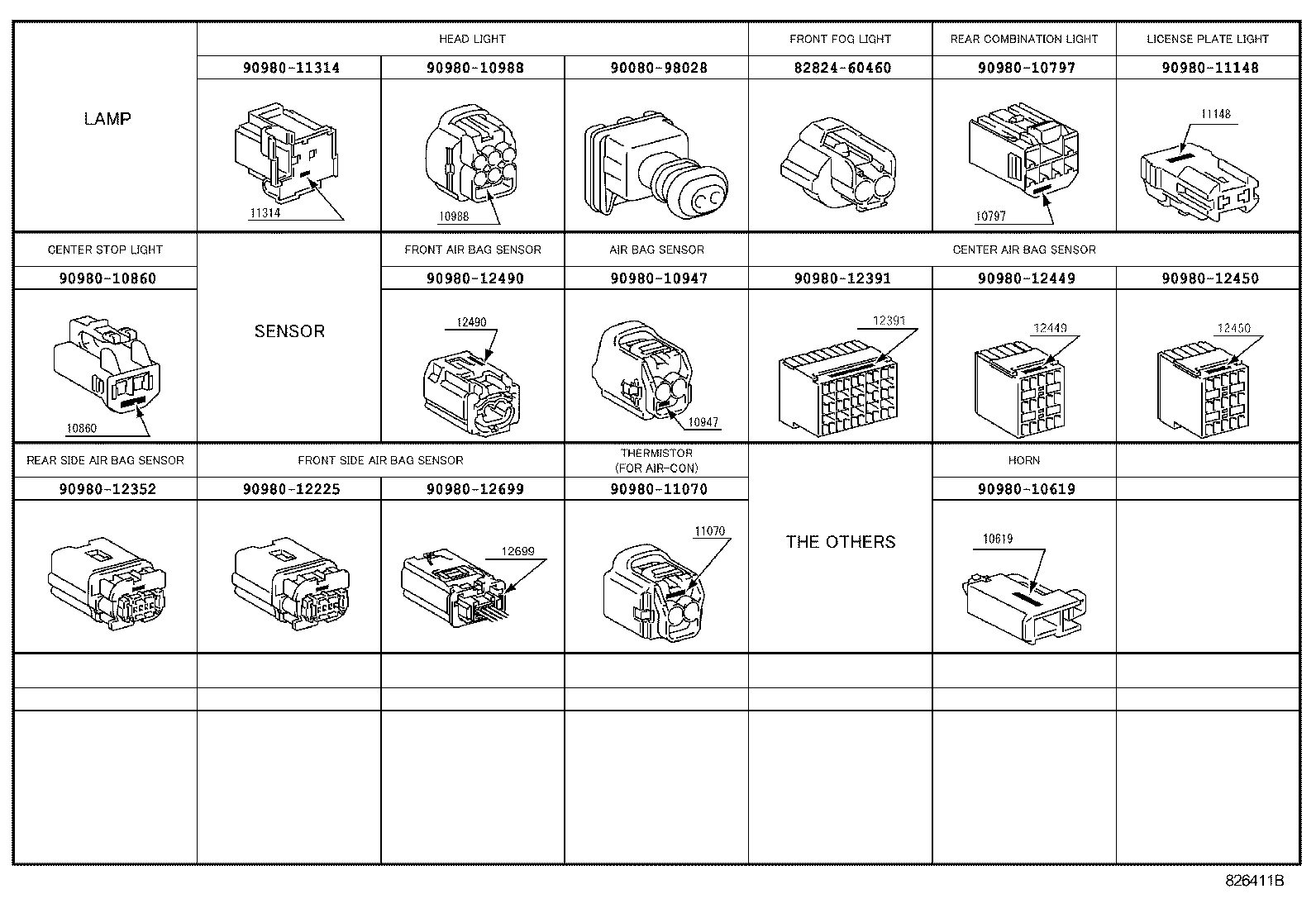

ILLUST NO. 7 OF 8(0901- )
CONNECTOR 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90080-98028 | ||||
| 90980-10619 | ||||
| 90980-10797 | ||||
| 90980-10860 | ||||
| 90980-10947 | ||||
| 90980-10988 | ||||
| 90980-11070 | ||||
| 90980-11148 | ||||
| 90980-11314 | ||||
| 90980-12225 | ||||
| 90980-12352 | ||||
| 90980-12391 | ||||
| 90980-12449 | ||||
| 90980-12450 | ||||
| 90980-12490 | ||||
| 90980-12699 | ||||

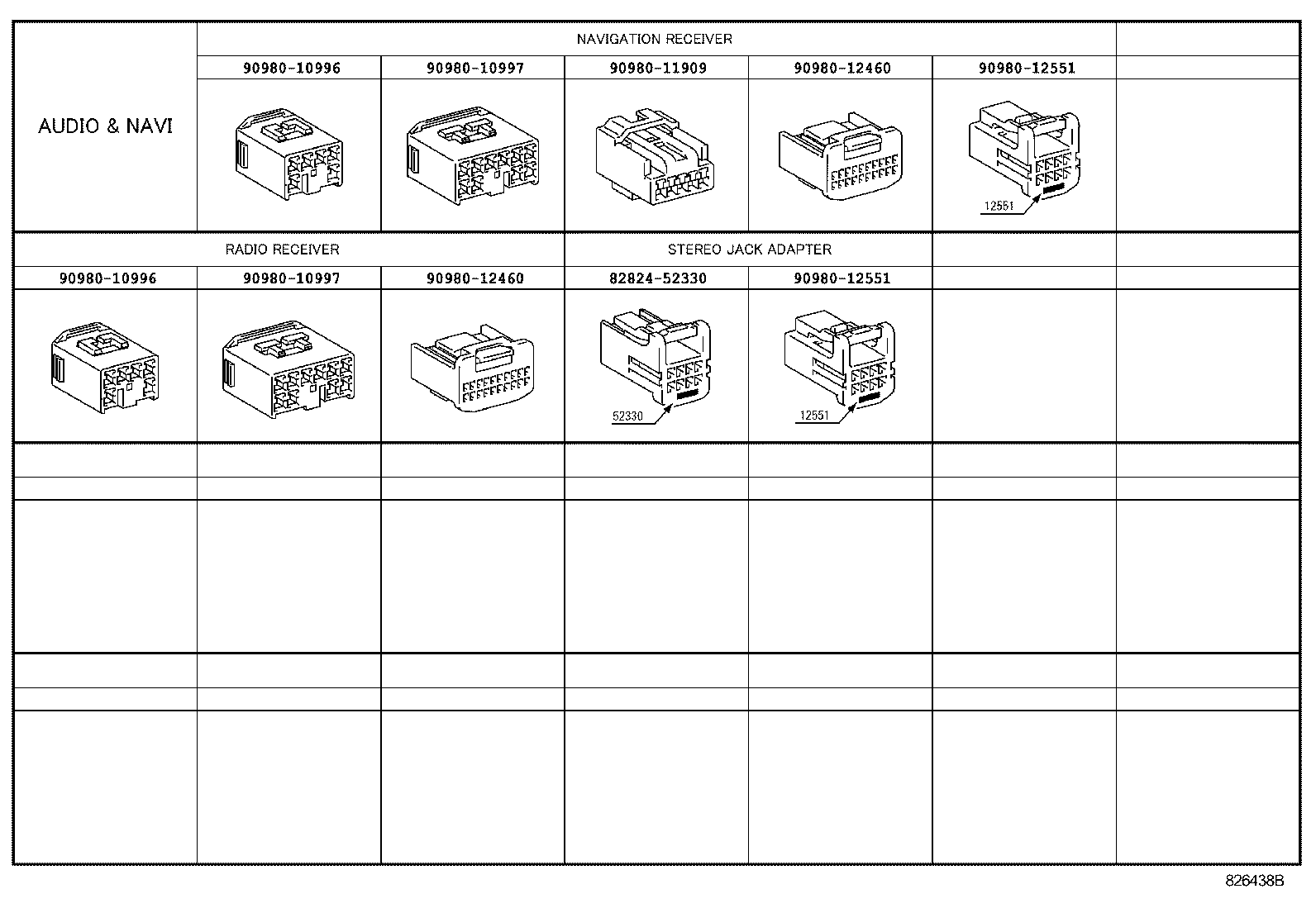

ILLUST NO. 8 OF 8(0901- )
CONNECTOR 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-52330 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-11909 | ||||
| 90980-12460 | ||||
| 90980-12551 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
