NSP110L-AHFNKW (2009)

Toyota Urban Cruiser

Production Jan 2009 - Apr 2016
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0901- )

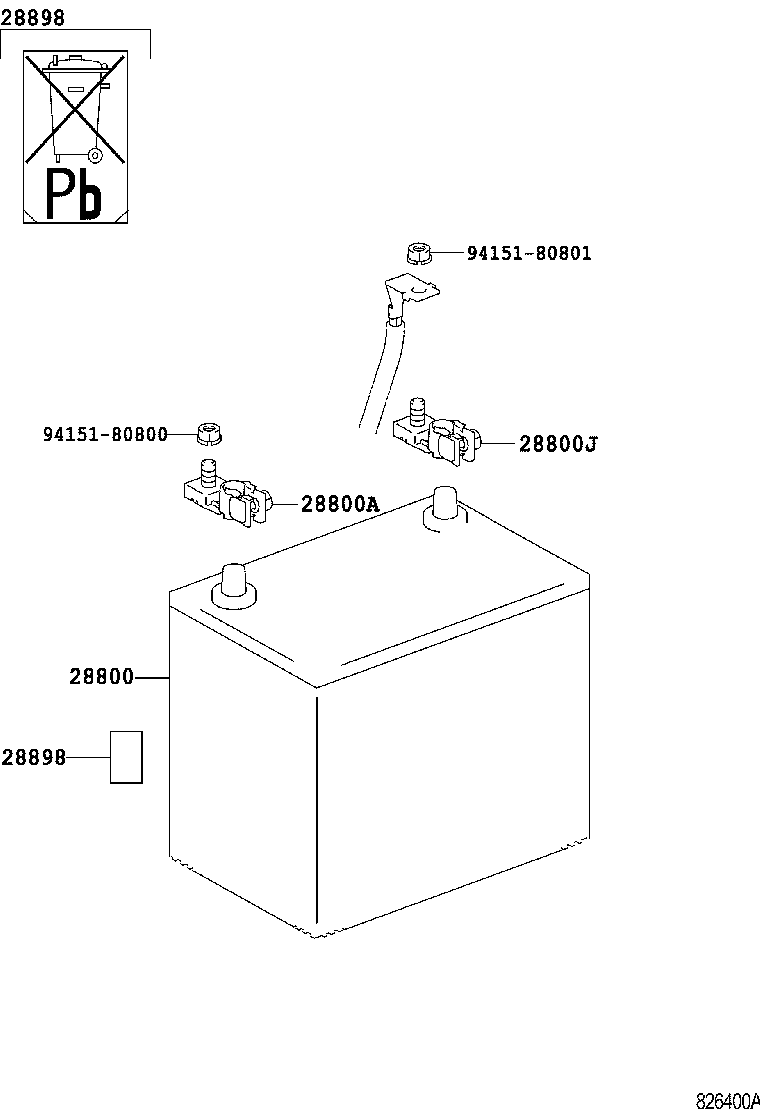

Click highlighted areas on diagram

diagram 28800 28800A 28800J 28898 9415180800 9415180801
Part # Description Qty Price
28800 - BATTERY
28800-47030

1NRFE..NSP110..LHD

Q-55,WITH(STOP & START SYSTEM)

 1
28800-22040

1NRFE..NSP110..LHD

46B24L(S),PANASONIC

 1
28800-47060

1NRFE..NSP110..LHD

Q-55,WITH(STOP & START SYSTEM)

 1
28800-74261

1NRFE..NSP110..LHD

46B24L(S),FURUKAWA

 1
28800-20060

1NRFE..NSP110..LHD

55B24L(S),FURUKAWA

 1
28800-47030

1NRFE..NSP110..LHD

Q-55,WITH(STOP & START SYSTEM)

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05054

1N#..NLP11#,NSP110

 1
28800J - TERMINAL, BATTERY NEGATIVE
90982-06059

1N#..NLP11#,NSP110

 1
28898 - PLATE, BATTERY
28898-46020

1N#..NLP11#,NSP110

 1
Common parts
94151-80800
94151-80801
