NSP110L-AHFNKW (2009)

Toyota Urban Cruiser

Production Jan 2009 - Apr 2016
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0901- )

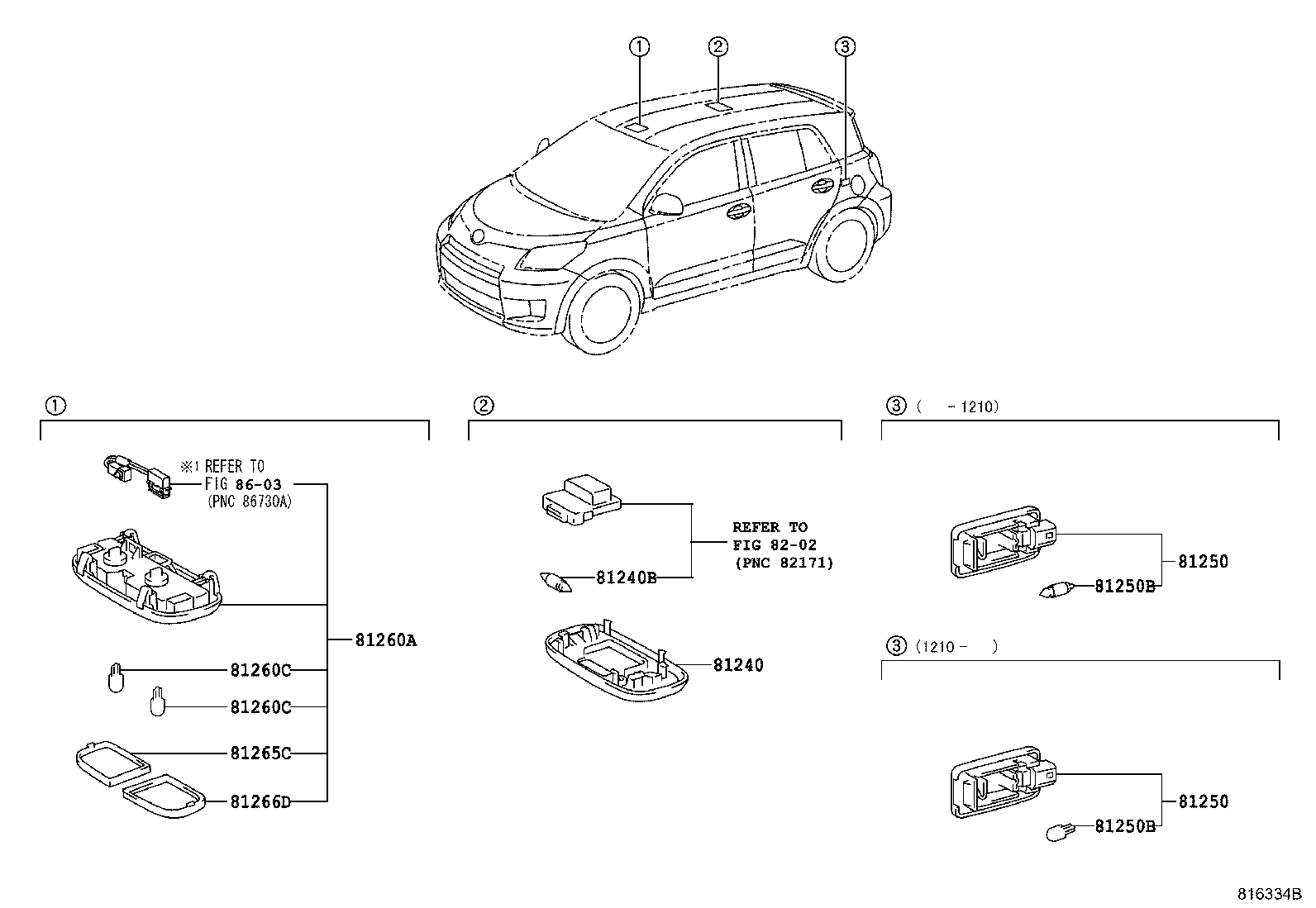

Click highlighted areas on diagram

diagram 81240 81240B 81250 81250 81250B 81250B 81260A 81260C 81260C 81265C 81266D 8202 8603
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-68010B0

NLP11#,NSP110

LT.GRAY,TRIM1#

 1
81240B - BULB, ROOM LAMP, NO.1
90981-14011

NLP11#,NSP110

12V 8W

 1
81250 - LAMP ASSY, ROOM, NO.2
81330-30100

NLP11#,NSP110

 1
81330-05021

NLP11#,NSP110

 1
81250-05040

NLP11#,NSP110

 1
81250 - LAMP ASSY, ROOM, NO.2
81330-30100

NLP11#,NSP110

 1
81330-05021

NLP11#,NSP110

 1
81250-05040

NLP11#,NSP110

 1
81250B - BULB, ROOM LAMP, NO.2
99132-12050

NLP11#,NSP110

12V 5W

 1
90981-WE002

NLP11#,NSP110

12V 5W

 1
81250B - BULB, ROOM LAMP, NO.2
99132-12050

NLP11#,NSP110

12V 5W

 1
90981-WE002

NLP11#,NSP110

12V 5W

 1
81260A - LAMP ASSY, MAP
81260-52051B1

NLP11#,NSP110..LHD..N

LT.GRAY,TRIM1#

 1
81260-52100B0

NLP11#,NSP110..LHD..N

LT.GRAY,TRIM1#

 1
81260-52030B1

NLP11#,NSP110..R

LT.GRAY,TRIM1#

 1
81260C - BULB(FOR MAP LAMP)
90981-11062

NLP11#,NSP110

12V 8W

 2
81260C - BULB(FOR MAP LAMP)
90981-11062

NLP11#,NSP110

12V 8W

 2
81265C - LENS, MAP LAMP, NO.1
81265-52020

NLP11#,NSP110

 1
81266D - LENS, MAP LAMP, NO.2
81266-52020

NLP11#,NSP110

 1
Linked diagrams
8202
8603
