NSP110L-AHFNKW (2009)

Toyota Urban Cruiser

Production Jan 2009 - Apr 2016
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0901- )

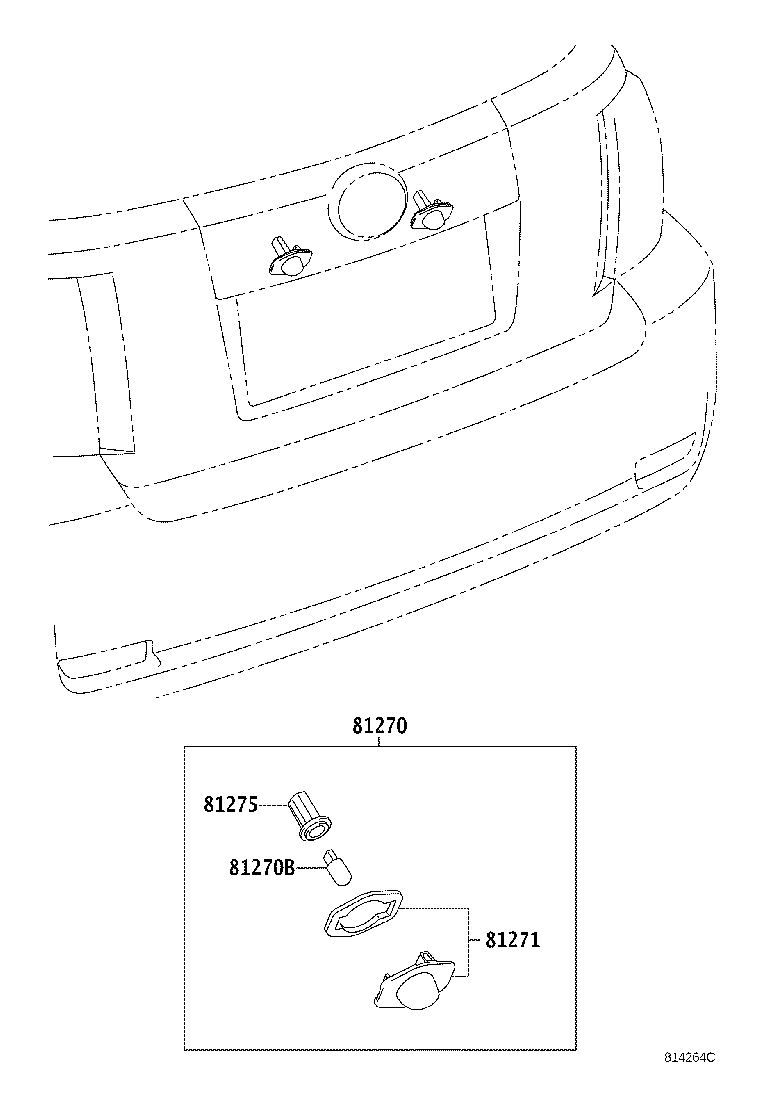

Click highlighted areas on diagram

diagram 81270 81270B 81271 81275
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-12520

NLP11#,NSP110

 2
81270-12521

NLP11#,NSP110

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

NLP11#,NSP110

12V 5W

 2
81271 - LENS, LICENSE PLATE LAMP
81271-12520

NLP11#,NSP110

 2
81271-12521

NLP11#,NSP110

 2
81275 - SOCKET AND WIRE, LICENSE PLATE LAMP
81275-12520

NLP11#,NSP110

 2
