NSP110L-AHFNKW (2009)
Toyota Urban Cruiser
Production
Jan 2009
-
Apr 2016
Engine
1NRFE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0901- )

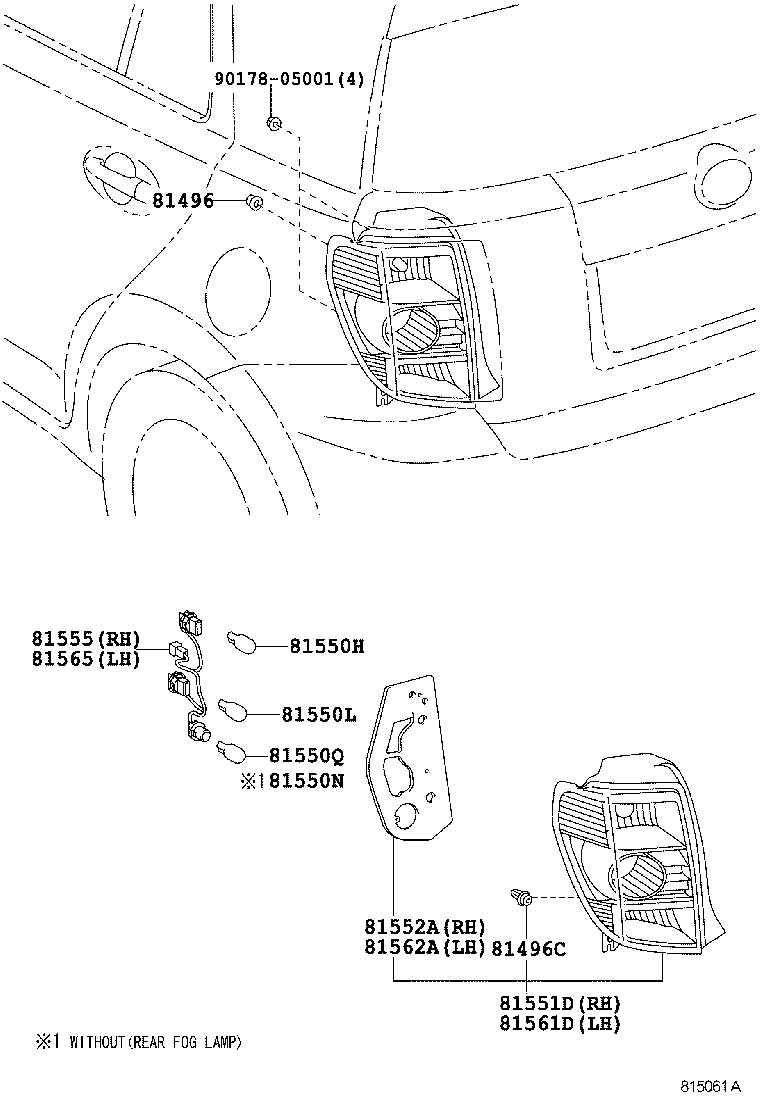

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-52020 |
NLP11#,NSP110 |
2 | ||
| 81496C - GUIDE, REAR COMBINATION LAMP, NO.2 | ||||
| 81496-12050 |
NLP11#,NSP110 |
2 | ||
| 81550H - BULB, TAIL & STOP LAMP | ||||
| 90981-13044 |
NLP11#,NSP110 |
2 | ||
| 81550L - BULB, REAR TURN SIGNAL LAMP | ||||
| 90981-15021 |
NLP11#,NSP110 |
2 | ||
| 81550N - BULB, BACK UP LAMP | ||||
| 90981-11059 |
NSP110..LHD REAR FOG LAMP-WITHOUT |
2 | ||
| 90981-11059 |
NLP11#,NSP110 12V 16W |
1 | ||
| 81551D - LENS & BODY, REAR COMBINATION LAMP, RH | ||||
| 81551-52670 |
NLP11#,NSP110..LHD |
1 | ||
| 81552A - GASKET, REAR COMBINATION LAMP, RH | ||||
| 81552-52670 |
NLP11#,NSP110 |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-52670 |
NLP11#,NSP110..LHD |
1 | ||
| 81561D - LENS & BODY, REAR COMBINATION LAMP, LH | ||||
| 81561-52600 |
NSP110..LHD REAR FOG LAMP-WITHOUT |
1 | ||
| 81561-52720 |
NLP11#,NSP110..LHD |
1 | ||
| 81562A - GASKET, REAR COMBINATION LAMP, LH | ||||
| 81562-52600 |
NLP11#,NSP110 |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-52670 |
NSP110..LHD REAR FOG LAMP-WITHOUT |
1 | ||
| 81555-52680 |
NLP11#,NSP110..LHD |
1 | ||
| Common parts | ||||
| 90178-05001 | ||||
