NSP110L-AHFNKW (2009)

Toyota Urban Cruiser

Production Jan 2009 - Apr 2016
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0901- )

Click highlighted areas on diagram

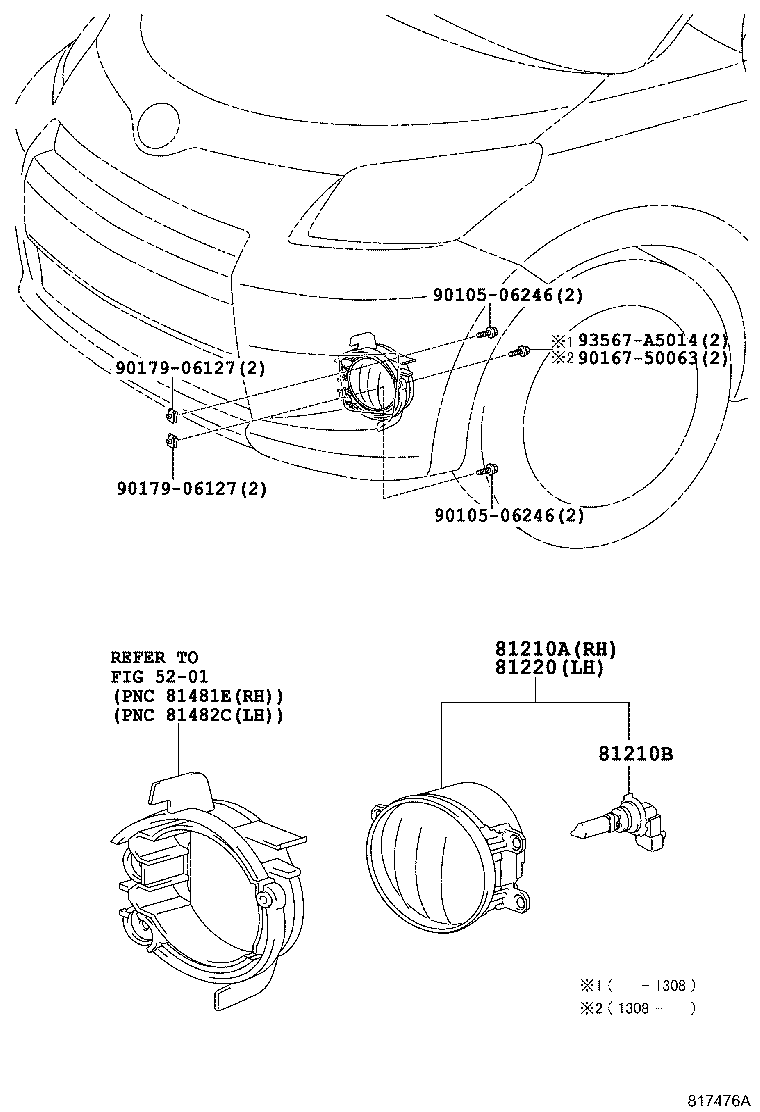

diagram 5201 81210A 81210B 81220 9010506246 9010506246 9016750063 9017906127 9017906127 93567A5014
Part # Description Qty Price
81210A - LAMP ASSY, FOG, RH
81210-0D041

NLP11#,NSP110..N

 1
81210-0D042

NLP11#,NSP110..N

 1
81210B - BULB, FOG LAMP
90981-13075

NLP11#,NSP110..N

12V 55W,HALOGEN,PHILIPS

 1
90981-13081

NLP11#,NSP110..N

12V 55W,HALOGEN,OSRAM

 1
81220 - LAMP ASSY, FOG, LH
81220-0D041

NLP11#,NSP110..N

 1
81220-0D042

NLP11#,NSP110..N

 1
Common parts
90105-06246
90167-50063
90179-06127
93567-A5014
Linked diagrams
5201
