NSP110L-AHFNKW (2009)
Toyota Urban Cruiser
Production
Jan 2009
-
Apr 2016
Engine
1NRFE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0901- )

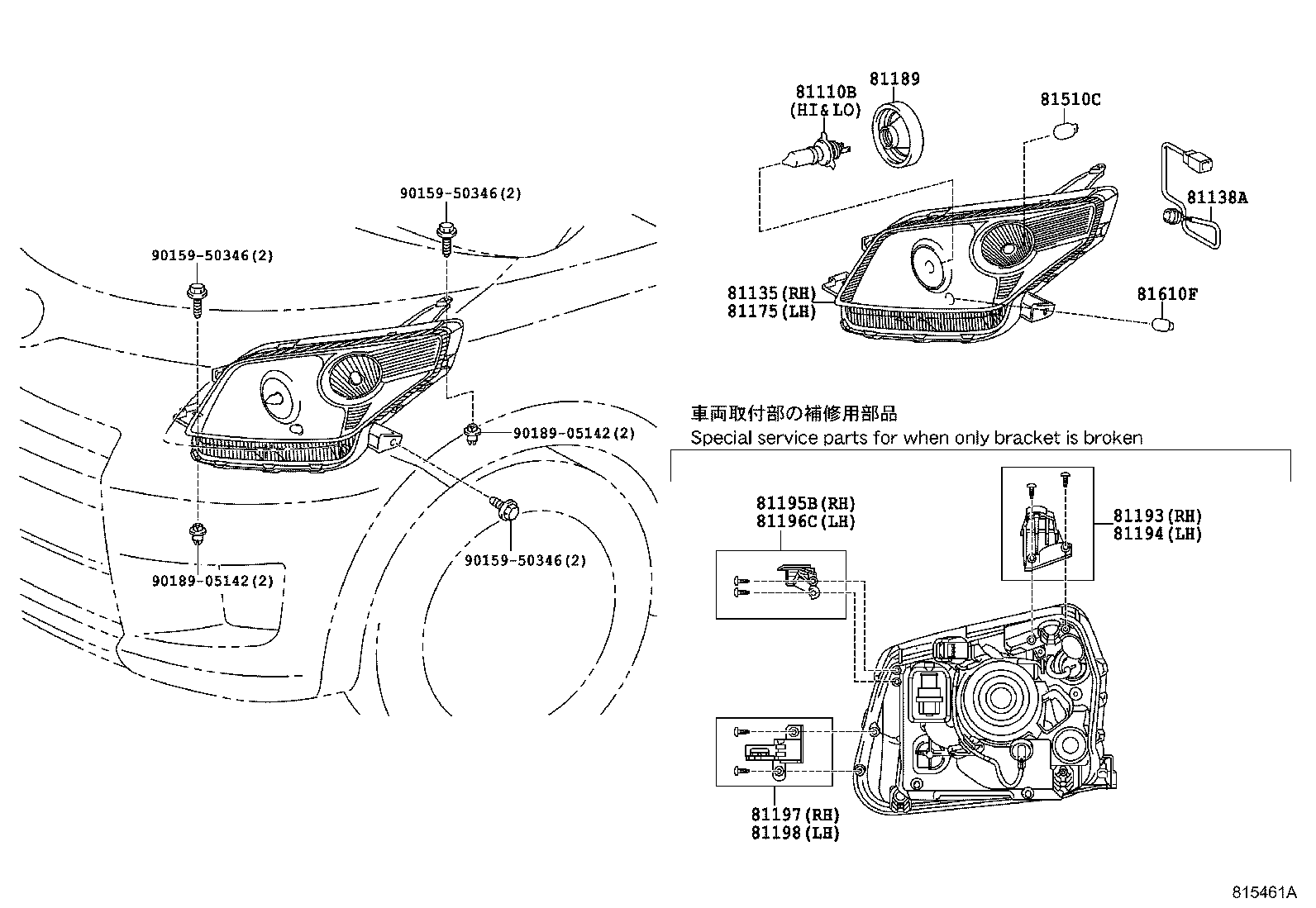

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13058 |
NLP11#,NSP110 12V 60/55W,HALOGEN |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-52C10 |
NLP11#,NSP110..LHD |
1 | ||
| 81130-52C20 |
NLP11#,NSP110..LHD HEADLAMP AIMING-LH AIMING |
1 | ||
| 81130-52G10 |
NLP11#,NSP110..LHD |
1 | ||
| 81130-52G20 |
NLP11#,NSP110..LHD HEADLAMP AIMING-LH AIMING |
1 | ||
| 81138A - SOCKET & WIRE, HEADLAMP | ||||
| 81138-52880 |
NLP11#,NSP110 |
2 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-52G20 |
NLP11#,NSP110..LHD HEADLAMP AIMING-LH AIMING |
1 | ||
| 81170-52C20 |
NLP11#,NSP110..LHD HEADLAMP AIMING-LH AIMING |
1 | ||
| 81170-52G10 |
NLP11#,NSP110..LHD |
1 | ||
| 81170-52C10 |
NLP11#,NSP110..LHD |
1 | ||
| 81189 - COVER, HEADLAMP | ||||
| 81139-52570 |
NLP11#,NSP110 |
2 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-52130 |
NLP11#,NSP110 |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-52130 |
NLP11#,NSP110 |
1 | ||
| 81195B - RETAINER, RH HEADLAMP PROTECTOR, LOWER RH | ||||
| 81195-52100 |
NLP11#,NSP110 |
1 | ||
| 81196C - RETAINER, LH HEADLAMP PROTECTOR, LOWER LH | ||||
| 81196-52100 |
NLP11#,NSP110 |
1 | ||
| 81197 - BRACKET, HEADLAMP, LOWER RH | ||||
| 81197-52020 |
NLP11#,NSP110 |
1 | ||
| 81198 - BRACKET, HEADLAMP, LWR LH | ||||
| 81198-52020 |
NLP11#,NSP110 |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15011 |
NLP11#,NSP110 12V 21W,AMBER |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
NLP11#,NSP110 12V 5W |
2 | ||
| Common parts | ||||
| 90159-50346 | ||||
| 90189-05142 | ||||
