NSP110L-AHFNKW (2009)

Toyota Urban Cruiser

Production Jan 2009 - Apr 2016
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

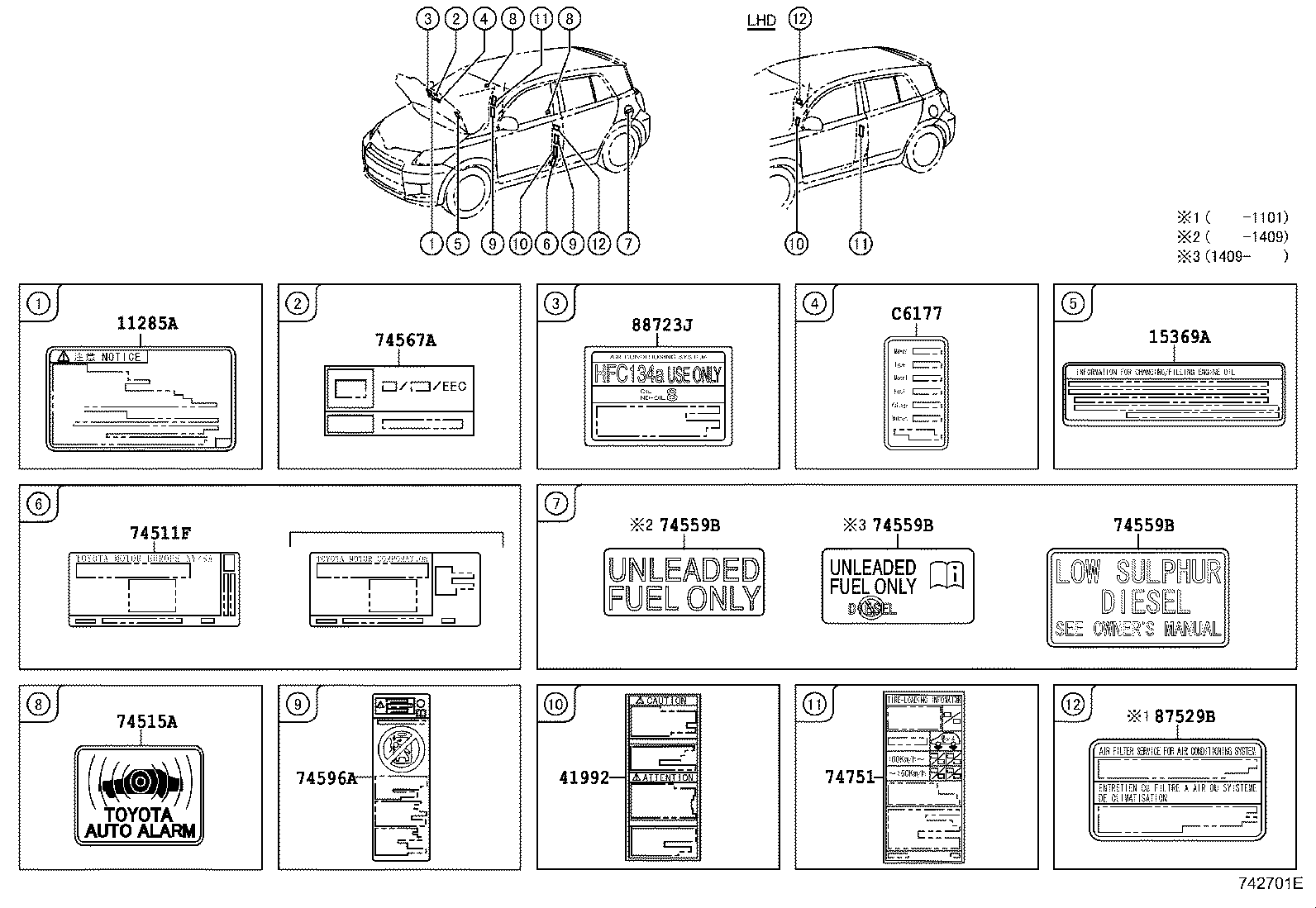

ILLUST NO. 1 OF 2(0901- )

Click highlighted areas on diagram

diagram 11285A 15369A 41992 74511F 74515A 74559B 74559B 74559B 74567A 74596A 74751 87529B 88723J C6177
Part # Description Qty Price
11285A - LABEL, COOLANT SYSTEM NOTICE
11285-33040

1NRFE..NSP110..LHD

COLD SPEC & WITH(REAR HEATER DUCT)

 1
11285-33030

1NRFE..NSP110

 1
74511F - LABEL, NAME (IDENTIFICATION LASER LABEL)
74511-48020

NLP11#,NSP110

*111,REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE(NOT WVTA)

 1
74511-60480

NLP11#,NSP110

*111

 1
74511-48050

NLP11#,NSP110

*111

 1
74559B - LABEL, FUEL INFORMATION
74559-14050

NSP110

 1
74559-20140

NSP110

 1
74559B - LABEL, FUEL INFORMATION
74559-14050

NSP110

 1
74559-20140

NSP110

 1
74559B - LABEL, FUEL INFORMATION
74559-14050

NSP110

 1
74559-20140

NSP110

 1
74596A - LABEL, SIDE AIR BAG CAUTION
74596-53010

NLP11#,NSP110

 2
74596-53011

NLP11#,NSP110

 2
74751 - LABEL, TIRE PRESSURE INFORMATION
42661-52800

NLP110,NSP110

 1
87529B - LABEL, A/C FILTER INFORMATION
87529-50010

NLP11#,NSP110

 1
88723J - LABEL, COOLER SERVICE CAUTION, NO.2
88723-28220

NSP110

FRONT AIR CONDITIONER-DEALER OPTION

 1
88733-52120

NLP11#,NSP110..R

FRONT AIR CONDITIONER-DEALER OPTION

 1
88723-28220

NSP110

 1
88723-28220

NSP110..R

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
88733-52120

NLP11#,NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION

 1

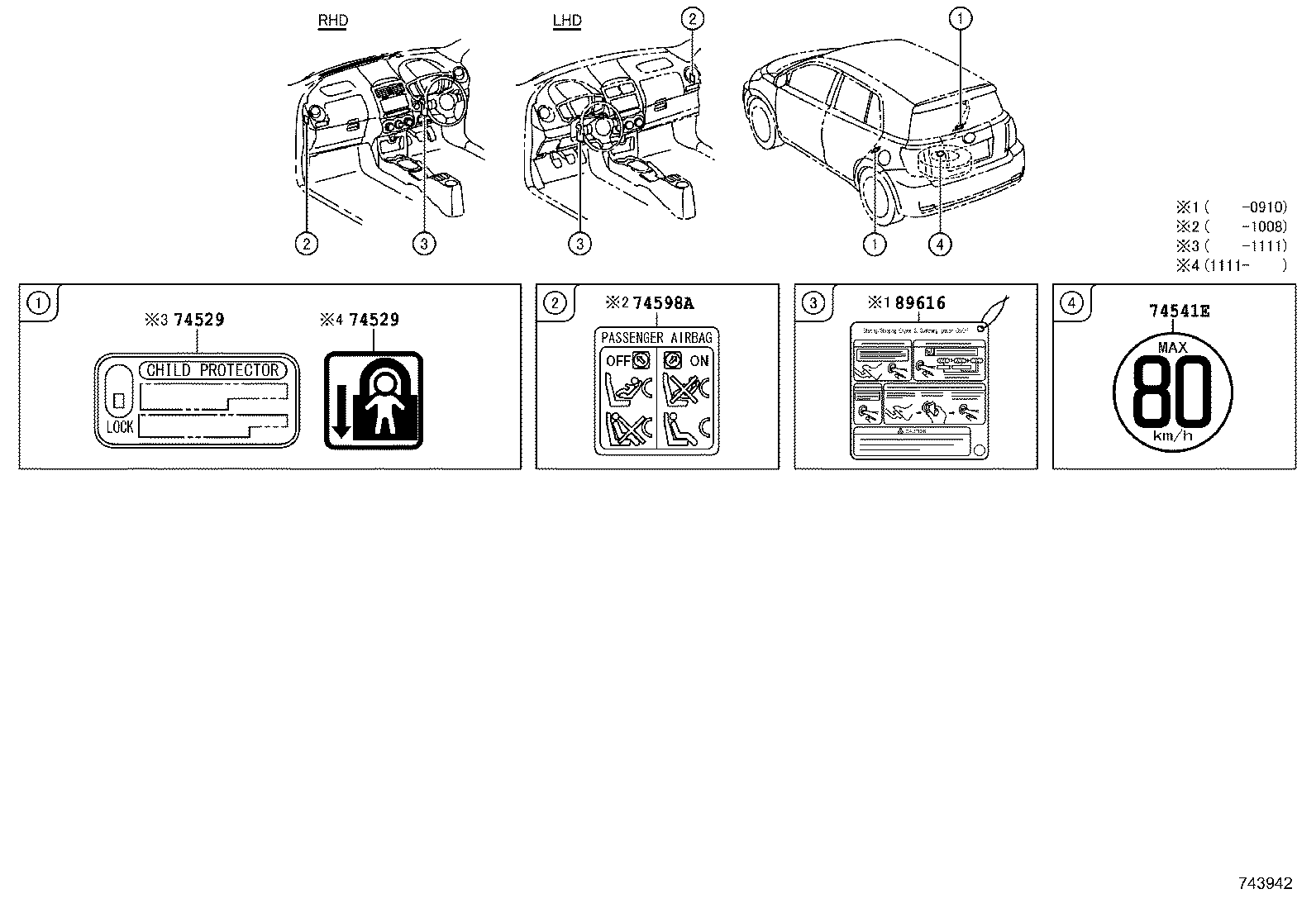

ILLUST NO. 2 OF 2(0901- )

Click highlighted areas on diagram

diagram 74529 74529 74541E 74598A 89616
Part # Description Qty Price
74529 - PLATE, CHILD PROOF OR CHILD PROTECTOR LOCK CAUTION
69339-33040

NLP11#,NSP110

 2
69339-12010

NLP11#,NSP110

 2
74529 - PLATE, CHILD PROOF OR CHILD PROTECTOR LOCK CAUTION
69339-33040

NLP11#,NSP110

 2
69339-12010

NLP11#,NSP110

 2
74541E - PLATE, COMPACT SPARE TIRE CAUTION
42668-20020

NLP110,NSP110

 1
74598A - LABEL, PASSENGER AIR BAG CAUTION
74598-30080

NLP11#,NSP110

 1
74598-12010

NLP11#,NSP110

 1
89616 - LABEL, PUSH START INFORMATION
89616-52030

NLP11#,NSP110..LHD..N

OWNER'S MANUAL-GERMAN&SOL PACKAGE

 1
89616-52040

NLP11#,NSP110..LHD..N

OWNER'S MANUAL-SPANISH&SOL PACKAGE

 1
89616-52040

NLP11#,NSP110..LHD..N

OWNER'S MANUAL-ITALIAN&SOL PACKAGE

 1
89616-52030

NLP11#,NSP110..LHD..N

OWNER'S MANUAL-FRENCH & GERMAN(SEPARATED)&SOL PACKAGE

 1
89616-53010

NLP11#,NSP110..LHD..N

SOL PACKAGE

 1
89616-60020

NSP110..LHD..N

OWNER'S MANUAL-SPANISH(GENERAL)&SOL PACKAGE

 1
