NSP110L-AHFNKW (2009)

Toyota Urban Cruiser

Production Jan 2009 - Apr 2016
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0901- )

Click highlighted areas on diagram

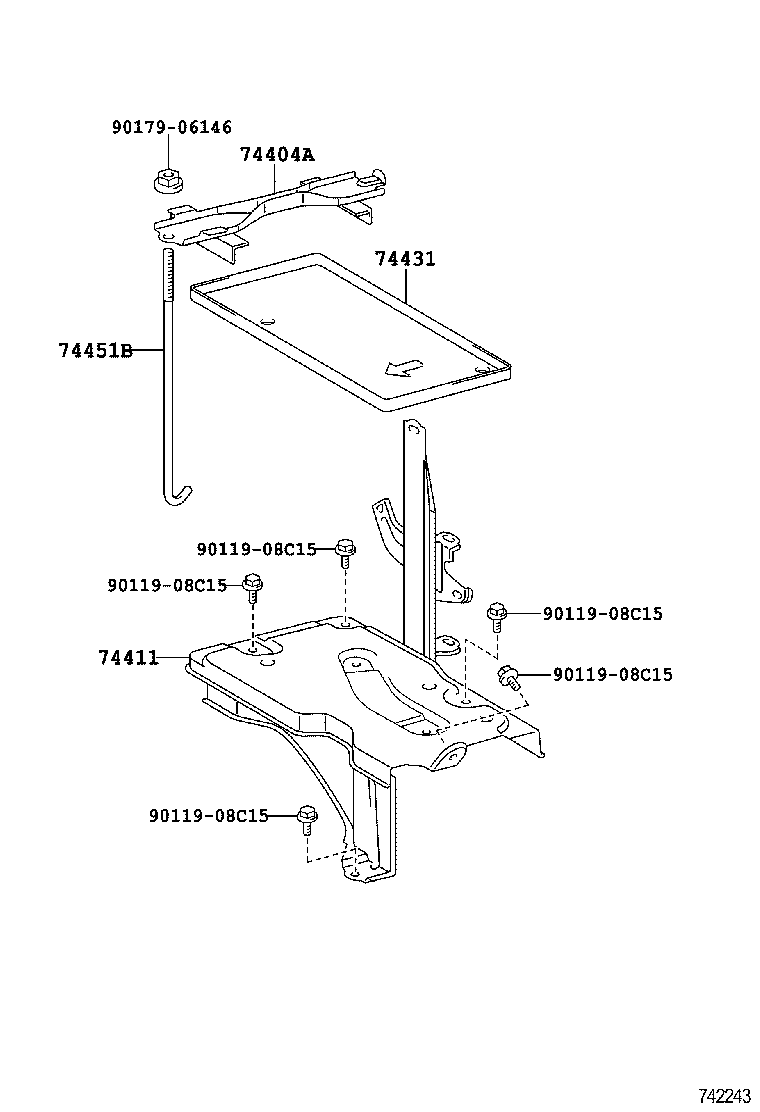

diagram 74404A 74411 74431 74451B 9011908C15 9011908C15 9011908C15 9011908C15 9011908C15 9017906146
Part # Description Qty Price
74404A - CLAMP SUB-ASSY, BATTERY
74404-52080

NSP110..LHD

WITH(STOP & START SYSTEM)

 1
74404-52040

NSP110..LHD

 1
74411 - CARRIER, BATTERY
74410-52020

NSP110..LHD

 1
74431 - TRAY, BATTERY
74431-52100

NSP110..LHD

 1
74431-52110

NSP110..LHD

WITH(STOP & START SYSTEM)

 1
74431-52111

NSP110..LHD

WITH(STOP & START SYSTEM)

 1
74431-52101

NSP110..LHD

 1
74451B - BOLT, BATTERY CLAMP
74451-52071

NLP11#,NSP110

 1
74451-52070

NLP11#,NSP110

 1
Common parts
90119-08C15
90179-06146
