NSP110L-AHFNKW (2009)

Toyota Urban Cruiser

Production Jan 2009 - Apr 2016
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

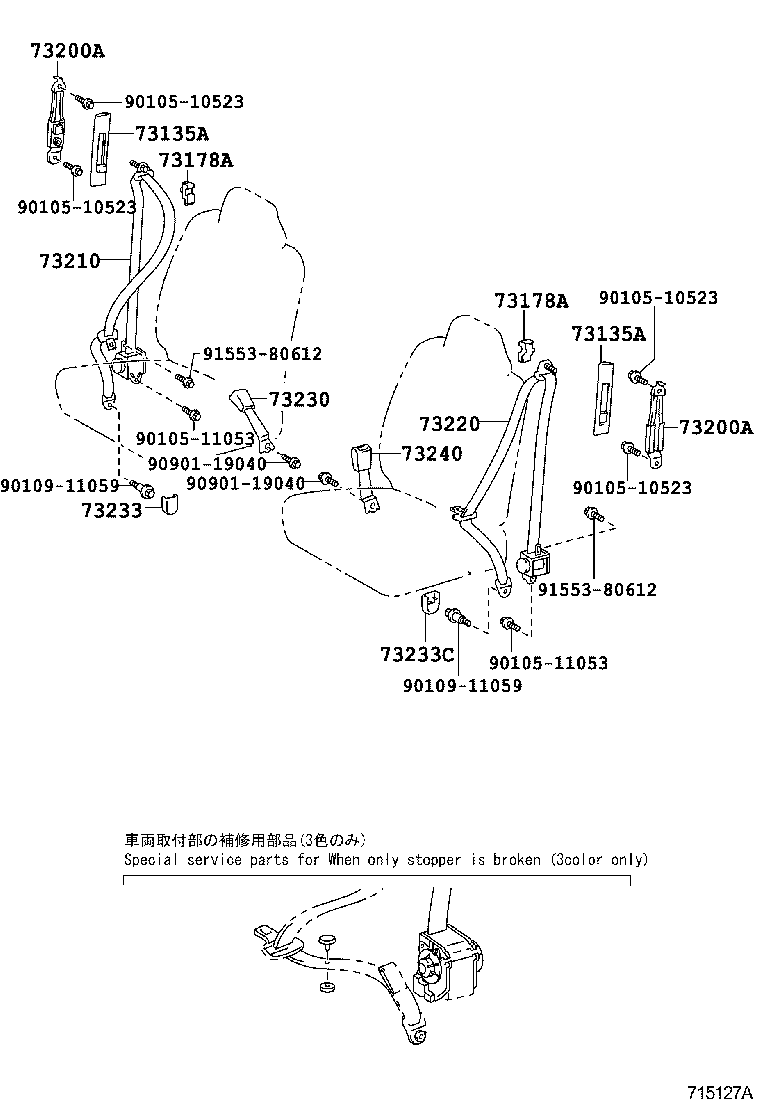

ILLUST NO. 1 OF 2(0901- )

Click highlighted areas on diagram

FRONT SEAT BELT

diagram 73135A 73135A 73178A 73178A 73200A 73200A 73210 73220 73230 73233 73233C 73240 9010510523 9010510523 9010510523 9010510523 9010511053 9010511053 9010911059 9010911059 9090119040 9090119040 9155380612 9155380612
Part # Description Qty Price
73135A - COVER, SHOULDER BELT ANCHOR, RH
73135-52020B2

NLP11#,NSP110

LT.GRAY,TRIM1#

 2
73135A - COVER, SHOULDER BELT ANCHOR, RH
73135-52020B2

NLP11#,NSP110

LT.GRAY,TRIM1#

 2
73178A - CAP, SEAT BELT ANCHOR COVER
73178-52020B2

NLP11#,NSP110

LT.GRAY,TRIM1#

 2
73178A - CAP, SEAT BELT ANCHOR COVER
73178-52020B2

NLP11#,NSP110

LT.GRAY,TRIM1#

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-52050B2

NLP11#,NSP110

LT.GRAY,TRIM1#

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-52050B2

NLP11#,NSP110

LT.GRAY,TRIM1#

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-52681B1

NLP11#,NSP110

LT.GRAY/BLACK,TRIM1#

 1
73210-52683B1

NLP11#,NSP110

LT.GRAY,TRIM1#

 1
73210-52681B0

NLP11#,NSP110

DK.GRAY,TRIM1#

 1
73210-52682B1

NLP11#,NSP110

LT.GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-52702B1

NLP11#,NSP110

LT.GRAY,TRIM1#

 1
73220-52703B1

NLP11#,NSP110

LT.GRAY,TRIM1#

 1
73220-52701B0

NLP11#,NSP110

DK.GRAY,TRIM1#

 1
73220-52701B1

NLP11#,NSP110

LT.GRAY/BLACK,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-52571B0

NLP11#,NSP110..LHD

SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1#

 1
73230-52502C0

NLP11#,NSP110..LHD

BLACK,TRIM1#

 1
73230-52571C0

NLP11#,NSP110..LHD

SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),BLACK,TRIM1#

 1
73230-52572C0

NLP11#,NSP110..LHD

COLD SPEC & WITH(REAR HEATER DUCT)&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),BLACK,TRIM1#

 1
73230-52501B0

NLP11#,NSP110..LHD

DK.GRAY,TRIM1#

 1
73230-52501C0

NLP11#,NSP110..LHD

BLACK,TRIM1#

 1
73230-52572C0

NLP11#,NSP110..LHD

COLD SPEC & WITHOUT(REAR HEATER DUCT)&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),BLACK,TRIM1#

 1
73233 - COVER, LAP BELT OUTER ANCHOR
73233-52010C0

NLP11#,NSP110

BLACK,TRIM1#

 1
73233-60020C0

NSP110

BLACK,TRIM1#

 1
73233-52010B1

NLP11#,NSP110

DK.GRAY,TRIM1#

 1
73233C - COVER, LAP BELT OUTER ANCHOR, LH
73233-52010C0

NLP11#,NSP110

BLACK,TRIM1#

 1
73233-52010B1

NLP11#,NSP110

DK.GRAY,TRIM1#

 1
73233-60020C0

NSP110

BLACK,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-52561B0

NLP11#,NSP110..LHD

SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1#

 1
73230-52491B0

NLP11#,NSP110..LHD

DK.GRAY,TRIM1#

 1
73230-52562C0

NLP11#,NSP110..LHD

COLD SPEC & WITHOUT(REAR HEATER DUCT)&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),BLACK,TRIM1#

 1
73230-52492C0

NLP11#,NSP110..LHD

BLACK,TRIM1#

 1
73230-52491C0

NLP11#,NSP110..LHD

BLACK,TRIM1#

 1
73230-52562C0

NLP11#,NSP110..LHD

COLD SPEC & WITH(REAR HEATER DUCT)&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),BLACK,TRIM1#

 1
73230-52561C0

NLP11#,NSP110..LHD

SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),BLACK,TRIM1#

 1
Common parts
90105-10523
90105-11053
90109-11059
90901-19040
91553-80612

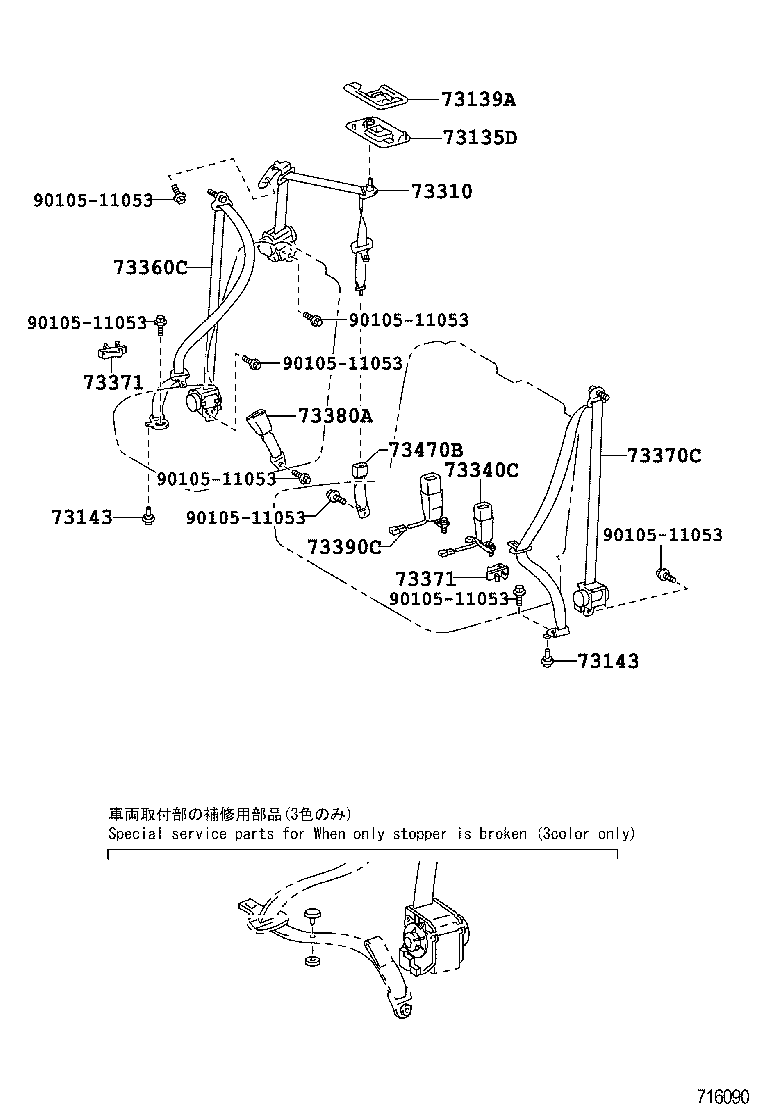

ILLUST NO. 2 OF 2(0901- )NLP110,NSP110

Click highlighted areas on diagram

REAR SEAT BELT

diagram 73135D 73139A 73143 73143 73310 73340C 73360C 73370C 73371 73371 73380A 73390C 73470B 9010511053 9010511053 9010511053 9010511053 9010511053 9010511053 9010511053 9010511053
Part # Description Qty Price
73135D - COVER, SHOULDER BELT ANCHOR, NO.1 RH
73137-52030B0

NLP11#,NSP110

LT.GRAY,TRIM1#

 1
73137-52030B0

NLP110,NSP110..LHD..R

REAR SEAT-WITHOUT,LT.GRAY,TRIM1#

 1
73139A - COVER, SEAT BELT ANCHOR
73139-52050B0

NLP11#,NSP110

LT.GRAY,TRIM1#

 1
73139-52050B0

NLP110,NSP110..LHD..R

REAR SEAT-WITHOUT,LT.GRAY,TRIM1#

 1
73143 - SEAL, SEAT BELT HOLE
73143-52011

NLP11#,NSP110

 2
73143-52010

NLP11#,NSP110

 2
73143-52011

NLP110,NSP110..LHD..R

REAR SEAT-WITHOUT

 2
73143-52010

NLP110,NSP110..LHD..R

REAR SEAT-WITHOUT

 2
73143 - SEAL, SEAT BELT HOLE
73143-52011

NLP11#,NSP110

 2
73143-52010

NLP11#,NSP110

 2
73143-52011

NLP110,NSP110..LHD..R

REAR SEAT-WITHOUT

 2
73143-52010

NLP110,NSP110..LHD..R

REAR SEAT-WITHOUT

 2
73310 - BELT ASSY, REAR SEAT 3 POINT TYPE, RH
73310-52050B0

NLP110,NSP110..LHD..R

REAR SEAT-WITHOUT,DK.GRAY,TRIM1#

 1
73310-52110C0

NLP110,NSP110..LHD..R

REAR SEAT-WITHOUT,BLACK,TRIM1#

 1
73310-52110C0

NLP11#,NSP110

BLACK,TRIM1#

 1
73310-52050B0

NLP11#,NSP110

DK.GRAY,TRIM1#

 1
73340C - BELT ASSY, REAR SEAT LAP TYPE, CENTER LH
73340-52070B0

NLP110,NSP110

DK.GRAY,TRIM1#

 1
73340-52070C0

NLP110,NSP110

BLACK,TRIM1#

 1
73340-52070C0

NLP110,NSP110..LHD..R

WITHOUT(REAR SEAT)&REAR SEAT-WITHOUT,BLACK,TRIM1#

 1
73340-52070B0

NLP110,NSP110..LHD..R

WITHOUT(REAR SEAT)&REAR SEAT-WITHOUT,DK.GRAY,TRIM1#

 1
73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH
73360-52290B0

NLP110,NSP110..LHD..R

REAR SEAT-WITHOUT,DK.GRAY,TRIM1#

 1
73360-52290B0

NLP11#,NSP110

DK.GRAY,TRIM1#

 1
73360-52350C0

NLP110,NSP110..LHD..R

REAR SEAT-WITHOUT,BLACK,TRIM1#

 1
73360-52350C0

NLP11#,NSP110

BLACK,TRIM1#

 1
73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH
73370-52250B0

NLP11#,NSP110

DK.GRAY,TRIM1#

 1
73370-52250B0

NLP110,NSP110..LHD..R

REAR SEAT-WITHOUT,DK.GRAY,TRIM1#

 1
73370-52310C0

NLP110,NSP110..LHD..R

REAR SEAT-WITHOUT,BLACK,TRIM1#

 1
73370-52310C0

NLP11#,NSP110

BLACK,TRIM1#

 1
73371 - HANGER, REAR SEAT SHOULDER BELT, RH
73371-44020B6

NLP11#,NSP110

DK.GRAY,TRIM1#

 2
73371-44020C0

NLP11#,NSP110

BLACK,TRIM1#

 2
73371 - HANGER, REAR SEAT SHOULDER BELT, RH
73371-44020B6

NLP11#,NSP110

DK.GRAY,TRIM1#

 2
73371-44020C0

NLP11#,NSP110

BLACK,TRIM1#

 2
73380A - BELT ASSY, REAR SEAT, INNER
73380-52120B0

NLP110,NSP110..LHD..R

WITHOUT(REAR SEAT)&REAR SEAT-WITHOUT,DK.GRAY,TRIM1#

 1
73380-52120B0

NLP110,NSP110

DK.GRAY,TRIM1#

 1
73380-52120C0

NLP110,NSP110..LHD..R

WITHOUT(REAR SEAT)&REAR SEAT-WITHOUT,BLACK,TRIM1#

 1
73380-52120C0

NLP110,NSP110

BLACK,TRIM1#

 1
73390C - BELT ASSY, REAR NO.1 SEAT, INNER LH
73390-52050B0

NLP110,NSP110..LHD..R

WITHOUT(REAR SEAT)&REAR SEAT-WITHOUT,DK.GRAY,TRIM1#

 1
73390-52050C0

NLP110,NSP110..LHD..R

WITHOUT(REAR SEAT)&REAR SEAT-WITHOUT,BLACK,TRIM1#

 1
73390-52050C0

NLP110,NSP110

BLACK,TRIM1#

 1
73390-52050B0

NLP110,NSP110

DK.GRAY,TRIM1#

 1
73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH
73330-52070B0

NLP110,NSP110..LHD..R

WITHOUT(REAR SEAT)&REAR SEAT-WITHOUT,DK.GRAY,TRIM1#

 1
73330-52070C0

NLP110,NSP110..LHD..R

WITHOUT(REAR SEAT)&REAR SEAT-WITHOUT,BLACK,TRIM1#

 1
73330-52070B0

NLP110,NSP110

DK.GRAY,TRIM1#

 1
73330-52070C0

NLP110,NSP110

BLACK,TRIM1#

 1
73330-52071C0

NLP110,NSP110

BLACK,TRIM1#

 1
73330-52071C0

NLP110,NSP110..LHD..R

WITHOUT(REAR SEAT)&REAR SEAT-WITHOUT,BLACK,TRIM1#

 1
Common parts
90105-11053
