NSP110L-AHFNKW (2009)
Toyota Urban Cruiser

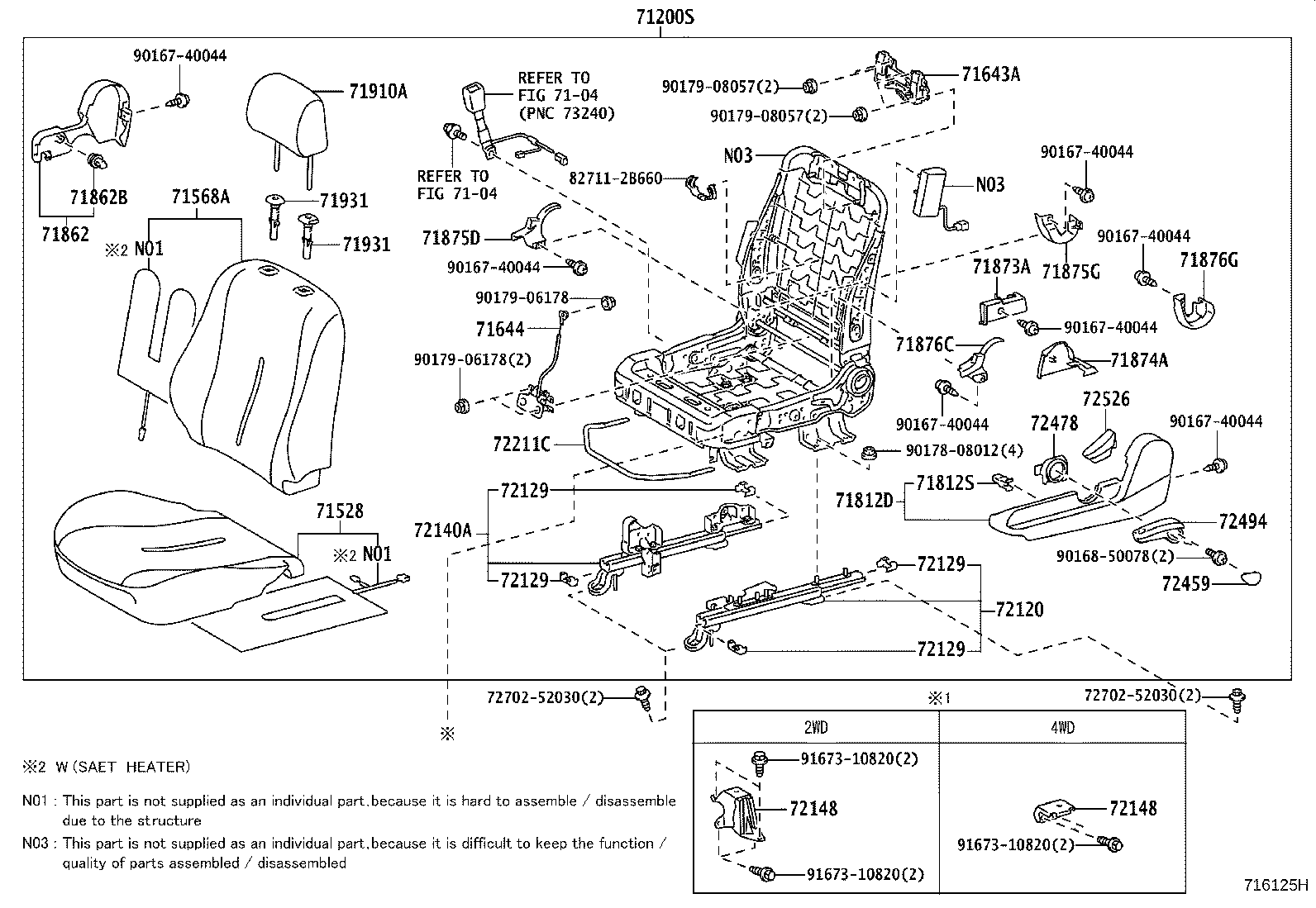

ILLUST NO. 1 OF 2(0901- )LHD
DRIVER SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71200S - SEAT ASSY, FRONT LH | ||||
| 71200-5CR40B2 |
NLP11#,NSP110..LHD..R DK.GRAY,TRIM1# |
1 | ||
| 71200-5CR60B2 |
NLP11#,NSP110..LHD..N DK.GRAY,TRIM1# |
1 | ||
| 71200-52L00B1 |
NLP11#,NSP110..LHD..N SOL PACKAGE,DK.GRAY,TRIM1# |
1 | ||
| 71200-5CR50B2 |
NLP11#,NSP110..LHD..R SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71200-5CR70B2 |
NLP11#,NSP110..LHD..N SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71200-52R20B1 |
NLP11#,NSP110..LHD..N SOL PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71020-52D30B0 |
NLP11#,NSP110..LHD..N SOL PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71020-52D40B0 |
NLP11#,NSP110..LHD..R DK.GRAY,TRIM1# |
1 | ||
| 71020-52D70B0 |
NLP11#,NSP110..LHD..N SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71020-52D20B0 |
NLP11#,NSP110..LHD..N SOL PACKAGE,DK.GRAY,TRIM1# |
1 | ||
| 71200-52L02B0 |
NLP11#,NSP110..LHD..N SOL PACKAGE,DK.GRAY,TRIM1# |
1 | ||
| 71200-52R22B0 |
NLP11#,NSP110..LHD..N SOL PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71020-52D60B0 |
NLP11#,NSP110..LHD..N DK.GRAY,TRIM1# |
1 | ||
| 71020-52D50B0 |
NLP11#,NSP110..LHD..R SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71200-5CR72B0 |
NLP11#,NSP110..LHD..N SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71200-5CR62B0 |
NLP11#,NSP110..LHD..N DK.GRAY,TRIM1# |
1 | ||
| 71200-5CR42B0 |
NLP11#,NSP110..LHD..R DK.GRAY,TRIM1# |
1 | ||
| 71020-52U00B1 |
NLP11#,NSP110..LHD..N DK.GRAY,TRIM1# |
1 | ||
| 71020-52U10B1 |
NLP11#,NSP110..LHD..N SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71020-52U01B0 |
NLP11#,NSP110..LHD..N DK.GRAY,TRIM1# |
1 | ||
| 71200-5CR53B0 |
NLP11#,NSP110..LHD..R SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71200-5CR52B0 |
NLP11#,NSP110..LHD..R SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71200-5CR43B0 |
NLP11#,NSP110..LHD..R DK.GRAY,TRIM1# |
1 | ||
| 71200-5CR44B0 |
NLP11#,NSP110..LHD..R DK.GRAY,TRIM1# |
1 | ||
| 71020-52U02B0 |
NLP11#,NSP110..LHD..N DK.GRAY,TRIM1# |
1 | ||
| 71020-52U12B0 |
NLP11#,NSP110..LHD..N SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71020-52U11B0 |
NLP11#,NSP110..LHD..N SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71200-5CR54B0 |
NLP11#,NSP110..LHD..R SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71528 - PAD, FRONT SEAT CUSHION W/COVER, LH | ||||
| 71528-52P30B0 |
NLP11#,NSP110..LHD..N SOL PACKAGE,DK.GRAY,TRIM1# |
1 | ||
| 71528-52P70B1 |
NLP11#,NSP110..LHD..N DK.GRAY,TRIM1# |
1 | ||
| 71528-52P80B1 |
NLP11#,NSP110..LHD..N SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71528-52P40B0 |
NLP11#,NSP110..LHD..N SOL PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71528-52P50B1 |
NLP11#,NSP110..LHD..R DK.GRAY,TRIM1# |
1 | ||
| 71528-52P81B2 |
NLP11#,NSP110..LHD..N SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1# |
1 | ||
| 71528-52P31B1 |
NLP11#,NSP110..LHD..N SOL PACKAGE,GRAY,TRIM1# |
1 | ||
| 71528-52P41B1 |
NLP11#,NSP110..LHD..N SOL PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1# |
1 | ||
| 71528-52P71B2 |
NLP11#,NSP110..LHD..N GRAY,TRIM1# |
1 | ||
| 71528-52P60B1 |
NLP11#,NSP110..LHD..R SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71528-52P51B2 |
NLP11#,NSP110..LHD..R DK.GRAY,TRIM1# |
1 | ||
| 71528-52P61B2 |
NLP11#,NSP110..LHD..R SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71528-52T40B1 |
NLP11#,NSP110..LHD..N GRAY,TRIM1# |
1 | ||
| 71528-52T50B1 |
NLP11#,NSP110..LHD..N SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1# |
1 | ||
| 71568A - PAD, FRONT SEAT BACK W/COVER, LH | ||||
| 71568-52N50B0 |
NLP11#,NSP110..R DK.GRAY,TRIM1# |
1 | ||
| 71568-52N60B0 |
NLP11#,NSP110..N SOL PACKAGE,DK.GRAY,TRIM1# |
1 | ||
| 71568-52M50B0 |
NLP11#,NSP110..N DK.GRAY,TRIM1# |
1 | ||
| 71568-52M51B1 |
NLP11#,NSP110..N GRAY,TRIM1# |
1 | ||
| 71568-52M80B0 |
NLP11#,NSP110..LHD..N SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71568-52M60B0 |
NLP11#,NSP110..LHD..N SOL PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71568-52M61B1 |
NLP11#,NSP110..LHD..N SOL PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1# |
1 | ||
| 71568-52M81B1 |
NLP11#,NSP110..LHD..N SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1# |
1 | ||
| 71568-52M70B0 |
NLP11#,NSP110..LHD..R SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71568-52N51B1 |
NLP11#,NSP110..R DK.GRAY,TRIM1# |
1 | ||
| 71568-52S40B1 |
NLP11#,NSP110..N GRAY,TRIM1# |
1 | ||
| 71568-52S50B1 |
NLP11#,NSP110..LHD..N SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1# |
1 | ||
| 71568-52N61B1 |
NLP11#,NSP110..N SOL PACKAGE,GRAY,TRIM1# |
1 | ||
| 71568-52M71B1 |
NLP11#,NSP110..LHD..R SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71643A - UNIT, ACTIVE HEADREST, UPR | ||||
| 71643-12011 |
NLP11#,NSP110 |
2 | ||
| 71643-12011 |
NLP11#,NSP110 |
2 | ||
| 71644 - UNIT, ACTIVE HEADREST, LWR | ||||
| 71644-12030 |
NLP11#,NSP110 |
2 | ||
| 71644-12030 |
NLP11#,NSP110 |
2 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-52200B0 |
NLP11#,NSP110..LHD DK.GRAY,TRIM1# |
1 | ||
| 71812S - CLIP, FRONT SEAT CUSHION SHIELD, LH | ||||
| 90467-10203 |
NLP11#,NSP110..LHD..N SOL PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT) |
1 | ||
| 90467-10203 |
NLP11#,NSP110..N SOL PACKAGE |
1 | ||
| 90467-10203 |
NLP11#,NSP110..N |
1 | ||
| 90467-10203 |
NLP11#,NSP110..R |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-52150B0 |
NLP11#,NSP110..LHD DK.GRAY,TRIM1# |
1 | ||
| 71862B - CLIP(FOR FRONT SEAT SHIELD, LH) | ||||
| 71769-33020 |
NLP11#,NSP110..R |
1 | ||
| 71769-33020 |
NLP11#,NSP110..LHD..N SOL PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT) |
1 | ||
| 71769-33020 |
NLP11#,NSP110..N SOL PACKAGE |
1 | ||
| 71769-33020 |
NLP11#,NSP110..N |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71874-52120B0 |
NLP11#,NSP110..LHD DK.GRAY,TRIM1# |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71873-52100B0 |
NLP11#,NSP110..LHD DK.GRAY,TRIM1# |
1 | ||
| 71875D - COVER, RECLINING ADJUSTER OUTSIDE, RH | ||||
| 71875-52090B0 |
NLP11#,NSP110 DK.GRAY,TRIM1# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-52170B0 |
NLP11#,NSP110 DK.GRAY,TRIM1# |
1 | ||
| 71876C - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52090B0 |
NLP11#,NSP110 DK.GRAY,TRIM1# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-52160B0 |
NLP11#,NSP110 DK.GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-52D60B0 |
NLP11#,NSP110 DK.GRAY,TRIM1# |
2 | ||
| 71910-52680B1 |
NLP11#,NSP110 DK.GRAY,TRIM1# |
2 | ||
| 71910-52D61B0 |
NLP11#,NSP110..R;NLP110,NSP110..LHD..N DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44020B0 |
NLP11#,NSP110..R;NLP110,NSP110..LHD..N W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NLP11#,NSP110..R;NLP110,NSP110..LHD..N W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44020B0 |
NLP11#,NSP110..R;NLP110,NSP110..LHD..N W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NLP11#,NSP110..R;NLP110,NSP110..LHD..N W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-52151 |
NLP11#,NSP110 |
1 | ||
| 72120-52150 |
NLP11#,NSP110 |
1 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-52030 |
NLP11#,NSP110 |
8 | ||
| 72129-52030 |
NLP11#,NSP110 |
8 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-52030 |
NLP11#,NSP110 |
8 | ||
| 72129-52030 |
NLP11#,NSP110 |
8 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-52030 |
NLP11#,NSP110 |
8 | ||
| 72129-52030 |
NLP11#,NSP110 |
8 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-52030 |
NLP11#,NSP110 |
8 | ||
| 72129-52030 |
NLP11#,NSP110 |
8 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-52260 |
NLP11#,NSP110..LHD |
1 | ||
| 72140-52261 |
NLP110,NSP110..LHD |
1 | ||
| 72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH | ||||
| 72148-52010 |
NLP110,NSP110 |
1 | ||
| 72148-52060 |
NLP110,NSP110 |
1 | ||
| 72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH | ||||
| 72148-52010 |
NLP110,NSP110 |
1 | ||
| 72148-52060 |
NLP110,NSP110 |
1 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72212-52030 |
NLP11#,NSP110 |
1 | ||
| 72211-52050 |
NLP11#,NSP110 |
1 | ||
| 72459 - CAP, VERTICAL SEAT ADJUSTER KNOB | ||||
| 72459-60010B2 |
NLP11#,NSP110..LHD DK.GRAY,TRIM1# |
1 | ||
| 72478 - BUSH, VERTICAL ADJUSTER | ||||
| 72478-60010 |
NLP11#,NSP110..LHD |
1 | ||
| 72494 - HANDLE, VERTICAL ADJUSTING, RH | ||||
| 72494-52030B0 |
NLP11#,NSP110..LHD DK.GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-58040B0 |
NLP11#,NSP110 DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 72702-52030 | ||||
| 82711-2B660 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| 90178-08012 | ||||
| 90179-06178 | ||||
| 90179-08057 | ||||
| 91673-10820 | ||||
| Linked diagrams | ||||
| 7104 | ||||

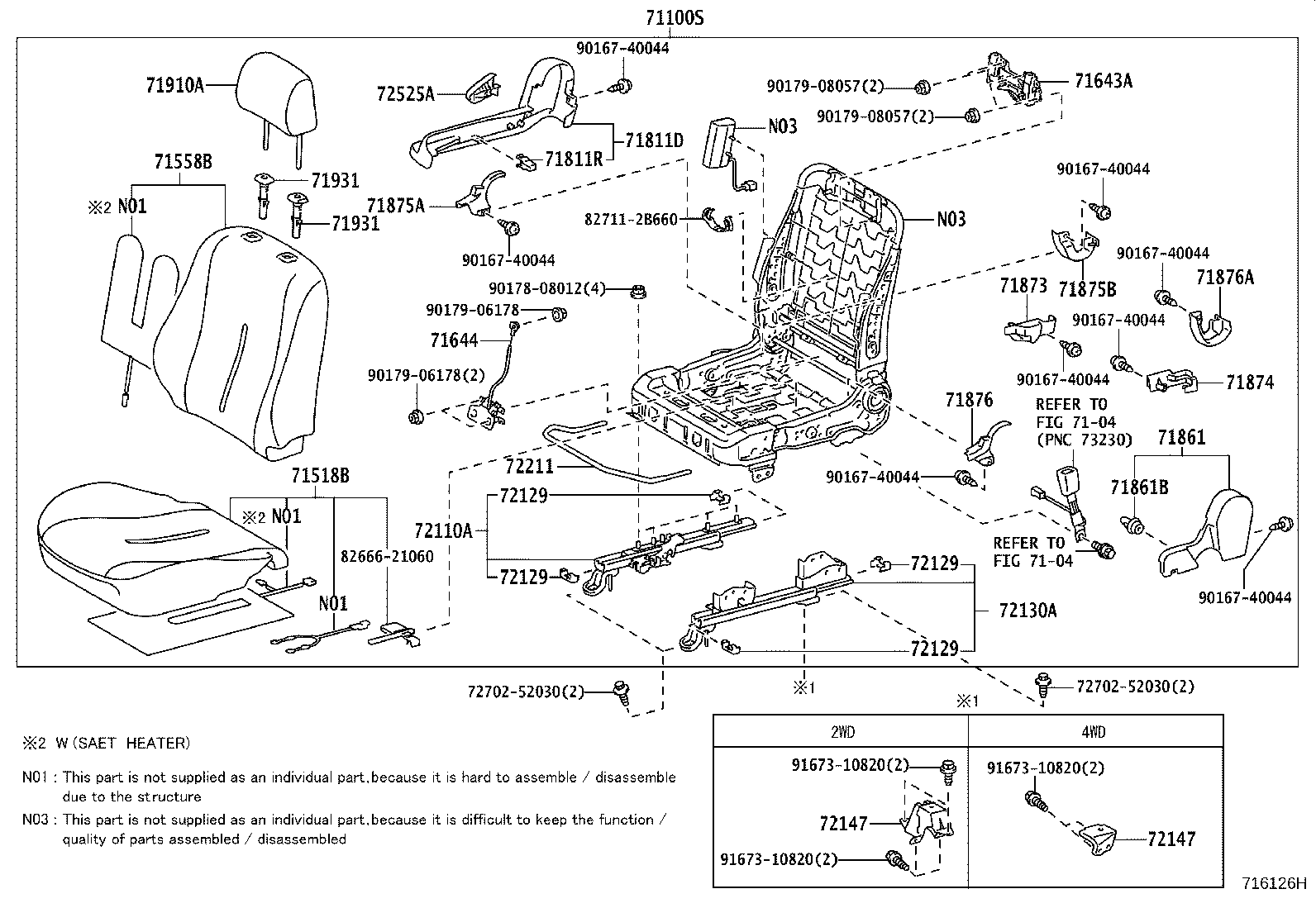

ILLUST NO. 2 OF 2(0901- )LHD
PASSENGER SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71100S - SEAT ASSY, FRONT RH | ||||
| 71100-5CR70B0 |
NLP11#,NSP110..LHD..N SOL PACKAGE,DK.GRAY,TRIM1# |
1 | ||
| 71100-5CR90B1 |
NLP11#,NSP110..LHD..R SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71100-5CR60B1 |
NLP11#,NSP110..LHD..R DK.GRAY,TRIM1# |
1 | ||
| 71100-5CS00B1 |
NLP11#,NSP110..LHD..N DK.GRAY,TRIM1# |
1 | ||
| 71100-5CR80B0 |
NLP11#,NSP110..LHD..N SOL PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71100-5CS10B1 |
NLP11#,NSP110..LHD..N SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71010-52G50B0 |
NLP11#,NSP110..LHD..N SOL PACKAGE,DK.GRAY,TRIM1# |
1 | ||
| 71010-52G80B0 |
NLP11#,NSP110..LHD..R SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71010-52J00B0 |
NLP11#,NSP110..LHD..N SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71010-52G90B0 |
NLP11#,NSP110..LHD..N DK.GRAY,TRIM1# |
1 | ||
| 71010-52G70B0 |
NLP11#,NSP110..LHD..R DK.GRAY,TRIM1# |
1 | ||
| 71010-52G60B0 |
NLP11#,NSP110..LHD..N SOL PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71100-5CR82B0 |
NLP11#,NSP110..LHD..N SOL PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71100-5CR72B0 |
NLP11#,NSP110..LHD..N SOL PACKAGE,DK.GRAY,TRIM1# |
1 | ||
| 71100-5CS02B0 |
NLP11#,NSP110..LHD..N DK.GRAY,TRIM1# |
1 | ||
| 71100-5CS12B0 |
NLP11#,NSP110..LHD..N SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71100-5CR92B0 |
NLP11#,NSP110..LHD..R SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71010-52Z10B1 |
NLP11#,NSP110..LHD..N SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71010-52Z00B1 |
NLP11#,NSP110..LHD..N DK.GRAY,TRIM1# |
1 | ||
| 71100-5CR62B0 |
NLP11#,NSP110..LHD..R DK.GRAY,TRIM1# |
1 | ||
| 71100-5CR63B0 |
NLP11#,NSP110..LHD..R DK.GRAY,TRIM1# |
1 | ||
| 71010-52Z01B0 |
NLP11#,NSP110..LHD..N DK.GRAY,TRIM1# |
1 | ||
| 71100-5CR93B0 |
NLP11#,NSP110..LHD..R SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71010-52Z11B0 |
NLP11#,NSP110..LHD..N SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71010-52Z02B0 |
NLP11#,NSP110..LHD..N DK.GRAY,TRIM1# |
1 | ||
| 71100-5CR94B0 |
NLP11#,NSP110..LHD..R SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71010-52Z12B0 |
NLP11#,NSP110..LHD..N SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71100-5CR64B0 |
NLP11#,NSP110..LHD..R DK.GRAY,TRIM1# |
1 | ||
| 71518B - PAD, FRONT SEAT CUSHION W/COVER, RH | ||||
| 71518-52P70B0 |
NLP11#,NSP110..LHD..N SOL PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71518-52P60B0 |
NLP11#,NSP110..LHD..N SOL PACKAGE,DK.GRAY,TRIM1# |
1 | ||
| 71518-52P50B1 |
NLP11#,NSP110..LHD..R SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71518-52P90B1 |
NLP11#,NSP110..LHD..N SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71518-52D50B1 |
NLP11#,NSP110..LHD..R DK.GRAY,TRIM1# |
1 | ||
| 71518-52P80B1 |
NLP11#,NSP110..LHD..N DK.GRAY,TRIM1# |
1 | ||
| 71518-52P61B1 |
NLP11#,NSP110..LHD..N SOL PACKAGE,GRAY,TRIM1# |
1 | ||
| 71518-52P91B2 |
NLP11#,NSP110..LHD..N SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1# |
1 | ||
| 71518-52P81B2 |
NLP11#,NSP110..LHD..N GRAY,TRIM1# |
1 | ||
| 71518-52T50B1 |
NLP11#,NSP110..LHD..N SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1# |
1 | ||
| 71518-52P51B2 |
NLP11#,NSP110..LHD..R SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71518-52P71B1 |
NLP11#,NSP110..LHD..N SOL PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1# |
1 | ||
| 71518-52D51B2 |
NLP11#,NSP110..LHD..R DK.GRAY,TRIM1# |
1 | ||
| 71518-52T40B1 |
NLP11#,NSP110..LHD..N GRAY,TRIM1# |
1 | ||
| 71558B - PAD, FRONT SEAT BACK W/COVER, RH | ||||
| 71558-52R80B0 |
NLP11#,NSP110..LHD..N SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71558-52R60B0 |
NLP11#,NSP110..LHD..N SOL PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71558-52R70B0 |
NLP11#,NSP110..LHD..R SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71558-52S50B0 |
NLP11#,NSP110..R DK.GRAY,TRIM1# |
1 | ||
| 71558-52R50B0 |
NLP11#,NSP110..N DK.GRAY,TRIM1# |
1 | ||
| 71558-52S60B0 |
NLP11#,NSP110..N SOL PACKAGE,DK.GRAY,TRIM1# |
1 | ||
| 71558-52R81B1 |
NLP11#,NSP110..LHD..N SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1# |
1 | ||
| 71558-52R51B1 |
NLP11#,NSP110..N GRAY,TRIM1# |
1 | ||
| 71558-52R71B1 |
NLP11#,NSP110..LHD..R SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71558-52S61B1 |
NLP11#,NSP110..N SOL PACKAGE,GRAY,TRIM1# |
1 | ||
| 71558-52R61B1 |
NLP11#,NSP110..LHD..N SOL PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1# |
1 | ||
| 71558-52X40B1 |
NLP11#,NSP110..N GRAY,TRIM1# |
1 | ||
| 71558-52X50B1 |
NLP11#,NSP110..LHD..N SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1# |
1 | ||
| 71558-52S51B1 |
NLP11#,NSP110..R DK.GRAY,TRIM1# |
1 | ||
| 71643A - UNIT, ACTIVE HEADREST, UPR | ||||
| 71643-12011 |
NLP11#,NSP110 |
2 | ||
| 71643-12011 |
NLP11#,NSP110 |
2 | ||
| 71644 - UNIT, ACTIVE HEADREST, LWR | ||||
| 71644-12030 |
NLP11#,NSP110 |
2 | ||
| 71644-12030 |
NLP11#,NSP110 |
2 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-52200B2 |
NLP11#,NSP110..LHD DK.GRAY,TRIM1# |
1 | ||
| 71811R - CLIP, FRONT SEAT CUSHION SHIELD, RH | ||||
| 90467-10203 |
NLP11#,NSP110..N SOL PACKAGE |
1 | ||
| 90467-10203 |
NLP11#,NSP110..N |
1 | ||
| 90467-10203 |
NLP11#,NSP110..R |
1 | ||
| 90467-10203 |
NLP11#,NSP110..LHD..N SOL PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT) |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-52190B2 |
NLP11#,NSP110..LHD DK.GRAY,TRIM1# |
1 | ||
| 71861B - CLIP(FOR FRONT SEAT SHIELD, RH) | ||||
| 71769-33020 |
NLP11#,NSP110..N SOL PACKAGE |
1 | ||
| 71769-33020 |
NLP11#,NSP110..LHD..N SOL PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT) |
1 | ||
| 71769-33020 |
NLP11#,NSP110..R |
1 | ||
| 71769-33020 |
NLP11#,NSP110..N |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71874-52200B0 |
NLP11#,NSP110..LHD DK.GRAY,TRIM1# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71873-52210B0 |
NLP11#,NSP110..LHD DK.GRAY,TRIM1# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52090B0 |
NLP11#,NSP110 DK.GRAY,TRIM1# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52170B0 |
NLP11#,NSP110 DK.GRAY,TRIM1# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52090B0 |
NLP11#,NSP110 DK.GRAY,TRIM1# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52160B0 |
NLP11#,NSP110 DK.GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-52D60B0 |
NLP11#,NSP110 DK.GRAY,TRIM1# |
2 | ||
| 71910-52680B1 |
NLP11#,NSP110 DK.GRAY,TRIM1# |
2 | ||
| 71910-52D61B0 |
NLP11#,NSP110..R;NLP110,NSP110..LHD..N DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44020B0 |
NLP11#,NSP110..R;NLP110,NSP110..LHD..N W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NLP11#,NSP110..R;NLP110,NSP110..LHD..N W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44020B0 |
NLP11#,NSP110..R;NLP110,NSP110..LHD..N W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NLP11#,NSP110..R;NLP110,NSP110..LHD..N W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-52071 |
NLP11#,NSP110 |
1 | ||
| 72110-52070 |
NLP11#,NSP110 |
1 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-52030 |
NLP11#,NSP110 |
8 | ||
| 72129-52030 |
NLP11#,NSP110 |
8 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-52030 |
NLP11#,NSP110 |
8 | ||
| 72129-52030 |
NLP11#,NSP110 |
8 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-52030 |
NLP11#,NSP110 |
8 | ||
| 72129-52030 |
NLP11#,NSP110 |
8 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-52030 |
NLP11#,NSP110 |
8 | ||
| 72129-52030 |
NLP11#,NSP110 |
8 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-52250 |
NLP11#,NSP110..LHD |
1 | ||
| 72130-52251 |
NLP110,NSP110..LHD |
1 | ||
| 72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH | ||||
| 72147-52020 |
NLP110,NSP110 |
1 | ||
| 72147-52060 |
NLP110,NSP110 |
1 | ||
| 72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH | ||||
| 72147-52020 |
NLP110,NSP110 |
1 | ||
| 72147-52060 |
NLP110,NSP110 |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-52030 |
NLP11#,NSP110 |
1 | ||
| 72211-52110 |
NLP11#,NSP110 |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-58030B0 |
NLP11#,NSP110 DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 72702-52030 | ||||
| 82666-21060 | ||||
| 82711-2B660 | ||||
| 90167-40044 | ||||
| 90178-08012 | ||||
| 90179-06178 | ||||
| 90179-08057 | ||||
| 91673-10820 | ||||
| Linked diagrams | ||||
| 7104 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
