NSP110L-AHFNKW (2009)
Toyota Urban Cruiser
Production
Jan 2009
-
Apr 2016
Engine
1NRFE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0901- )

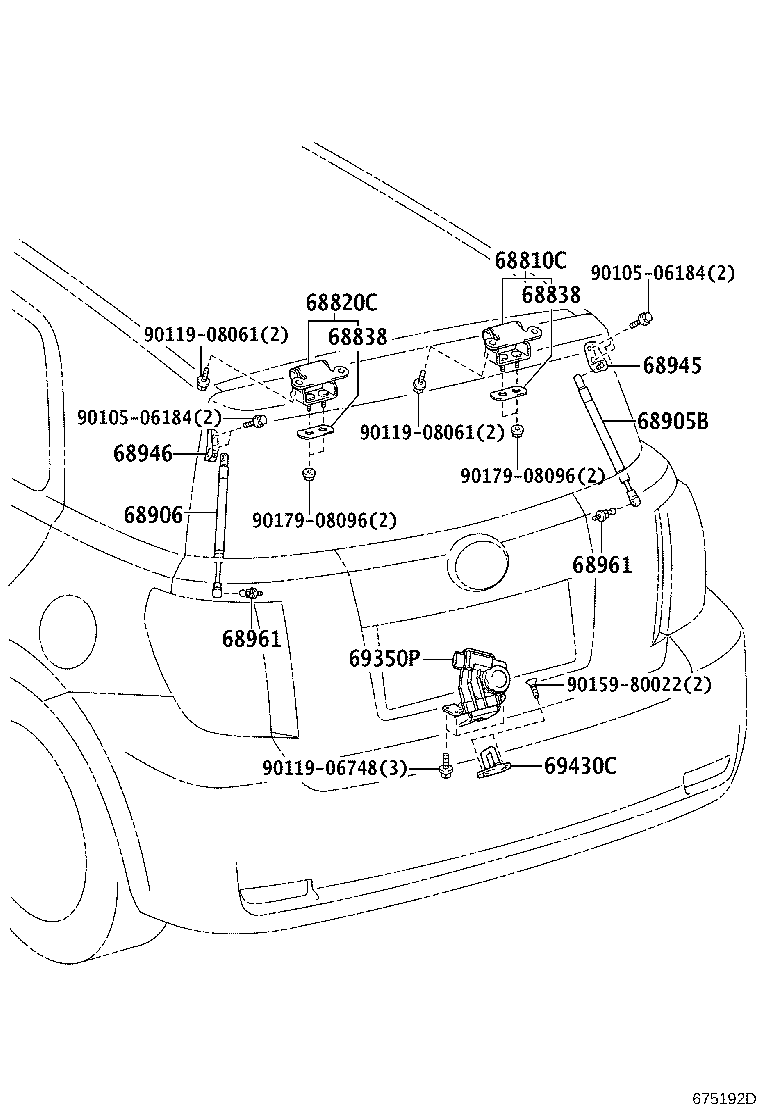

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68810C - HINGE ASSY, BACK DOOR, RH | ||||
| 68810-52100 |
NLP11#,NSP110 |
1 | ||
| 68820C - HINGE ASSY, BACK DOOR, LH | ||||
| 68810-52100 |
NLP11#,NSP110 |
1 | ||
| 68838 - PAD, BACK DOOR HINGE, NO.1 | ||||
| 68838-52030 |
NLP11#,NSP110 |
2 | ||
| 68838 - PAD, BACK DOOR HINGE, NO.1 | ||||
| 68838-52030 |
NLP11#,NSP110 |
2 | ||
| 68905B - STAY SUB-ASSY, BACK DOOR, RH | ||||
| 68905-52011 |
NLP11#,NSP110 |
1 | ||
| 68905-52010 |
NLP11#,NSP110 |
1 | ||
| 68906 - STAY SUB-ASSY, BACK DOOR, LH | ||||
| 68906-52010 |
NLP11#,NSP110 |
1 | ||
| 68906-52011 |
NLP11#,NSP110 |
1 | ||
| 68945 - BRACKET, BACK DOOR DAMPER STAY, UPPER RH | ||||
| 68945-52070 |
NLP11#,NSP110 |
1 | ||
| 68945-52071 |
NLP11#,NSP110 |
1 | ||
| 68946 - BRACKET, BACK DOOR DAMPER STAY, UPPER LH | ||||
| 68946-52031 |
NLP11#,NSP110 |
1 | ||
| 68946-52030 |
NLP11#,NSP110 |
1 | ||
| 68961 - BOLT, BACK DOOR STAY | ||||
| 68961-30020 |
NLP11#,NSP110 |
2 | ||
| 68961 - BOLT, BACK DOOR STAY | ||||
| 68961-30020 |
NLP11#,NSP110 |
2 | ||
| 69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH | ||||
| 69350-28150 |
NLP11#,NSP110 |
1 | ||
| 69350-28151 |
NSP110 |
1 | ||
| 69430C - STRIKER ASSY, BACK DOOR LOCK | ||||
| 69430-20160 |
NLP11#,NSP110 |
1 | ||
| Common parts | ||||
| 90105-06184 | ||||
| 90119-06748 | ||||
| 90119-08061 | ||||
| 90159-80022 | ||||
| 90179-08096 | ||||
