NSP110L-AHFNKW (2009)

Toyota Urban Cruiser

Production Jan 2009 - Apr 2016
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0901- )

Click highlighted areas on diagram

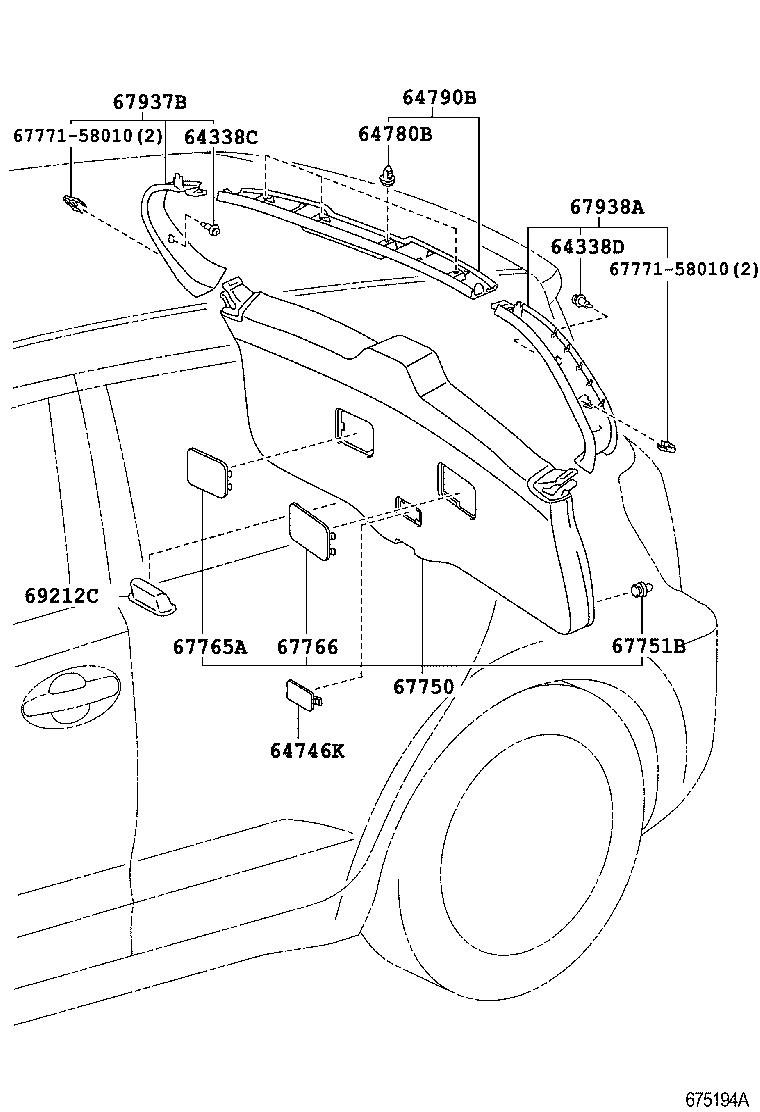

DOOR TRIM

diagram 64338C 64338D 64746K 64780B 64790B 67750 67751B 67765A 67766 6777158010 6777158010 67937B 67938A 69212C
Part # Description Qty Price
64338C - HOOK, PACKAGE TRAY TRIM GARNISH, RH
64338-52030

NLP11#,NSP110

 1
64338-52010

NLP11#,NSP110

WITH(PACKAGE TRAY&PARCEL SHELF)

 1
64338D - HOOK, PACKAGE TRAY TRIM GARNISH, LH
64338-52040

NLP11#,NSP110

 1
64338-52020

NLP11#,NSP110

WITH(PACKAGE TRAY&PARCEL SHELF)

 1
64746K - COVER, DECK TRIM SIDE LAMP HOLE
64746-52110B0

NLP11#,NSP110

DK.GRAY,TRIM1#

 1
64780B - CLIP(FOR BACK DOOR TRIM PANEL)
90467-10161

NLP11#,NSP110

 4
64790B - PANEL ASSY, BACK DOOR TRIM, UPPER
64790-52010B0

NLP11#,NSP110

DK.GRAY,TRIM1#

 1
67750 - BOARD ASSY, BACK DOOR TRIM
67750-52090B0

NLP11#,NSP110

DK.GRAY,TRIM1#

 1
67751B - RETAINER(FOR BACK DOOR TRIM BOARD)
67771-52030

NLP11#,NSP110

 12
67765A - COVER, BACK DOOR SERVICE HOLE, NO.1
67765-52010B0

NLP11#,NSP110

DK.GRAY,TRIM1#

 1
67766 - COVER, BACK DOOR SERVICE HOLE, NO.2
67765-52020B0

NLP11#,NSP110

DK.GRAY,TRIM1#

 1
67937B - GARNISH, BACK DOOR SIDE, RH
67937-52030B0

NLP11#,NSP110

DK.GRAY,TRIM1#

 1
67937-52020B0

NLP11#,NSP110

WITH(PACKAGE TRAY&PARCEL SHELF),DK.GRAY,TRIM1#

 1
67938A - GARNISH, BACK DOOR SIDE, LH
67938-52020B0

NLP11#,NSP110

WITH(PACKAGE TRAY&PARCEL SHELF),DK.GRAY,TRIM1#

 1
67938-52030B0

NLP11#,NSP110

DK.GRAY,TRIM1#

 1
69212C - HANDLE, BACK DOOR INSIDE
69212-12190B0

NLP11#,NSP110

DK.GRAY,TRIM1#

 1
Common parts
67771-58010

ILLUST NO. 1 OF 2(0901- )

Click highlighted areas on diagram

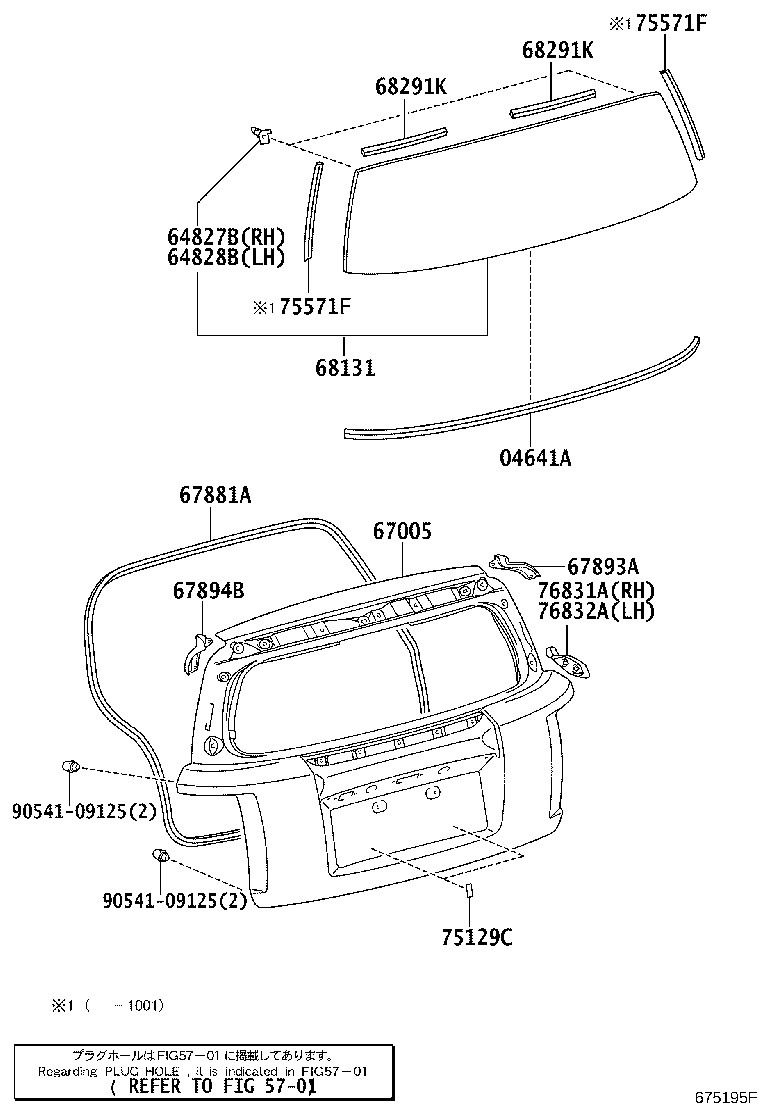

DOOR PANEL

diagram 04641A 5701 64827B 64828B 67005 67881A 67893A 67894B 68131 68291K 68291K 75129C 75571F 75571F 76831A 76832A 9054109125 9054109125
Part # Description Qty Price
04641A - DAM KIT, BACK WINDOW GLASS ADHESIVE
64813-52100

NLP11#,NSP110

 1
64827B - CLIP, BACK WINDOW GLASS, RH
64827-52080

NLP11#,NSP110

 1
64828B - CLIP, BACK WINDOW GLASS, LH
64828-52080

NLP11#,NSP110

 1
67005 - PANEL SUB-ASSY, BACK DOOR
67005-52B30

NLP11#,NSP110

 1
67881A - WEATHERSTRIP, BACK DOOR
67881-52140

NLP11#,NSP110

 1
67893A - PROTECTOR, BACK DOOR PANEL, NO.1
67893-52060

NLP11#,NSP110

 1
67894B - PROTECTOR, BACK DOOR PANEL, NO.2
67894-52060

NLP11#,NSP110

 1
68131 - GLASS, BACK DOOR
68105-52530

NLP11#,NSP110..N

*EHT,T=3.1,COOLGREEN

 1
68105-52530

NLP11#,NSP110..N

*EHT,T=3.1,COOLGREEN,SOL PACKAGE

 1
68105-52520

NLP11#,NSP110..R

*UVCTT,T=3.1,GREEN

 1
68105-52520

NLP11#,NSP110..N

*UVCTT,T=3.1,GREEN

 1
68291K - DAM KIT, BACK WINDOW GLASS
64814-52070

NLP11#,NSP110

 2
68291K - DAM KIT, BACK WINDOW GLASS
64814-52070

NLP11#,NSP110

 2
75129C - CUSHION, REAR LICENCE PLATE
75129-13020

NLP11#,NSP110

 2
75129-30010

NLP11#,NSP110

 2
75571F - MOULDIMG, BACK DOOR WINDOW
75571-52080

NLP11#,NSP110

 2
75571F - MOULDIMG, BACK DOOR WINDOW
75571-52080

NLP11#,NSP110

 2
76831A - COVER, BACK DOOR FINISH PANEL, RH
76831-52050

NLP11#,NSP110

 1
76832A - COVER, BACK DOOR FINISH PANEL, LH
76832-52050

NLP11#,NSP110

 1
Common parts
90541-09125
Linked diagrams
5701
