NSP110L-AHFNKW (2009)

Toyota Urban Cruiser

Production Jan 2009 - Apr 2016
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0901- )

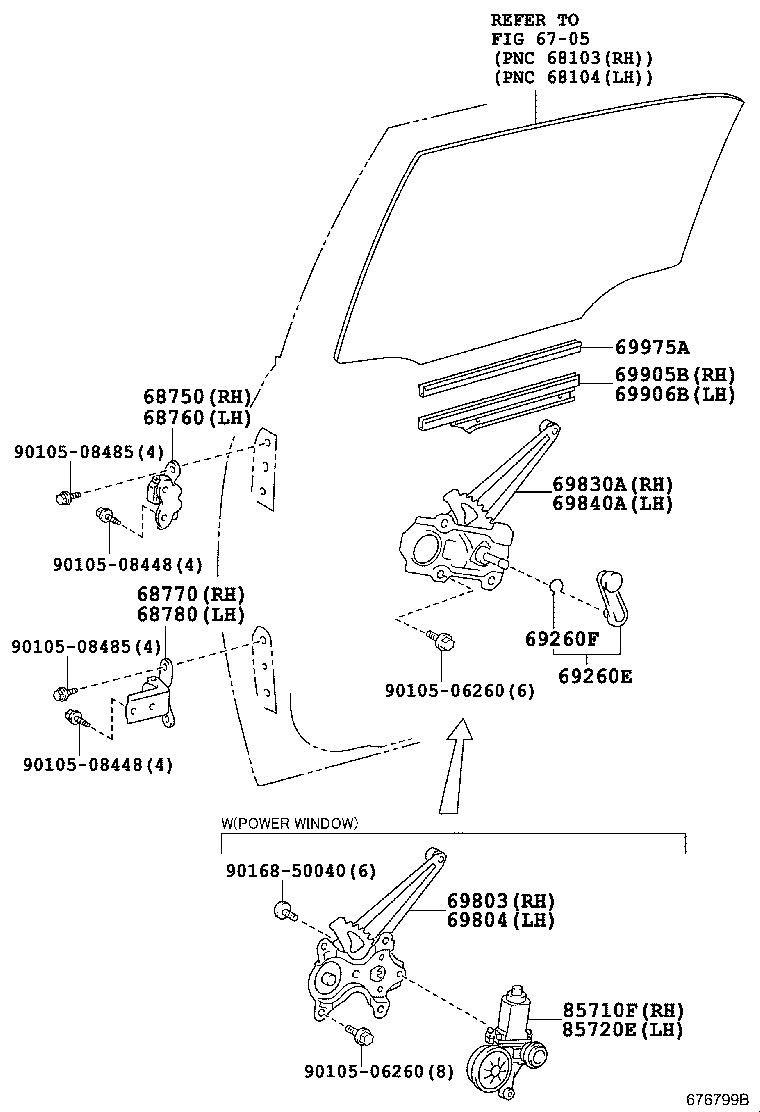

Click highlighted areas on diagram

diagram 6705 68750 68760 68770 68780 69260E 69260F 69803 69804 69830A 69840A 69905B 69906B 69975A 85710F 85720E 9010506260 9010506260 9010508448 9010508448 9010508485 9010508485 9016850040
Part # Description Qty Price
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-20122

NLP11#,NSP110

 1
68750-20121

NLP11#,NSP110

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68760-20121

NLP11#,NSP110

 1
68760-20122

NLP11#,NSP110

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68770-52031

NLP11#,NSP110

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68780-52031

NLP11#,NSP110

 1
69260E - HANDLE ASSY, REAR DOOR WINDOW REGULATOR
69260-52050C0

NSP110..R

BLACK,TRIM1#

 2
69260-52050B2

NLP11#,NSP110..R

DK.GRAY,TRIM1#

 2
69260F - RING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)
90520-01005

NLP11#,NSP110..R

 2
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-42040

NLP11#,NSP110..N

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-42040

NLP11#,NSP110..N

 1
69830A - REGULATOR ASSY, REAR DOOR WINDOW, RH
69830-52220

NLP11#,NSP110..R

 1
69840A - REGULATOR ASSY, REAR DOOR WINDOW, LH
69840-52220

NLP11#,NSP110..R

 1
69905B - CHANNEL SUB-ASSY, REAR DOOR GLASS, RH
69905-52050

NLP11#,NSP110

 1
69906B - CHANNEL SUB-ASSY, REAR DOOR GLASS, LH
69906-52050

NLP11#,NSP110

 1
69975A - FILLER, REAR DOOR GLASS CHANNEL
69975-52010

NLP11#,NSP110

 2
85710F - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85720-35140

NLP11#,NSP110..N

 1
85720E - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85710-35180

NLP11#,NSP110..N

 1
Common parts
90105-06260
90105-08448
90105-08485
90168-50040
Linked diagrams
6705
