NSP110L-AHFNKW (2009)

Toyota Urban Cruiser

Production Jan 2009 - Apr 2016
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0901- )

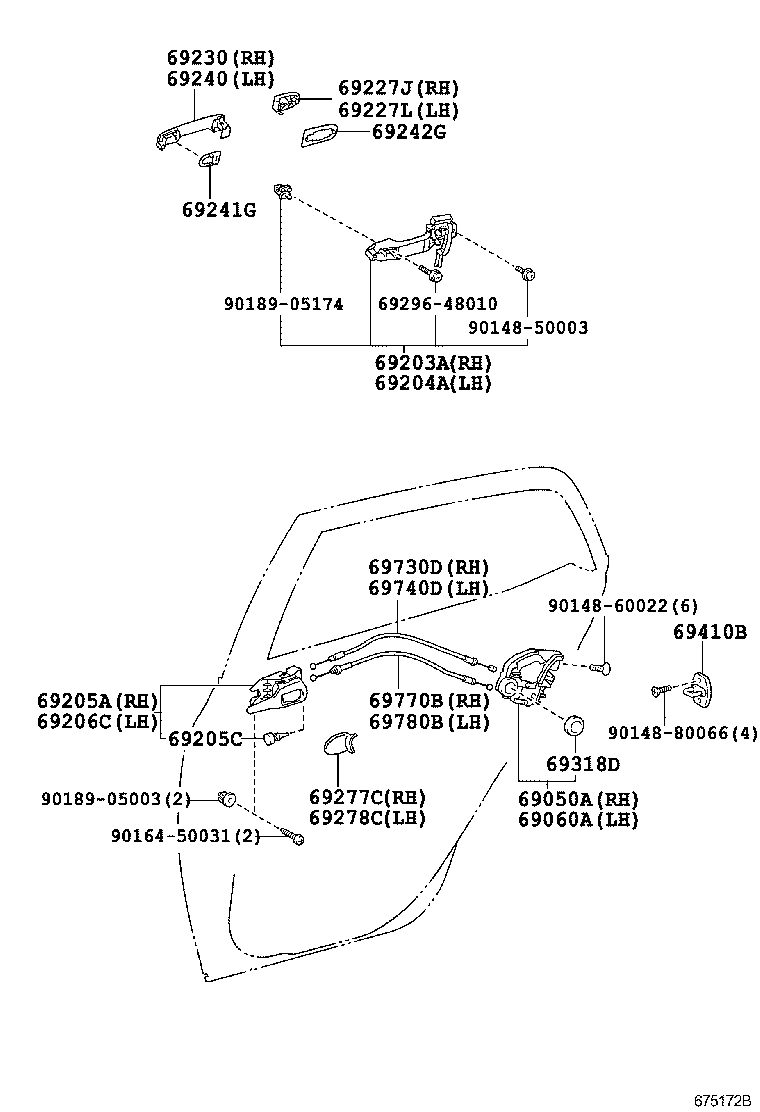

Click highlighted areas on diagram

diagram 69050A 69060A 69203A 69204A 69205A 69205C 69206C 69227J 69227L 69230 69240 69241G 69242G 69277C 69278C 6929648010 69318D 69410B 69730D 69740D 69770B 69780B 9014850003 9014860022 9014880066 9016450031 9018905003 9018905174
Part # Description Qty Price
69050A - LOCK ASSY, REAR DOOR W/MOTOR, RH
69050-42021

NLP11#,NSP110

 1
69060A - LOCK ASSY, REAR DOOR W/MOTOR, LH
69060-42021

NLP11#,NSP110

 1
69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69203-52050

NLP11#,NSP110

 1
69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69204-52060

NLP11#,NSP110

 1
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205-12220B4

NLP11#,NSP110

SILVER,TRIM1#

 1
69205C - CUSHION(FOR REAR DOOR INSIDE HANDLE)
90541-04027

NLP11#,NSP110

 2
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69206-12220B4

NLP11#,NSP110

SILVER,TRIM1#

 1
69227J - COVER, REAR DOOR OUTSIDE HANDLE, RH
69227-42070K3

NLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N

DEEP AMETHYST M.M.,9AH

 1
69227-42060

NLP11#,NSP110..LHD..R

BLACK MATERIAL

 1
69227-42070X0

NLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N

SUPER RED 5,3P0

 1
69227-42070P0

NLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N

SILVER M.M.,1E7

 1
69227-42070R8

NLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N

DK.BLUE MC.,8S6

 1
69227-42070P5

NLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N

GRAY ME.,1G3

 1
69227-42070L8

NLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N

BRONZE M.M.,4T3

 1
69227-42070P6

NLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N

SILVER ME.,1F7

 1
69227-42070V2

NLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N

BLUE ME.,8T7

 1
69227-42070C2

NLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N

BLACK MC.,209

 1
69227-4207003

NLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N

WHITE PEARL CS.,070

 1
69227-42070A3

NLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N

SUPER WHITE 2,040

 1
69227-42070X4

NLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N

RED M.M.,3R3

 1
69227L - COVER, REAR DOOR OUTSIDE HANDLE, LH
69227-42070A3

NLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N

SUPER WHITE 2,040

 1
69227-42060

NLP11#,NSP110..LHD..R

BLACK MATERIAL

 1
69227-4207003

NLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N

WHITE PEARL CS.,070

 1
69227-42070R8

NLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N

DK.BLUE MC.,8S6

 1
69227-42070P0

NLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N

SILVER M.M.,1E7

 1
69227-42070P6

NLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N

SILVER ME.,1F7

 1
69227-42070P5

NLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N

GRAY ME.,1G3

 1
69227-42070X4

NLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N

RED M.M.,3R3

 1
69227-42070V2

NLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N

BLUE ME.,8T7

 1
69227-42070K3

NLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N

DEEP AMETHYST M.M.,9AH

 1
69227-42070C2

NLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N

BLACK MC.,209

 1
69227-42070X0

NLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N

SUPER RED 5,3P0

 1
69227-42070L8

NLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N

BRONZE M.M.,4T3

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69211-12220A0

NLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N

SUPER WHITE 2,040

 1
69211-12220X4

NLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N

RED M.M.,3R3

 1
69211-12220R8

NLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N

DK.BLUE MC.,8S6

 1
69211-12220P0

NLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N

SILVER M.M.,1E7

 1
69211-12220X0

NLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N

SUPER RED 5,3P0

 1
69211-1222003

NLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N

WHITE PEARL CS.,070

 1
69211-12220K3

NLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N

DEEP AMETHYST M.M.,9AH

 1
69211-42010

NLP11#,NSP110..LHD..R

NO PAINT REQ.

 1
69211-12220V2

NLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N

BLUE ME.,8T7

 1
69211-12220L8

NLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N

BRONZE M.M.,4T3

 1
69211-12220P6

NLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N

SILVER ME.,1F7

 1
69211-12220P5

NLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N

GRAY ME.,1G3

 1
69211-12220C2

NLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N

BLACK MC.,209

 1
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69211-12220P0

NLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N

SILVER M.M.,1E7

 1
69211-12220A0

NLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N

SUPER WHITE 2,040

 1
69211-1222003

NLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N

WHITE PEARL CS.,070

 1
69211-12220R8

NLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N

DK.BLUE MC.,8S6

 1
69211-12220X0

NLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N

SUPER RED 5,3P0

 1
69211-12220X4

NLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N

RED M.M.,3R3

 1
69211-12220P5

NLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N

GRAY ME.,1G3

 1
69211-12220P6

NLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N

SILVER ME.,1F7

 1
69211-12220K3

NLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N

DEEP AMETHYST M.M.,9AH

 1
69211-42010

NLP11#,NSP110..LHD..R

NO PAINT REQ.

 1
69211-12220L8

NLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N

BRONZE M.M.,4T3

 1
69211-12220C2

NLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N

BLACK MC.,209

 1
69211-12220V2

NLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N

BLUE ME.,8T7

 1
69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT
69241-48020

NLP11#,NSP110

 2
69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR
69242-52020

NLP11#,NSP110

 2
69277C - BEZEL, REAR DOOR INSIDE HANDLE, RH
69277-52010

NLP11#,NSP110

 1
69278C - BEZEL, REAR DOOR INSIDE HANDLE, LH
69278-52010

NLP11#,NSP110

 1
69318D - SEAL, DOOR LOCK WIRING HARNESS
69318-51010

NLP11#,NSP110

 2
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-33010

NLP11#,NSP110

 2
69730D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69730-52140

NLP11#,NSP110

 1
69740D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69730-52140

NLP11#,NSP110

 1
69770B - CABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69770-52060

NLP11#,NSP110

 1
69780B - CABLE ASSY, REAR DOOR INSIDE LOCKING, LH
69770-52060

NLP11#,NSP110

 1
Common parts
69296-48010
90148-50003
90148-60022
90148-80066
90164-50031
90189-05003
90189-05174
