NSP110L-AHFNKW (2009)

Toyota Urban Cruiser

Production Jan 2009 - Apr 2016
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0901- )

Click highlighted areas on diagram

DOOR TRIM

diagram 67603 67603E 67604 67627 67628 68173B 68174A 7401 8401 9015960303 9016450031 9018906018
Part # Description Qty Price
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-52C90B1

NLP11#,NSP110..R

DK.GRAY,TRIM1#

 1
67630-52C80B1

NLP11#,NSP110..N

SOL PACKAGE,DK.GRAY,TRIM1#

 1
67630-52C81B0

NLP11#,NSP110..N

SOL PACKAGE,DK.GRAY,TRIM1#

 1
67630-52C82B0

NLP11#,NSP110..N

DK.GRAY,TRIM1#

 1
67630-52D00B2

NLP11#,NSP110..N

DK.GRAY,TRIM1#

 1
67630-52D01B0

NLP11#,NSP110..N

DK.GRAY,TRIM1#

 1
67630-52C91B0

NLP11#,NSP110..R

DK.GRAY,TRIM1#

 1
67603E - CLIP(FOR REAR DOOR TRIM BOARD)
90467-09206

NLP11#,NSP110

 14
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-52B11B0

NLP11#,NSP110..N

DK.GRAY,TRIM1#

 1
67640-52A90B1

NLP11#,NSP110..N

SOL PACKAGE,DK.GRAY,TRIM1#

 1
67640-52B10B2

NLP11#,NSP110..N

DK.GRAY,TRIM1#

 1
67640-52A92B0

NLP11#,NSP110..N

DK.GRAY,TRIM1#

 1
67640-52B01B0

NLP11#,NSP110..R

DK.GRAY,TRIM1#

 1
67640-52B00B1

NLP11#,NSP110..R

DK.GRAY,TRIM1#

 1
67640-52A91B0

NLP11#,NSP110..N

SOL PACKAGE,DK.GRAY,TRIM1#

 1
67627 - BRACKET, REAR DOOR TRIM, RH
67625-52110

NLP11#,NSP110

 1
67628 - BRACKET, REAR DOOR TRIM, LH
67625-52110

NLP11#,NSP110

 1
68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH
68173-52140

NLP11#,NSP110

 1
68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH
68174-52140

NLP11#,NSP110

 1
Common parts
90159-60303
90164-50031
90189-06018
Linked diagrams
7401
8401

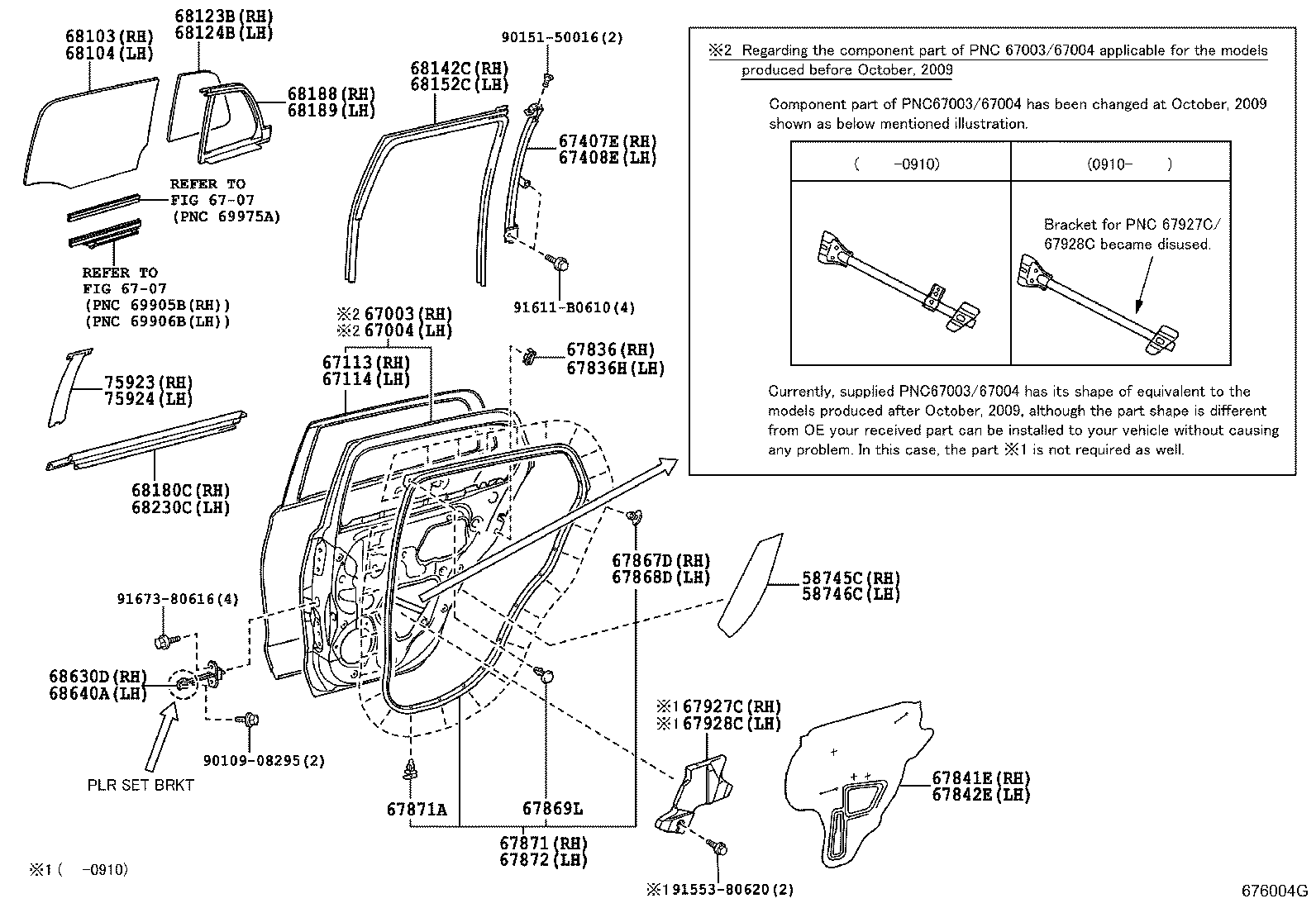

ILLUST NO. 1 OF 2(0901- )

Click highlighted areas on diagram

DOOR PANEL

diagram 58745C 58746C 67003 67004 6707 6707 67113 67114 67407E 67408E 67836 67836H 67841E 67842E 67867D 67868D 67869L 67871 67871A 67872 67927C 67928C 68103 68104 68123B 68124B 68142C 68152C 68180C 68188 68189 68230C 68630D 68640A 75923 75924 9010908295 9015150016 9155380620 91611B0610 9167380616
Part # Description Qty Price
58745C - PROTECTOR, REAR DOOR PANEL, RH
58745-52090

NLP11#,NSP110

 1
58746C - PROTECTOR, REAR DOOR PANEL, LH
58746-52100

NLP11#,NSP110

 1
67003 - PANEL SUB-ASSY, REAR DOOR, RH
67003-52410

NLP11#,NSP110

 1
67004 - PANEL SUB-ASSY, REAR DOOR, LH
67004-52400

NLP11#,NSP110

 1
67113 - PANEL, REAR DOOR, OUTER RH
67113-52190

NLP11#,NSP110

 1
67114 - PANEL, REAR DOOR, OUTER LH
67114-52190

NLP11#,NSP110

 1
67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67407-52150

NLP11#,NSP110

 1
67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67408-52150

NLP11#,NSP110

 1
67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67836-12040

NLP11#,NSP110

 1
67836-33030

NSP110

 1
67836H - COVER, REAR DOOR LOCK CHILD PROTECTION, LH
67836-12040

NLP11#,NSP110

 1
67836-33030

NSP110

 1
67841E - COVER, REAR DOOR SERVICE HOLE, RH
67841-52280

NLP11#,NSP110

 1
67842E - COVER, REAR DOOR SERVICE HOLE, LH
67842-52170

NLP11#,NSP110

 1
67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH
67867-52040

NLP11#,NSP110

 10
67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH
67867-52010

NLP11#,NSP110

 10
67869L - CLIP, REAR DOOR WEATHERSTRIP
90467-06084

NLP11#,NSP110

 2
67871 - WEATHERSTRIP, REAR DOOR, RH
67871-52160

NLP11#,NSP110

 1
67871A - RETAINER(FOR REAR DOOR WEATHERSTRIP)
67867-12150

NLP11#,NSP110

 38
67872 - WEATHERSTRIP, REAR DOOR, LH
67872-52180

NLP11#,NSP110

 1
67927C - CUSHION, SEPARATOR DOOR STIFFENER, NO.1
67927-52021

NLP11#,NSP110

 1
67928C - CUSHION, SEPARATOR DOOR STIFFENER, NO.2
67928-52021

NLP11#,NSP110

 1
68103 - GLASS SUB-ASSY, REAR DOOR, RH
68113-52290

NLP11#,NSP110..N

*UVCT,T=3.1,GREEN

 1
68113-52300

NLP11#,NSP110..N

*TEM,T=3.1,DARK GRAY

 1
68113-52300

NLP11#,NSP110..N

*TEM,T=3.1,DARK GRAY,SOL PACKAGE

 1
68113-52290

NLP11#,NSP110..R

*UVCT,T=3.1,GREEN

 1
68104 - GLASS SUB-ASSY, REAR DOOR, LH
68114-52300

NLP11#,NSP110..N

*TEM,T=3.1,DARK GRAY

 1
68114-52300

NLP11#,NSP110..N

*TEM,T=3.1,DARK GRAY,SOL PACKAGE

 1
68114-52290

NLP11#,NSP110..N

*UVCT,T=3.1,GREEN

 1
68114-52290

NLP11#,NSP110..R

*UVCT,T=3.1,GREEN

 1
68123B - GLASS, REAR DOOR QUARTER WINDOW, RH
68123-52170

NLP11#,NSP110..N

*UVCT,T=3.1,GREEN

 1
68123-52180

NLP11#,NSP110..N

*TEM,T=3.1,DARK GRAY

 1
68123-52180

NLP11#,NSP110..N

*TEM,T=3.1,DARK GRAY,SOL PACKAGE

 1
68123-52170

NLP11#,NSP110..R

*UVCT,T=3.1,GREEN

 1
68124B - GLASS, REAR DOOR QUARTER WINDOW, LH
68124-52180

NLP11#,NSP110..N

*TEM,T=3.1,DARK GRAY,SOL PACKAGE

 1
68124-52180

NLP11#,NSP110..N

*TEM,T=3.1,DARK GRAY

 1
68124-52170

NLP11#,NSP110..N

*UVCT,T=3.1,GREEN

 1
68124-52170

NLP11#,NSP110..R

*UVCT,T=3.1,GREEN

 1
68142C - RUN, REAR DOOR GLASS, RH
68142-52180

NLP11#,NSP110

 1
68152C - RUN, REAR DOOR GLASS, LH
68152-52190

NLP11#,NSP110

 1
68180C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH
68180-52140

NLP11#,NSP110

 1
68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68188-52090

NLP11#,NSP110

 1
68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68189-52090

NLP11#,NSP110

 1
68230C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH
68230-52140

NLP11#,NSP110

 1
68630D - CHECK ASSY, REAR DOOR, RH
68630-52091

NLP11#,NSP110

PLR SET BRKT:SILVER

 1
68630-52090

NLP11#,NSP110

PLR SET BRKT:BLACK

 1
68640A - CHECK ASSY, REAR DOOR, LH
68640-52100

NLP11#,NSP110

PLR SET BRKT:BLACK

 1
68640-52101

NLP11#,NSP110

PLR SET BRKT:SILVER

 1
75923 - TAPE, BLACK OUT, NO.2 RH
75923-52100

NLP11#,NSP110

 1
75923-52100

NLP11#,NSP110

 1
75924 - TAPE, BLACK OUT, NO.2 LH
75924-52100

NLP11#,NSP110

 1
75924-52100

NLP11#,NSP110

 1
Common parts
90109-08295
90151-50016
91553-80620
91611-B0610
91673-80616
Linked diagrams
6707
