NSP110L-AHFNKW (2009)

Toyota Urban Cruiser

Production Jan 2009 - Apr 2016
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0901- )

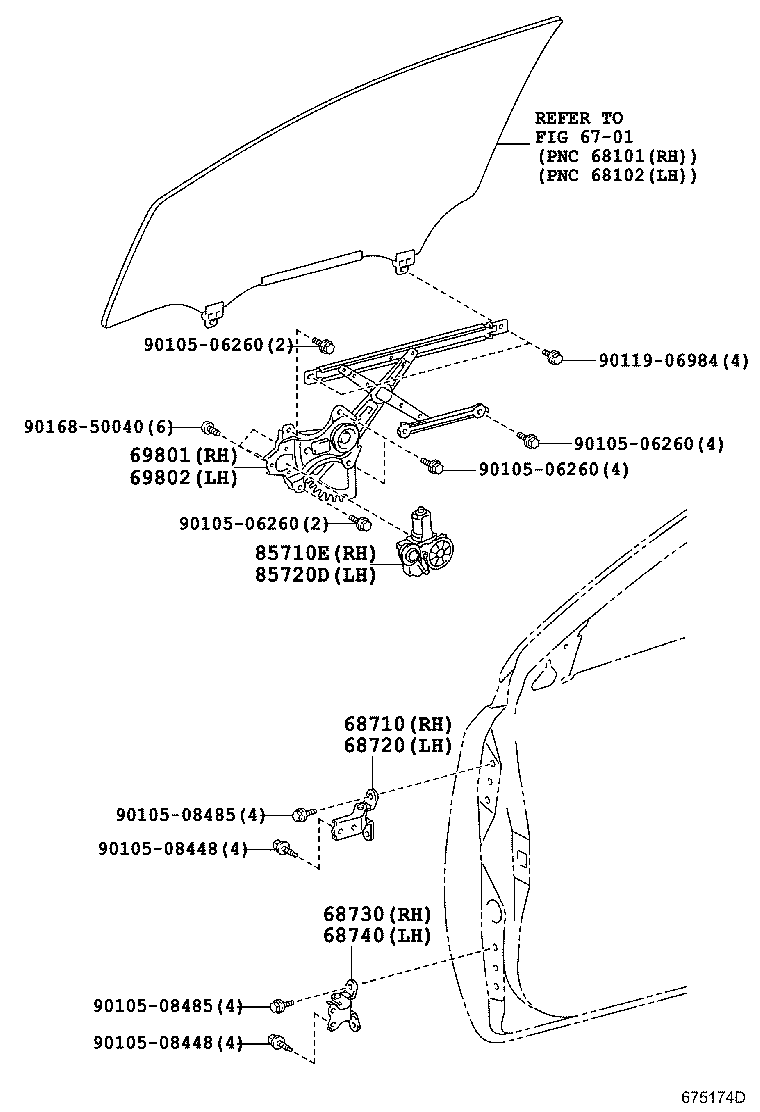

Click highlighted areas on diagram

diagram 6701 68710 68720 68730 68740 69801 69802 85710E 85720D 9010506260 9010506260 9010506260 9010506260 9010508448 9010508448 9010508485 9010508485 9011906984 9016850040
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-12151

NLP11#,NSP110

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-12151

NLP11#,NSP110

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-12120

NLP11#,NSP110

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-12120

NLP11#,NSP110

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-52070

NLP110,NSP110

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-52070

NLP110,NSP110

 1
85710E - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-35180

NLP110,NSP110..LHD

 1
85720D - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-48070

NLP110,NSP110..LHD

 1
85720-30340

NLP110,NSP110..LHD

 1
85720-12490

NSP110

 1
Common parts
90105-06260
90105-08448
90105-08485
90119-06984
90168-50040
Linked diagrams
6701
