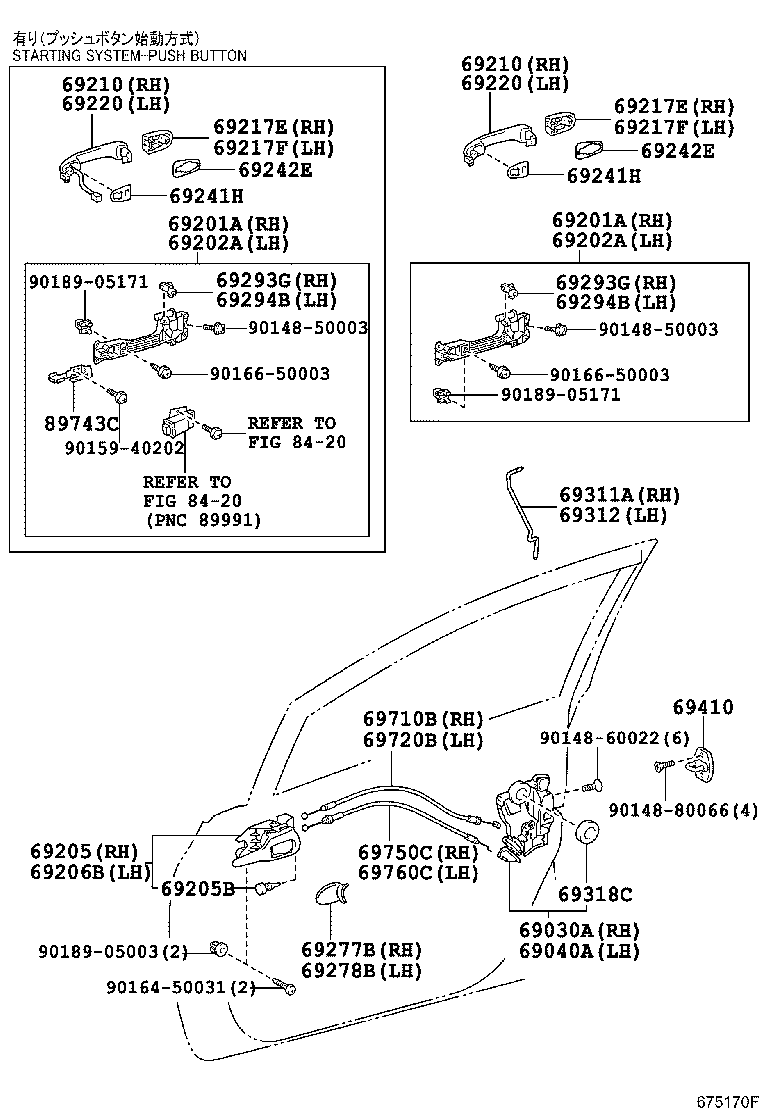

NSP110L-AHFNKW (2009)
Toyota Urban Cruiser
(0901- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69030A - LOCK ASSY, FRONT DOOR W/MOTOR, RH | ||||
| 69030-12490 |
NLP11#,NSP110..LHD |
1 | ||
| 69030-42221 |
NLP11#,NSP110..LHD..N SOL PACKAGE |
1 | ||
| 69040A - LOCK ASSY, FRONT DOOR W/MOTOR, LH | ||||
| 69040-42241 |
NLP11#,NSP110..LHD |
1 | ||
| 69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69201-52040 |
NLP11#,NSP110..LHD |
1 | ||
| 69201-52060 |
NLP11#,NSP110..LHD..N SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START) |
1 | ||
| 69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69201-52040 |
NLP11#,NSP110..LHD |
1 | ||
| 69201-52060 |
NLP11#,NSP110..LHD..N SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START) |
1 | ||
| 69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69202-52040 |
NLP11#,NSP110..LHD..N SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START) |
1 | ||
| 69202-52020 |
NLP11#,NSP110..LHD |
1 | ||
| 69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69202-52040 |
NLP11#,NSP110..LHD..N SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START) |
1 | ||
| 69202-52020 |
NLP11#,NSP110..LHD |
1 | ||
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-12220B4 |
NLP11#,NSP110 SILVER,TRIM1# |
1 | ||
| 69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE) | ||||
| 90541-04027 |
NLP11#,NSP110 |
2 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-12220B4 |
NLP11#,NSP110 SILVER,TRIM1# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-12320D2 |
NLP11#,NSP110..LHD..N SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),SUPER RED 5,3P0 |
1 | ||
| 69210-12320B1 |
NLP11#,NSP110..LHD..N SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),SILVER M.M.,1E7 |
1 | ||
| 69211-12220P0 |
NLP11#,NSP110..LHD..N SILVER M.M.,1E7 |
1 | ||
| 69211-12220X0 |
NLP11#,NSP110..LHD..N SUPER RED 5,3P0 |
1 | ||
| 69210-12320B6 |
NLP11#,NSP110..LHD..N SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),GRAY ME.,1G3 |
1 | ||
| 69210-12320C0 |
NLP11#,NSP110..LHD..N SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),BLACK MC.,209 |
1 | ||
| 69210-12320A0 |
NLP11#,NSP110..LHD..N SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),SUPER WHITE 2,040 |
1 | ||
| 69210-12320D6 |
NLP11#,NSP110..LHD..N SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),RED M.M.,3R3 |
1 | ||
| 69210-12320A5 |
NLP11#,NSP110..LHD..N SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),WHITE PEARL CS.,070 |
1 | ||
| 69211-12220K3 |
NLP11#,NSP110..LHD..N DEEP AMETHYST M.M.,9AH |
1 | ||
| 69210-12320J8 |
NLP11#,NSP110..LHD..N SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),DK.BLUE MC.,8S6 |
1 | ||
| 69211-1222003 |
NLP11#,NSP110..LHD..N WHITE PEARL CS.,070 |
1 | ||
| 69211-12220X4 |
NLP11#,NSP110..LHD..N RED M.M.,3R3 |
1 | ||
| 69211-42010 |
NLP11#,NSP110..LHD..R NO PAINT REQ. |
1 | ||
| 69211-12220P5 |
NLP11#,NSP110..LHD..N GRAY ME.,1G3 |
1 | ||
| 69210-12320B7 |
NLP11#,NSP110..LHD..N SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),SILVER ME.,1F7 |
1 | ||
| 69211-12220A0 |
NLP11#,NSP110..LHD..N SUPER WHITE 2,040 |
1 | ||
| 69210-12320K2 |
NLP11#,NSP110..LHD..N SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),DEEP AMETHYST M.M.,9AH |
1 | ||
| 69210-12320R6 |
NLP11#,NSP110..LHD..N SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),BLUE ME.,8T7 |
1 | ||
| 69210-12320L1 |
NLP11#,NSP110..LHD..N SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),BRONZE M.M.,4T3 |
1 | ||
| 69211-12220V2 |
NLP11#,NSP110..LHD..N BLUE ME.,8T7 |
1 | ||
| 69211-12220R8 |
NLP11#,NSP110..LHD..N DK.BLUE MC.,8S6 |
1 | ||
| 69211-12220L8 |
NLP11#,NSP110..LHD..N BRONZE M.M.,4T3 |
1 | ||
| 69211-12220C2 |
NLP11#,NSP110..LHD..N BLACK MC.,209 |
1 | ||
| 69211-12220P6 |
NLP11#,NSP110..LHD..N SILVER ME.,1F7 |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-12320D2 |
NLP11#,NSP110..LHD..N SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),SUPER RED 5,3P0 |
1 | ||
| 69210-12320B1 |
NLP11#,NSP110..LHD..N SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),SILVER M.M.,1E7 |
1 | ||
| 69211-12220P0 |
NLP11#,NSP110..LHD..N SILVER M.M.,1E7 |
1 | ||
| 69211-12220X0 |
NLP11#,NSP110..LHD..N SUPER RED 5,3P0 |
1 | ||
| 69210-12320B6 |
NLP11#,NSP110..LHD..N SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),GRAY ME.,1G3 |
1 | ||
| 69210-12320C0 |
NLP11#,NSP110..LHD..N SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),BLACK MC.,209 |
1 | ||
| 69210-12320A0 |
NLP11#,NSP110..LHD..N SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),SUPER WHITE 2,040 |
1 | ||
| 69210-12320D6 |
NLP11#,NSP110..LHD..N SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),RED M.M.,3R3 |
1 | ||
| 69210-12320A5 |
NLP11#,NSP110..LHD..N SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),WHITE PEARL CS.,070 |
1 | ||
| 69211-12220K3 |
NLP11#,NSP110..LHD..N DEEP AMETHYST M.M.,9AH |
1 | ||
| 69210-12320J8 |
NLP11#,NSP110..LHD..N SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),DK.BLUE MC.,8S6 |
1 | ||
| 69211-1222003 |
NLP11#,NSP110..LHD..N WHITE PEARL CS.,070 |
1 | ||
| 69211-12220X4 |
NLP11#,NSP110..LHD..N RED M.M.,3R3 |
1 | ||
| 69211-42010 |
NLP11#,NSP110..LHD..R NO PAINT REQ. |
1 | ||
| 69211-12220P5 |
NLP11#,NSP110..LHD..N GRAY ME.,1G3 |
1 | ||
| 69210-12320B7 |
NLP11#,NSP110..LHD..N SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),SILVER ME.,1F7 |
1 | ||
| 69211-12220A0 |
NLP11#,NSP110..LHD..N SUPER WHITE 2,040 |
1 | ||
| 69210-12320K2 |
NLP11#,NSP110..LHD..N SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),DEEP AMETHYST M.M.,9AH |
1 | ||
| 69210-12320R6 |
NLP11#,NSP110..LHD..N SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),BLUE ME.,8T7 |
1 | ||
| 69210-12320L1 |
NLP11#,NSP110..LHD..N SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),BRONZE M.M.,4T3 |
1 | ||
| 69211-12220V2 |
NLP11#,NSP110..LHD..N BLUE ME.,8T7 |
1 | ||
| 69211-12220R8 |
NLP11#,NSP110..LHD..N DK.BLUE MC.,8S6 |
1 | ||
| 69211-12220L8 |
NLP11#,NSP110..LHD..N BRONZE M.M.,4T3 |
1 | ||
| 69211-12220C2 |
NLP11#,NSP110..LHD..N BLACK MC.,209 |
1 | ||
| 69211-12220P6 |
NLP11#,NSP110..LHD..N SILVER ME.,1F7 |
1 | ||
| 69217E - COVER, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69217-12040B4 |
NLP11#,NSP110..LHD..N SILVER M.M.,1E7 |
1 | ||
| 69217-12040D5 |
NLP11#,NSP110..LHD..N SUPER RED 5,3P0 |
1 | ||
| 69217-12040P0 |
NLP11#,NSP110..LHD..N GRAY ME.,1G3 |
1 | ||
| 69217-12030 |
NLP11#,NSP110..LHD..R BLACK MATERIAL |
1 | ||
| 69217-12040P1 |
NLP11#,NSP110..LHD..N SILVER ME.,1F7 |
1 | ||
| 69217-12040L4 |
NLP11#,NSP110..LHD..N BRONZE M.M.,4T3 |
1 | ||
| 69217-12040R5 |
NLP11#,NSP110..LHD..N DK.BLUE MC.,8S6 |
1 | ||
| 69217-12040D9 |
NLP11#,NSP110..LHD..N RED M.M.,3R3 |
1 | ||
| 69217-12040A0 |
NLP11#,NSP110..LHD..N SUPER WHITE 2,040 |
1 | ||
| 69217-12040A9 |
NLP11#,NSP110..LHD..N WHITE PEARL CS.,070 |
1 | ||
| 69217-12040C2 |
NLP11#,NSP110..LHD..N BLACK MC.,209 |
1 | ||
| 69217-12040K3 |
NLP11#,NSP110..LHD..N DEEP AMETHYST M.M.,9AH |
1 | ||
| 69217-12040V1 |
NLP11#,NSP110..LHD..N BLUE ME.,8T7 |
1 | ||
| 69217E - COVER, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69217-12040B4 |
NLP11#,NSP110..LHD..N SILVER M.M.,1E7 |
1 | ||
| 69217-12040D5 |
NLP11#,NSP110..LHD..N SUPER RED 5,3P0 |
1 | ||
| 69217-12040P0 |
NLP11#,NSP110..LHD..N GRAY ME.,1G3 |
1 | ||
| 69217-12030 |
NLP11#,NSP110..LHD..R BLACK MATERIAL |
1 | ||
| 69217-12040P1 |
NLP11#,NSP110..LHD..N SILVER ME.,1F7 |
1 | ||
| 69217-12040L4 |
NLP11#,NSP110..LHD..N BRONZE M.M.,4T3 |
1 | ||
| 69217-12040R5 |
NLP11#,NSP110..LHD..N DK.BLUE MC.,8S6 |
1 | ||
| 69217-12040D9 |
NLP11#,NSP110..LHD..N RED M.M.,3R3 |
1 | ||
| 69217-12040A0 |
NLP11#,NSP110..LHD..N SUPER WHITE 2,040 |
1 | ||
| 69217-12040A9 |
NLP11#,NSP110..LHD..N WHITE PEARL CS.,070 |
1 | ||
| 69217-12040C2 |
NLP11#,NSP110..LHD..N BLACK MC.,209 |
1 | ||
| 69217-12040K3 |
NLP11#,NSP110..LHD..N DEEP AMETHYST M.M.,9AH |
1 | ||
| 69217-12040V1 |
NLP11#,NSP110..LHD..N BLUE ME.,8T7 |
1 | ||
| 69217F - COVER, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69217-42020P0 |
NLP11#,NSP110..LHD..N SILVER M.M.,1E7 |
1 | ||
| 69217-42010 |
NLP11#,NSP110..LHD..R BLACK MATERIAL |
1 | ||
| 69217-42020X0 |
NLP11#,NSP110..LHD..N SUPER RED 5,3P0 |
1 | ||
| 69217-4202004 |
NLP11#,NSP110..LHD..N WHITE PEARL CS.,070 |
1 | ||
| 69217-42020K3 |
NLP11#,NSP110..LHD..N DEEP AMETHYST M.M.,9AH |
1 | ||
| 69217-42020P5 |
NLP11#,NSP110..LHD..N GRAY ME.,1G3 |
1 | ||
| 69217-42020P6 |
NLP11#,NSP110..LHD..N SILVER ME.,1F7 |
1 | ||
| 69217-42020M0 |
NLP11#,NSP110..LHD..N BRONZE M.M.,4T3 |
1 | ||
| 69217-42020C2 |
NLP11#,NSP110..LHD..N BLACK MC.,209 |
1 | ||
| 69217-42020A3 |
NLP11#,NSP110..LHD..N SUPER WHITE 2,040 |
1 | ||
| 69217-42020R9 |
NLP11#,NSP110..LHD..N DK.BLUE MC.,8S6 |
1 | ||
| 69217-42020X4 |
NLP11#,NSP110..LHD..N RED M.M.,3R3 |
1 | ||
| 69217-42020V4 |
NLP11#,NSP110..LHD..N BLUE ME.,8T7 |
1 | ||
| 69217F - COVER, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69217-42020P0 |
NLP11#,NSP110..LHD..N SILVER M.M.,1E7 |
1 | ||
| 69217-42010 |
NLP11#,NSP110..LHD..R BLACK MATERIAL |
1 | ||
| 69217-42020X0 |
NLP11#,NSP110..LHD..N SUPER RED 5,3P0 |
1 | ||
| 69217-4202004 |
NLP11#,NSP110..LHD..N WHITE PEARL CS.,070 |
1 | ||
| 69217-42020K3 |
NLP11#,NSP110..LHD..N DEEP AMETHYST M.M.,9AH |
1 | ||
| 69217-42020P5 |
NLP11#,NSP110..LHD..N GRAY ME.,1G3 |
1 | ||
| 69217-42020P6 |
NLP11#,NSP110..LHD..N SILVER ME.,1F7 |
1 | ||
| 69217-42020M0 |
NLP11#,NSP110..LHD..N BRONZE M.M.,4T3 |
1 | ||
| 69217-42020C2 |
NLP11#,NSP110..LHD..N BLACK MC.,209 |
1 | ||
| 69217-42020A3 |
NLP11#,NSP110..LHD..N SUPER WHITE 2,040 |
1 | ||
| 69217-42020R9 |
NLP11#,NSP110..LHD..N DK.BLUE MC.,8S6 |
1 | ||
| 69217-42020X4 |
NLP11#,NSP110..LHD..N RED M.M.,3R3 |
1 | ||
| 69217-42020V4 |
NLP11#,NSP110..LHD..N BLUE ME.,8T7 |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69210-12320D2 |
NLP11#,NSP110..LHD..N SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),SUPER RED 5,3P0 |
1 | ||
| 69211-12220P0 |
NLP11#,NSP110..LHD..N SILVER M.M.,1E7 |
1 | ||
| 69210-12320C0 |
NLP11#,NSP110..LHD..N SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),BLACK MC.,209 |
1 | ||
| 69210-12320A0 |
NLP11#,NSP110..LHD..N SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),SUPER WHITE 2,040 |
1 | ||
| 69210-12320B1 |
NLP11#,NSP110..LHD..N SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),SILVER M.M.,1E7 |
1 | ||
| 69211-12220X0 |
NLP11#,NSP110..LHD..N SUPER RED 5,3P0 |
1 | ||
| 69210-12320D6 |
NLP11#,NSP110..LHD..N SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),RED M.M.,3R3 |
1 | ||
| 69211-12220K3 |
NLP11#,NSP110..LHD..N DEEP AMETHYST M.M.,9AH |
1 | ||
| 69211-12220A0 |
NLP11#,NSP110..LHD..N SUPER WHITE 2,040 |
1 | ||
| 69210-12320B6 |
NLP11#,NSP110..LHD..N SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),GRAY ME.,1G3 |
1 | ||
| 69210-12320J8 |
NLP11#,NSP110..LHD..N SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),DK.BLUE MC.,8S6 |
1 | ||
| 69210-12320B7 |
NLP11#,NSP110..LHD..N SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),SILVER ME.,1F7 |
1 | ||
| 69210-12320A5 |
NLP11#,NSP110..LHD..N SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),WHITE PEARL CS.,070 |
1 | ||
| 69211-12220C2 |
NLP11#,NSP110..LHD..N BLACK MC.,209 |
1 | ||
| 69210-12320K2 |
NLP11#,NSP110..LHD..N SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),DEEP AMETHYST M.M.,9AH |
1 | ||
| 69210-12320R6 |
NLP11#,NSP110..LHD..N SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),BLUE ME.,8T7 |
1 | ||
| 69211-1222003 |
NLP11#,NSP110..LHD..N WHITE PEARL CS.,070 |
1 | ||
| 69211-12220X4 |
NLP11#,NSP110..LHD..N RED M.M.,3R3 |
1 | ||
| 69210-12320L1 |
NLP11#,NSP110..LHD..N SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),BRONZE M.M.,4T3 |
1 | ||
| 69211-42010 |
NLP11#,NSP110..LHD..R NO PAINT REQ. |
1 | ||
| 69211-12220P5 |
NLP11#,NSP110..LHD..N GRAY ME.,1G3 |
1 | ||
| 69211-12220P6 |
NLP11#,NSP110..LHD..N SILVER ME.,1F7 |
1 | ||
| 69211-12220L8 |
NLP11#,NSP110..LHD..N BRONZE M.M.,4T3 |
1 | ||
| 69211-12220R8 |
NLP11#,NSP110..LHD..N DK.BLUE MC.,8S6 |
1 | ||
| 69211-12220V2 |
NLP11#,NSP110..LHD..N BLUE ME.,8T7 |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69210-12320D2 |
NLP11#,NSP110..LHD..N SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),SUPER RED 5,3P0 |
1 | ||
| 69211-12220P0 |
NLP11#,NSP110..LHD..N SILVER M.M.,1E7 |
1 | ||
| 69210-12320C0 |
NLP11#,NSP110..LHD..N SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),BLACK MC.,209 |
1 | ||
| 69210-12320A0 |
NLP11#,NSP110..LHD..N SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),SUPER WHITE 2,040 |
1 | ||
| 69210-12320B1 |
NLP11#,NSP110..LHD..N SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),SILVER M.M.,1E7 |
1 | ||
| 69211-12220X0 |
NLP11#,NSP110..LHD..N SUPER RED 5,3P0 |
1 | ||
| 69210-12320D6 |
NLP11#,NSP110..LHD..N SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),RED M.M.,3R3 |
1 | ||
| 69211-12220K3 |
NLP11#,NSP110..LHD..N DEEP AMETHYST M.M.,9AH |
1 | ||
| 69211-12220A0 |
NLP11#,NSP110..LHD..N SUPER WHITE 2,040 |
1 | ||
| 69210-12320B6 |
NLP11#,NSP110..LHD..N SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),GRAY ME.,1G3 |
1 | ||
| 69210-12320J8 |
NLP11#,NSP110..LHD..N SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),DK.BLUE MC.,8S6 |
1 | ||
| 69210-12320B7 |
NLP11#,NSP110..LHD..N SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),SILVER ME.,1F7 |
1 | ||
| 69210-12320A5 |
NLP11#,NSP110..LHD..N SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),WHITE PEARL CS.,070 |
1 | ||
| 69211-12220C2 |
NLP11#,NSP110..LHD..N BLACK MC.,209 |
1 | ||
| 69210-12320K2 |
NLP11#,NSP110..LHD..N SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),DEEP AMETHYST M.M.,9AH |
1 | ||
| 69210-12320R6 |
NLP11#,NSP110..LHD..N SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),BLUE ME.,8T7 |
1 | ||
| 69211-1222003 |
NLP11#,NSP110..LHD..N WHITE PEARL CS.,070 |
1 | ||
| 69211-12220X4 |
NLP11#,NSP110..LHD..N RED M.M.,3R3 |
1 | ||
| 69210-12320L1 |
NLP11#,NSP110..LHD..N SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),BRONZE M.M.,4T3 |
1 | ||
| 69211-42010 |
NLP11#,NSP110..LHD..R NO PAINT REQ. |
1 | ||
| 69211-12220P5 |
NLP11#,NSP110..LHD..N GRAY ME.,1G3 |
1 | ||
| 69211-12220P6 |
NLP11#,NSP110..LHD..N SILVER ME.,1F7 |
1 | ||
| 69211-12220L8 |
NLP11#,NSP110..LHD..N BRONZE M.M.,4T3 |
1 | ||
| 69211-12220R8 |
NLP11#,NSP110..LHD..N DK.BLUE MC.,8S6 |
1 | ||
| 69211-12220V2 |
NLP11#,NSP110..LHD..N BLUE ME.,8T7 |
1 | ||
| 69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT | ||||
| 69241-42020 |
NLP11#,NSP110 |
2 | ||
| 69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT | ||||
| 69241-42020 |
NLP11#,NSP110 |
2 | ||
| 69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR | ||||
| 69242-52020 |
NLP11#,NSP110 |
2 | ||
| 69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR | ||||
| 69242-52020 |
NLP11#,NSP110 |
2 | ||
| 69277B - BEZEL, FRONT DOOR INSIDE HANDLE, RH | ||||
| 69277-52010 |
NLP11#,NSP110 |
1 | ||
| 69278B - BEZEL, FRONT DOOR INSIDE HANDLE, LH | ||||
| 69278-52010 |
NLP11#,NSP110 |
1 | ||
| 69293G - SNAP, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69293-12030 |
NLP11#,NSP110 |
1 | ||
| 69293G - SNAP, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69293-12030 |
NLP11#,NSP110 |
1 | ||
| 69294B - SNAP, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69293-12040 |
NLP11#,NSP110 |
1 | ||
| 69294B - SNAP, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69293-12040 |
NLP11#,NSP110 |
1 | ||
| 69311A - ROD, FRONT DOOR LOCK OPEN, RH | ||||
| 69311-52190 |
NLP11#,NSP110 |
1 | ||
| 69312 - ROD, FRONT DOOR LOCK OPEN, LH | ||||
| 69312-52170 |
NLP11#,NSP110 |
1 | ||
| 69318C - SEAL, DOOR LOCK WIRING HARNESS | ||||
| 69318-51010 |
NLP11#,NSP110 |
2 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-33010 |
NLP11#,NSP110 |
2 | ||
| 69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69710-52160 |
NLP11#,NSP110 |
1 | ||
| 69720B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69710-52160 |
NLP11#,NSP110 |
1 | ||
| 69750C - CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH | ||||
| 69750-52090 |
NLP11#,NSP110 |
1 | ||
| 69760C - CABLE ASSY, FRONT DOOR INSIDE LOCKING LH | ||||
| 69750-52090 |
NLP11#,NSP110 |
1 | ||
| 89743C - BRACKET, ELECTRICAL KEY WIRE HARNESS | ||||
| 89743-47020 |
NLP11#,NSP110..LHD..N SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),LH |
1 | ||
| 89743-47010 |
NLP11#,NSP110..LHD..N SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),RH |
1 | ||
| Common parts | ||||
| 90148-50003 | ||||
| 90148-60022 | ||||
| 90148-80066 | ||||
| 90159-40202 | ||||
| 90164-50031 | ||||
| 90166-50003 | ||||
| 90189-05003 | ||||
| 90189-05171 | ||||
| Linked diagrams | ||||
| 8420 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
