NSP110L-AHFNKW (2009)

Toyota Urban Cruiser

Production Jan 2009 - Apr 2016
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

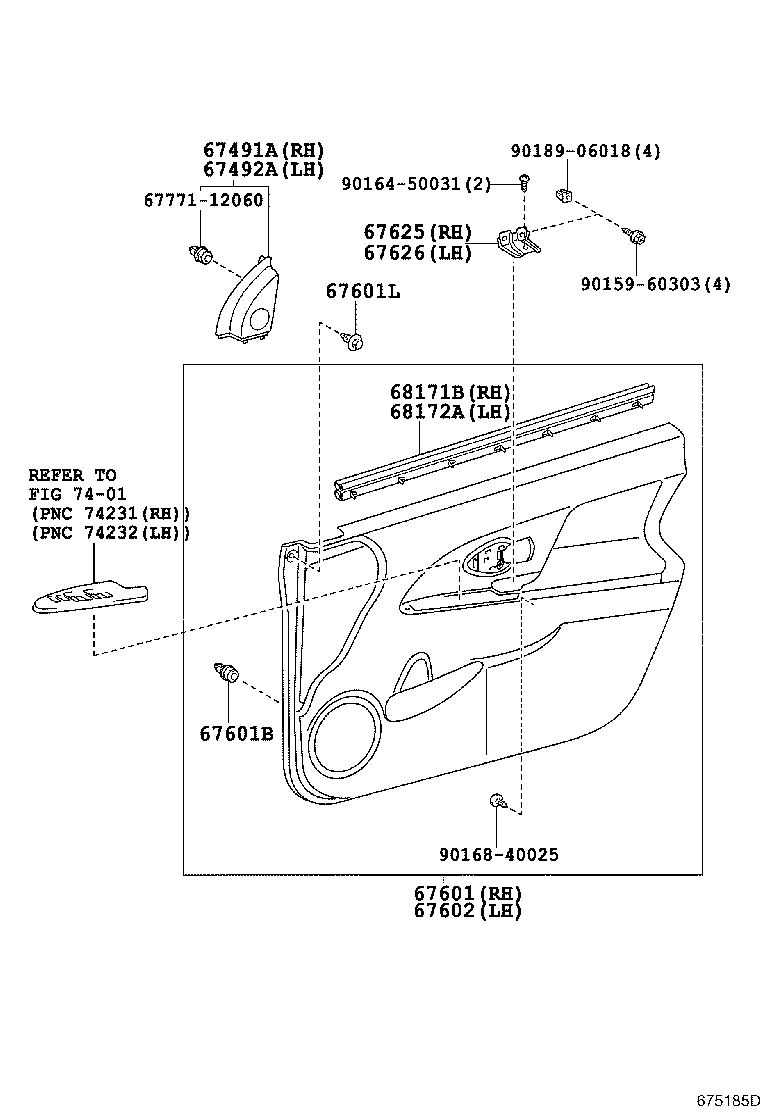

ILLUST NO. 2 OF 2(0901- )

Click highlighted areas on diagram

DOOR TRIM

diagram 67491A 67492A 67601 67601B 67601L 67602 67625 67626 6777112060 68171B 68172A 7401 9015960303 9016450031 9016840025 9018906018
Part # Description Qty Price
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-52160

NLP11#,NSP110

 1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-52150

NLP11#,NSP110

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-52J60B1

NLP11#,NSP110..LHD..N

SOL PACKAGE,DK.GRAY,TRIM1#

 1
67610-52J61B0

NLP11#,NSP110..LHD..N

SOL PACKAGE,DK.GRAY,TRIM1#

 1
67610-52J81B0

NLP11#,NSP110..LHD..N

DK.GRAY,TRIM1#

 1
67610-52J71B0

NLP11#,NSP110..LHD..R

DK.GRAY,TRIM1#

 1
67610-52J62B0

NLP11#,NSP110..LHD..N

DK.GRAY,TRIM1#

 1
67610-52J70B1

NLP11#,NSP110..LHD..R

DK.GRAY,TRIM1#

 1
67610-52J80B2

NLP11#,NSP110..LHD..N

DK.GRAY,TRIM1#

 1
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-09206

NLP11#,NSP110

 14
67601L - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-07214

NLP11#,NSP110

 2
90467-07201

NLP11#,NSP110

 2
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-52J50B2

NLP11#,NSP110..LHD..N

DK.GRAY,TRIM1#

 1
67620-52J40B1

NLP11#,NSP110..LHD..R

DK.GRAY,TRIM1#

 1
67620-52J41B0

NLP11#,NSP110..LHD..R

DK.GRAY,TRIM1#

 1
67620-52J31B0

NLP11#,NSP110..LHD..N

SOL PACKAGE,DK.GRAY,TRIM1#

 1
67620-52J30B1

NLP11#,NSP110..LHD..N

SOL PACKAGE,DK.GRAY,TRIM1#

 1
67620-52J51B0

NLP11#,NSP110..LHD..N

DK.GRAY,TRIM1#

 1
67620-52J32B0

NLP11#,NSP110..LHD..N

DK.GRAY,TRIM1#

 1
67625 - BRACKET, FRONT DOOR TRIM, RH
67625-52110

NLP11#,NSP110

 1
67626 - BRACKET, FRONT DOOR TRIM, LH
67625-52110

NLP11#,NSP110

 1
68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH
68171-52190

NLP11#,NSP110

 1
68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH
68172-52160

NLP11#,NSP110

 1
Common parts
67771-12060
90159-60303
90164-50031
90168-40025
90189-06018
Linked diagrams
7401

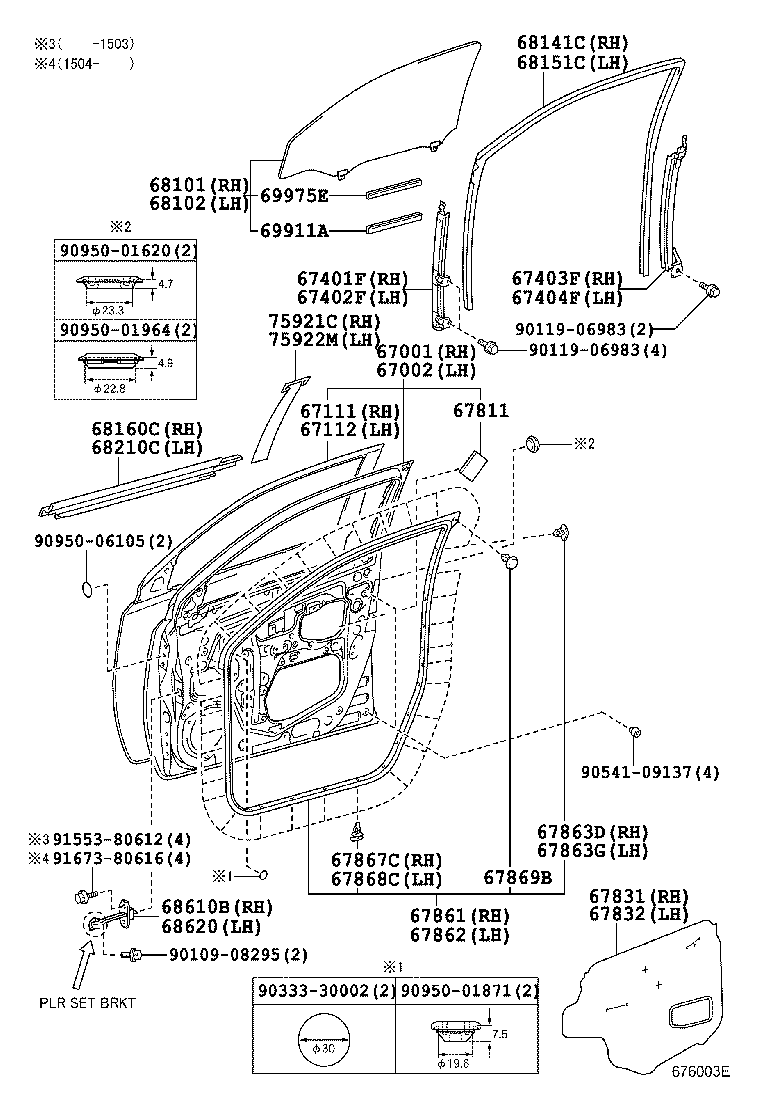

ILLUST NO. 1 OF 2(0901- )

Click highlighted areas on diagram

DOOR PANEL

diagram 67001 67002 67111 67112 67401F 67402F 67403F 67404F 67811 67831 67832 67861 67862 67863D 67863G 67867C 67868C 67869B 68101 68102 68141C 68151C 68160C 68210C 68610B 68620 69911A 69975E 75921C 75922M 9010908295 9011906983 9011906983 9033330002 9054109137 9095001620 9095001871 9095001964 9095006105 9155380612 9167380616
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-52430

NLP11#,NSP110

 1
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-52430

NLP11#,NSP110

 1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-52190

NLP11#,NSP110

 1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-52180

NLP11#,NSP110

 1
67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67401-52140

NLP11#,NSP110

 1
67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67402-52130

NLP11#,NSP110

 1
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-52200

NLP11#,NSP110

 1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-52170

NLP11#,NSP110

 1
67811 - PAD, FRONT DOOR SILENCER
67811-33040

NLP11#,NSP110

 1
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-52370

NLP11#,NSP110..LHD

 1
67831-52380

NLP11#,NSP110..LHD..N

SOL PACKAGE

 1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67832-52280

NLP11#,NSP110..LHD..N

SOL PACKAGE

 1
67832-52270

NLP11#,NSP110..LHD

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-52210

NLP11#,NSP110..LHD

COLD SPEC & WITHOUT(REAR HEATER DUCT)

 1
67861-52210

NLP11#,NSP110..LHD

COLD SPEC & WITH(REAR HEATER DUCT)

 1
67861-52210

NLP11#,NSP110

 1
67861-52300

NLP11#,NSP110

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-52200

NLP11#,NSP110

 1
67862-52200

NLP11#,NSP110..LHD

COLD SPEC & WITHOUT(REAR HEATER DUCT)

 1
67862-52270

NLP11#,NSP110

 1
67862-52200

NLP11#,NSP110..LHD

COLD SPEC & WITH(REAR HEATER DUCT)

 1
67863D - RETAINER, RH(FOR FRONT DOOR NO.2 WEATHERSTRIP)
67867-52040

NLP11#,NSP110..LHD

COLD SPEC & WITH(REAR HEATER DUCT)

 11
67867-52040

NLP11#,NSP110

 11
67867-52040

NLP11#,NSP110..LHD

COLD SPEC & WITHOUT(REAR HEATER DUCT)

 11
67867-52030

NLP11#,NSP110

 11
67863G - RETAINER, LH(FOR FRONT DOOR NO.2 WEATHERSTRIP)
67867-52010

NLP11#,NSP110

 11
67867-52010

NLP11#,NSP110..LHD

COLD SPEC & WITHOUT(REAR HEATER DUCT)

 11
67867-52020

NLP11#,NSP110

 11
67867-52010

NLP11#,NSP110..LHD

COLD SPEC & WITH(REAR HEATER DUCT)

 11
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67867-12150

NLP11#,NSP110

 20
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67867-12150

NLP11#,NSP110

 20
67869B - CLIP, FRONT DOOR WEATHERSTRIP
90467-06084

NLP11#,NSP110

 2
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68110-52290

NLP11#,NSP110

*UVCT,T=3.5,GREEN

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68120-52290

NLP11#,NSP110

*UVCT,T=3.5,GREEN

 1
68141C - RUN, FRONT DOOR GLASS, RH
68141-52200

NLP11#,NSP110

 1
68151C - RUN, FRONT DOOR GLASS, LH
68151-52190

NLP11#,NSP110

 1
68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH
68160-52160

NLP11#,NSP110

 1
68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH
68210-52160

NLP11#,NSP110

 1
68610B - CHECK ASSY, FRONT DOOR, RH
68610-52111

NLP11#,NSP110

PLR SET BRKT:SILVER

 1
68610-52110

NLP11#,NSP110

PLR SET BRKT:BLACK

 1
68620 - CHECK ASSY, FRONT DOOR, LH
68620-52110

NLP11#,NSP110

PLR SET BRKT:BLACK

 1
68620-52111

NLP11#,NSP110

PLR SET BRKT:SILVER

 1
69911A - CHANNEL, FRONT DOOR GLASS, NO.1
69911-20050

NLP11#,NSP110

 2
69975E - FILLER, FRONT DOOR GLASS CHANNEL, NO.1
69975-16020

NLP11#,NSP110

 2
75921C - TAPE, BLACK OUT, NO.1 RH
75921-52110

NLP11#,NSP110

 1
75921-52110

NLP11#,NSP110

 1
75922M - TAPE, BLACK OUT, NO.1 LH
75922-52110

NLP11#,NSP110

 1
75922-52110

NLP11#,NSP110

 1
Common parts
90109-08295
90119-06983
90333-30002
90541-09137
90950-01620
90950-01871
90950-01964
90950-06105
91553-80612
91673-80616
