NSP110L-AHFNKW (2009)

Toyota Urban Cruiser

Production Jan 2009 - Apr 2016
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0901- )

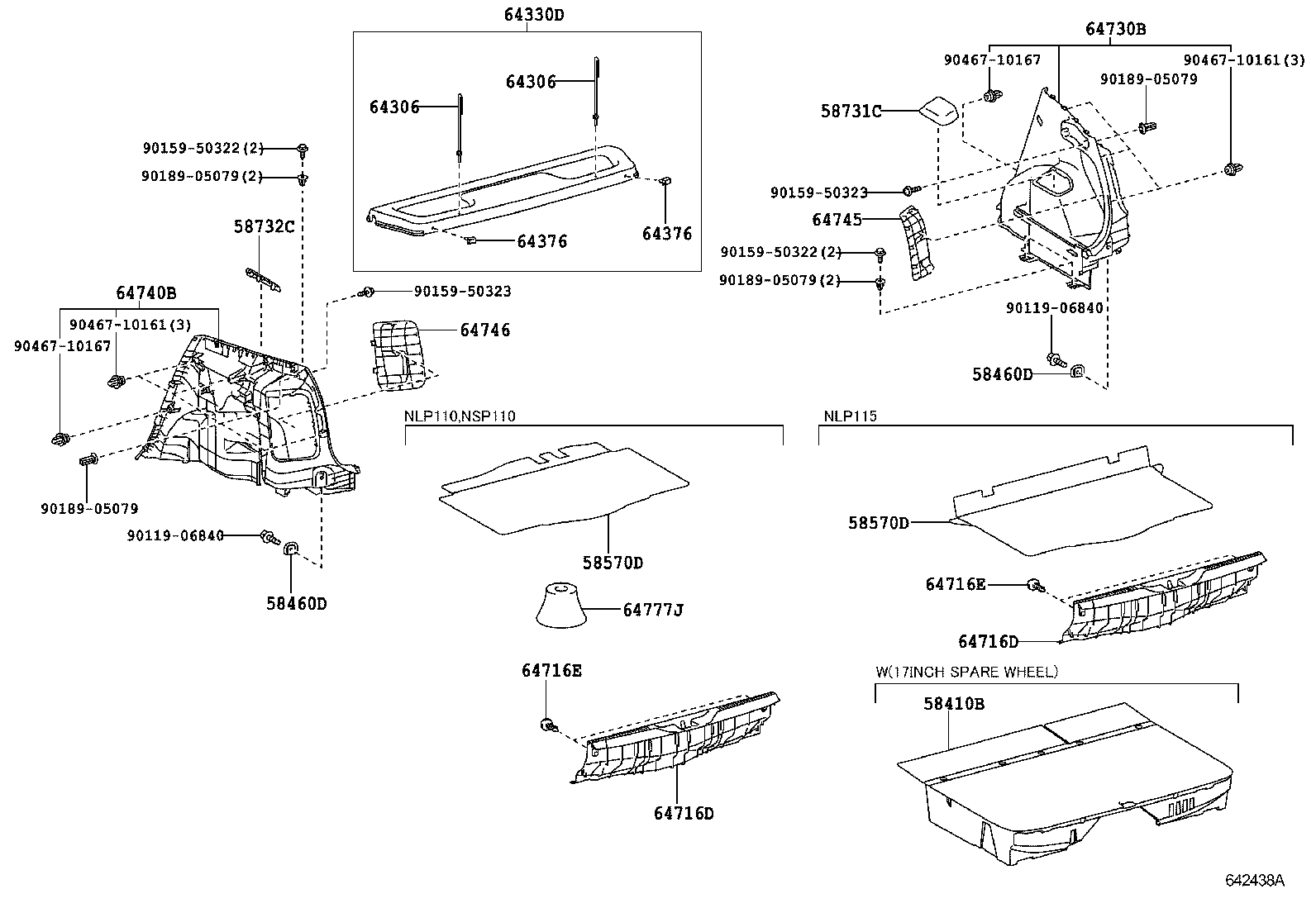

Click highlighted areas on diagram

diagram 58410B 58460D 58460D 58570D 58570D 58731C 58732C 64306 64306 64330D 64376 64376 64716D 64716D 64716E 64716E 64730B 64740B 64745 64746 64777J 9011906840 9011906840 9015950322 9015950322 9015950323 9015950323 9018905079 9018905079 9018905079 9018905079 9046710161 9046710161 9046710167 9046710167
Part # Description Qty Price
58570D - CARPET ASSY, REAR FLOOR
58570-52290

NLP110,NSP110

 1
58570D - CARPET ASSY, REAR FLOOR
58570-52290

NLP110,NSP110

 1
58731C - CAP, REAR ABSORBER
58731-52050B0

NLP11#,NSP110

DK.GRAY,TRIM1#

 1
58731-52050C0

NLP11#,NSP110

BLACK,TRIM1#

 1
58732C - CAP, REAR ABSORBER
58732-52030B0

NLP11#,NSP110

DK.GRAY,TRIM1#

 1
58732-52030C0

NLP11#,NSP110

BLACK,TRIM1#

 1
64306 - SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM
64306-52030

NLP11#,NSP110

WITH(PACKAGE TRAY&PARCEL SHELF)

 2
64306 - SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM
64306-52030

NLP11#,NSP110

WITH(PACKAGE TRAY&PARCEL SHELF)

 2
64330D - PANEL ASSY, PACKAGE TRAY TRIM
64330-52210C0

NLP11#,NSP110

WITH(PACKAGE TRAY&PARCEL SHELF),BLACK,TRIM1#

 1
64376 - SPACER, PACKAGE TRAY TRIM, NO.2
64376-12020

NLP11#,NSP110

WITH(PACKAGE TRAY&PARCEL SHELF)

 2
64376 - SPACER, PACKAGE TRAY TRIM, NO.2
64376-12020

NLP11#,NSP110

WITH(PACKAGE TRAY&PARCEL SHELF)

 2
64716D - COVER, DECK TRIM, REAR
64716-52150B0

NLP11#,NSP110

DK.GRAY,TRIM1#

 1
64716D - COVER, DECK TRIM, REAR
64716-52150B0

NLP11#,NSP110

DK.GRAY,TRIM1#

 1
64716E - CLIP(FOR DECK TRIM REAR COVER)
90467-08186C0

NLP11#,NSP110

BLACK,TRIM1#

 2
90467-08186B4

NLP11#,NSP110

DK.GRAY,TRIM1#

 2
64716E - CLIP(FOR DECK TRIM REAR COVER)
90467-08186C0

NLP11#,NSP110

BLACK,TRIM1#

 2
90467-08186B4

NLP11#,NSP110

DK.GRAY,TRIM1#

 2
64730B - PANEL ASSY, DECK TRIM SIDE, RH
64730-52280B0

NLP11#,NSP110

DK.GRAY,TRIM1#

 1
64740B - BOARD, DECK TRIM SIDE, LH
64740-52300B0

NLP11#,NSP110

DK.GRAY,TRIM1#

 1
64745 - COVER, REAR COMBINATION LAMP SERVICE, RH
64745-52120B0

NLP11#,NSP110

DK.GRAY,TRIM1#

 1
64746 - COVER, REAR COMBINATION LAMP SERVICE, LH
64746-52140B0

NLP11#,NSP110

DK.GRAY,TRIM1#

 1
64777J - CUSHION, SPARE WHEEL
64777-52020

NLP110,NSP110

 1
Common parts
90119-06840
90159-50322
90159-50323
90189-05079
90467-10161
90467-10167
