NSP110L-AHFNKW (2009)
Toyota Urban Cruiser

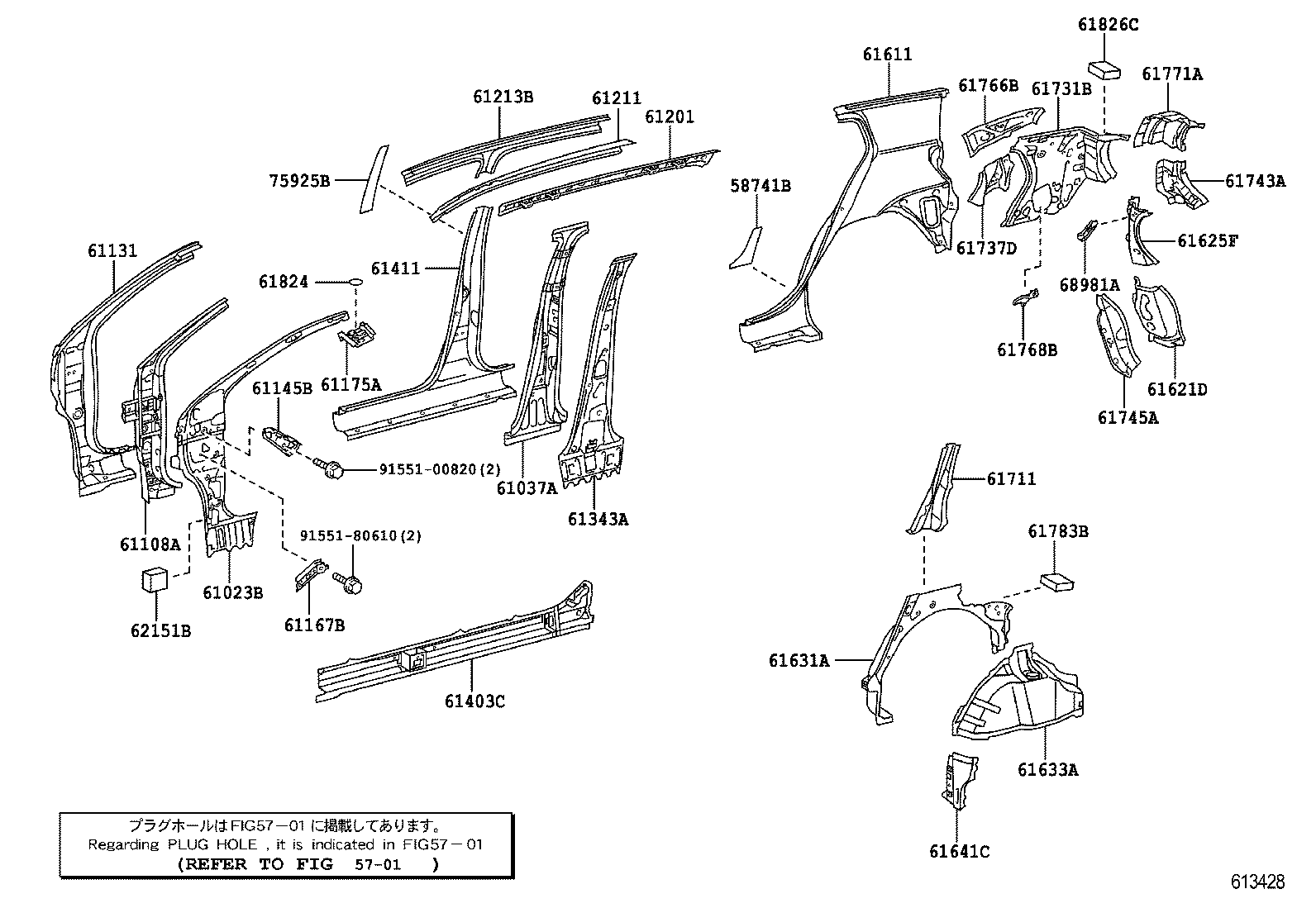

ILLUST NO. 1 OF 2(0901- )
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58741B - PROTECTOR, QUARTER PANEL, RH | ||||
| 58741-52240 |
NLP11#,NSP110 |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-52901 |
NLP11#,NSP110 |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-52907 |
NLP11#,NSP110 |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-52903 |
NLP11#,NSP110 |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-52270 |
NLP11#,NSP110 |
1 | ||
| 61145B - GUSSET, FRONT BODY PILLAR, LOWER RH | ||||
| 61145-52010 |
NLP11#,NSP110 |
1 | ||
| 61167B - BRACE, FRONT BODY PILLAR, LOWER | ||||
| 61167-52010 |
NLP11#,NSP110 |
2 | ||
| 61175A - REINFORCEMENT, FRONT PILLAR, UPPER OUTER NO.2 RH | ||||
| 61175-52090 |
NLP11#,NSP110 |
1 | ||
| 61201 - RAIL SUB-ASSY, ROOF SIDE, RH | ||||
| 61201-52100 |
NLP11#,NSP110 |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-52160 |
NLP11#,NSP110 |
1 | ||
| 61213B - RAIL, ROOF SIDE, OUTER NO.2 RH | ||||
| 61213-52160 |
NLP11#,NSP110 |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61032-52070 |
NLP11#,NSP110 |
1 | ||
| 61032-52071 |
NLP11#,NSP110 |
1 | ||
| 61032-52150 |
NLP11#,NSP110 |
1 | ||
| 61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH | ||||
| 61403-52180 |
NLP11#,NSP110 |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61411-52250 |
NLP11#,NSP110 |
1 | ||
| 61411-52240 |
NSP110..LHD..R DECONTENT PACKAGE |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-52530 |
NLP11#,NSP110 |
1 | ||
| 61601-52490 |
NSP110..LHD..R DECONTENT PACKAGE |
1 | ||
| 61621D - TROUGH, BACK DOOR OPENING, RH | ||||
| 61621-52140 |
NLP11#,NSP110 |
1 | ||
| 61625F - EXTENSION, QUARTER PANEL, UPPER RH | ||||
| 61625-52130 |
NLP11#,NSP110 |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-52905 |
NLP11#,NSP110 |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-52330 |
NLP11#,NSP110 |
1 | ||
| 61641C - GUSSET, QUARTER WHEEL HOUSE, FRONT RH | ||||
| 61641-52100 |
NLP11#,NSP110 |
1 | ||
| 61711 - PANEL, ROOF SIDE, OUTER RH | ||||
| 61711-52160 |
NLP11#,NSP110 |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-52220 |
NLP11#,NSP110 |
1 | ||
| 61737D - REINFORCEMENT, ROOF SIDE, INNER RH | ||||
| 61737-52090 |
NLP11#,NSP110 |
1 | ||
| 61743A - REINFORCEMENT, BACK DOOR OPENING SIDE, RH | ||||
| 61743-52080 |
NLP11#,NSP110 |
1 | ||
| 61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH | ||||
| 61745-52100 |
NLP11#,NSP110 |
1 | ||
| 61766B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH | ||||
| 61766-52130 |
NLP11#,NSP110 |
1 | ||
| 61768B - REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH | ||||
| 61768-52180 |
NLP11#,NSP110 |
1 | ||
| 61771A - GUSSET, BACK WINDOW OPENING, RH | ||||
| 61771-52010 |
NLP11#,NSP110 |
1 | ||
| 61783B - PAD, REAR WHEEL OPENING EXTENSION, NO.1 | ||||
| 61783-52070 |
NLP11#,NSP110 |
2 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-12060 |
NLP11#,NSP110 |
2 | ||
| 61824-52010 |
NLP11#,NSP110 |
2 | ||
| 61826C - PAD, NOISE SHUTTER, NO.3 | ||||
| 61826-52040 |
NLP11#,NSP110 |
2 | ||
| 62151B - PAD, COWL SIDE SILENCER | ||||
| 62151-52030 |
NLP11#,NSP110 |
2 | ||
| 68981A - RETAINER, BACK DOOR STAY, RH | ||||
| 68981-52080 |
NLP11#,NSP110 |
1 | ||
| 75925B - TAPE, BLACK OUT, NO.3 RH | ||||
| 75925-52100 |
NLP11#,NSP110 |
1 | ||
| 75925-52101 |
NLP11#,NSP110 |
1 | ||
| Common parts | ||||
| 91551-00820 | ||||
| 91551-80610 | ||||
| Linked diagrams | ||||
| 5701 | ||||

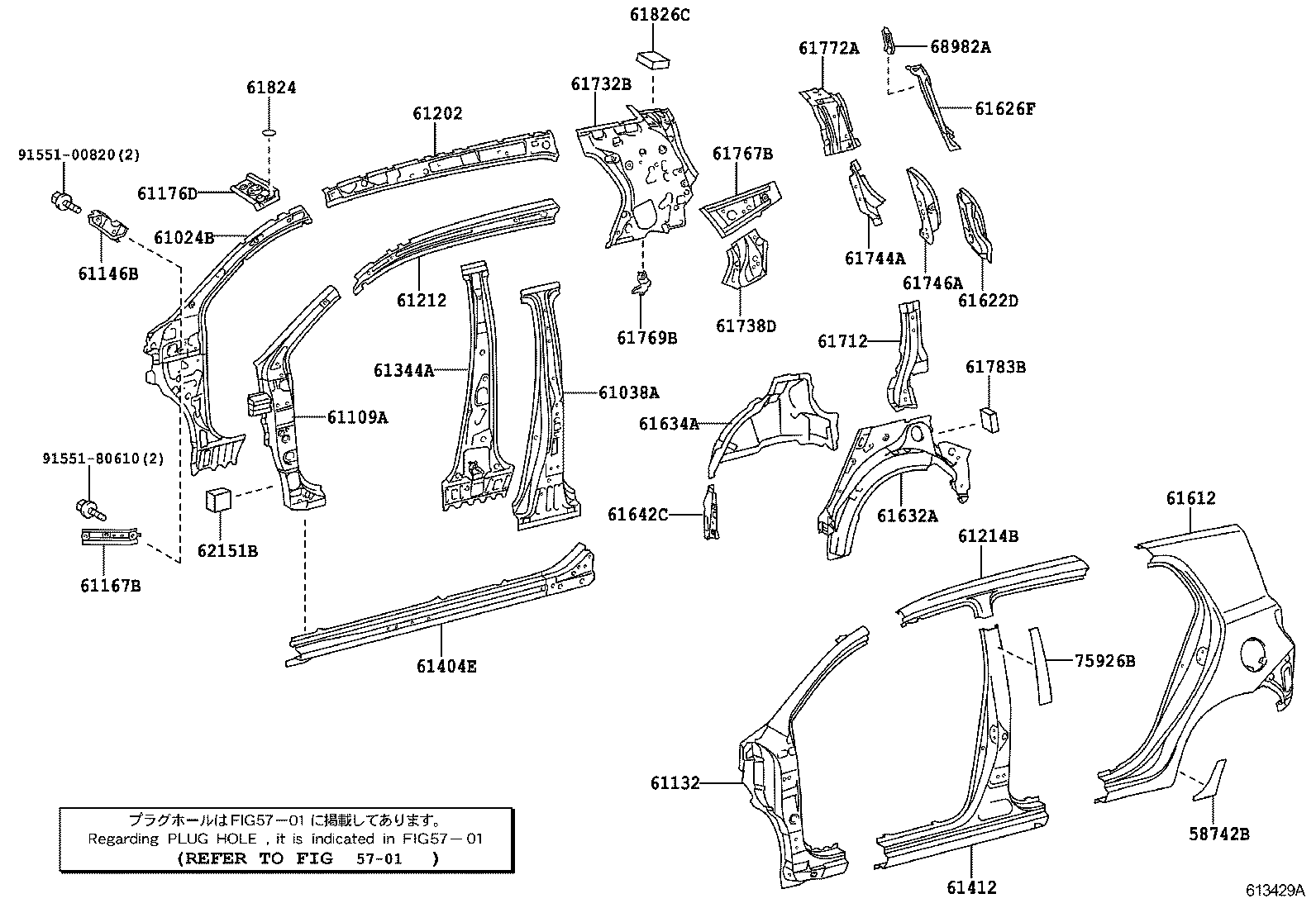

ILLUST NO. 2 OF 2(0901- )
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58742B - PROTECTOR, QUARTER PANEL, LH | ||||
| 58742-52250 |
NLP11#,NSP110 |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-52901 |
NLP11#,NSP110 |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-52907 |
NLP11#,NSP110 |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-52903 |
NLP11#,NSP110 |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-52250 |
NLP11#,NSP110 |
1 | ||
| 61146B - GUSSET, FRONT BODY PILLAR, LOWER LH | ||||
| 61146-52020 |
NLP11#,NSP110 |
1 | ||
| 61167B - BRACE, FRONT BODY PILLAR, LOWER | ||||
| 61167-52010 |
NLP11#,NSP110 |
2 | ||
| 61176D - REINFORCE, FRONT BODY PILLAR, UPPER OUT NO.2 LH | ||||
| 61176-52090 |
NLP11#,NSP110 |
1 | ||
| 61202 - RAIL SUB-ASSY, ROOF SIDE, LH | ||||
| 61202-52090 |
NLP11#,NSP110 |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-52170 |
NLP11#,NSP110 |
1 | ||
| 61214B - RAIL, ROOF SIDE, OUTER NO.2 LH | ||||
| 61214-52160 |
NLP11#,NSP110 |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61042-52071 |
NLP11#,NSP110 |
1 | ||
| 61042-52070 |
NLP11#,NSP110 |
1 | ||
| 61042-52130 |
NLP11#,NSP110 |
1 | ||
| 61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH | ||||
| 61404-52180 |
NLP11#,NSP110 |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61412-52250 |
NSP110..LHD..R DECONTENT PACKAGE |
1 | ||
| 61412-52260 |
NLP11#,NSP110 |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-52550 |
NLP11#,NSP110 |
1 | ||
| 61602-52510 |
NSP110..LHD..R DECONTENT PACKAGE |
1 | ||
| 61622D - TROUGH, BACK DOOR OPENING, LH | ||||
| 61622-52140 |
NLP11#,NSP110 |
1 | ||
| 61626F - EXTENSION, QUARTER PANEL, UPPER LH | ||||
| 61626-52130 |
NLP11#,NSP110 |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-52904 |
NLP11#,NSP110 |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-52370 |
NLP11#,NSP110 |
1 | ||
| 61642C - GUSSET, QUARTER WHEEL HOUSE, FRONT LH | ||||
| 61642-52100 |
NLP11#,NSP110 |
1 | ||
| 61712 - PANEL, ROOF SIDE, OUTER LH | ||||
| 61712-52190 |
NLP11#,NSP110 |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-52270 |
NLP11#,NSP110 |
1 | ||
| 61738D - REINFORCEMENT, ROOF SIDE, INNER LH | ||||
| 61738-52080 |
NLP11#,NSP110 |
1 | ||
| 61744A - REINFORCEMENT, BACK DOOR OPENING SIDE, LH | ||||
| 61744-52070 |
NLP11#,NSP110 |
1 | ||
| 61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH | ||||
| 61746-52110 |
NLP11#,NSP110 |
1 | ||
| 61767B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH | ||||
| 61767-52160 |
NLP11#,NSP110 |
1 | ||
| 61769B - REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR LH | ||||
| 61769-52180 |
NLP11#,NSP110 |
1 | ||
| 61772A - GUSSET, BACK WINDOW OPENING, LH | ||||
| 61772-52010 |
NLP11#,NSP110 |
1 | ||
| 61783B - PAD, REAR WHEEL OPENING EXTENSION, NO.1 | ||||
| 61783-52070 |
NLP11#,NSP110 |
2 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-12060 |
NLP11#,NSP110 |
2 | ||
| 61824-52010 |
NLP11#,NSP110 |
2 | ||
| 61826C - PAD, NOISE SHUTTER, NO.3 | ||||
| 61826-52040 |
NLP11#,NSP110 |
2 | ||
| 62151B - PAD, COWL SIDE SILENCER | ||||
| 62151-52030 |
NLP11#,NSP110 |
2 | ||
| 68982A - RETAINER, BACK DOOR STAY, LH | ||||
| 68982-52040 |
NLP11#,NSP110 |
1 | ||
| 75926B - TAPE, BLACK OUT, NO.3 LH | ||||
| 75926-52100 |
NLP11#,NSP110 |
1 | ||
| 75926-52101 |
NLP11#,NSP110 |
1 | ||
| Common parts | ||||
| 91551-00820 | ||||
| 91551-80610 | ||||
| Linked diagrams | ||||
| 5701 | ||||
