NSP110L-AHFNKW (2009)

Toyota Urban Cruiser

Production Jan 2009 - Apr 2016
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0901- )

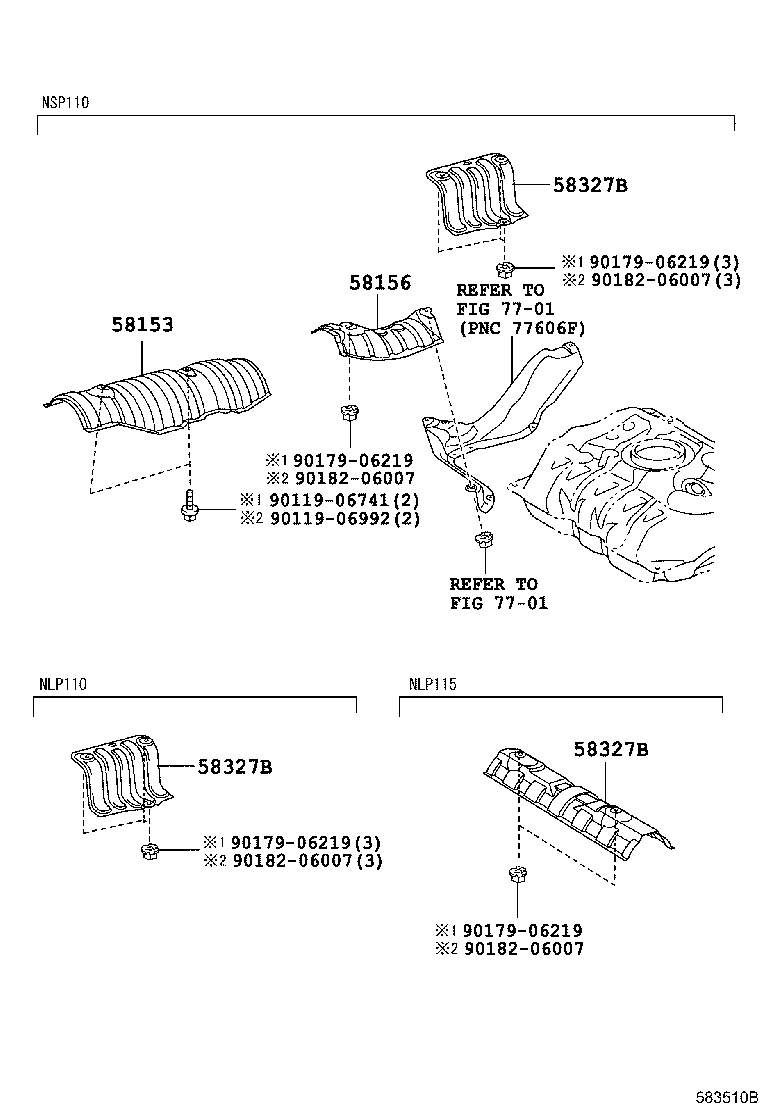

Click highlighted areas on diagram

diagram 58153 58156 58327B 58327B 58327B 7701 7701 9011906741 9011906992 9017906219 9017906219 9017906219 9017906219 9018206007 9018206007 9018206007 9018206007
Part # Description Qty Price
58153 - INSULATOR, FRONT FLOOR HEAT, NO.2
58153-52070

NSP110

 1
58153-52071

NSP110

 1
58153-52081

NSP110..LHD

COLD SPEC & WITH(REAR HEATER DUCT)

 1
58153-52080

NSP110..LHD

COLD SPEC & WITH(REAR HEATER DUCT)

 1
58156 - INSULATOR, FRONT FLOOR HEAT, NO.4
58156-52010

NSP110

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-52111

NLP110,NSP110

 1
58327-52110

NLP110,NSP110

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-52111

NLP110,NSP110

 1
58327-52110

NLP110,NSP110

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-52111

NLP110,NSP110

 1
58327-52110

NLP110,NSP110

 1
Common parts
90119-06741
90119-06992
90179-06219
90182-06007
Linked diagrams
7701
