NSP110L-AHFNKW (2009)
Toyota Urban Cruiser
(0901- )NLP110,NSP110

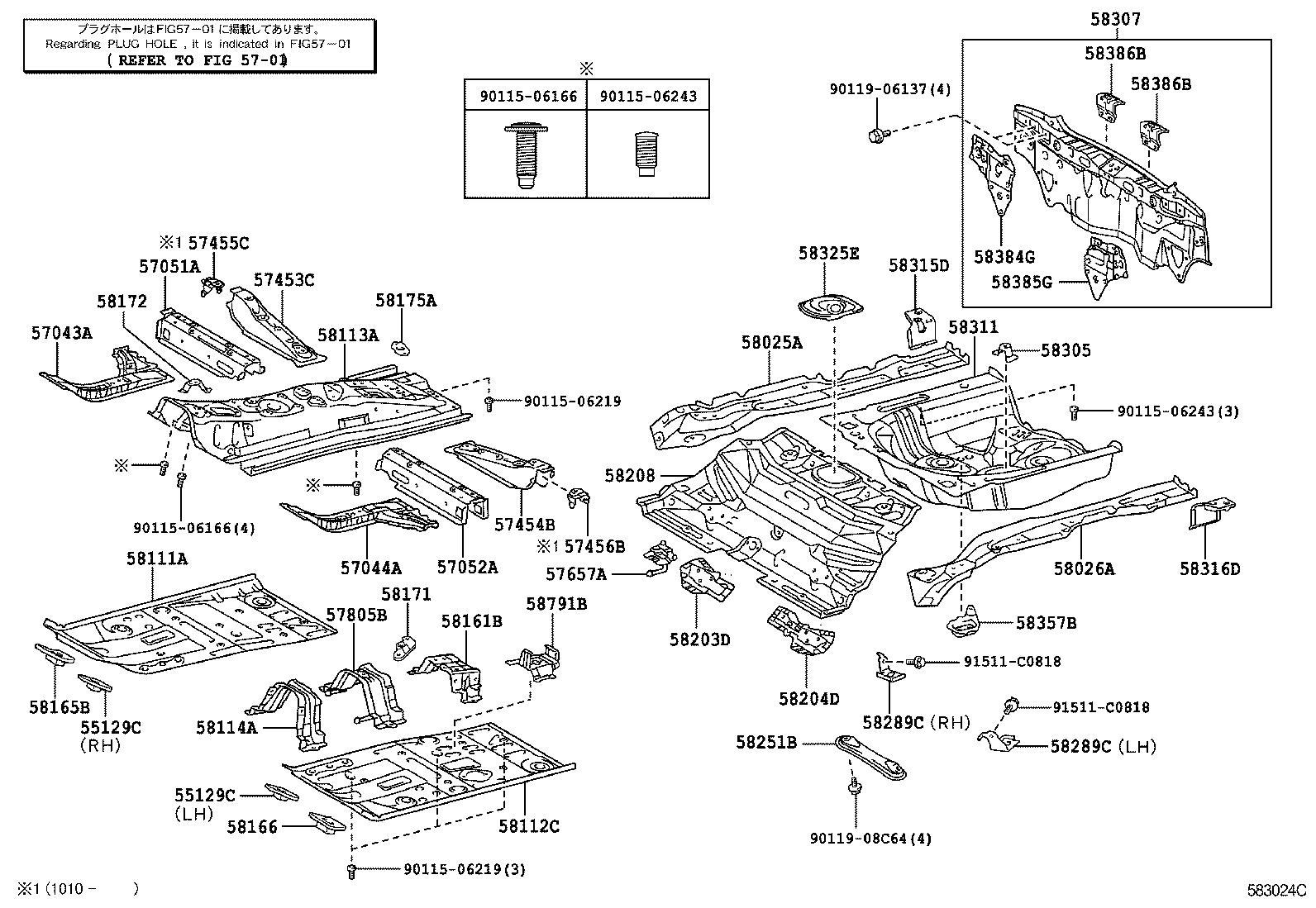

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55129C - COVER, DASH PANEL HOLE | ||||
| 55129-52050 |
NLP11#,NSP110 RH |
1 | ||
| 55139-52021 |
NLP11#,NSP110 LH |
1 | ||
| 55139-52020 |
NLP11#,NSP110 LH |
1 | ||
| 55129-52051 |
NLP11#,NSP110 RH |
1 | ||
| 55129C - COVER, DASH PANEL HOLE | ||||
| 55129-52050 |
NLP11#,NSP110 RH |
1 | ||
| 55139-52021 |
NLP11#,NSP110 LH |
1 | ||
| 55139-52020 |
NLP11#,NSP110 LH |
1 | ||
| 55129-52051 |
NLP11#,NSP110 RH |
1 | ||
| 57043A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH | ||||
| 57043-52020 |
NLP11#,NSP110 |
1 | ||
| 57043-52023 |
NSP110 |
1 | ||
| 57043-52022 |
NLP11#,NSP110 |
1 | ||
| 57043-52021 |
NLP11#,NSP110 |
1 | ||
| 57044A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH | ||||
| 57044-52041 |
NLP11#,NSP110 |
1 | ||
| 57044-52040 |
NLP11#,NSP110 |
1 | ||
| 57044-52043 |
NSP110 |
1 | ||
| 57044-52042 |
NLP11#,NSP110 |
1 | ||
| 57051A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH | ||||
| 57051-52010 |
NLP11#,NSP110 |
1 | ||
| 57052A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH | ||||
| 57052-52010 |
NLP11#,NSP110 |
1 | ||
| 57453C - MEMBER, FRONT FLOOR CROSS SIDE, RH | ||||
| 57453-52020 |
NLP11#,NSP110 |
1 | ||
| 57453-52021 |
NLP11#,NSP110 |
1 | ||
| 57453-52022 |
NLP11#,NSP110 |
1 | ||
| 57454B - MEMBER, FRONT FLOOR CROSS SIDE, LH | ||||
| 57454-52010 |
NLP11#,NSP110 |
1 | ||
| 57454-52011 |
NLP11#,NSP110 |
1 | ||
| 57454-52012 |
NLP11#,NSP110 |
1 | ||
| 57455C - BRACKET, FRONT SEAT MOUNTING, OUTSIDE RH | ||||
| 57455-52040 |
NLP11#,NSP110 |
1 | ||
| 57456B - BRACKET, FRONT SEAT MOUNTING, OUTSIDE LH | ||||
| 57456-52040 |
NLP11#,NSP110 |
1 | ||
| 57657A - BRACKET, EXHAUST PIPE MOUNTING, NO.2 | ||||
| 51904-52010 |
NLP110,NSP110 |
1 | ||
| 57805B - REINFORCEMENT SUB-ASSY, BELT ANCHOR, RH | ||||
| 57805-52130 |
NLP110,NSP110 |
1 | ||
| 57805-52131 |
NLP110,NSP110 |
1 | ||
| 58025A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH | ||||
| 58025-52010 |
NLP11#,NSP110 |
1 | ||
| 58026A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH | ||||
| 58026-52010 |
NLP11#,NSP110 |
1 | ||
| 58111A - PAN, FRONT FLOOR, RH | ||||
| 58111-52160 |
NLP110,NSP110 |
1 | ||
| 58112C - PAN, FRONT FLOOR, LH | ||||
| 58112-52901 |
NLP11#,NSP110 |
1 | ||
| 58112-52922 |
NSP110 |
1 | ||
| 58112-52918 |
NLP11#,NSP110 |
1 | ||
| 58113A - PANEL, FRONT FLOOR, CENTER | ||||
| 58113-52901 |
NLP110,NSP110 |
1 | ||
| 58113-52917 |
NLP110,NSP110 |
1 | ||
| 58113-52927 |
NLP110,NSP110 |
1 | ||
| 58114A - REINFORCEMENT, FRONT FLOOR PANEL | ||||
| 58114-52071 |
NLP110,NSP110 |
1 | ||
| 58114-52070 |
NLP110,NSP110 |
1 | ||
| 58161B - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN | ||||
| 58161-52070 |
NLP110,NSP110 |
1 | ||
| 58161-52090 |
NLP110,NSP110 |
1 | ||
| 58165B - COVER, FRONT FLOOR, RH | ||||
| 58165-52010 |
NLP11#,NSP110 |
1 | ||
| 58165-52011 |
NLP11#,NSP110 |
1 | ||
| 58166 - COVER, FRONT FLOOR, LH | ||||
| 58166-52011 |
NLP11#,NSP110 |
1 | ||
| 58166-52010 |
NLP11#,NSP110 |
1 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58171-52090 |
NLP110,NSP110 |
1 | ||
| 58172 - BRACKET, COMPUTER MOUNTING, NO.3 | ||||
| 58172-52020 |
NLP110,NSP110 |
1 | ||
| 58175A - REINFORCEMENT, PARKING BRAKE BASE, NO.1 | ||||
| 58175-52020 |
NLP11#,NSP110 |
1 | ||
| 58203D - BRACKET SUB-ASSY, REAR SEAT HINGE, OUTER RH | ||||
| 58203-52060 |
NLP110,NSP110 |
1 | ||
| 58204D - BRACKET SUB-ASSY, REAR SEAT HINGE, OUTER LH | ||||
| 58204-52060 |
NLP110,NSP110 |
1 | ||
| 58204-52061 |
NLP110,NSP110 |
1 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-52160 |
NLP110,NSP110 |
1 | ||
| 58251B - BRACE, FLOOR PANEL, FRONT | ||||
| 58251-52020 |
NLP11#,NSP110 |
2 | ||
| 58289C - BRACKET, FLOOR BRAKE HOSE, REAR | ||||
| 58289-52030 |
NLP110,NSP110 RH |
1 | ||
| 58299-52100 |
NLP110,NSP110 LH |
1 | ||
| 58299-52060 |
NLP110,NSP110 LH |
1 | ||
| 58289-52080 |
NLP110,NSP110 RH |
1 | ||
| 58289C - BRACKET, FLOOR BRAKE HOSE, REAR | ||||
| 58289-52030 |
NLP110,NSP110 RH |
1 | ||
| 58299-52100 |
NLP110,NSP110 LH |
1 | ||
| 58299-52060 |
NLP110,NSP110 LH |
1 | ||
| 58289-52080 |
NLP110,NSP110 RH |
1 | ||
| 58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP | ||||
| 58351-52070 |
NLP11#,NSP110 |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-52510 |
NLP110,NSP110 |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-52110 |
NLP110,NSP110 |
1 | ||
| 58315D - EXTENSION, REAR FLOOR PAN, RH | ||||
| 58315-52160 |
NLP11#,NSP110 |
1 | ||
| 58316D - EXTENSION, REAR FLOOR PAN, LH | ||||
| 58316-52180 |
NLP11#,NSP110 |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-52050 |
NLP110,NSP110 |
1 | ||
| 58357B - BRACKET, ACTUATOR COVER, NO.3 RH | ||||
| 58357-52031 |
NLP110,NSP110 |
1 | ||
| 58357-52030 |
NLP110,NSP110 |
1 | ||
| 58384G - GUSSET, LOWER BACK, UPPER RH | ||||
| 58384-52120 |
NLP11#,NSP110 |
1 | ||
| 58385G - GUSSET, LOWER BACK, UPPER LH | ||||
| 58385-52090 |
NLP11#,NSP110 |
1 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-12020 |
NLP11#,NSP110 |
2 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-12020 |
NLP11#,NSP110 |
2 | ||
| 58791B - CARRIER, JACK | ||||
| 58791-52060 |
NLP11#,NSP110 |
1 | ||
| Common parts | ||||
| 90115-06166 | ||||
| 90115-06219 | ||||
| 90115-06243 | ||||
| 90119-06137 | ||||
| 90119-08C64 | ||||
| 91511-C0818 | ||||
| Linked diagrams | ||||
| 5701 | ||||
