NSP110L-AHFNKW (2009)
Toyota Urban Cruiser

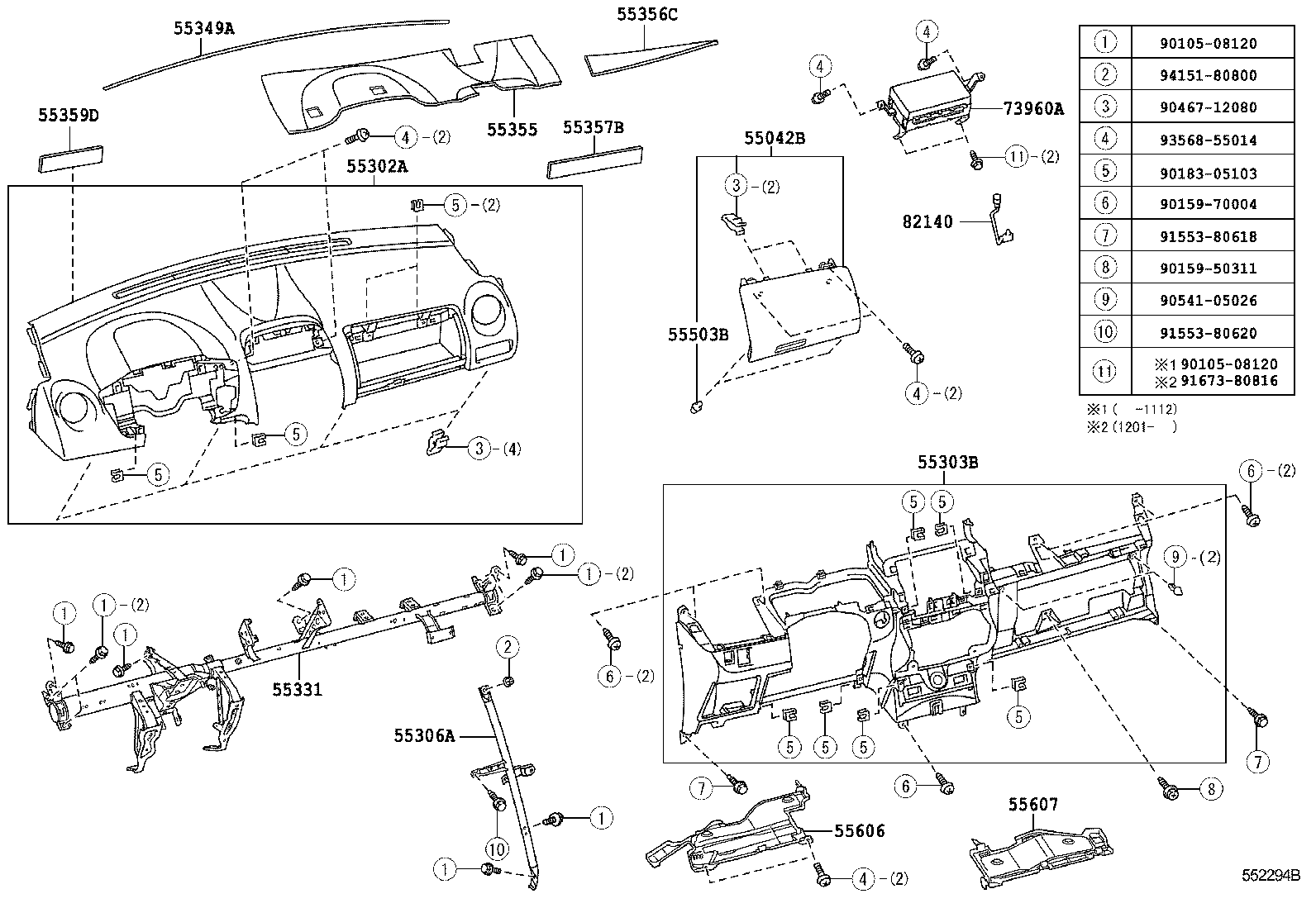

ILLUST NO. 1 OF 2(0901- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55042B - DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.2 | ||||
| 55042-52040B0 |
NLP11#,NSP110..LHD DK.GRAY,TRIM1# |
1 | ||
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55302-52080B0 |
NLP11#,NSP110..LHD DK.GRAY,TRIM1# |
1 | ||
| 55302-52081B0 |
NLP11#,NSP110..LHD DK.GRAY,TRIM1# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-52181B0 |
NLP11#,NSP110..LHD DK.GRAY,TRIM1# |
1 | ||
| 55303-52180B0 |
NLP11#,NSP110..LHD DK.GRAY,TRIM1# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-52170 |
NLP11#,NSP110..LHD |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-52531 |
NLP11#,NSP110..LHD |
1 | ||
| 55330-52530 |
NLP11#,NSP110..LHD |
1 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55349-52120 |
NLP11#,NSP110..LHD |
1 | ||
| 55349-52300 |
NSP110 |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-52160 |
NLP11#,NSP110 |
1 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-52150 |
NLP11#,NSP110 |
1 | ||
| 55357B - CUSHION, INSTRUMENT PANEL, NO.3 | ||||
| 55357-52130 |
NLP11#,NSP110 |
1 | ||
| 55359D - CUSHION, INSTRUMENT PANEL, NO.5 | ||||
| 55359-52130 |
NLP11#,NSP110..LHD |
1 | ||
| 55503B - CUSHION(FOR GLOVE COMPARTMENT) | ||||
| 58959-60060 |
NLP11#,NSP110 |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-52020 |
NLP11#,NSP110..LHD |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-52020 |
NLP11#,NSP110..LHD |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-52122 |
NLP11#,NSP110 |
1 | ||
| 73960-52121 |
NLP11#,NSP110 |
1 | ||
| 73960-52120 |
NLP11#,NSP110 |
1 | ||
| 82140 - WIRE ASSY, INSTRUMENT PANEL | ||||
| 82140-52030 |
NLP11#,NSP110 |
1 | ||
| Common parts | ||||
| 90105-08120 | ||||
| 90159-50311 | ||||
| 90159-70004 | ||||
| 90183-05103 | ||||
| 90467-12080 | ||||
| 90541-05026 | ||||
| 91553-80618 | ||||
| 91553-80620 | ||||
| 91673-80816 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||

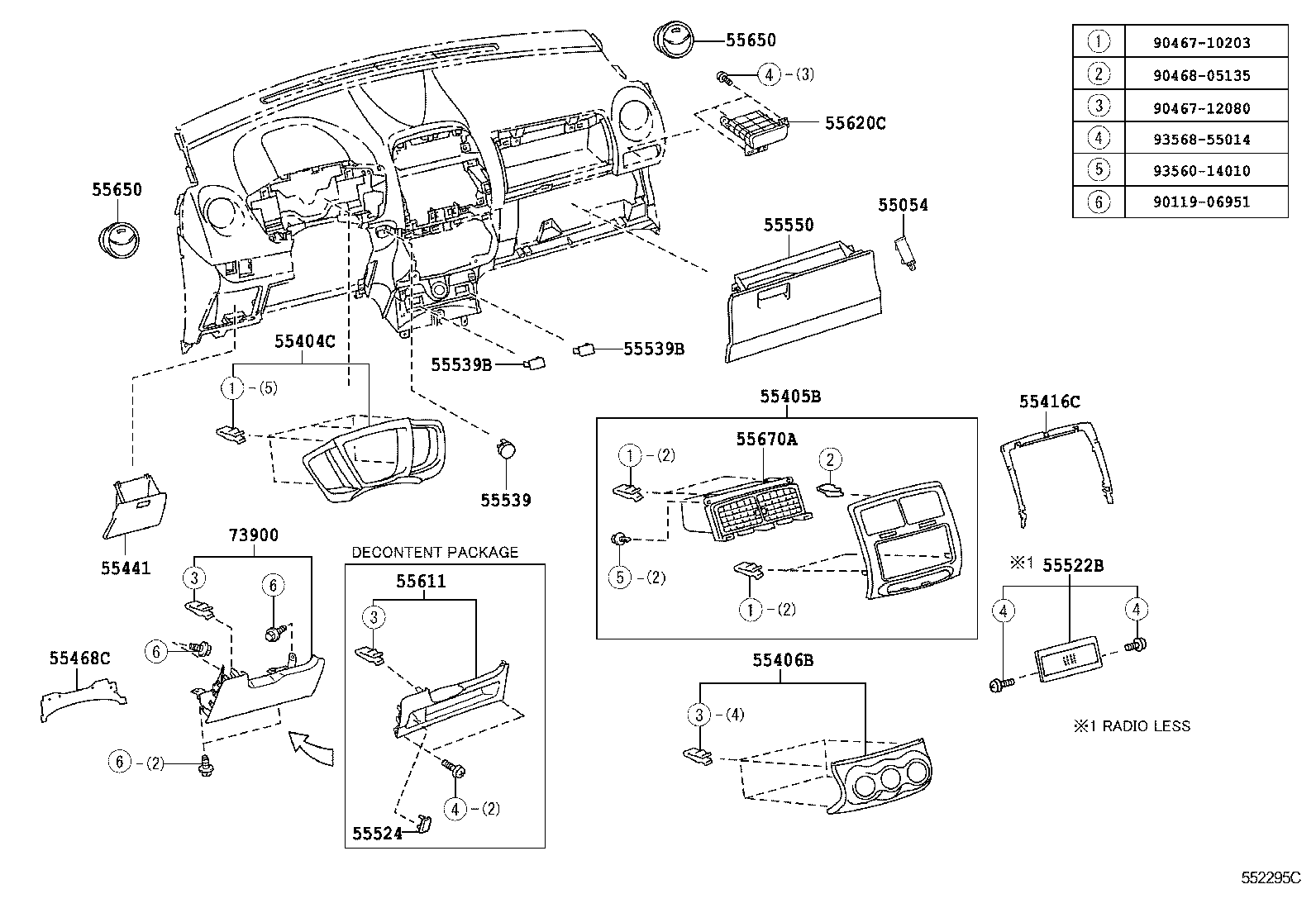

ILLUST NO. 2 OF 2(0901- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-52020 |
NLP11#,NSP110 |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-52040B0 |
NLP11#,NSP110..LHD DK.GRAY,TRIM1# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-52800B0 |
NLP11#,NSP110..LHD..R SILVER,TRIM1# |
1 | ||
| 55405-52671B1 |
NLP11#,NSP110..N AUDIO(OVERSEAS MARKET)-LESS 6SPEAKER MULTI 2DIN,GRAY,TRIM10 |
1 | ||
| 55405-52671B1 |
NLP11#,NSP110..LHD..R GRAY,TRIM1# |
1 | ||
| 55405-52671B2 |
NLP11#,NSP110..N AUDIO(OVERSEAS MARKET)-LESS 6SPEAKER MULTI 2DIN,GRAY,TRIM10 |
1 | ||
| 55405-52681B1 |
NLP11#,NSP110..LHD..R AUDIO(OVERSEAS MARKET)-LMU CD 6SPAKER EXTRA 2DIN MP3,GRAY,TRIM1# |
1 | ||
| 55405-52800B0 |
NLP11#,NSP110..N AUDIO(OVERSEAS MARKET)-AVN 6SPEAKER BLUE TOOTH MULTI 2DIN,SILVER,TRIM1# |
1 | ||
| 55405-52671C0 |
NLP11#,NSP110..N AUDIO(OVERSEAS MARKET)-LESS 6SPEAKER MULTI 2DIN,BLACK,TRIM10 |
1 | ||
| 55405-52681B1 |
NLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N GRAY,TRIM1# |
1 | ||
| 55405-52671B1 |
NLP11#,NSP110..N AUDIO(OVERSEAS MARKET)-AVN 6SPEAKER BLUE TOOTH MULTI 2DIN,GRAY,TRIM10 |
1 | ||
| 55405-52671C0 |
NLP11#,NSP110..N AUDIO(OVERSEAS MARKET)-AVN 6SPEAKER BLUE TOOTH MULTI 2DIN,BLACK,TRIM10 |
1 | ||
| 55405-52800B0 |
NLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N AUDIO(OVERSEAS MARKET)-LESS 6SPEAKER MULTI 2DIN,SILVER,TRIM1# |
1 | ||
| 55405-52671B2 |
NLP11#,NSP110..N AUDIO(OVERSEAS MARKET)-LESS 6SPEAKER MULTI 2DIN,GRAY,TRIM1# |
1 | ||
| 55405-52671B2 |
NLP11#,NSP110..N AUDIO(OVERSEAS MARKET)-AVN 6SPEAKER BLUE TOOTH MULTI 2DIN,GRAY,TRIM1# |
1 | ||
| 55405-52671B2 |
NLP11#,NSP110..LHD..R GRAY,TRIM1# |
1 | ||
| 55405-52810B0 |
NLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N SILVER,TRIM1# |
1 | ||
| 55405-52810B0 |
NLP11#,NSP110..LHD..R AUDIO(OVERSEAS MARKET)-LMU CD 6SPAKER EXTRA 2DIN MP3,SILVER,TRIM1# |
1 | ||
| 55405-52681B2 |
NLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N GRAY,TRIM1# |
1 | ||
| 55405-52671B2 |
NLP11#,NSP110..N AUDIO(OVERSEAS MARKET)-AVN 6SPEAKER BLUE TOOTH MULTI 2DIN,GRAY,TRIM10 |
1 | ||
| 55405-52681B2 |
NLP11#,NSP110..LHD..R AUDIO(OVERSEAS MARKET)-LMU CD 6SPAKER EXTRA 2DIN MP3,GRAY,TRIM1# |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-52280B0 |
NLP11#,NSP110..R SILVER,TRIM1# |
1 | ||
| 55406-52191B1 |
NSP110..N;NLP11#..RHD..N FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI),GRAY,TRIM10 |
1 | ||
| 55406-52280B0 |
NSP110..N;NLP11#..RHD..N FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI),SILVER,TRIM1# |
1 | ||
| 55406-52191B1 |
NLP11#,NSP110..R GRAY,TRIM1# |
1 | ||
| 55406-52191B1 |
NSP110..N;NLP11#..RHD..N FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI),GRAY,TRIM1# |
1 | ||
| 55406-52191C0 |
NSP110..N;NLP11#..RHD..N FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI),BLACK,TRIM10 |
1 | ||
| 55416C - RETAINER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55416-52030B0 |
NLP11#,NSP110 DK.GRAY,TRIM1# |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55441-52140B0 |
NLP11#,NSP110..LHD DK.GRAY,TRIM1# |
1 | ||
| 55468C - SEAL, INSTRUMENT CLUSTER FINISH PANEL, NO.1 | ||||
| 55468-52060 |
NLP11#,NSP110 |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-52020 |
NLP11#,NSP110..LHD..R |
1 | ||
| 55522-52020 |
NLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N AUDIO(OVERSEAS MARKET)-LESS 6SPEAKER MULTI 2DIN |
1 | ||
| 55522-52020 |
NLP11#,NSP110..LHD..R AUDIO(OVERSEAS MARKET)-LMU CD 6SPAKER EXTRA 2DIN MP3 |
1 | ||
| 55524 - COVER, SWITCH BACE HOLE | ||||
| 55539-48020 |
NSP110..LHD..R DECONTENT PACKAGE |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52040B0 |
NLP11#,NSP110..LHD..N SOL PACKAGE,DK.GRAY,TRIM1# |
1 | ||
| 55539-52040C0 |
NLP11#,NSP110..LHD BLACK,TRIM1# |
1 | ||
| 55539-52040B0 |
NLP11#,NSP110..LHD DK.GRAY,TRIM1# |
1 | ||
| 55539-52040C0 |
NLP11#,NSP110..LHD..N SOL PACKAGE,BLACK,TRIM1# |
1 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-52070B0 |
NLP11#,NSP110..N DK.GRAY,TRIM1# |
1 | ||
| 55539-52070B0 |
NLP11#,NSP110..N BLACK & WHITE CONCEPT&AUDIO(OVERSEAS MARKET)-LESS 6SPEAKER MULTI 2DIN,DK.GRAY,TRIM1# |
2 | ||
| 55539-52070B0 |
NLP11#,NSP110..R DK.GRAY,TRIM1# |
2 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-52070B0 |
NLP11#,NSP110..N DK.GRAY,TRIM1# |
1 | ||
| 55539-52070B0 |
NLP11#,NSP110..N BLACK & WHITE CONCEPT&AUDIO(OVERSEAS MARKET)-LESS 6SPEAKER MULTI 2DIN,DK.GRAY,TRIM1# |
2 | ||
| 55539-52070B0 |
NLP11#,NSP110..R DK.GRAY,TRIM1# |
2 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-52220B0 |
NLP11#,NSP110..LHD DK.GRAY,TRIM1# |
1 | ||
| 55550-52221B0 |
NLP11#,NSP110..LHD DK.GRAY,TRIM1# |
1 | ||
| 55550-52222B0 |
NLP11#,NSP110..LHD DK.GRAY,TRIM1# |
1 | ||
| 55611 - TRAY, INSTRUMENT PANEL UNDER | ||||
| 55611-52160B0 |
NSP110..LHD..R DECONTENT PACKAGE,DK.GRAY,TRIM1# |
1 | ||
| 55620C - HOLDER, INSTRUMENT PANEL CUP | ||||
| 55620-52060B0 |
NLP11#,NSP110..LHD DK.GRAY,TRIM1# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-52170 |
NLP11#,NSP110 |
2 | ||
| 55650-52330B0 |
NLP11#,NSP110 DK.GRAY,TRIM1# |
2 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-52170 |
NLP11#,NSP110 |
2 | ||
| 55650-52330B0 |
NLP11#,NSP110 DK.GRAY,TRIM1# |
2 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-52040B0 |
NLP11#,NSP110 DK.GRAY,TRIM1# |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-52031B0 |
NLP11#,NSP110..LHD DK.GRAY,TRIM1# |
1 | ||
| 73900-52030B0 |
NLP11#,NSP110..LHD DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 90468-05135 | ||||
| 93560-14010 | ||||
| 93568-55014 | ||||
