NSP110L-AHFNKW (2009)

Toyota Urban Cruiser

Production Jan 2009 - Apr 2016
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0901- )NLP110,NSP110

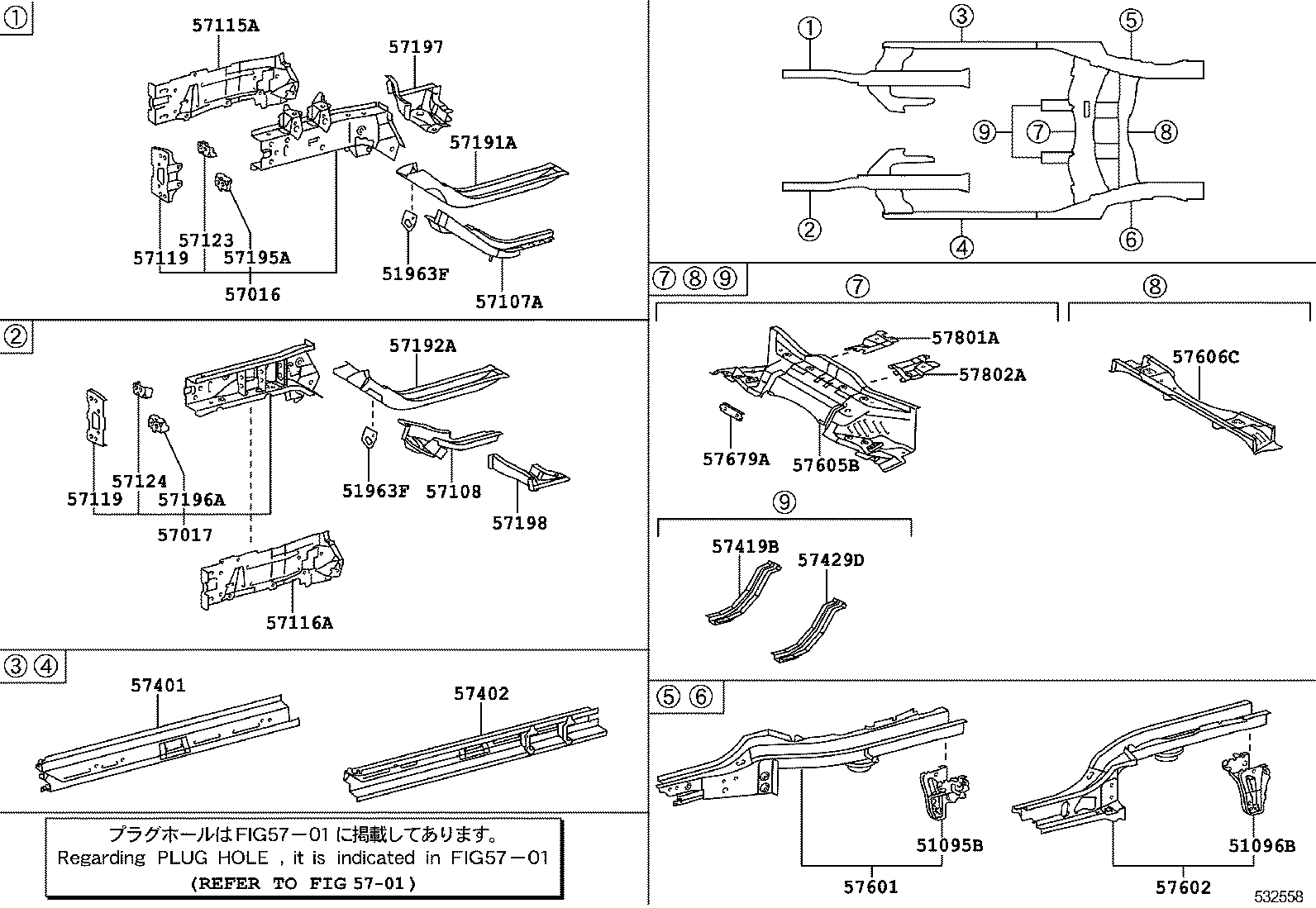

Click highlighted areas on diagram

diagram 51095B 51096B 51963F 51963F 5701 57016 57017 57107A 57108 57115A 57116A 57119 57119 57123 57124 57191A 57192A 57195A 57196A 57197 57198 57401 57402 57419B 57429D 57601 57602 57605B 57606C 57679A 57801A 57802A
Part # Description Qty Price
51095B - HOOK SUB-ASSY, TRANSPORT, REAR RH
51095-52020

NLP11#,NSP110

 1
51096B - HOOK SUB-ASSY, TRANSPORT, REAR LH
51096-52010

NLP11#,NSP110

 1
51963F - HOOK, TRANSPORT
51963-52050

NLP11#,NSP110

 1
51963F - HOOK, TRANSPORT
51963-52050

NLP11#,NSP110

 1
57016 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH
57016-52070

NLP11#,NSP110

 1
57017 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH
57017-52060

NLP11#,NSP110

 1
57107A - PLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH
57107-52030

NLP11#,NSP110

 1
57108 - BRACKET SUB-ASSY, STRUT BAR, LH
57108-52030

NLP11#,NSP110

 1
57115A - PLATE, FRONT SIDE MEMBER, OUTER RH
57025-52010

NLP11#,NSP110

 1
57116A - PLATE, FRONT SIDE MEMBER, OUTER LH
57026-52010

NLP11#,NSP110

 1
57119 - PLATE, FRONT SIDE MEMBER, FRONT
57119-52020

NLP11#,NSP110

RH

 1
57129-52010

NLP11#,NSP110

LH

 1
57119 - PLATE, FRONT SIDE MEMBER, FRONT
57119-52020

NLP11#,NSP110

RH

 1
57129-52010

NLP11#,NSP110

LH

 1
57123 - SUPPORT, FRONT SIDE MEMBER, RH
57123-52010

NLP11#,NSP110

 1
57124 - SUPPORT, FRONT SIDE MEMBER, LH
57124-52010

NLP11#,NSP110

 1
57191A - MEMBER, FRONT SIDE, INNER REAR RH
57191-52020

NLP11#,NSP110

 1
57192A - MEMBER, FRONT SIDE, INNER REAR LH
57192-52020

NLP11#,NSP110

 1
57195A - REINFORCEMENT, FRONT SIDE MEMBER, FRONT RH
57195-52020

NLP11#,NSP110

 1
57196A - REINFORCEMENT, FRONT SIDE MEMBER, FRONT LH
57196-52010

NLP11#,NSP110

 1
57197 - BOX, TORQUE, FRONT RH
57197-52030

NLP11#,NSP110

 1
57198 - BOX, TORQUE, FRONT LH
57198-52030

NLP11#,NSP110

 1
57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57401-52150

NLP11#,NSP110

 1
57401-52200

NLP11#,NSP110

 1
57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57402-52220

NLP11#,NSP110

 1
57402-52170

NLP11#,NSP110

 1
57419B - REINFORCEMENT, FRONT FLOOR UNDER, REAR
57419-52070

NLP110,NSP110

 1
57429D - REINFORCEMENT, FRONT FLOOR UNDER, REAR LH
57429-52080

NLP110,NSP110

 1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-52400

NLP110,NSP110

 1
57601-52230

NLP110,NSP110

 1
57601-52233

NSP110

 1
57601-52232

NLP110,NSP110

 1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-52280

NLP110,NSP110

 1
57602-52470

NLP110,NSP110

 1
57602-52283

NSP110

 1
57602-52282

NLP110,NSP110

 1
57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57605-52110

NLP110,NSP110

 1
57605-52111

NLP110,NSP110

 1
57605-52112

NSP110

 1
57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57606-52170

NLP110,NSP110

 1
57606-52171

NLP110,NSP110

 1
57679A - RETAINER, REAR FLOOR CROSSMEMBER
57679-52030

NLP110,NSP110

 1
57801A - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, RH
57801-52100

NLP110,NSP110

 1
57802A - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, LH
57802-52100

NLP110,NSP110

 1
Linked diagrams
5701
