NSP110L-AHFNKW (2009)
Toyota Urban Cruiser
Production
Jan 2009
-
Apr 2016
Engine
1NRFE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0901- )LHD

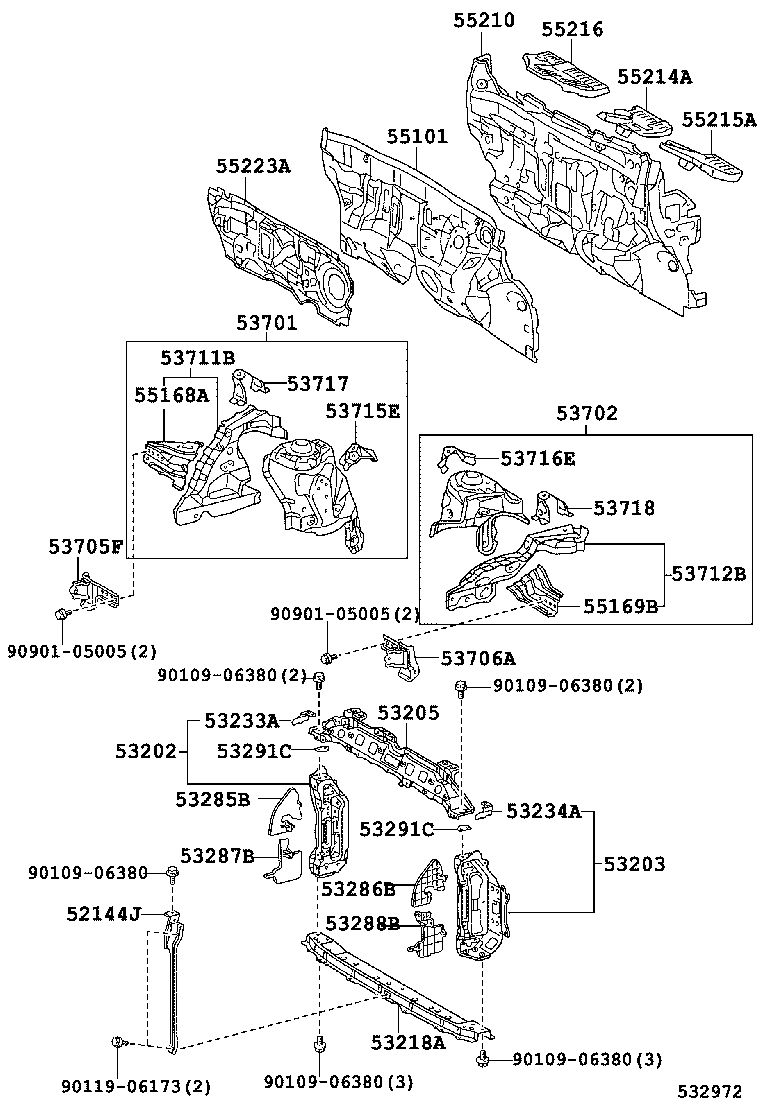

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52144J - STAY, FRONT BUMPER, CENTER | ||||
| 52085-52020 |
NLP11#,NSP110 |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-52905 |
NLP11#,NSP110 |
1 | ||
| 53202-52910 |
NLP11#,NSP110 |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-52908 |
NLP11#,NSP110 |
1 | ||
| 53203-52903 |
NLP11#,NSP110 |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-52090 |
NLP11#,NSP110 |
1 | ||
| 53218A - SUPPORT, RADIATOR, LOWER | ||||
| 53028-52070 |
NLP11#,NSP110 |
1 | ||
| 53233A - BRACKET, HEADLAMP, NO.1 RH | ||||
| 53233-52030 |
NLP11#,NSP110 |
1 | ||
| 53234A - BRACKET, HEADLAMP, NO.1 LH | ||||
| 53234-52040 |
NLP11#,NSP110 |
1 | ||
| 53285B - SEAL, RADIATOR SIDE AIR, NO.1 | ||||
| 53285-52290 |
NLP11#,NSP110 |
1 | ||
| 53286B - SEAL, RADIATOR SIDE AIR, NO.2 | ||||
| 53286-52230 |
NLP11#,NSP110 |
1 | ||
| 53287B - EXTENSION, RADIATOR SUPPORT, RH | ||||
| 53287-52080 |
NLP11#,NSP110 |
1 | ||
| 53288B - EXTENSION, RADIATOR SUPPORT, LH | ||||
| 53288-52080 |
NLP11#,NSP110 |
1 | ||
| 53291C - SEAL, RADIATOR SUPPORT TO FRAME | ||||
| 53291-52070 |
NLP11#,NSP110 |
2 | ||
| 53291C - SEAL, RADIATOR SUPPORT TO FRAME | ||||
| 53291-52070 |
NLP11#,NSP110 |
2 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-52150 |
NLP11#,NSP110 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-52150 |
NLP11#,NSP110 |
1 | ||
| 53705F - BRACE SUB-ASSY, FENDER APRON, RH | ||||
| 53705-52030 |
NLP11#,NSP110 |
1 | ||
| 53706A - BRACE SUB-ASSY, FENDER APRON, LH | ||||
| 53706-52030 |
NLP11#,NSP110 |
1 | ||
| 53711B - APRON, FRONT FENDER, FRONT RH | ||||
| 53707-52060 |
NLP11#,NSP110 |
1 | ||
| 53707-52030 |
NLP11#,NSP110 |
1 | ||
| 53712B - APRON, FRONT FENDER, FRONT LH | ||||
| 53708-52060 |
NLP11#,NSP110 |
1 | ||
| 53708-52030 |
NLP11#,NSP110 |
1 | ||
| 53715E - EXTENSION, FRONT FENDER APRON, REAR RH | ||||
| 53715-52030 |
NLP11#,NSP110 |
1 | ||
| 53716E - EXTENSION, FRONT FENDER APRON, REAR LH | ||||
| 53716-52030 |
NLP11#,NSP110 |
1 | ||
| 53717 - PLATE, FENDER APRON, RH | ||||
| 53717-52080 |
NLP11#,NSP110 |
1 | ||
| 53718 - PLATE, FENDER APRON, LH | ||||
| 53718-52080 |
NLP11#,NSP110 |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-52490 |
NLP11#,NSP110..LHD |
1 | ||
| 55168A - BRACKET, FRONT FENDER MOUNTING, RH | ||||
| 55168-52130 |
NLP11#,NSP110 |
1 | ||
| 55169B - BRACKET, FRONT FENDER MOUNTING, LH | ||||
| 55169-52130 |
NLP11#,NSP110 |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-52250 |
NSP110..LHD |
1 | ||
| 55214A - PAD, DASH PANEL INSULATOR, NO.2 | ||||
| 55214-52140 |
NLP11#,NSP110..LHD |
1 | ||
| 55215A - PAD, DASH PANEL INSULATOR, NO.3 | ||||
| 55215-52110 |
NLP11#,NSP110..LHD |
1 | ||
| 55216 - PAD, DASH PANEL INSULATOR, NO.4 | ||||
| 55216-52021 |
NLP11#,NSP110..LHD |
1 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-52110 |
NLP11#,NSP110..LHD |
1 | ||
| Common parts | ||||
| 90109-06380 | ||||
| 90119-06173 | ||||
| 90901-05005 | ||||
