NSP110L-AHFNKW (2009)
Toyota Urban Cruiser
Production
Jan 2009
-
Apr 2016
Engine
1NRFE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0901- )LHD

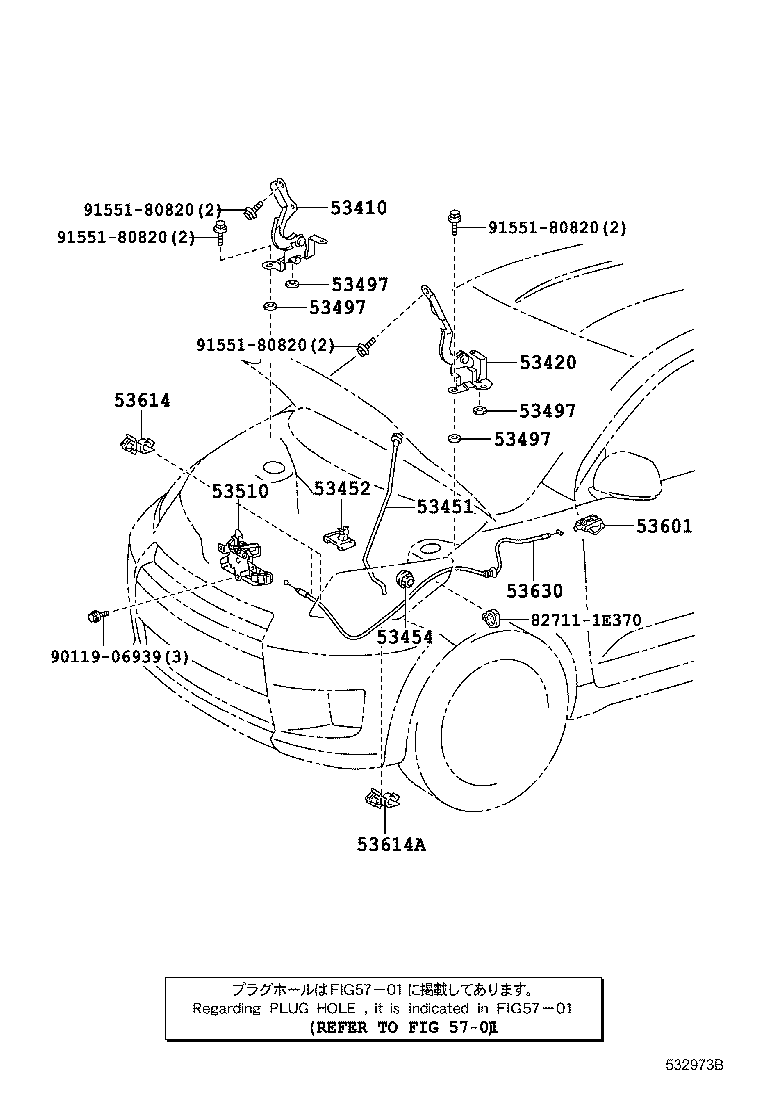

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-52271 |
NLP11#,NSP110 |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-52271 |
NLP11#,NSP110 |
1 | ||
| 53451 - ROD, HOOD SUPPORT | ||||
| 53440-52180 |
NLP11#,NSP110 |
1 | ||
| 53452 - HOLDER, HOOD STAY | ||||
| 53452-52010 |
NLP11#,NSP110 |
1 | ||
| 53454 - CLIP, HOOD SUPPORT ROD | ||||
| 53454-52020 |
NLP11#,NSP110 |
1 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-42010 |
NLP11#,NSP110 T=0.5 |
4 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-42010 |
NLP11#,NSP110 T=0.5 |
4 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-42010 |
NLP11#,NSP110 T=0.5 |
4 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-42010 |
NLP11#,NSP110 T=0.5 |
4 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-52450 |
NLP11#,NSP110..LHD |
1 | ||
| 53510-52460 |
NSP110..LHD WITH(STOP & START SYSTEM) |
1 | ||
| 53510-52461 |
NSP110..LHD WITH(STOP & START SYSTEM) |
1 | ||
| 53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL | ||||
| 53601-52010B3 |
NLP11#,NSP110 DK.GRAY,TRIM1# |
1 | ||
| 53601-52010C0 |
NLP11#,NSP110 BLACK,TRIM1# |
1 | ||
| 53614 - CLAMP, HOOD LOCK CONTROL CABLE | ||||
| 53614-52010 |
NLP11#,NSP110..LHD |
2 | ||
| 53614A - CLAMP, HOOD LOCK CONTROL CABLE, NO.1 | ||||
| 53614-52020 |
NLP11#,NSP110 |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-52110 |
NLP11#,NSP110 |
1 | ||
| Common parts | ||||
| 82711-1E370 | ||||
| 90119-06939 | ||||
| 91551-80820 | ||||
| Linked diagrams | ||||
| 5701 | ||||
