NSP110L-AHFNKW (2009)
Toyota Urban Cruiser
Production
Jan 2009
-
Apr 2016
Engine
1NRFE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)

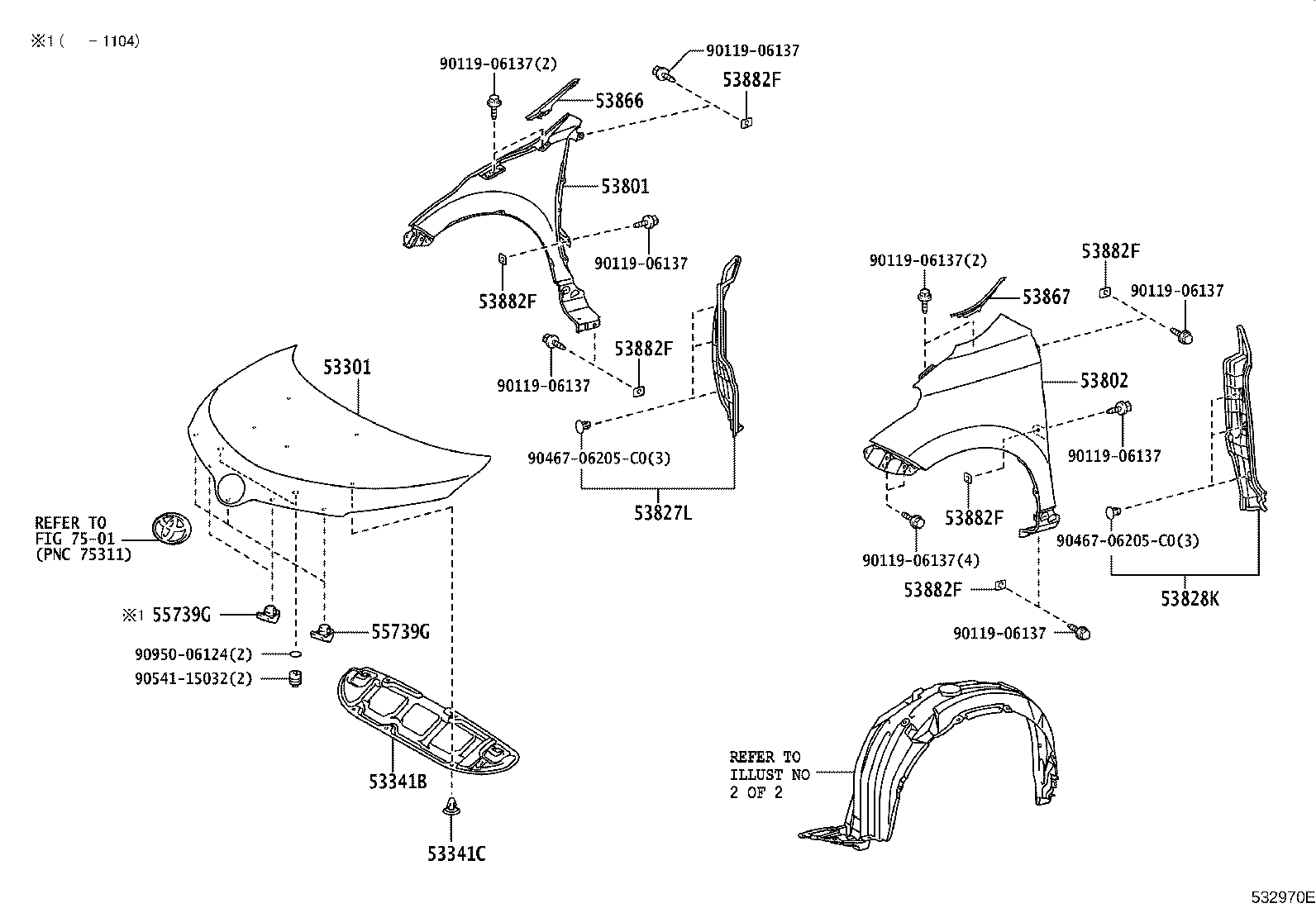

ILLUST NO. 1 OF 2(0901- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-52271 |
NLP11#,NSP110 |
1 | ||
| 53301-52270 |
NLP11#,NSP110 |
1 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-52150 |
NLP11#,NSP110 |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-09050 |
NLP11#,NSP110 |
5 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53811-52270 |
NLP11#,NSP110 |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53812-52270 |
NLP11#,NSP110 |
1 | ||
| 53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-52130 |
NLP11#,NSP110 |
1 | ||
| 53828K - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53828-52150 |
NLP11#,NSP110 |
1 | ||
| 53866 - SEAL, FRONT FENDER TO COWL SIDE, RH | ||||
| 53866-52130 |
NLP11#,NSP110 |
1 | ||
| 53867 - SEAL, FRONT FENDER TO COWL SIDE, LH | ||||
| 53867-52120 |
NLP11#,NSP110 |
1 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-16030 |
NLP11#,NSP110 |
6 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-16030 |
NLP11#,NSP110 |
6 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-16030 |
NLP11#,NSP110 |
6 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-16030 |
NLP11#,NSP110 |
6 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-16030 |
NLP11#,NSP110 |
6 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-16030 |
NLP11#,NSP110 |
6 | ||
| 55739G - STOPPER, HOOD | ||||
| 55738-52060 |
NLP11#,NSP110 |
3 | ||
| 55738-52060 |
NLP11#,NSP110 |
5 | ||
| 55739G - STOPPER, HOOD | ||||
| 55738-52060 |
NLP11#,NSP110 |
3 | ||
| 55738-52060 |
NLP11#,NSP110 |
5 | ||
| Common parts | ||||
| 90119-06137 | ||||
| 90467-06205C0 | ||||
| 90541-15032 | ||||
| 90950-06124 | ||||
| Linked diagrams | ||||
| 7501 | ||||
ILLUST NO. 2 OF 2(0901- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53087A - EXTENSION SUB-ASSY, FRONT WHEEL OPENING, RH | ||||
| 53087-52050 |
NLP11#,NSP110 |
1 | ||
| 53088C - REINFORCEMENT, FRONT FENDER APRON, REAR LH | ||||
| 53088-52050 |
NLP11#,NSP110 |
1 | ||
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53875-52230 |
NSP110 |
1 | ||
| 53875C - CLIP, FRONT FENDER LINER | ||||
| 90467-05114 |
NLP11#,NSP110 |
2 | ||
| 53875P - SCREW, NO.1 | ||||
| 90159-60590 |
NLP11#,NSP110 |
2 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53876-52230 |
NSP110 |
1 | ||
| 53879A - RETAINER, FRONT FENDER LINER | ||||
| 53879-52040 |
NLP11#,NSP110 |
4 | ||
| 53879R - RETAINER, FRONT FENDER LINER | ||||
| 53879-28010 |
NLP11#,NSP110 |
2 | ||
| Common parts | ||||
| 90159-60498 | ||||
| 90189-06013 | ||||
| 90189-06230 | ||||
| 90269-04054 | ||||
| 90467-07214 | ||||
| Linked diagrams | ||||
| 5102 | ||||
