NSP110L-AHFNKW (2009)

Toyota Urban Cruiser

Production Jan 2009 - Apr 2016
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0901- )

Click highlighted areas on diagram

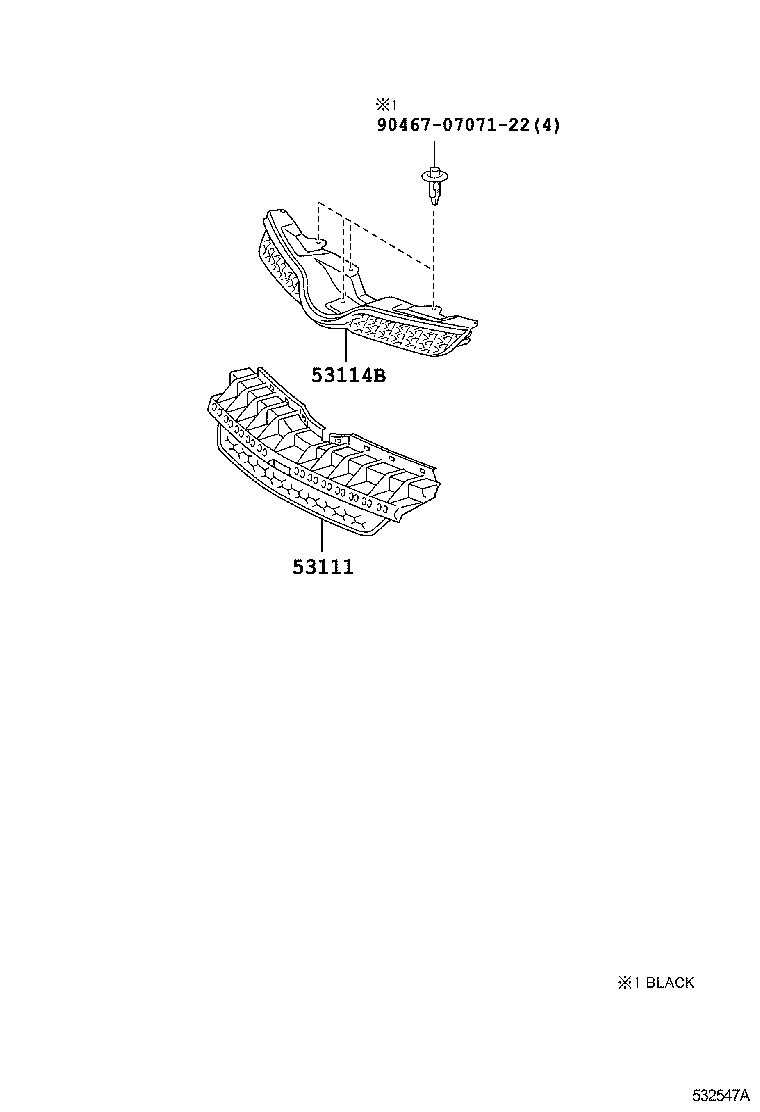

diagram 53111 53114B 904670707122
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-52510

NLP11#,NSP110

NO PAINT REQ.

 1
53114B - GRILLE, RADIATOR, UPPER
53114-52040

NLP11#,NSP110

 1
Common parts
90467-0707122
