NSP110L-AHFNKW (2009)

Toyota Urban Cruiser

Production Jan 2009 - Apr 2016
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0901- )

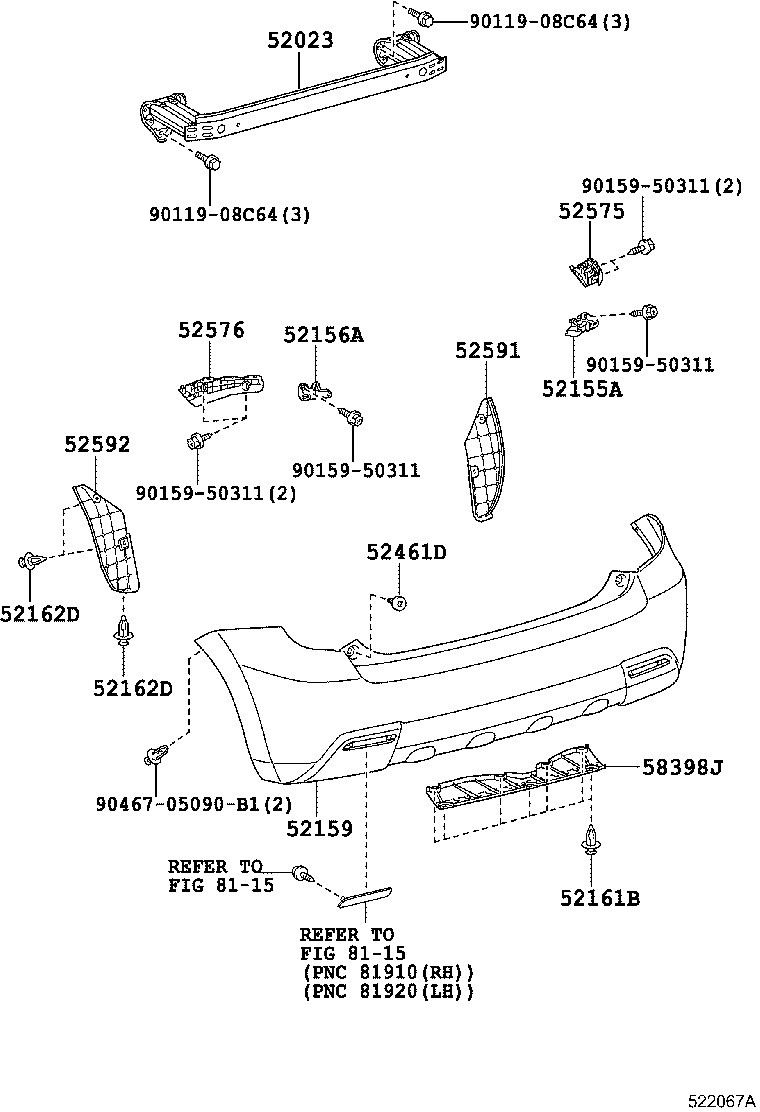

Click highlighted areas on diagram

diagram 52023 52155A 52156A 52159 52161B 52162D 52162D 52461D 52575 52576 52591 52592 58398J 8115 8115 9011908C64 9011908C64 9015950311 9015950311 9015950311 9015950311 9046705090B1
Part # Description Qty Price
52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER
52023-52110

NLP11#,NSP110

 1
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-52100

NLP11#,NSP110

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-52100

NLP11#,NSP110

 1
52159 - COVER, REAR BUMPER
52159-52943

NLP11#,NSP110

PAINT REQ.

 1
52161B - PIECE, REAR BUMPER
52161-16010

NLP11#,NSP110

 7
52162D - PIECE, REAR BUMPER
52161-16010

NLP11#,NSP110

 6
52162D - PIECE, REAR BUMPER
52161-16010

NLP11#,NSP110

 6
52461D - CUSHION, REAR BUMPER
52461-52020

NLP11#,NSP110

 2
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-52150

NLP11#,NSP110

 1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-52130

NLP11#,NSP110

 1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-52250

NLP11#,NSP110

 1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-52240

NLP11#,NSP110

 1
58398J - COVER, FLOOR UNDER, NO.1
58398-52060

NLP11#,NSP110

 1
Common parts
90119-08C64
90159-50311
90467-05090B1
Linked diagrams
8115
