NSP110L-AHFNKW (2009)
Toyota Urban Cruiser
Production
Jan 2009
-
Apr 2016
Engine
1NRFE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)

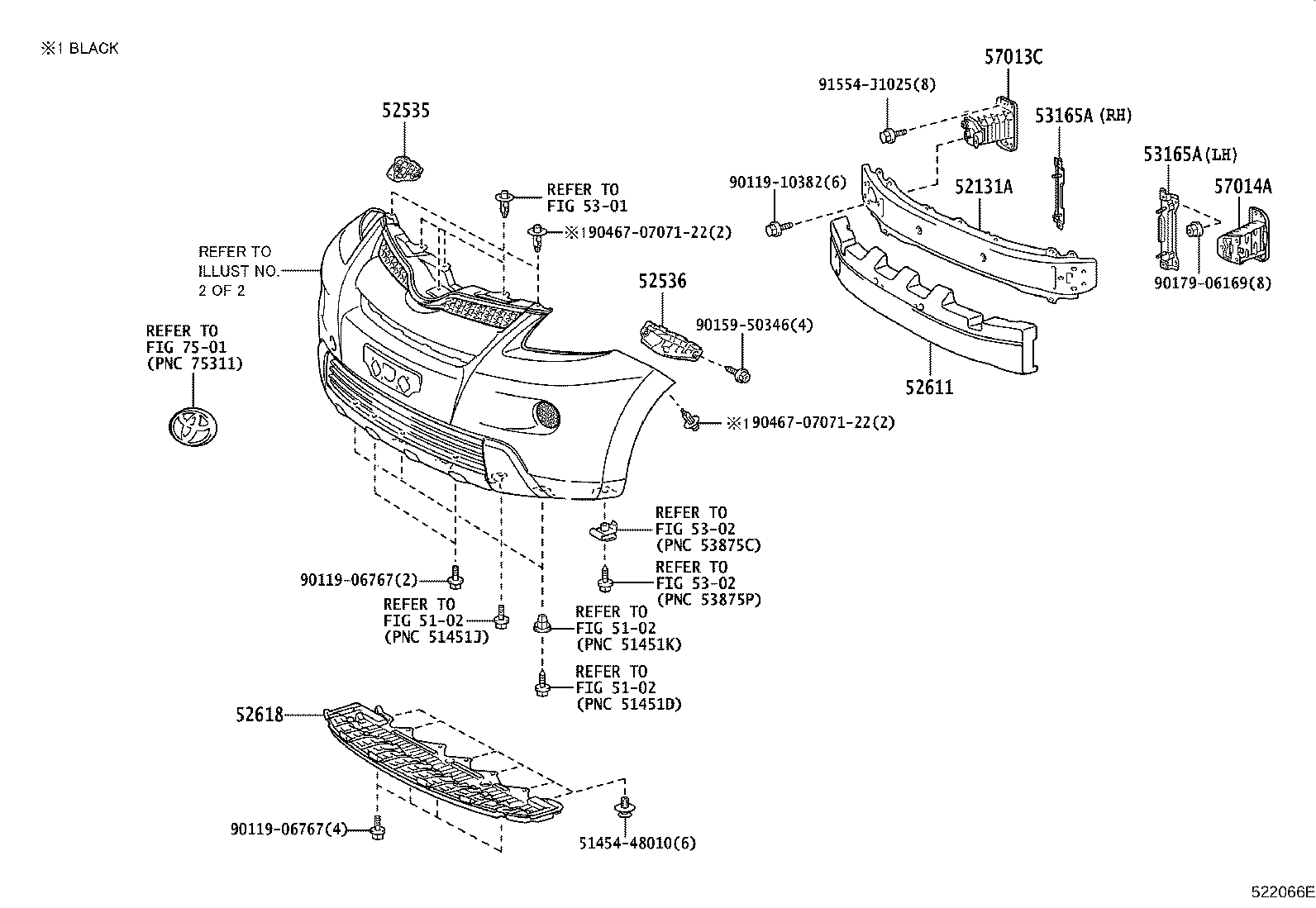

ILLUST NO. 1 OF 2(0901- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-52250 |
NLP11#,NSP110 |
1 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-52140 |
NLP11#,NSP110 |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-52150 |
NLP11#,NSP110 |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-52170 |
NLP11#,NSP110 |
1 | ||
| 52618 - ABSORBER, FRONT BUMPER, LOWER | ||||
| 52618-52020 |
NLP11#,NSP110 |
1 | ||
| 53165A - BRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1 | ||||
| 53164-52030 |
NLP11#,NSP110 |
2 | ||
| 53165A - BRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1 | ||||
| 53164-52030 |
NLP11#,NSP110 |
2 | ||
| 57013C - BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57013-52020 |
NLP11#,NSP110 |
1 | ||
| 57013-52021 |
NLP11#,NSP110 |
1 | ||
| 57014A - BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57014-52020 |
NLP11#,NSP110 |
1 | ||
| Common parts | ||||
| 51454-48010 | ||||
| 90119-06767 | ||||
| 90119-10382 | ||||
| 90159-50346 | ||||
| 90179-06169 | ||||
| 90467-0707122 | ||||
| 91554-J1025 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5301 | ||||
| 5302 | ||||
| 7501 | ||||

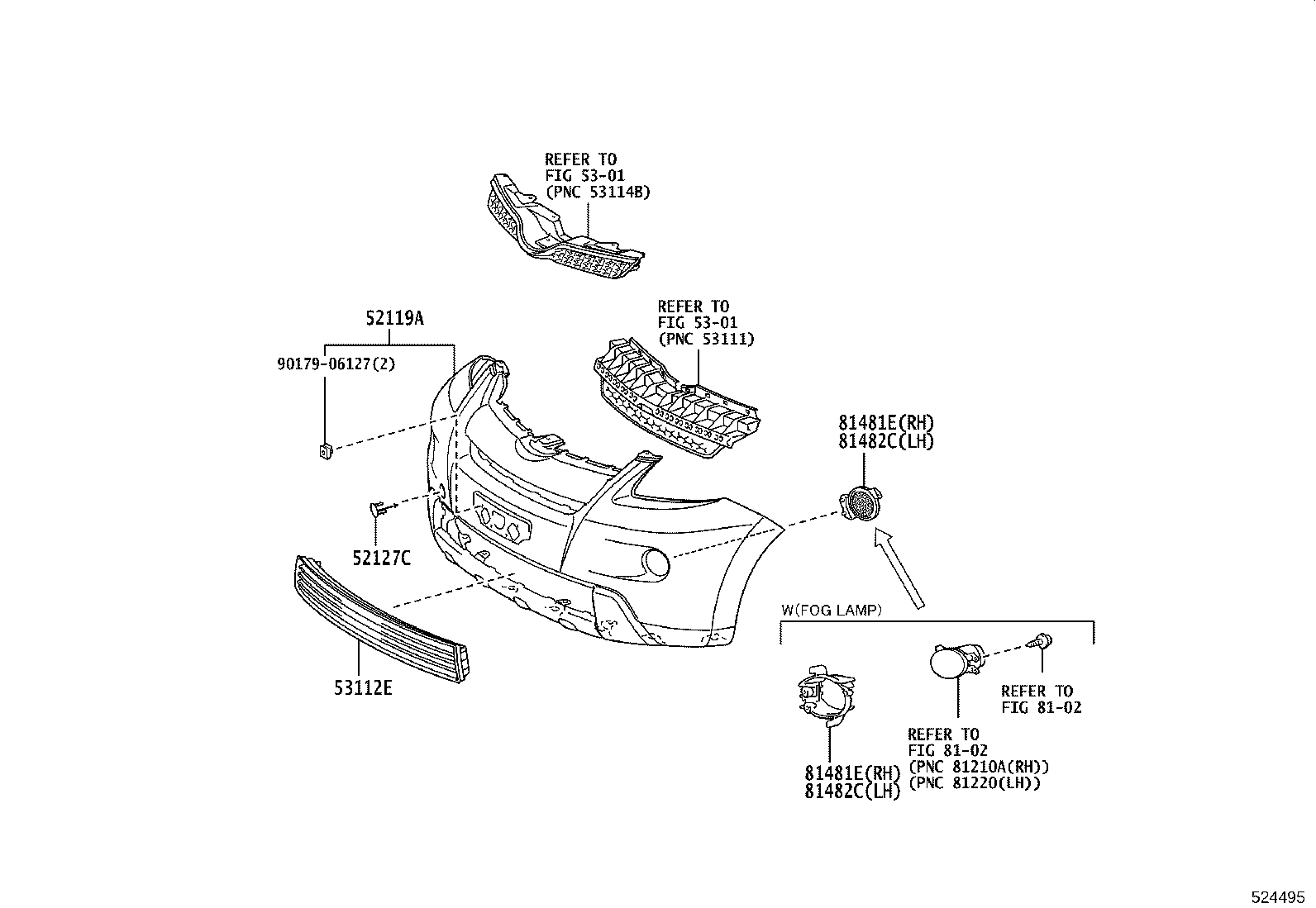

ILLUST NO. 2 OF 2(0901- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-52953 |
NLP11#,NSP110 PAINT REQ. |
1 | ||
| 52127C - COVER, FRONT BUMPER HOLE | ||||
| 52127-52924 |
NLP11#,NSP110 |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-52340 |
NLP11#,NSP110 NO PAINT REQ. |
1 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 81481-52290 |
NLP11#,NSP110..R |
1 | ||
| 81481-52280 |
NLP11#,NSP110..N |
1 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 81481-52290 |
NLP11#,NSP110..R |
1 | ||
| 81481-52280 |
NLP11#,NSP110..N |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 81482-52220 |
NLP11#,NSP110..R |
1 | ||
| 81482-52210 |
NLP11#,NSP110..N |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 81482-52220 |
NLP11#,NSP110..R |
1 | ||
| 81482-52210 |
NLP11#,NSP110..N |
1 | ||
| Common parts | ||||
| 90179-06127 | ||||
| Linked diagrams | ||||
| 5301 | ||||
| 8102 | ||||
