NSP110L-AHFNKW (2009)
Toyota Urban Cruiser
Production
Jan 2009
-
Apr 2016
Engine
1NRFE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0901- )

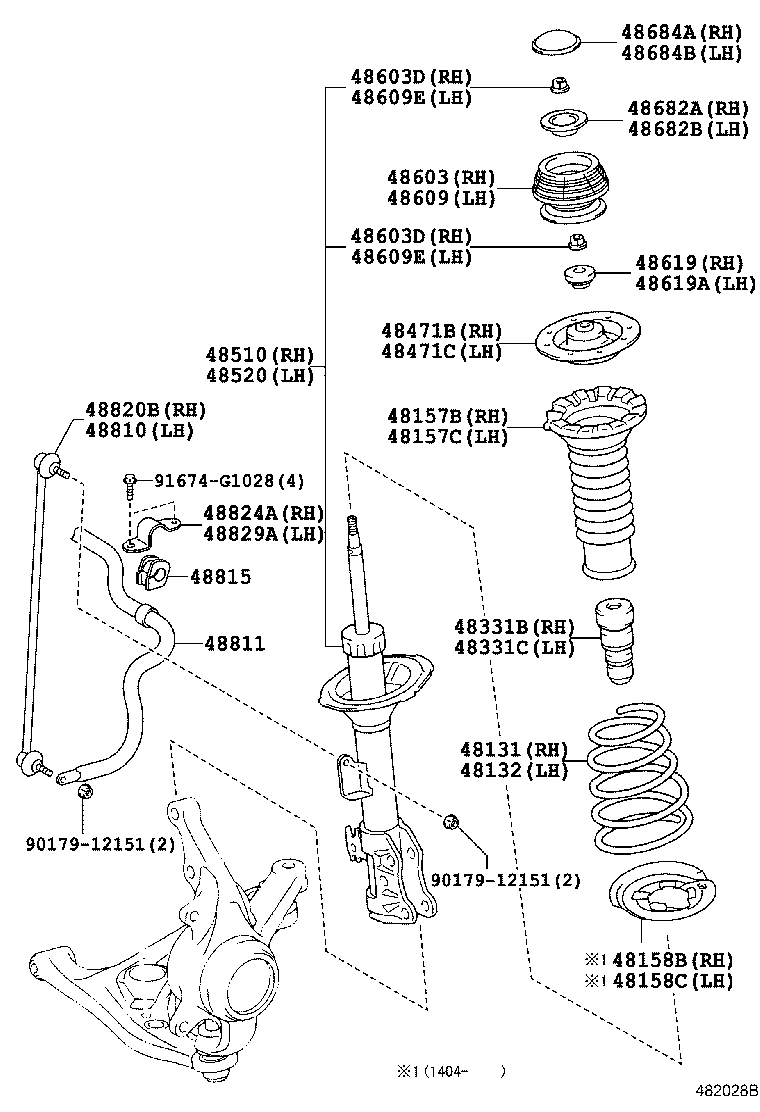

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-52E60 |
NSP110 |
1 | ||
| 48131-52L80 |
NSP110 |
1 | ||
| 48131-52L81 |
NSP110 |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-52E60 |
NSP110 |
1 | ||
| 48131-52L80 |
NSP110 |
1 | ||
| 48131-52L81 |
NSP110 |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-52030 |
NLP11#,NSP110 |
1 | ||
| 48157-52040 |
NLP11#,NSP110 |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-52030 |
NLP11#,NSP110 |
1 | ||
| 48157-52040 |
NLP11#,NSP110 |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-52010 |
NLP11#,NSP110 |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-52010 |
NLP11#,NSP110 |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-52100 |
NLP11#,NSP110 |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-52100 |
NLP11#,NSP110 |
1 | ||
| 48471B - SEAT, FRONT COIL SPRING, UPPER RH | ||||
| 48471-52030 |
NLP11#,NSP110 |
1 | ||
| 48471C - SEAT, FRONT COIL SPRING, UPPER LH | ||||
| 48471-52030 |
NLP11#,NSP110 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-80440 |
NSP110 MARK 48510-52C80 |
1 | ||
| 48510-80739 |
NSP110 MARK 48510-52C81 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-59555 |
NSP110 MARK 48520-52340 |
1 | ||
| 48520-59556 |
NSP110 MARK 48520-52341 |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-52100 |
NLP11#,NSP110 |
1 | ||
| 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) | ||||
| 90179-12145 |
NLP11#,NSP110 |
2 | ||
| 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) | ||||
| 90179-12145 |
NLP11#,NSP110 |
2 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-52100 |
NLP11#,NSP110 |
1 | ||
| 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) | ||||
| 90179-12145 |
NLP11#,NSP110 |
2 | ||
| 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) | ||||
| 90179-12145 |
NLP11#,NSP110 |
2 | ||
| 48619 - BEARING, STRUT MOUNTING, RH | ||||
| 48619-0D011 |
NLP11#,NSP110 |
1 | ||
| 48619A - BEARING, STRUT MOUNTING, LH | ||||
| 48619-0D011 |
NLP11#,NSP110 |
1 | ||
| 48682A - SUPPORT, FRONT SUSPENSION, NO.2 RH | ||||
| 48682-52040 |
NLP11#,NSP110 |
1 | ||
| 48682B - SUPPORT, FRONT SUSPENSION, NO.2 LH | ||||
| 48682-52040 |
NLP11#,NSP110 |
1 | ||
| 48684A - COVER, FRONT SUSPENSION SUPPORT DUST, RH | ||||
| 48684-52020 |
NLP11#,NSP110 |
1 | ||
| 48684B - COVER, FRONT SUSPENSION SUPPORT DUST, LH | ||||
| 48684-52020 |
NLP11#,NSP110 |
1 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48820-52030 |
NLP11#,NSP110 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-52290 |
NSP110 |
1 | ||
| 48811-52220 |
NLP110,NSP110 |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-52140 |
NLP11#,NSP110 |
2 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-52030 |
NLP11#,NSP110 |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-52060 |
NLP11#,NSP110 |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-52060 |
NLP11#,NSP110 |
1 | ||
| Common parts | ||||
| 90179-12151 | ||||
| 91674-G1028 | ||||
