NSP110L-AHFNKW (2009)

Toyota Urban Cruiser

Production Jan 2009 - Apr 2016
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0901- )NLP110,NSP110

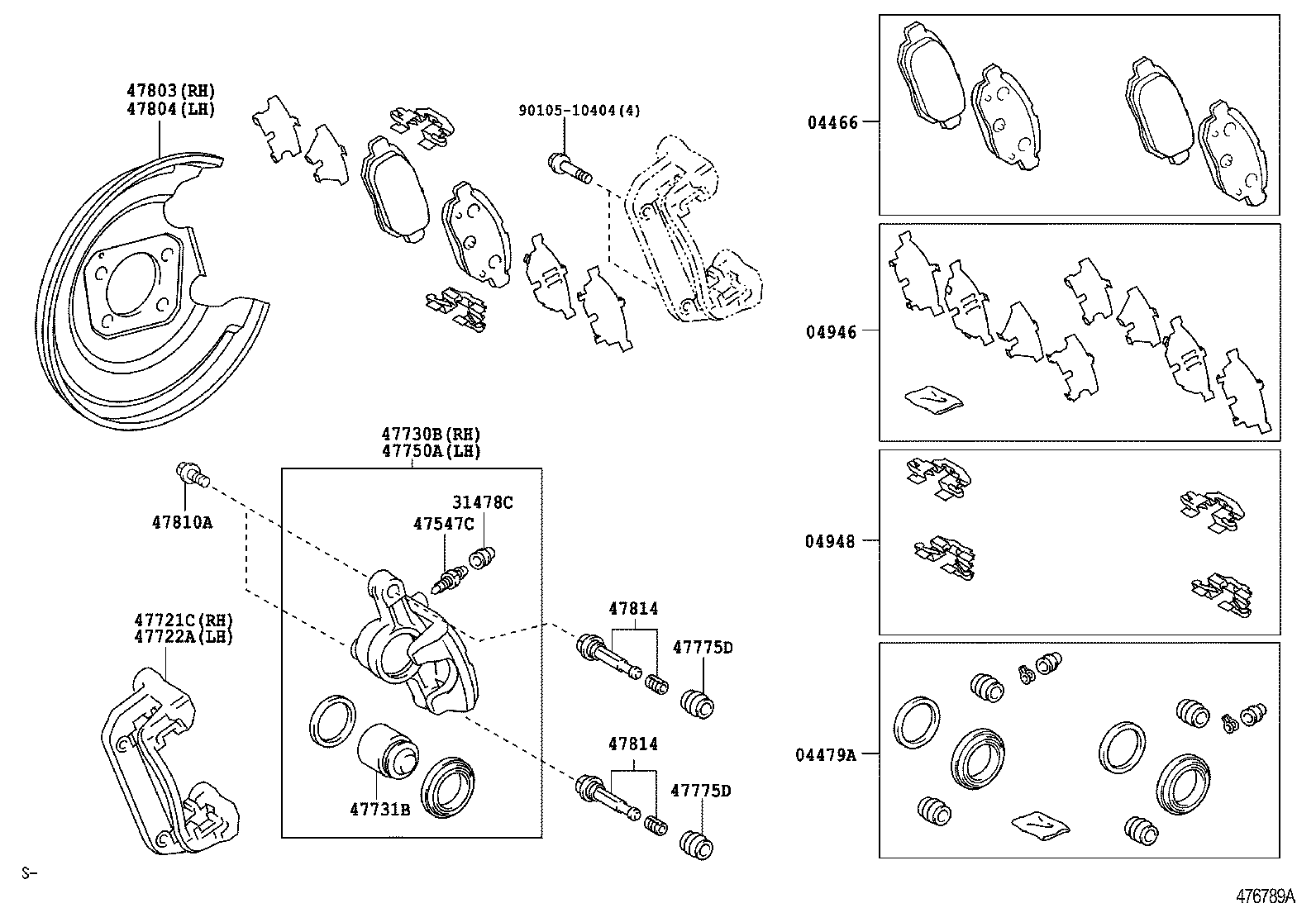

Click highlighted areas on diagram

diagram 04466 04479A 04946 04948 31478C 47547C 47721C 47722A 47730B 47731B 47750A 47775D 47775D 47803 47804 47810A 47814 47814 9010510404
Part # Description Qty Price
04466 - PAD KIT, DISC BRAKE, REAR
04466-12130

NLP110,NSP110

MARK AK NS254

 1
04466-12140

NLP110,NSP110

MARK AK NS254

 1
04466-12150

NLP110,NSP110

MARK AK NS254

 1
04479A - CYLINDER KIT, DISC BRAKE, REAR
04479-52170

NLP11#,NSP110

 1
04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
04946-12040

NLP110,NSP110

 1
04946-12110

NLP110,NSP110

 1
04948 - FITTING KIT, DISC BRAKE, REAR
04948-12060

NLP110,NSP110

 1
04948-52040

NLP110,NSP110

 1
31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
31478-52010

NLP11#,NSP110

 2
47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE)
47847-52050

NLP11#,NSP110

 2
47721C - MOUNTING, REAR DISC BRAKE CYLINDER, RH
47821-12151

NLP110,NSP110

 1
47722A - MOUNTING, REAR DISC BRAKE CYLINDER, LH
47821-12151

NLP110,NSP110

 1
47730B - CYLINDER ASSY, REAR DISC BRAKE, RH
47830-52161

NLP110,NSP110

 1
47731B - PISTON, REAR DISC BRAKE
47831-52090

NLP11#,NSP110

 2
47750A - CYLINDER ASSY, DISC BRAKE, REAR LH
47850-52161

NLP110,NSP110

 1
47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE)
47875-12150

NLP11#,NSP110

 4
47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE)
47875-12150

NLP11#,NSP110

 4
47803 - COVER SUB-ASSY, DISC BRAKE DUST, REAR RH
47803-52030

NLP110,NSP110

 1
47804 - COVER SUB-ASSY, DISC BRAKE DUST, REAR LH
47804-52030

NLP110,NSP110

 1
47810A - BOLT, HEXAGON(FOR REAR CALIPER)
90015-AA102

NLP11#,NSP110

 4
47814 - PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)
47835-12150

NLP11#,NSP110

 4
47814 - PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)
47835-12150

NLP11#,NSP110

 4
Common parts
90105-10404
