NSP110L-AHFNKW (2009)
Toyota Urban Cruiser

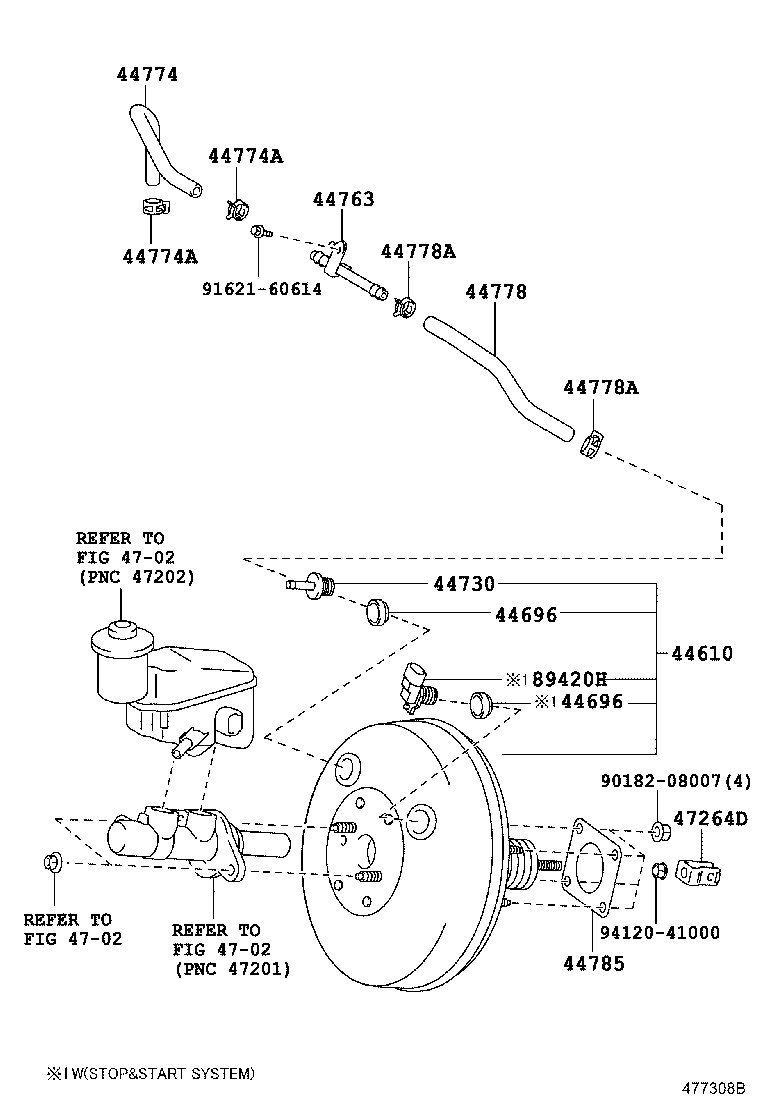

(0901-1008)NSP110..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-52740 |
NSP110..LHD WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 44610-52700 |
NSP110..LHD |
1 | ||
| 44610-52D50 |
NSP110..LHD VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 44610-52D60 |
NSP110..LHD WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 44610-52D20 |
NSP110..LHD |
1 | ||
| 44610-52730 |
NSP110..LHD VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
NLP11#;NSP110..LHD |
1 | ||
| 90480-24439 |
NSP110..LHD WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA |
2 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60070 |
NLP11#,NSP110..LHD |
1 | ||
| 44730-22150 |
NLP11#,NSP110 |
1 | ||
| 44763 - TUBE, BOOSTER VACUUM | ||||
| 44763-52100 |
NSP110..LHD |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-52120 |
NSP110..LHD |
1 | ||
| 44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 90467-16014 |
NLP11#,NSP110..LHD |
2 | ||
| 96133-41500 |
NLP11#,NSP110..LHD |
2 | ||
| 44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 90467-16014 |
NLP11#,NSP110..LHD |
2 | ||
| 96133-41500 |
NLP11#,NSP110..LHD |
2 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 90999-92002 |
NSP110..LHD WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-52020 |
NSP110..LHD |
1 | ||
| 44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE) | ||||
| 90467-16014 |
NLP11#,NSP110..LHD |
2 | ||
| 96133-41500 |
NLP11#,NSP110..LHD |
2 | ||
| 44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE) | ||||
| 90467-16014 |
NLP11#,NSP110..LHD |
2 | ||
| 96133-41500 |
NLP11#,NSP110..LHD |
2 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-16020 |
NLP11#,NSP110 |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-52010 |
NLP11#,NSP110 |
1 | ||
| 89420H - SENSOR ASSY, VACUUM | ||||
| 89421-52020 |
NSP110..LHD WITH(STOP & START SYSTEM) |
1 | ||
| 89420-52080 |
NSP110..LHD WITH(STOP & START SYSTEM) |
1 | ||
| Common parts | ||||
| 90182-08007 | ||||
| 91621-60614 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 4702 | ||||

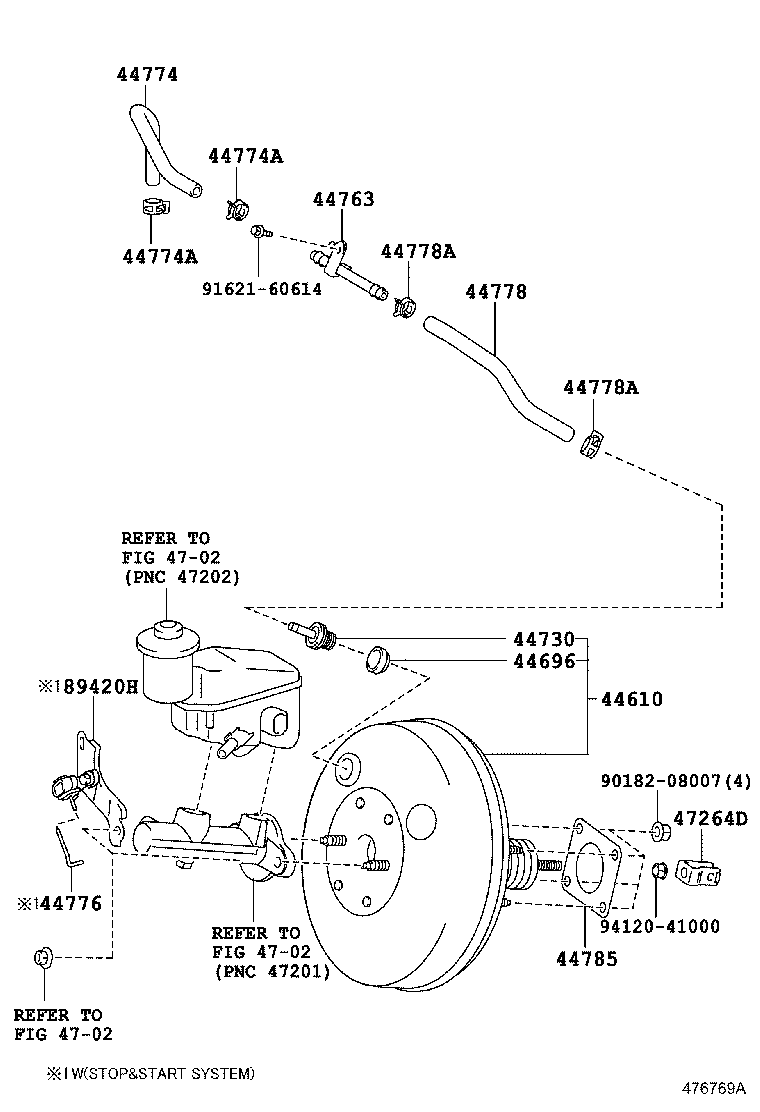

(1008- )NSP110..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-52740 |
NSP110..LHD WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 44610-52700 |
NSP110..LHD |
1 | ||
| 44610-52D50 |
NSP110..LHD VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 44610-52D60 |
NSP110..LHD WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 44610-52D20 |
NSP110..LHD |
1 | ||
| 44610-52730 |
NSP110..LHD VEHICLE STABILITY CONT-WITH PUMP UP BA |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
NLP11#;NSP110..LHD |
1 | ||
| 90480-24439 |
NSP110..LHD WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA |
2 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
NLP11#;NSP110..LHD |
1 | ||
| 90480-24439 |
NSP110..LHD WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA |
2 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60070 |
NLP11#,NSP110..LHD |
1 | ||
| 44730-22150 |
NLP11#,NSP110 |
1 | ||
| 44763 - TUBE, BOOSTER VACUUM | ||||
| 44763-52100 |
NSP110..LHD |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-52120 |
NSP110..LHD |
1 | ||
| 44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 90467-16014 |
NLP11#,NSP110..LHD |
2 | ||
| 96133-41500 |
NLP11#,NSP110..LHD |
2 | ||
| 44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 90467-16014 |
NLP11#,NSP110..LHD |
2 | ||
| 96133-41500 |
NLP11#,NSP110..LHD |
2 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-52020 |
NSP110..LHD |
1 | ||
| 44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE) | ||||
| 90467-16014 |
NLP11#,NSP110..LHD |
2 | ||
| 96133-41500 |
NLP11#,NSP110..LHD |
2 | ||
| 44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE) | ||||
| 90467-16014 |
NLP11#,NSP110..LHD |
2 | ||
| 96133-41500 |
NLP11#,NSP110..LHD |
2 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-16020 |
NLP11#,NSP110 |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-52010 |
NLP11#,NSP110 |
1 | ||
| 89420H - SENSOR ASSY, VACUUM | ||||
| 89421-52020 |
NSP110..LHD WITH(STOP & START SYSTEM) |
1 | ||
| 89420-52080 |
NSP110..LHD WITH(STOP & START SYSTEM) |
1 | ||
| Common parts | ||||
| 90182-08007 | ||||
| 91621-60614 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 4702 | ||||
