NSP110L-AHFNKW (2009)

Toyota Urban Cruiser

Production Jan 2009 - Apr 2016
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0901- )

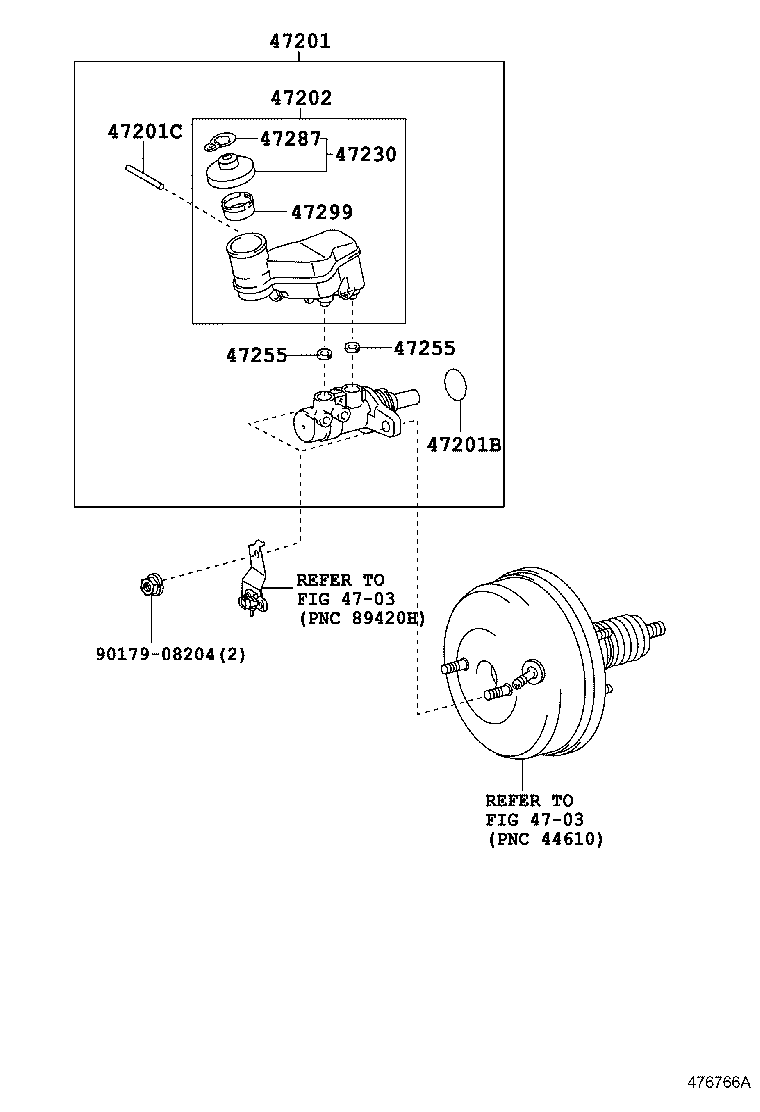

Click highlighted areas on diagram

diagram 4703 4703 47201 47201B 47201C 47202 47230 47255 47255 47287 47299 9017908204
Part # Description Qty Price
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-52450

NLP11#,NSP110..LHD

 1
47201-52750

NSP110..LHD

WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA

 1
47201-52720

NLP110,NSP110..LHD

 1
47201-52750

NSP110..LHD

VEHICLE STABILITY CONT-WITH PUMP UP BA

 1
47201-52751

NSP110..LHD

VEHICLE STABILITY CONT-WITH PUMP UP BA

 1
47201-52721

NSP110..LHD

 1
47201-52751

NSP110..LHD

WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA

 1
47201-52752

NSP110..LHD

WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA

 1
47201-52722

NSP110..LHD

 1
47201-52752

NSP110..LHD

VEHICLE STABILITY CONT-WITH PUMP UP BA

 1
47201B - RING, O(FOR BRAKE MASTER CYLINDER)
90015-AH002

NLP11#,NSP110

 1
47201C - RING PIN, BRAKE MASTER CYLINDER
90029-15803

NLP11#,NSP110

 1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-52220

NLP11#,NSP110..LHD

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-20140

NSP110..LHD

 1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
90029-48001

NLP11#,NSP110

 2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
90029-48001

NLP11#,NSP110

 2
47287 - LABEL, BRAKE FLUID INFORMATION
47287-20010

NSP110..LHD

 1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-25010

NSP110..LHD

 1
Common parts
90179-08204
Linked diagrams
4703
