NSP110L-AHFNKW (2009)
Toyota Urban Cruiser
Production
Jan 2009
-
Apr 2016
Engine
1NRFE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0901- )

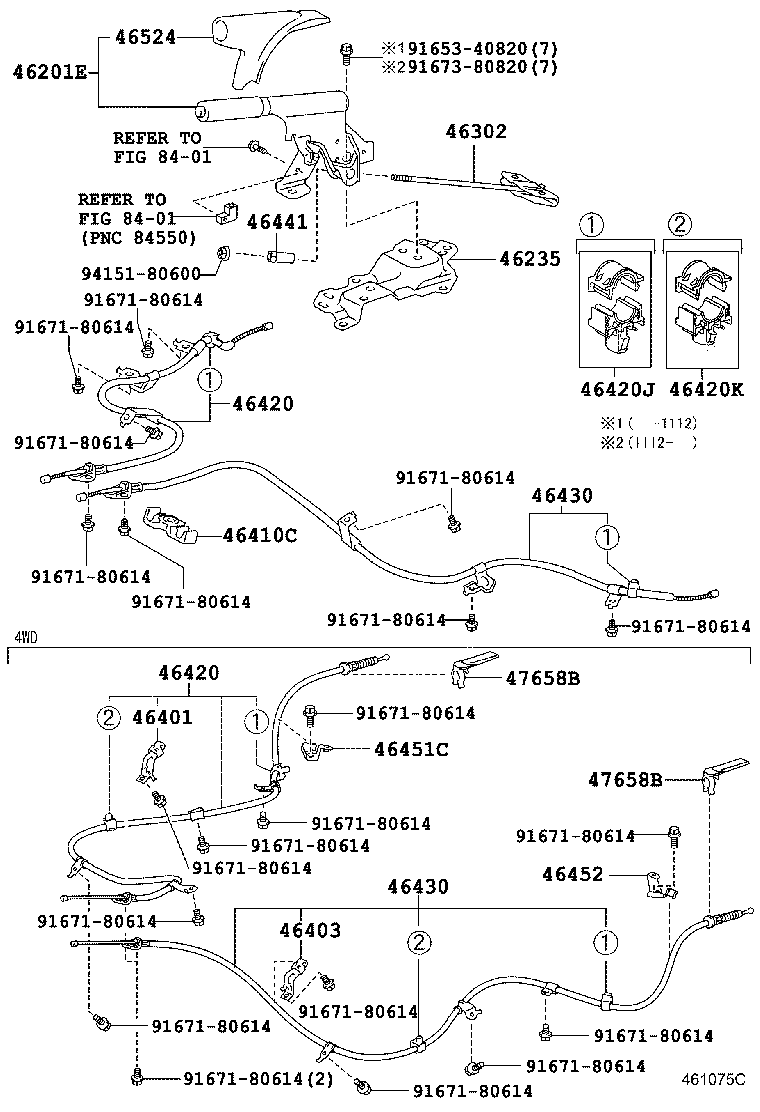

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-52060B0 |
NLP11#,NSP110 DK.GRAY,TRIM1# |
1 | ||
| 46235 - BRACKET, PARKING BRAKE LEVER SUPPORT | ||||
| 46235-52020 |
NLP110,NSP110 |
1 | ||
| 46302 - ROD SUB-ASSY, PARKING BRAKE PULL, NO.1 | ||||
| 46302-52030 |
NLP11#,NSP110 |
1 | ||
| 46410C - CLAMP(FOR PARKING BRAKE FRONT CABLE) | ||||
| 46411-52030 |
NLP110,NSP110 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-52161 |
NLP110,NSP110 |
1 | ||
| 46420-52162 |
NLP110,NSP110 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-52161 |
NLP110,NSP110 |
1 | ||
| 46420-52162 |
NLP110,NSP110 |
1 | ||
| 46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE) | ||||
| 46402-52030 |
NLP110,NSP110 |
2 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-52161 |
NLP110,NSP110 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-52161 |
NLP110,NSP110 |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-52010 |
NLP11#,NSP110 |
1 | ||
| 46524 - COVER, PARKING BRAKE DUST | ||||
| 46524-52030 |
NLP11#,NSP110 |
1 | ||
| Common parts | ||||
| 91653-40820 | ||||
| 91671-80614 | ||||
| 91673-80820 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
