NSP110L-AHFNKW (2009)

Toyota Urban Cruiser

Production Jan 2009 - Apr 2016
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0901- )

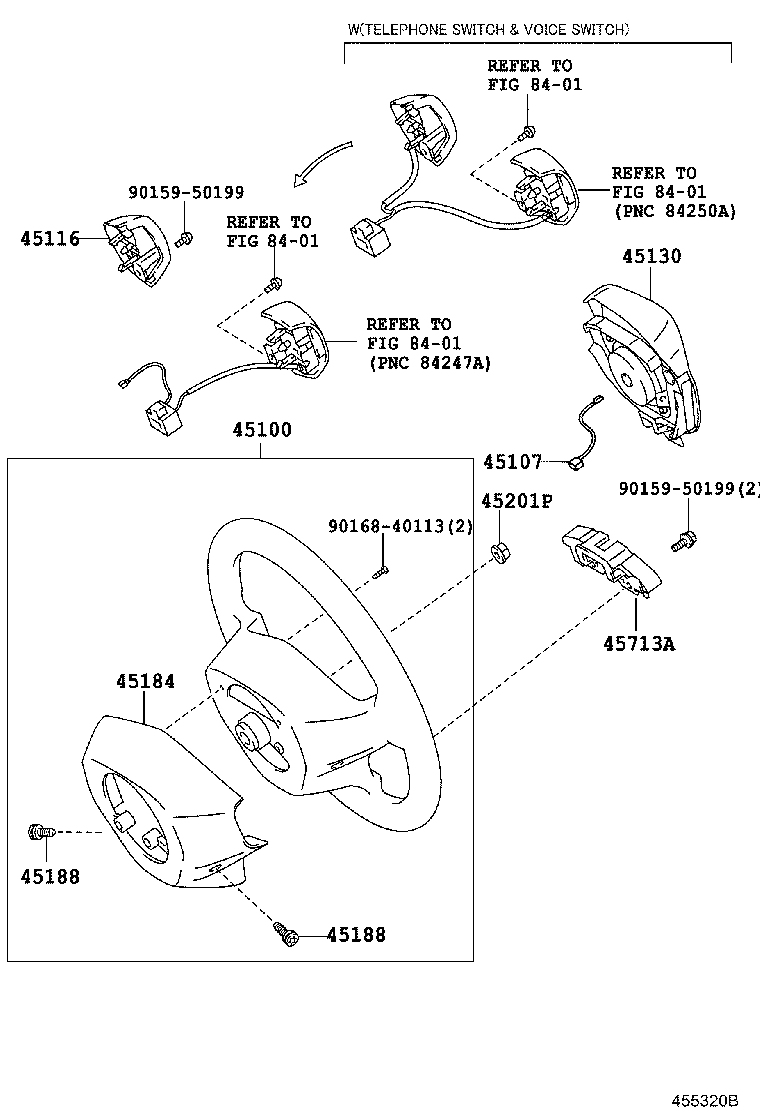

Click highlighted areas on diagram

diagram 45100 45107 45116 45130 45184 45188 45188 45201P 45713A 8401 8401 8401 8401 9015950199 9015950199 9016840113
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-52390B0

NLP11#,NSP110..N

3-SPOKE, LEATHER,DK.GRAY,TRIM1#

 1
45100-52380B0

NLP11#,NSP110..R

3-SPOKE, URETHANE,DK.GRAY,TRIM1#

 1
45107 - WIRE SUB-ASSY, HORN BUTTON
45107-48010

NLP11#,NSP110..R

 1
45116 - ORNAMENT, STEERING WHEEL, NO.1
45116-52050

NLP11#,NSP110..N

BLACK & WHITE CONCEPT

 1
45116-52100

NSP110..LHD..R

STEERING WHEEL-3-SPOKE,URETHANE,WITH(STEERING SWITCH)

 1
45130 - BUTTON ASSY, HORN
45130-52530B0

NLP11#,NSP110..R

DK.GRAY,TRIM1#

 1
45130-52540B0

NLP11#,NSP110..N

DK.GRAY,TRIM1#

 1
45130-52541B0

NLP11#,NSP110..N

DK.GRAY,TRIM1#

 1
45130-52541B0

NSP110..LHD..R

DECONTENT PACKAGE&STEERING WHEEL-3-SPOKE,URETHANE,WITH(STEERING SWITCH),DK.GRAY,TRIM1#

 1
45130-52531B0

NLP11#,NSP110..R

DK.GRAY,TRIM1#

 1
45184 - COVER, STEERING WHEEL BOSS, LOWER
45184-52140B0

NLP11#,NSP110

DK.GRAY,TRIM1#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010

NLP11#,NSP110

L=18

 2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010

NLP11#,NSP110

L=18

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

NLP11#,NSP110

 1
Common parts
90159-50199
90168-40113
Linked diagrams
8401
