NSP110L-AHFNKW (2009)

Toyota Urban Cruiser

Production Jan 2009 - Apr 2016
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0901- )LHD

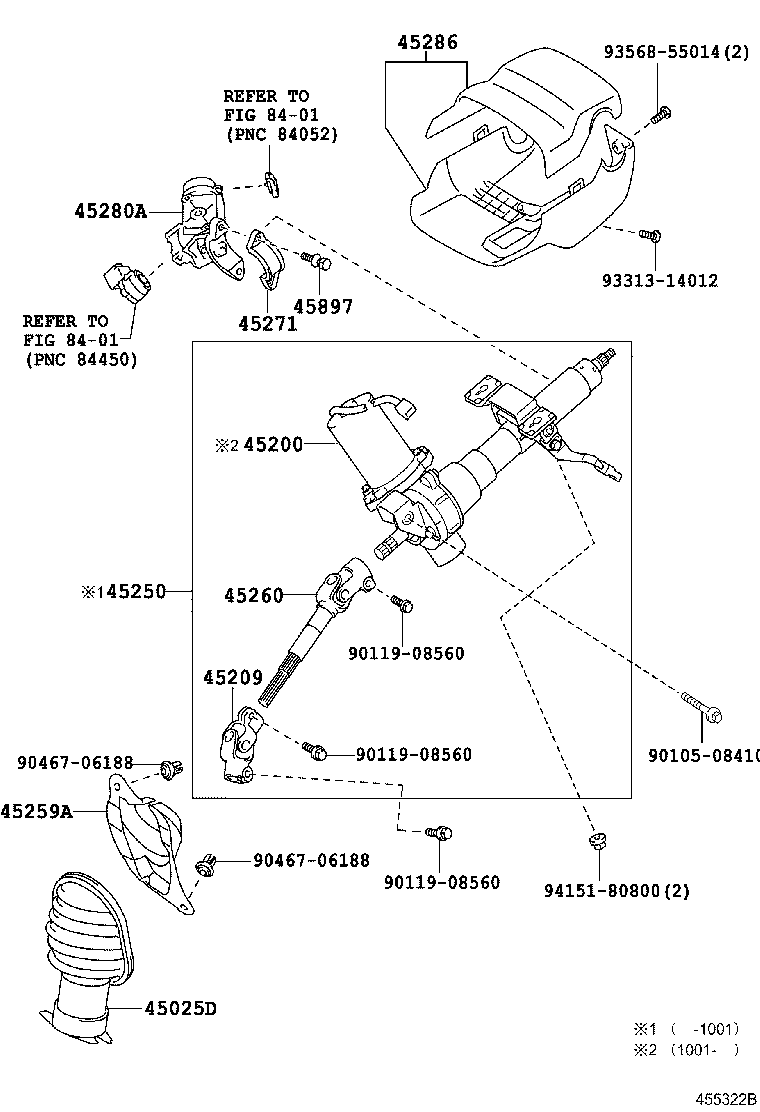

Click highlighted areas on diagram

diagram 45025D 45200 45209 45250 45259A 45260 45271 45280A 45286 45897 8401 8401 9010508410 9011908560 9011908560 9011908560 9046706188 9046706188 9331314012 9356855014 9415180800
Part # Description Qty Price
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-52140

NLP110,NSP110

 1
45025-52170

NLP110,NSP110

 1
45200 - POST ASSY, STEERING
45200-52701

NSP110..LHD..R

DECONTENT PACKAGE

 1
45200-52711

NLP11#,NSP110..LHD..N

SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)

 1
45200-52710

NLP11#,NSP110..LHD..N

WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)

 1
45200-52721

NLP11#,NSP110..LHD

 1
45200-52720

NLP11#,NSP110..LHD

 1
45209 - YOKE SUB-ASSY, STEERING SLIDING
45209-52070

NLP11#,NSP110

 1
45209-52070

NLP11#,NSP110

 1
45250 - COLUMN ASSY, STEERING
45250-52321

NLP11#,NSP110..LHD..N

WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)

 1
45250-52311

NLP11#,NSP110..LHD

 1
45259A - SHEET, COLUMN HOLE COVER SILENCER
45259-52020

NLP11#,NSP110..LHD

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-52280

NLP11#,NSP110..LHD

 1
45260-52280

NLP11#,NSP110..LHD

 1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-52030

NLP11#,NSP110

 1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-52090

NLP11#,NSP110..LHD

 1
45280-60640

NLP11#,NSP110..LHD

 1
45286 - COVER, STEERING COLUMN
45286-52934B0

NLP11#,NSP110

DK.GRAY,TRIM1#

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

NLP11#,NSP110

 2
Common parts
90105-08410
90119-08560
90467-06188
93313-14012
93568-55014
94151-80800
Linked diagrams
8401

(0901- )RHD ; (0901- )LHD..N

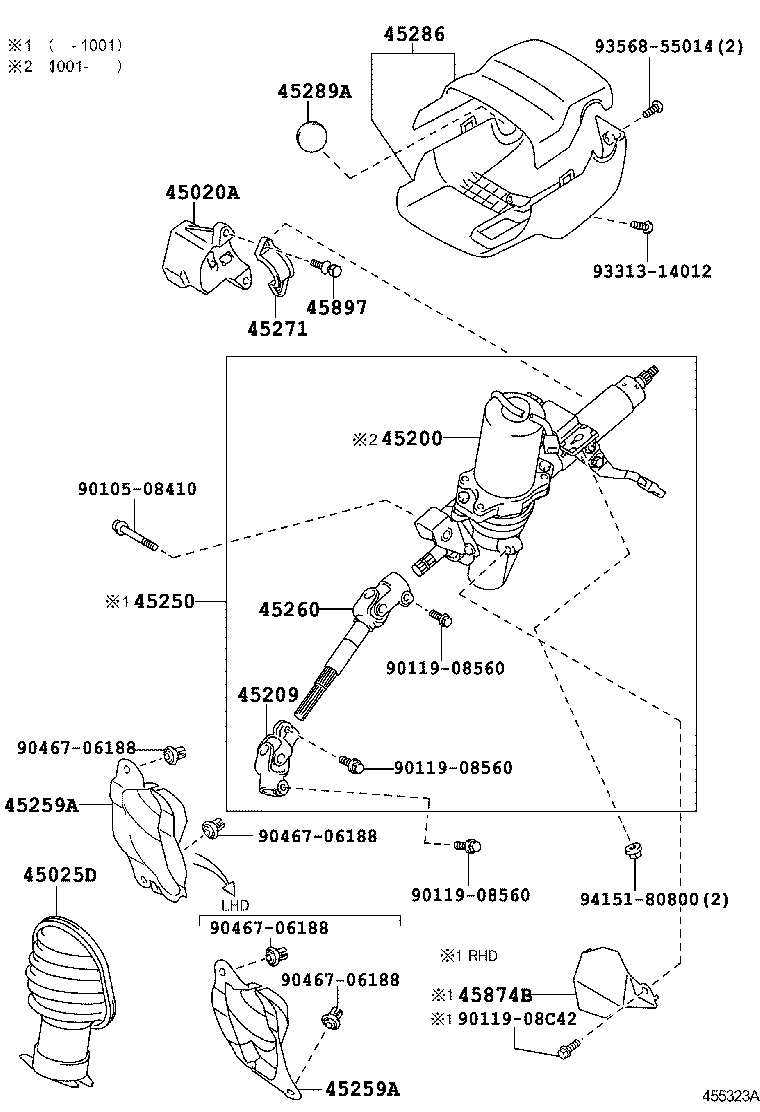

Click highlighted areas on diagram

W(SMART KEY SYSTEM)

diagram 45020A 45025D 45200 45209 45250 45259A 45259A 45260 45271 45286 45289A 45874B 45897 9010508410 9011908560 9011908560 9011908560 9011908C42 9046706188 9046706188 9046706188 9046706188 9331314012 9356855014 9415180800
Part # Description Qty Price
45020A - ACTUATOR ASSY, STEERING LOCK
45020-52140

NLP11#,NSP110..LHD..N

WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)

 1
45020-52140

NLP11#,NSP110..LHD..N

SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)

 1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-52140

NLP110,NSP110

 1
45025-52170

NLP110,NSP110

 1
45200 - POST ASSY, STEERING
45200-52701

NSP110..LHD..R

DECONTENT PACKAGE

 1
45200-52711

NLP11#,NSP110..LHD..N

SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)

 1
45200-52710

NLP11#,NSP110..LHD..N

WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)

 1
45200-52721

NLP11#,NSP110..LHD

 1
45200-52720

NLP11#,NSP110..LHD

 1
45209 - YOKE SUB-ASSY, STEERING SLIDING
45209-52070

NLP11#,NSP110

 1
45209-52070

NLP11#,NSP110

 1
45250 - COLUMN ASSY, STEERING
45250-52321

NLP11#,NSP110..LHD..N

WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)

 1
45250-52311

NLP11#,NSP110..LHD

 1
45259A - SHEET, COLUMN HOLE COVER SILENCER
45259-52020

NLP11#,NSP110..LHD

 1
45259A - SHEET, COLUMN HOLE COVER SILENCER
45259-52020

NLP11#,NSP110..LHD

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-52280

NLP11#,NSP110..LHD

 1
45260-52280

NLP11#,NSP110..LHD

 1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-52030

NLP11#,NSP110

 1
45286 - COVER, STEERING COLUMN
45286-52934B0

NLP11#,NSP110

DK.GRAY,TRIM1#

 1
45289A - SUPPORT, STEERING COLUMN COVER
45289-52010B0

NLP11#,NSP110..LHD..N

WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),DK.GRAY,TRIM1#

 1
45289-52010C0

NLP11#,NSP110..LHD..N

WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),BLACK,TRIM1#

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

NLP11#,NSP110

 2
Common parts
90105-08410
90119-08560
90119-08C42
90467-06188
93313-14012
93568-55014
94151-80800
