Toyota Urban cruiser NSP110 FRONT DRIVE SHAFT

NSP110L-AHFNKW (2009)

Toyota Urban Cruiser

Production Jan 2009 - Apr 2016

Engine 1NRFE

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

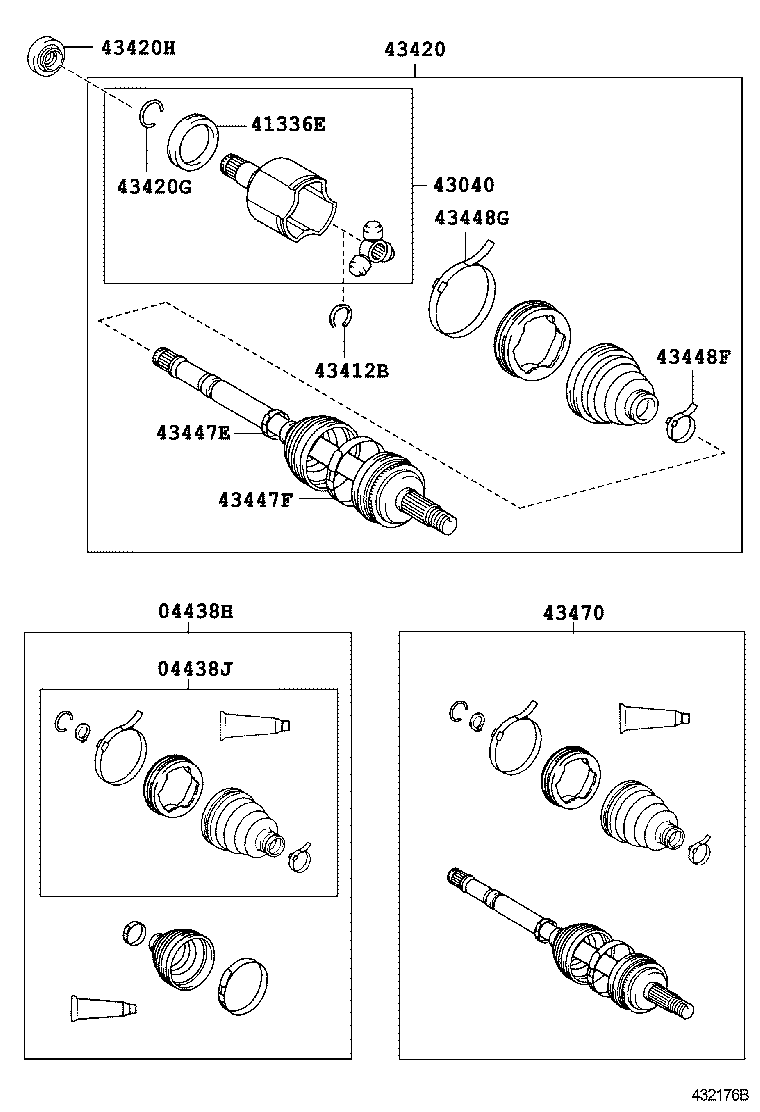

ILLUST NO. 2 OF 2(0901- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
04427-12530	NSP110	01/2009 - 09/2009	1
04427-52890	NSP110	11/2009 - 02/2010	1
04427-52891	NSP110	03/2010 - 12/2999	1
04427-52671	NSP110	09/2009 - 11/2009	1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04437-52190	NSP110	01/2009 - 09/2009	1
04437-52191	NSP110	09/2009 - 12/2999	1
41336E - COVER, FRONT DRIVE SHAFT DUST, LH
41336-12010	NSP110	01/2009 - 12/2999	1
43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH
43403-10011	NSP110	01/2009 - 12/2999	1
43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)
90520-22001	NSP110	01/2009 - 12/2999	1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-52210	NSP110	01/2009 - 04/2016	1
43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)
90521-26004	NSP110	01/2009 - 12/2999	1
43420H - OIL SEAL, FRONT DRIVE SHAFT, LH
90311-34034	NSP110	01/2009 - 12/2010	1
90311-34042	NSP110	12/2010 - 04/2016	1
43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-52260	NSP110	01/2009 - 12/2999	1
43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-52250	NSP110	01/2009 - 12/2999	1
43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)
90949-01078	NSP110	01/2009 - 12/2999	1
43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
90949-01146	NSP110	01/2009 - 12/2999	1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43470-59696	NSP110	09/2009 - 12/2999	1
43470-59315	NSP110	01/2009 - 09/2009	1

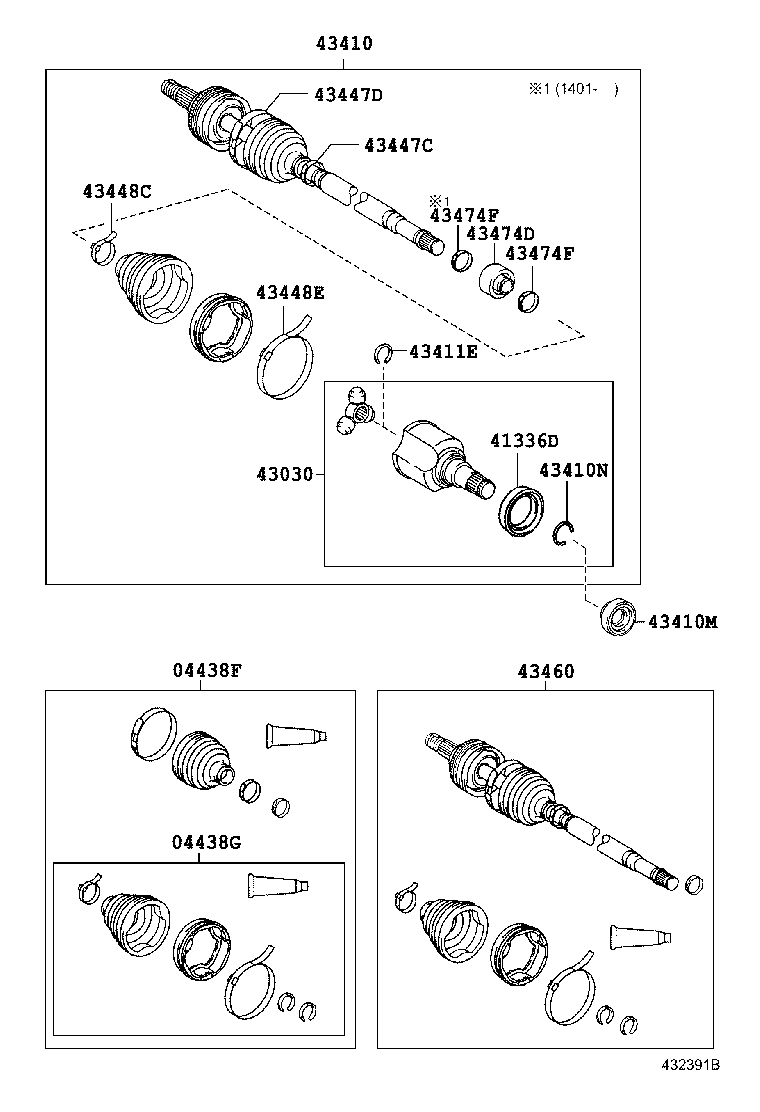

ILLUST NO. 1 OF 2(0901- )NLP110,NSP110

Click highlighted areas on diagram

Part #	Description	Period	Qty
04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
04427-12530	NSP110	01/2009 - 09/2009	1
04427-52671	NSP110	09/2009 - 11/2009	1
04427-52890	NSP110	11/2009 - 02/2010	1
04427-52891	NSP110..LHD	03/2010 - 10/2014	1
04427-52891	NSP110	11/2014 - 12/2999	1
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04437-52190	NSP110	01/2009 - 09/2009	1
04437-52191	NSP110	09/2009 - 12/2999	1
41336D - COVER, FRONT DRIVE SHAFT DUST, RH
41336-12010	NSP110	01/2009 - 12/2999	1
43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH
43403-10011	NSP110	01/2009 - 12/2999	1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-52290	NSP110	01/2009 - 04/2016	1
43410M - OIL SEAL, FRONT DRIVE SHAFT, RH
90311-34041	NSP110	11/2010 - 04/2016	1
90311-34037	NSP110	01/2009 - 11/2010	1
43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
90521-26004	NSP110	01/2009 - 12/2999	1
43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
90520-22001	NSP110	01/2009 - 12/2999	1
43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-52260	NSP110	01/2009 - 12/2999	1
43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-52250	NSP110	01/2009 - 12/2999	1
43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
90949-01078	NSP110	01/2009 - 12/2999	1
43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
90949-01146	NSP110	01/2009 - 12/2999	1
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43460-59415	NSP110	01/2009 - 09/2009	1
43460-59666	NSP110	11/2014 - 12/2999	1
43460-59416	NSP110	09/2009 - 10/2014	1
43474D - DAMPER, FRONT DRIVE SHAFT, RH
43474-52110	NSP110	11/2014 - 12/2999	1
43474-52090	NSP110	01/2009 - 10/2014	1
43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)
42345-14010	NSP110	11/2014 - 12/2999	2
42345-14010	NLP115,NSP110	01/2009 - 11/2014	1
43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)
42345-14010	NSP110	11/2014 - 12/2999	2
42345-14010	NLP115,NSP110	01/2009 - 11/2014	1
