NSP110L-AHFNKW (2009)
Toyota Urban Cruiser
(0901- )NLP110,NSP110
EC63,EC65
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE) | ||||
| 90311-25030 |
NLP11#,NSP110 |
1 | ||
| 31115C - CASE, FRONT TRANSAXLE(MTM) | ||||
| 31115-12160 |
NSP110 *206 |
1 | ||
| 31115-52090 |
NSP110..LHD WITH(STOP & START SYSTEM),*201 |
1 | ||
| 31115-52090 |
NSP110..LHD *201 |
1 | ||
| 31115-12161 |
NSP110 *206 |
1 | ||
| 41300 - CASE ASSY, FRONT DIFFERENTIAL, W/RING GEAR | ||||
| 41300-52090 |
NSP110 *206 |
1 | ||
| 41300-12140 |
NSP110 *206 |
1 | ||
| 41300-52020 |
NSP110 *201 |
1 | ||
| 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR | ||||
| 90366-40129 |
NLP110,NSP110 |
1 | ||
| 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE | ||||
| 90366-42009 |
NLP11#,NSP110 |
1 | ||
| 41311G - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT) | ||||
| 90560-41003 |
NLP110,NSP110 T=2.1 |
1 | ||
| 41311H - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR) | ||||
| 90564-44010 |
NLP110,NSP110 T=2.150, MARK 2 |
1 | ||
| 90564-44009 |
NLP110,NSP110 T=2.125, MARK 1 |
1 | ||
| 90564-44011 |
NLP110,NSP110 T=2.175, MARK 3 |
1 | ||
| 90564-44015 |
NLP110,NSP110 T=2.275, MARK 7 |
1 | ||
| 90564-44017 |
NLP110,NSP110 T=2.325, MARK 9 |
1 | ||
| 90564-44016 |
NLP110,NSP110 T=2.300, MARK 8 |
1 | ||
| 90564-44014 |
NLP110,NSP110 T=2.250, MARK 6 |
1 | ||
| 90564-44012 |
NLP110,NSP110 T=2.200, MARK 4 |
1 | ||
| 90564-44013 |
NLP110,NSP110 T=2.225, MARK 5 |
1 | ||
| 90564-44028 |
NLP110,NSP110 T=2.600, MARK L |
1 | ||
| 90564-44027 |
NLP110,NSP110 T=2.575, MARK K |
1 | ||
| 90564-44018 |
NLP110,NSP110 T=2.350, MARK A |
1 | ||
| 90564-44022 |
NLP110,NSP110 T=2.450, MARK E |
1 | ||
| 90564-44023 |
NLP110,NSP110 T=2.475, MARK F |
1 | ||
| 90564-44021 |
NLP110,NSP110 T=2.425, MARK D |
1 | ||
| 90564-44025 |
NLP110,NSP110 T=2.525, MARK H |
1 | ||
| 90564-44020 |
NLP110,NSP110 T=2.400, MARK C |
1 | ||
| 90564-44019 |
NLP110,NSP110 T=2.375, MARK B |
1 | ||
| 90564-44008 |
NLP110,NSP110 T=2.100, MARK 0 |
1 | ||
| 90564-44024 |
NLP110,NSP110 T=2.500, MARK G |
1 | ||
| 90564-44029 |
NLP110,NSP110 T=2.625, MARK M |
1 | ||
| 90564-44035 |
NLP110,NSP110 T=2.775, MARK T |
1 | ||
| 90564-44026 |
NLP110,NSP110 T=2.550, MARK J |
1 | ||
| 90564-44032 |
NLP110,NSP110 T=2.700, MARK Q |
1 | ||
| 90564-44041 |
NLP11#,NSP110 T=2.150, MARK 12 |
1 | ||
| 90564-44033 |
NLP110,NSP110 T=2.725, MARK R |
1 | ||
| 90564-44031 |
NLP110,NSP110 T=2.675, MARK P |
1 | ||
| 90564-44045 |
NLP11#,NSP110 T=2.250, MARK 16 |
1 | ||
| 90564-44036 |
NLP110,NSP110 T=2.800, MARK U |
1 | ||
| 90564-44037 |
NLP110,NSP110 T=2.825, MARK V |
1 | ||
| 90564-44049 |
NLP11#,NSP110 T=2.350, MARK 20 |
1 | ||
| 90564-44038 |
NLP110,NSP110 T=2.850, MARK W |
1 | ||
| 90564-44040 |
NLP11#,NSP110 T=2.125, MARK 11 |
1 | ||
| 90564-44053 |
NLP11#,NSP110 T=2.450, MARK 24 |
1 | ||
| 90564-44052 |
NLP11#,NSP110 T=2.425, MARK 23 |
1 | ||
| 90564-44030 |
NLP110,NSP110 T=2.650, MARK N |
1 | ||
| 90564-44034 |
NLP110,NSP110 T=2.750, MARK S |
1 | ||
| 90564-44046 |
NLP11#,NSP110 T=2.275, MARK 17 |
1 | ||
| 90564-44042 |
NLP11#,NSP110 T=2.175, MARK 13 |
1 | ||
| 90564-44039 |
NLP11#,NSP110 T=2.100, MARK 10 |
1 | ||
| 90564-44043 |
NLP11#,NSP110 T=2.200, MARK 14 |
1 | ||
| 90564-44044 |
NLP11#,NSP110 T=2.225, MARK 15 |
1 | ||
| 90564-44048 |
NLP11#,NSP110 T=2.325, MARK 19 |
1 | ||
| 90564-44058 |
NLP11#,NSP110 T=2.575, MARK 29 |
1 | ||
| 90564-44051 |
NLP11#,NSP110 T=2.400, MARK 22 |
1 | ||
| 90564-44056 |
NLP11#,NSP110 T=2.525, MARK 27 |
1 | ||
| 90564-44054 |
NLP11#,NSP110 T=2.475, MARK 25 |
1 | ||
| 90564-44066 |
NLP11#,NSP110 T=2.775, MARK 37 |
1 | ||
| 90564-44047 |
NLP11#,NSP110 T=2.300, MARK 18 |
1 | ||
| 90564-44067 |
NLP11#,NSP110 T=2.800, MARK 38 |
1 | ||
| 90564-44059 |
NLP11#,NSP110 T=2.600, MARK 30 |
1 | ||
| 90564-44062 |
NLP11#,NSP110 T=2.675, MARK 33 |
1 | ||
| 90564-44050 |
NLP11#,NSP110 T=2.375, MARK 21 |
1 | ||
| 90564-44060 |
NLP11#,NSP110 T=2.625, MARK 31 |
1 | ||
| 90564-44064 |
NLP11#,NSP110 T=2.725, MARK 35 |
1 | ||
| 90564-44057 |
NLP11#,NSP110 T=2.550, MARK 28 |
1 | ||
| 90564-44055 |
NLP11#,NSP110 T=2.500, MARK 26 |
1 | ||
| 90564-44063 |
NLP11#,NSP110 T=2.700, MARK 34 |
1 | ||
| 90564-44069 |
NLP11#,NSP110 T=2.850, MARK 40 |
1 | ||
| 90564-44068 |
NLP11#,NSP110 T=2.825, MARK 39 |
1 | ||
| 90564-44061 |
NLP11#,NSP110 T=2.650, MARK 32 |
1 | ||
| 90564-44065 |
NLP11#,NSP110 T=2.750, MARK 36 |
1 | ||
| 41311X - OUTER RACE, TAPERED ROLLER BEARING (FOR DIFF. CASE FRON | ||||
| 90366-40130 |
NLP110,NSP110 |
1 | ||
| 41311Y - OUTER RACE, TAPERED ROLLER BEARING (FOR DIFF. CASE REAR | ||||
| 90366-42010 |
NLP11#,NSP110 |
1 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-12011 |
NSP110 *206 |
2 | ||
| 41331-12011 |
NSP110 *201 |
2 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-12011 |
NSP110 *206 |
2 | ||
| 41331-12011 |
NSP110 *201 |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-12030 |
NSP110 *206 |
2 | ||
| 41341-12030 |
NSP110 *201 |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-12030 |
NSP110 *206 |
2 | ||
| 41341-12030 |
NSP110 *201 |
2 | ||
| 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90250-06058 |
NLP11#,NSP110 |
1 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-32020 |
NLP11#,NSP110 |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-12020 |
NSP110 |
2 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-12020 |
NSP110 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-22150 |
NLP11#,NSP110 T=1.05,MARK 15 |
2 | ||
| 41361-22170 |
NSP110 T=1.25,MARK 17 |
2 | ||
| 41361-22020 |
NLP11#,NSP110 T=1.00,MARK 02 |
2 | ||
| 41361-22180 |
NSP110 T=1.35,MARK 18 |
2 | ||
| 41361-22120 |
NSP110 T=1.30,MARK 12 |
2 | ||
| 41361-22040 |
NLP11#,NSP110 T=1.20,MARK 04 |
2 | ||
| 41361-22140 |
NLP11#,NSP110 T=0.95,MARK 14 |
2 | ||
| 41361-22030 |
NLP11#,NSP110 T=1.10,MARK 03 |
2 | ||
| 41361-48010 |
NSP110 T=0.90,MARK 19 |
2 | ||
| 41361-22160 |
NLP11#,NSP110 T=1.15,MARK 16 |
2 | ||
| 41361-22130 |
NSP110 T=1.40,MARK 13 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-22150 |
NLP11#,NSP110 T=1.05,MARK 15 |
2 | ||
| 41361-22170 |
NSP110 T=1.25,MARK 17 |
2 | ||
| 41361-22020 |
NLP11#,NSP110 T=1.00,MARK 02 |
2 | ||
| 41361-22180 |
NSP110 T=1.35,MARK 18 |
2 | ||
| 41361-22120 |
NSP110 T=1.30,MARK 12 |
2 | ||
| 41361-22040 |
NLP11#,NSP110 T=1.20,MARK 04 |
2 | ||
| 41361-22140 |
NLP11#,NSP110 T=0.95,MARK 14 |
2 | ||
| 41361-22030 |
NLP11#,NSP110 T=1.10,MARK 03 |
2 | ||
| 41361-48010 |
NSP110 T=0.90,MARK 19 |
2 | ||
| 41361-22160 |
NLP11#,NSP110 T=1.15,MARK 16 |
2 | ||
| 41361-22130 |
NSP110 T=1.40,MARK 13 |
2 | ||
| 41361G - WASHER, CONICAL SPRING(FOR CENTER DIFFERENTIAL SIDE GEA | ||||
| 90208-35001 |
NSP110 |
2 | ||
| 41361G - WASHER, CONICAL SPRING(FOR CENTER DIFFERENTIAL SIDE GEA | ||||
| 90208-35001 |
NSP110 |
2 | ||

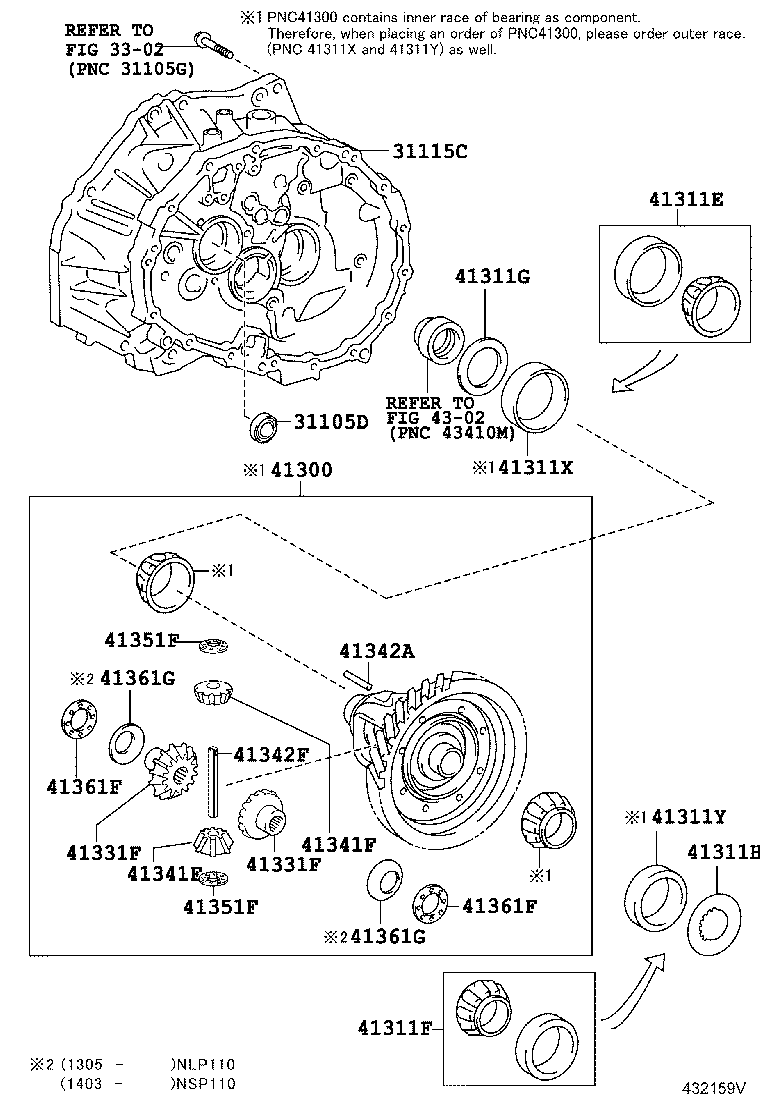

| Linked diagrams | ||||
| 3302 | ||||
| 4302 | ||||
