NSP110L-AHFNKW (2009)

Toyota Urban Cruiser

Production Jan 2009 - Apr 2016
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0901- )

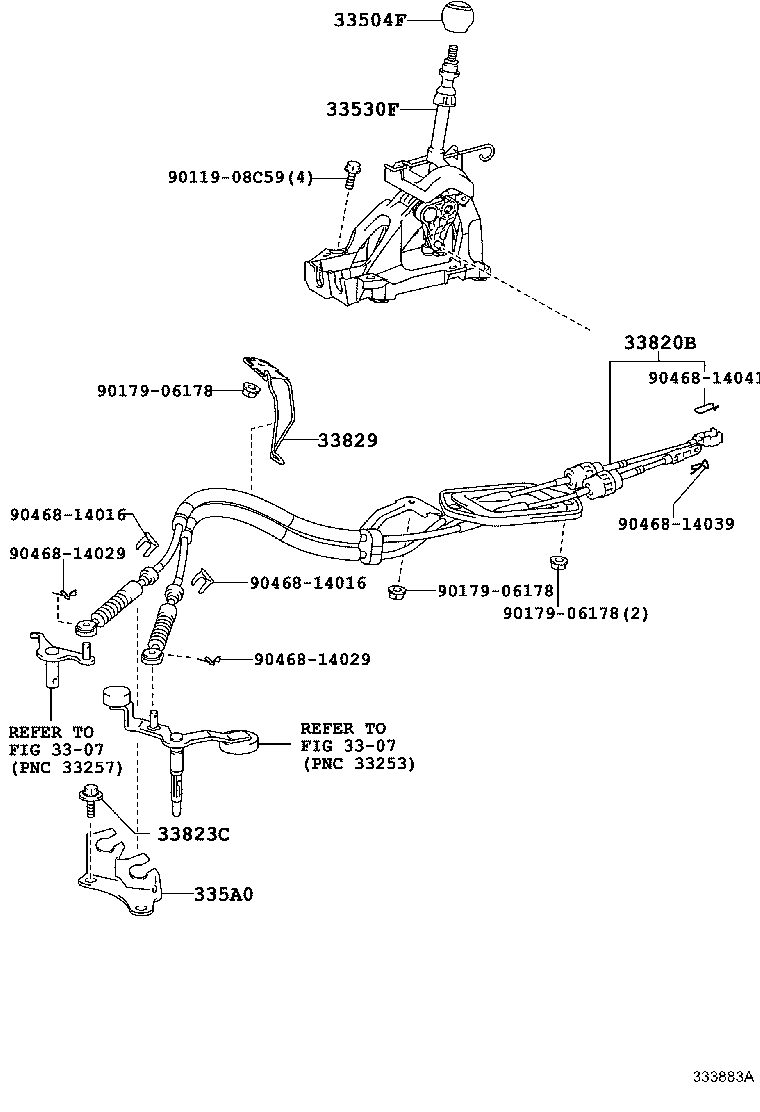

Click highlighted areas on diagram

diagram 3307 3307 33504F 33530F 335A0 33820B 33823C 33829 9011908C59 9017906178 9017906178 9017906178 9046814016 9046814016 9046814029 9046814029 9046814039 9046814041
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-52300C0

NLP11#,NSP110..N

BLACK,TRIM1#

 1
33504-52290C0

NLP11#,NSP110..R

BLACK,TRIM1#

 1
33504-12320B1

NLP11#,NSP110..R

DK.GRAY,TRIM1#

 1
33504-12330B1

NLP11#,NSP110..N

DK.GRAY,TRIM1#

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-52260

NLP11#,NSP110

 1
335A0 - BRACKET ASSY, CONTROL CABLE
335A0-52010

NSP110

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-52650

NSP110

 1
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
90119-08C60

NLP11#,NSP110

 3
33829 - SUPPORT, TRANSMISSION CONTROL CABLE
33829-52170

NLP11#,NSP110

 1
Common parts
90119-08C59
90179-06178
90468-14016
90468-14029
90468-14039
90468-14041
Linked diagrams
3307
