NSP110L-AHFNKW (2009)
Toyota Urban Cruiser
Production
Jan 2009
-
Apr 2016
Engine
1NRFE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0901- )LHD

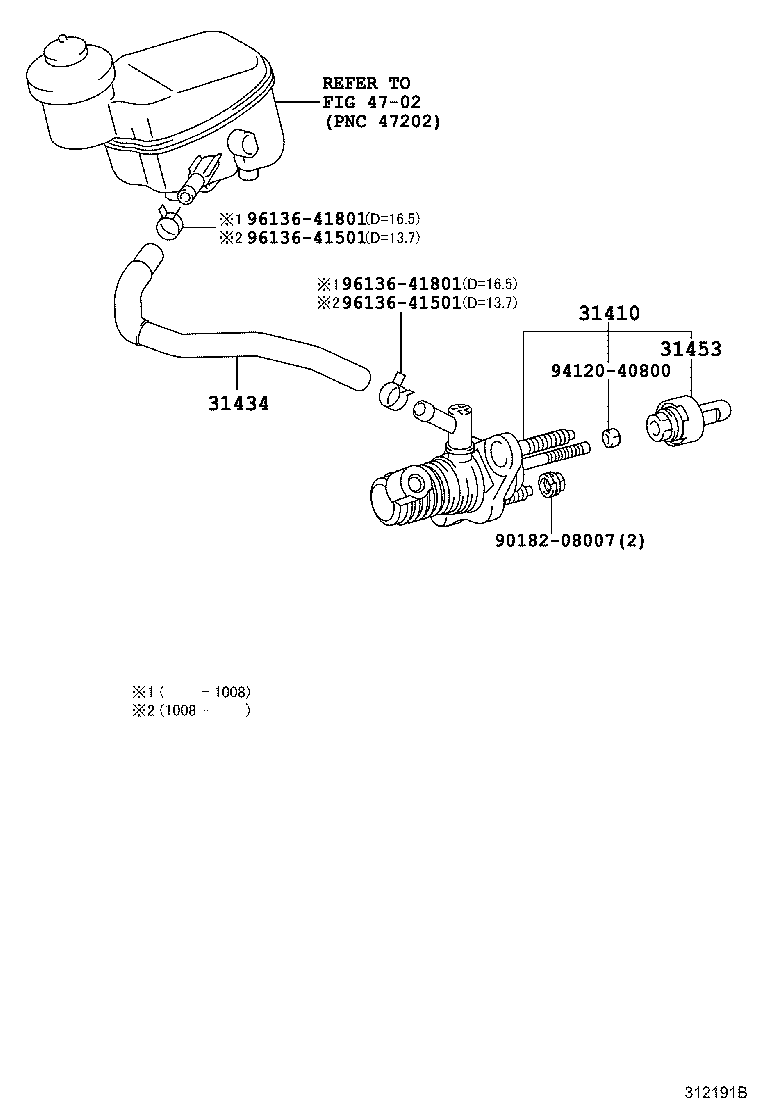

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31410 - CYLINDER ASSY, CLUTCH MASTER | ||||
| 31420-52070 |
NLP110,NSP110..LHD |
1 | ||
| 31434 - TUBE, CLUTCH RESERVOIR | ||||
| 31434-52150 |
NLP110,NSP110..LHD |
1 | ||
| 31434-52230 |
NLP110,NSP110..LHD |
1 | ||
| 31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD | ||||
| 31404-26020 |
NLP110,NSP110..LHD |
1 | ||
| Common parts | ||||
| 90182-08007 | ||||
| 94120-40800 | ||||
| 96136-41501 | ||||
| 96136-41801 | ||||
| Linked diagrams | ||||
| 4702 | ||||
