NSP110L-AHFNKW (2009)

Toyota Urban Cruiser

Production Jan 2009 - Apr 2016
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

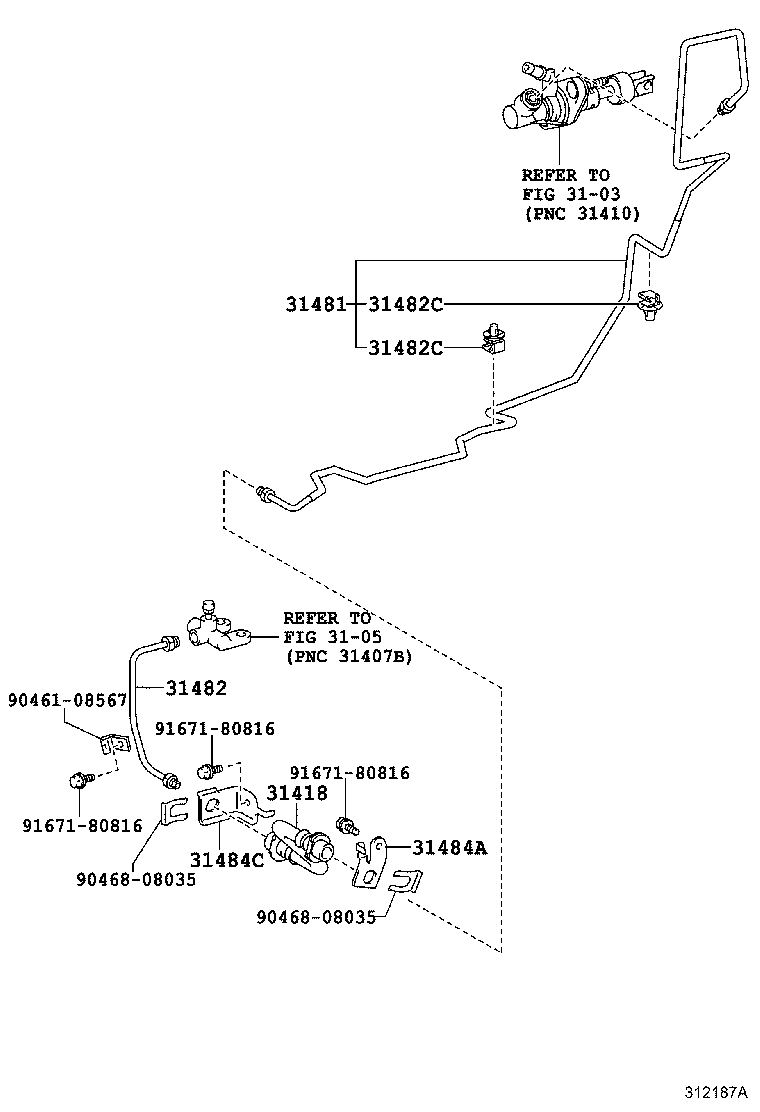

ILLUST NO. 2 OF 2(0901- )NSP110..LHD

Click highlighted areas on diagram

diagram 3103 3105 31418 31481 31482 31482C 31482C 31484A 31484C 9046108567 9046808035 9046808035 9167180816 9167180816 9167180816
Part # Description Qty Price
31418 - HOSE, CLUTCH
90947-02G28

NSP110

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-52110

NLP11#,NSP110..LHD

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-52100

NSP110

 1
31482C - CLAMP(FOR CLUTCH TUBE)
90949-01D17

NLP11#,NSP110

 2
31482C - CLAMP(FOR CLUTCH TUBE)
90949-01D17

NLP11#,NSP110

 2
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-52090

NLP11#,NSP110

 1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-52160

NLP11#,NSP110

 1
Common parts
90461-08567
90468-08035
91671-80816
Linked diagrams
3103
3105

ILLUST NO. 1 OF 2(0901- )NSP110..LHD

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31321 31324 31324A 4701 4701 55107A 8401 8401 8401 9010508120 9017910088
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31311-52040

NLP11#,NSP110..LHD

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90507-14047

NSP110..LHD

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

NLP11#,NSP110

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

NLP11#,NSP110

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

NLP11#,NSP110

 2
31321 - PAD, CLUTCH PEDAL
31321-52010

NLP11#,NSP110

 1
31321-52020

NSP110

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10081

NLP11#,NSP110..LHD

 1
90105-10563

NLP11#,NSP110..LHD

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10004

NLP11#,NSP110..LHD

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-52190

NSP110..LHD

 1
55107-52191

NSP110..LHD

 1
Common parts
90105-08120
90179-10088
Linked diagrams
4701
8401
