Toyota Urban cruiser NSP110 ALTERNATOR

NSP110L-AHFNKW (2009)

Toyota Urban Cruiser

Production Jan 2009 - Apr 2016

Engine 1NRFE

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(0901- )1NRFE

Click highlighted areas on diagram

12V 80A

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-47020	1NRFE..NSP110..LHD 12V 100A,COLD SPEC & WITH(REAR HEATER DUCT)	01/2009 - 12/2999	1
27060-47031	1NRFE..NSP110..LHD 12V 100A,COLD SPEC & WITHOUT(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)	09/2010 - 12/2999	1
27060-47050	1NRFE..NSP110..LHD 12V 80A,WITH(STOP & START SYSTEM)	01/2009 - 12/2999	1
27060-47010	1NRFE..NSP110..LHD 12V 80A	01/2009 - 12/2999	1
27060-47030	1NRFE..NSP110..LHD 12V 100A,COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)	01/2009 - 08/2010	1
27060-47020	1NRFE..NSP110..LHD 12V 100A,COLD SPEC & WITHOUT(REAR HEATER DUCT)	01/2009 - 12/2999	1
27060-47030	1NRFE..NSP110..LHD 12V 100A,COLD SPEC & WITHOUT(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)	01/2009 - 08/2010	1
27060-47031	1NRFE..NSP110..LHD 12V 100A,COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)	09/2010 - 12/2999	1
27020E - BOLT(FOR ALTERNATOR)
91552-81075	1NRFE..NSP110	01/2009 - 12/2999	1
27330 - ROTOR ASSY, ALTERNATOR
27330-23130	1NRFE..NSP110..LHD COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)	01/2009 - 12/2999	1
27330-23130	1NRFE..NSP110..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)	01/2009 - 12/2999	1
27330-30130	1NRFE..NSP110	04/2009 - 12/2999	1
27330-30070	1NRFE..NSP110..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)	01/2009 - 12/2999	1
27330-30070	1NRFE..NSP110..LHD COLD SPEC & WITH(REAR HEATER DUCT)	01/2009 - 12/2999	1
27330-62220	1NRFE..NSP110	01/2009 - 04/2009	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-47170	1NRFE..NSP110..LHD WITH(STOP & START SYSTEM)	01/2009 - 12/2999	1
27357-22200	1NRFE..NSP110..LHD	01/2009 - 12/2999	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-31220	1NRFE..NSP110..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)	01/2009 - 12/2999	1
27370-23120	1NRFE..NSP110	01/2009 - 12/2999	1
27370-31220	1NRFE..NSP110..LHD COLD SPEC & WITH(REAR HEATER DUCT)	01/2009 - 12/2999	1
27370-31220	1NRFE..NSP110..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)	01/2009 - 12/2999	1
27370-31220	1NRFE..NSP110..LHD COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)	01/2009 - 12/2999	1
27411 - PULLEY, ALTERNATOR
27411-22210	1NRFE..NSP110	01/2009 - 12/2999	1
27700A - REGULATOR ASSY, GENERATOR
27700-40040	1NRFE..NSP110..LHD WITH(STOP & START SYSTEM)	01/2009 - 12/2999	1
27700-75030	1NRFE..NSP110..LHD	01/2009 - 12/2999	1
Common parts
82715-52T90
91671-80612
91671-80845
94151-80600

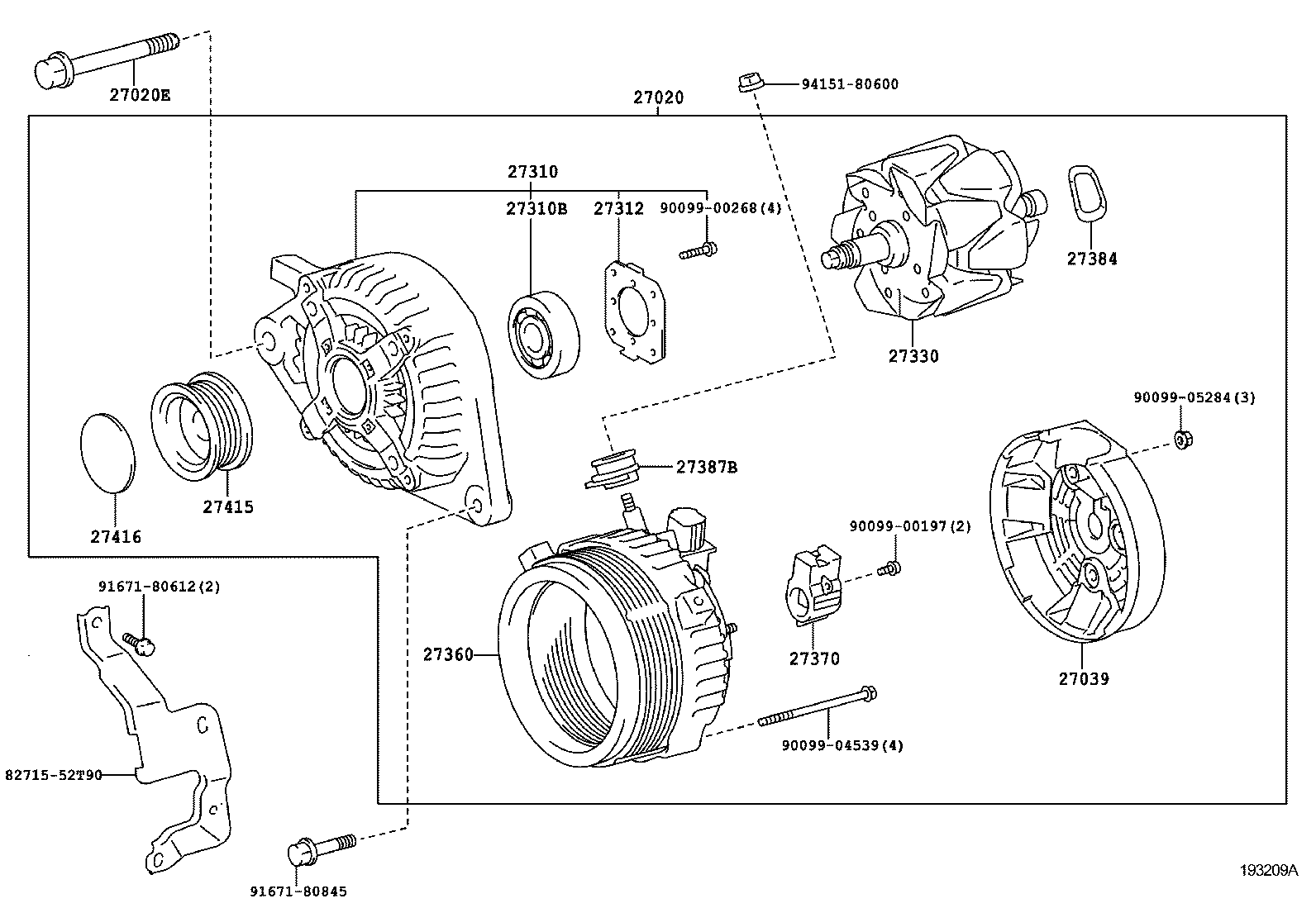

(0901- )1NRFE..LHD

Click highlighted areas on diagram

12V 100A

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-47020	1NRFE..NSP110..LHD 12V 100A,COLD SPEC & WITH(REAR HEATER DUCT)	01/2009 - 12/2999	1
27060-47031	1NRFE..NSP110..LHD 12V 100A,COLD SPEC & WITHOUT(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)	09/2010 - 12/2999	1
27060-47050	1NRFE..NSP110..LHD 12V 80A,WITH(STOP & START SYSTEM)	01/2009 - 12/2999	1
27060-47010	1NRFE..NSP110..LHD 12V 80A	01/2009 - 12/2999	1
27060-47030	1NRFE..NSP110..LHD 12V 100A,COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)	01/2009 - 08/2010	1
27060-47020	1NRFE..NSP110..LHD 12V 100A,COLD SPEC & WITHOUT(REAR HEATER DUCT)	01/2009 - 12/2999	1
27060-47030	1NRFE..NSP110..LHD 12V 100A,COLD SPEC & WITHOUT(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)	01/2009 - 08/2010	1
27060-47031	1NRFE..NSP110..LHD 12V 100A,COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)	09/2010 - 12/2999	1
27020E - BOLT(FOR ALTERNATOR)
91552-81075	1NRFE..NSP110	01/2009 - 12/2999	1
27039 - COVER, ALTERNATOR REAR END
27039-26170	1NRFE..NSP110..LHD COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)	01/2009 - 04/2009	1
27039-31390	1NRFE..NSP110..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)	02/2009 - 12/2999	1
27039-26170	1NRFE..NSP110..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)	01/2009 - 04/2009	1
27039-31390	1NRFE..NSP110..LHD COLD SPEC & WITH(REAR HEATER DUCT)	02/2009 - 12/2999	1
27039-31390	1NRFE..NSP110..LHD COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)	04/2009 - 12/2999	1
27039-26170	1NRFE..NSP110..LHD COLD SPEC & WITH(REAR HEATER DUCT)	01/2009 - 02/2009	1
27039-26170	1NRFE..NSP110..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)	01/2009 - 02/2009	1
27039-31390	1NRFE..NSP110..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)	04/2009 - 12/2999	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-47140	1NRFE..NSP110..LHD COLD SPEC & WITH(REAR HEATER DUCT)	01/2009 - 12/2999	1
27310-47140	1NRFE..NSP110..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)	01/2009 - 12/2999	1
27310-47140	1NRFE..NSP110..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)	01/2009 - 12/2999	1
27310-47140	1NRFE..NSP110..LHD COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)	01/2009 - 12/2999	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10223	1NRFE..NSP110..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)	01/2009 - 12/2999	1
90099-10223	1NRFE..NSP110..LHD COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)	01/2009 - 12/2999	1
90099-10223	1NRFE..NSP110..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)	01/2009 - 12/2999	1
90099-10223	1NRFE..NSP110..LHD COLD SPEC & WITH(REAR HEATER DUCT)	01/2009 - 12/2999	1
27312 - PLATE, RETAINER
27312-72100	1NRFE..NSP110..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)	01/2009 - 12/2999	1
27312-72100	1NRFE..NSP110..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)	01/2009 - 12/2999	1
27312-72100	1NRFE..NSP110..LHD COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)	01/2009 - 12/2999	1
27312-72100	1NRFE..NSP110..LHD COLD SPEC & WITH(REAR HEATER DUCT)	01/2009 - 12/2999	1
27330 - ROTOR ASSY, ALTERNATOR
27330-23130	1NRFE..NSP110..LHD COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)	01/2009 - 12/2999	1
27330-23130	1NRFE..NSP110..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)	01/2009 - 12/2999	1
27330-30130	1NRFE..NSP110	04/2009 - 12/2999	1
27330-30070	1NRFE..NSP110..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)	01/2009 - 12/2999	1
27330-30070	1NRFE..NSP110..LHD COLD SPEC & WITH(REAR HEATER DUCT)	01/2009 - 12/2999	1
27330-62220	1NRFE..NSP110	01/2009 - 04/2009	1
27360 - COIL ASSY, ALTERNATOR
27360-47151	1NRFE..NSP110..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)	09/2010 - 12/2999	1
27360-47150	1NRFE..NSP110..LHD COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)	01/2009 - 09/2010	1
27360-47150	1NRFE..NSP110..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)	01/2009 - 09/2010	1
27360-47140	1NRFE..NSP110..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)	01/2009 - 12/2999	1
27360-47151	1NRFE..NSP110..LHD COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)	09/2010 - 12/2999	1
27360-47140	1NRFE..NSP110..LHD COLD SPEC & WITH(REAR HEATER DUCT)	01/2009 - 12/2999	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-23120	1NRFE..NSP110	01/2009 - 12/2999	1
27370-31220	1NRFE..NSP110..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)	01/2009 - 12/2999	1
27370-31220	1NRFE..NSP110..LHD COLD SPEC & WITH(REAR HEATER DUCT)	01/2009 - 12/2999	1
27370-31220	1NRFE..NSP110..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)	01/2009 - 12/2999	1
27370-31220	1NRFE..NSP110..LHD COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)	01/2009 - 12/2999	1
27384 - WASHER
27384-50030	1NRFE..NSP110..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)	01/2009 - 12/2999	1
27384-50030	1NRFE..NSP110..LHD COLD SPEC & WITH(REAR HEATER DUCT)	01/2009 - 12/2999	1
27384-50030	1NRFE..NSP110..LHD COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)	01/2009 - 12/2999	1
27384-50030	1NRFE..NSP110..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)	01/2009 - 12/2999	1
27387B - INSULATOR, ALTERNATOR TERMINAL
27387-20130	1NRFE..NSP110..LHD COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)	01/2009 - 12/2999	1
27387-20130	1NRFE..NSP110..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)	01/2009 - 12/2999	1
27387-20130	1NRFE..NSP110..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&WITH(STOP & START SYSTEM)	01/2009 - 12/2999	1
27387-20130	1NRFE..NSP110..LHD COLD SPEC & WITH(REAR HEATER DUCT)	01/2009 - 12/2999	1
27415 - PULLEY, ALTERNATOR W/CLUTCH
27415-0Y020	1NRFE..NSP110..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)	01/2009 - 06/2013	1
27415-0Y021	1NRFE..NSP110..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)	07/2013 - 04/2016	1
27415-0Y020	1NRFE..NSP110..LHD COLD SPEC & WITH(REAR HEATER DUCT)	01/2009 - 06/2013	1
27415-0Y021	1NRFE..NSP110..LHD COLD SPEC & WITH(REAR HEATER DUCT)	07/2013 - 04/2016	1
27416 - CAP, ALTERNATOR PULLEY
27416-0W050	1NRFE..NSP110..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)	01/2009 - 04/2016	1
27416-0W050	1NRFE..NSP110..LHD COLD SPEC & WITH(REAR HEATER DUCT)	01/2009 - 04/2016	1
Common parts
82715-52T90
90099-00197
90099-00268
90099-04539
90099-05284
91671-80612
91671-80845
94151-80600
