NSP110L-AHFNKW (2009)

Toyota Urban Cruiser

Production Jan 2009 - Apr 2016
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0901- )1NRFE

Click highlighted areas on diagram

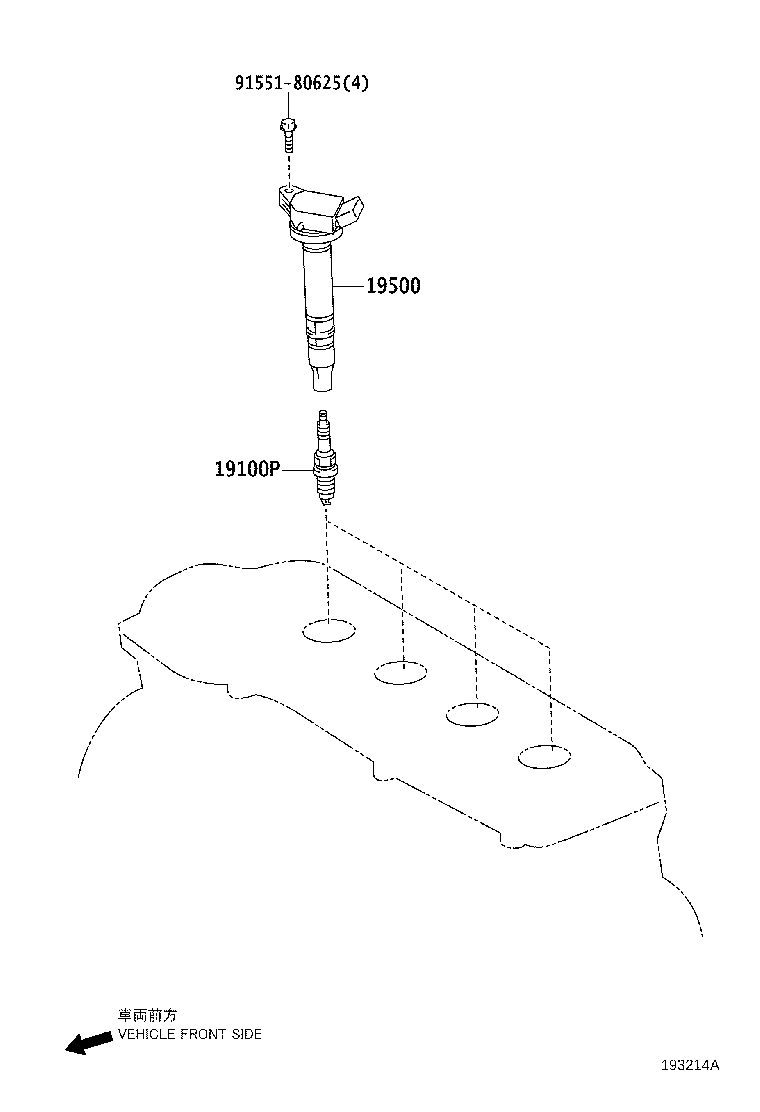

diagram 19100P 19500 9155180625
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01253

1NRFE..NSP110

SC20HR11

 4
90919-01275

1NRFE..NSP110

SC16HR11

 4
19500 - COIL ASSY, IGNITION
90919-02257

1NRFE..NSP110

 4
Common parts
91551-80625
