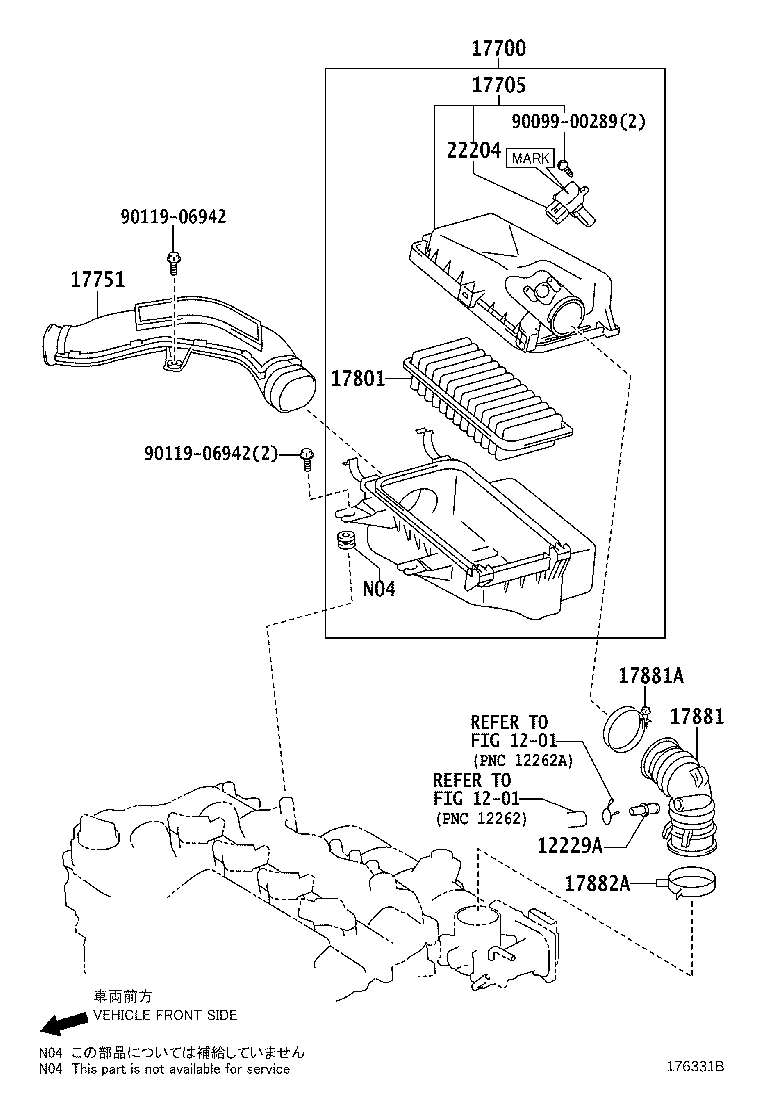

Toyota Urban cruiser NSP110 AIR CLEANER

Part #	Description	Period	Qty
12229A - PIPE, VENTILATION
12229-21010	1NRFE..NSP110	01/2009 - 12/2999	1
17700 - CLEANER ASSY, AIR
17700-47140	1NRFE..NSP110	01/2009 - 03/2011	1
17700-47141	1NRFE..NSP110	04/2011 - 12/2999	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-47101	1NRFE..NSP110	02/2010 - 03/2011	1
17705-47100	1NRFE..NSP110	01/2009 - 02/2010	1
17705-47102	1NRFE..NSP110	04/2011 - 12/2999	1
17751 - INLET, AIR CLEANER, NO.1
17751-47050	1NRFE..NSP110	01/2009 - 08/2010	1
17751-47060	1NRFE..NSP110	08/2010 - 12/2999	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-21030	1NRFE..NSP110	01/2009 - 12/2999	1
17881 - HOSE, AIR CLEANER, NO.1
17881-47050	1NRFE..NSP110	01/2009 - 08/2010	1
17881-47060	1NRFE..NSP110	08/2010 - 12/2999	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10690	1NRFE..NSP110	01/2009 - 12/2999	1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90466-62002	1NRFE..NSP110	01/2009 - 12/2999	1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-28010	1NRFE..NSP110 MARK 22204-28010	04/2011 - 12/2999	1
22204-0V010	1NRFE..NSP110 MARK 22204-0V010	04/2011 - 12/2999	1
22204-0T040	1NRFE..NSP110 MARK 22204-0T040	04/2011 - 12/2999	1
22204-37010	1NRFE..NSP110	01/2009 - 03/2011	1
22204-0V020	1NRFE..NSP110 MARK 22204-0V020	04/2011 - 12/2999	1
Common parts
90099-00289
90119-06942
Linked diagrams
1201

NSP110L-AHFNKW (2009)
